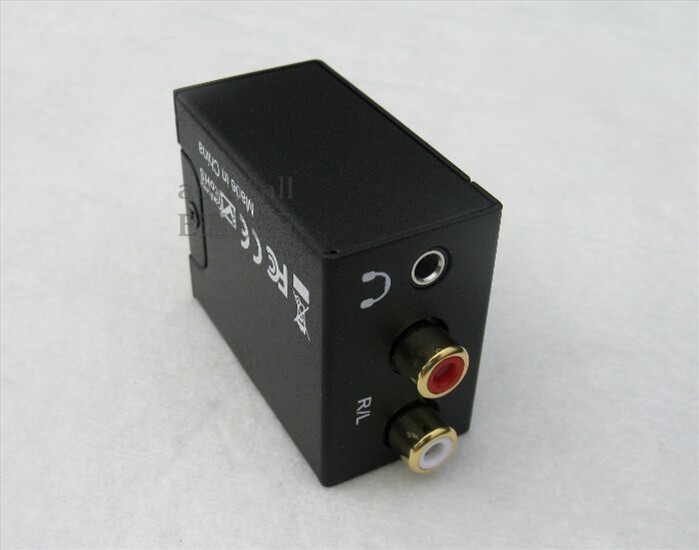

Digital to Analog Audio Converter / Digital Audio to Analog Audio Converter
Detailed description
Brief introduction
The digital to analog audio converter can be used for home or professional audio switch， which can be a coaxial cable or Toslink digital audio signal into an analog L / R audio jacks can be simultaneously connected to peripherals such as the amplifier via standard RCA-style equipment.
characteristic
The HDMI Matrix Switcher has many features and excellent performance. In these features you will find:
1. The coaxial cable or Toslink digital audio signal into an analog L / R audio;
2. Support 32， 44.1， 48 and 96 KHz sampling rate and 192KHZ;
3. Support the left and right channel 24-bit S / PDIF incoming bit stream on;
4 .. no electromagnetic noise transmission;
5. Installation is simple， easy to use.
specification


Signal Input / Output

 An audio signal input

Coaxial or optical digital audio cable
Audio signal output

L / R audio
Joints

 Audio input connector

Fiber optic lines， 1xRCA (coaxial)
Audio Output Connector

2XRCA (R / L)
Sampling Rate

32， 44.1， 48 and 96 KHz / 192KHZ
physical dimension

 Dimensions (L x W x H)

51X41X26MM
Weight (Net)

78g
Warranty

 warranty period

1 year
Environmental requirements

Temperature (used)

0 ℃ to + 70 ℃
Humidity (when used)

10% to 85% RH (non-crystalline)
Temperature (storage time)

-10 ℃ to + 80 ℃
Humidity (storage time)

5% to 90% RH (non-crystalline)
Power Requirements

 External power supply

5V DC
Power consumption (maximum)

0.3 W
Management Certification

Converter means

FCC， CE， UL

UL， CE， FCC
annex



US standard， UK standard and so on
User's manual

English version
