Product Description

Introduction

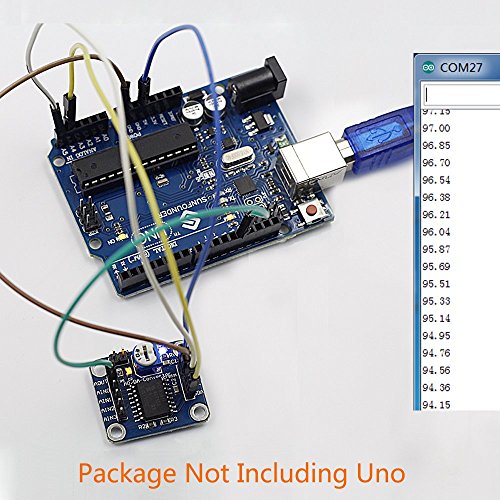

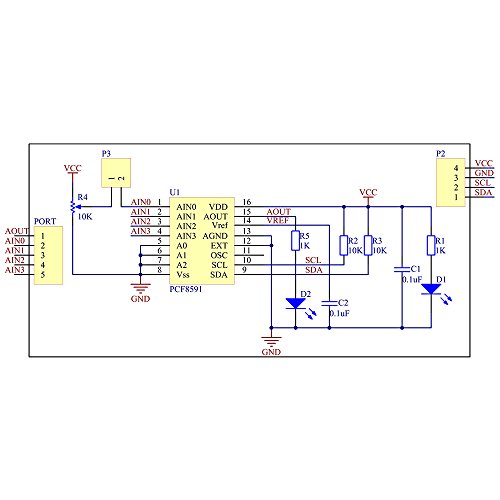

About PCF8591 AD/DA Chip
The PCF8591 is a single-chip， single-supply and low-power 8-bit CMOS data acquisition device with four analog inputs， one analog output and a serial I2C-bus interface. Three address pins A0， A1 and A2 are used for programming the hardware address， allowing the use of up to eight devices connected to the I2C-bus without additional hardware. Address， control and data to and from the device are transferred serially via the two-line bidirectional I2C-bus.

Performance of PCF8591
Single supply， low standby current
Address by 3 hardware address pins
Sampling rate given by I2C-bus speed
4 analog inputs programmable as single-ended or differential inputs
Auto-incremented channel selection
Analog voltage range from VSS to VDD
On-chip track and hold circuit
Multiplying DAC with one analog output

Application
AD/DA converter

Component List

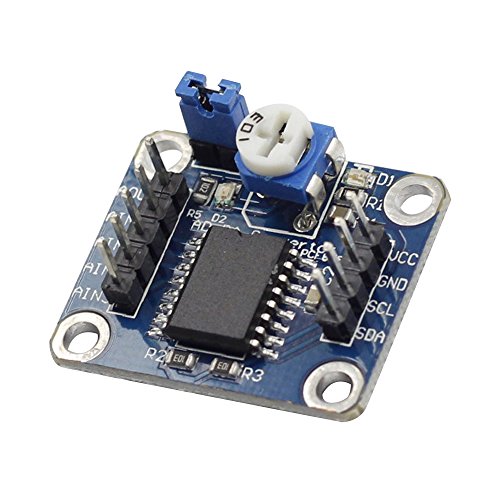

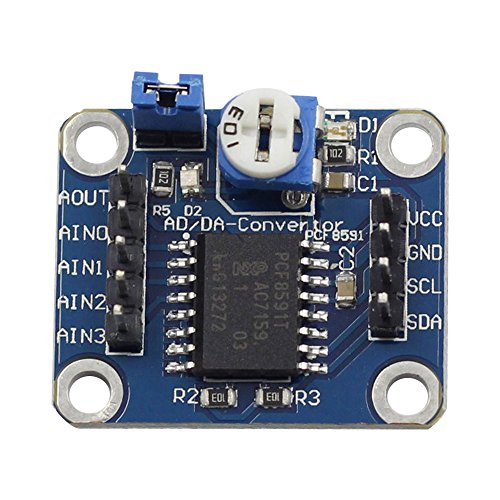

- 1 * AD/DA Converter PCF8591 module

Feature

Support acquisition of external 4-line voltage inputs (ranging 0-5v)， with a single power supply

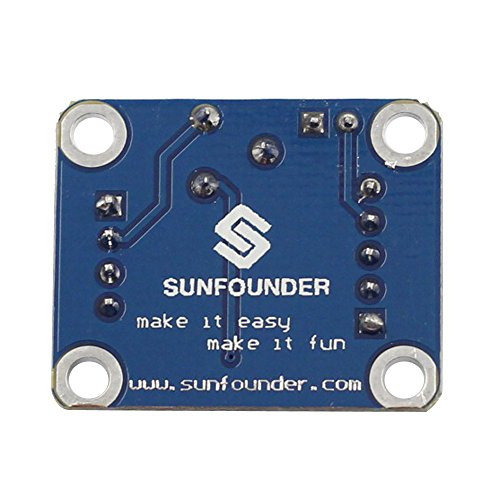

Standard double-sided printed circuit board， 1.16mm thick， with an elegant layout， 3-mm holes at each corner for easy fixing
Use an 8-bit successive approximation A/D converter
Input/output by an I2C bus
Working voltage: 2.5-6V DC; PCB size: 2.4 x 2.8 cm
Brand : SunFounder
MPN(PartNumber) : miniLCD
EAN : 0701715367067
