Product Description

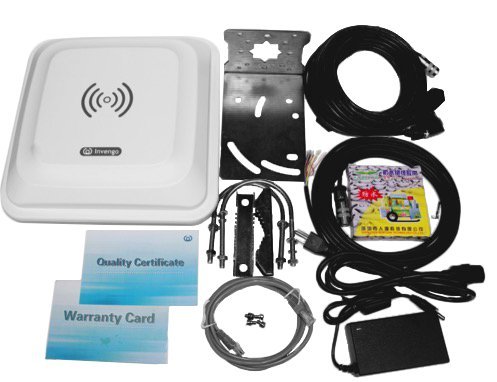

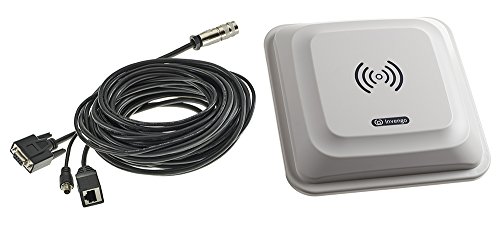

Invengo's XC-RF850 is a compact and fully integrated UHF RFID reader that delivers excellent performance at an incredible value. The reader has a sleek design and is easy to install. The XC-RF850 is Linux based and provides reliable reading with ease of programming and communication. With multiple connectivity options, it is ideally suited for vehicle, personnel, and asset tracking applications. What's Included? Invengo XC-RF850 Integrated UHF RFID Reader Unit, RS-232 Cable, Ethernet Cable, GPIO Cable, Weatherproof Sealing Tape, One Year Factory Warranty, Free Application Software (Contact Us), and a Pole Mounting Bracket. SPECIFICATIONS ELECTRICAL: Air Interface Protocol: EPCglobal UHF Class 1 Gen 2 (ISO 18000-6C) Operating Frequency: US (902-928 MHz) Transmit Power: 9.0 to 30 dBm Max Receive Power: Not Published Max Read Distance: Not Published Max Read Rate: Not Published Gain: 7.15 dBi Data Interface: RS-232, Ethernet GPIO: 2 Isolated inputs, 3 Relay outputs or 2 Inputs, 3 Wiegand outputs Power Source: IEEE802.3at PoE; Power Supply and Cord not included MECHANICAL: Antenna Ports: 1 RP-TNC Female additional port Dimensions: 11.5 x 11.5 x 3.4 in (291 x 291 x 86 mm) Weight: 4.40 lbs (1995.8 g) ENVIRONMENT: IP Rating: IP 65 Operating Temperature: -20° to 70° C APPLICATION INTERFACE: Host API: JAVA, .NET, C Demo Software: Invengo RFID Demo Software Application Software: Invengo ConneXion
