Item Descriptions:

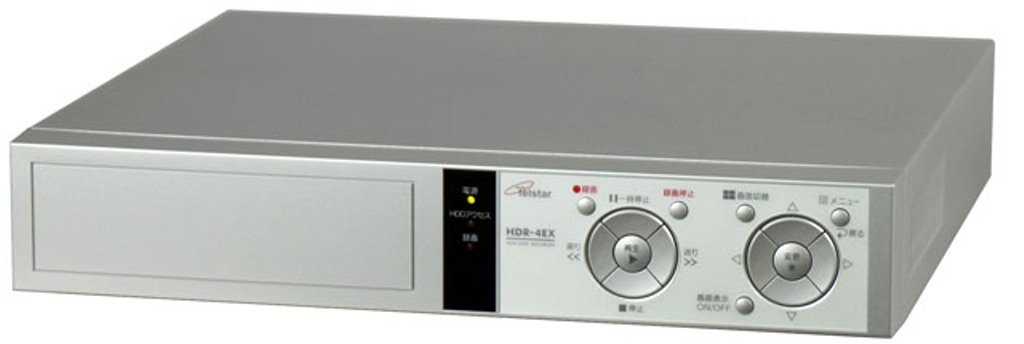

Product introduction

Built-in 500 GB HDD

From Amazon

● Four cameras can be connected, simultaneous recording and simultaneous playback possible

● Detect moving objects from video changes and start recording automatically.

Recording can be started only when a suspicious person intrudes, so you can efficiently record and play

● You can set the area to disable the motion sensor for each camera

● Start recording 5 seconds before error occurs (when alarm signal is detected)

● Alarm recording function (when recording reservation is set).

You can set the time for recording alarms with the recording reservation settings.

The recording schedule of 1 day (24 hours) can be set hourly.

Set it as nighttime or early in the morning etc, start recording when abnormality occurs (arbitrary value from 1 to 180 seconds, can be changed in units of 5 seconds)

● Sensor input 4CH · Alarm output 1CH.

When one of the sensors operates, since all the channels set in the channel setting are recorded at the same time, there is no missing

● Auto Sequence (Automatic screen switching) function.

Automatically switch between 4 division screen and each camera screen

Features:

• Size: Width 34 × Depth 30 × Height 7 cm
• Body weight: 3.2 kg
• Country of Origin: Japan
• Power supply: AC 100 V (50/60 Hz), Power consumption: 50 W or less, Video input: BNC × 4 CH (NTSC), Video output: BNC × 1 CH (NTSC)
• Video compression method: MPEG-4, recording frame rate (frames / second): 30/15/10/5/3/2/1, recording resolution: 1 to 2 CH at 704 × 240/3 to 4 CH at 352 × 240,
• Recording image quality setting: 3 levels (high image quality / standard image quality / long time)
• Fast forward / rewind speed: × 1/2, × 2, × 4, × 8, × 16, × 32, × 64, HDD capacity: 500 GB, motion sensor: each CH area and level can be specified, alarm recording setting:
• Pre-recording (ON * When recording an alarm, recording is possible from 5 seconds before the detection time (fixed for 5 seconds and can not be changed) / OFF)
• Screen display: 1 screen / 4 screen · Auto sequence display, password setting: 4 digits of number, clock accuracy: within ± 60 seconds of monthly difference, and other main functions: video capture correction function
• Operating temperature range: 0 to +40 degrees, humidity range used: 10 to 90%, accessories: Power cord × 1 · BNC to RCA conversion connector × 5 · Instruction manual (warranty card) × 1 · Quick start guide × 1

Product information:

Shipping Weight: 4182 g

Package Dimensions: 11.99 x 40.49 x 44.50 cm
