Item Descriptions:

<Specification>

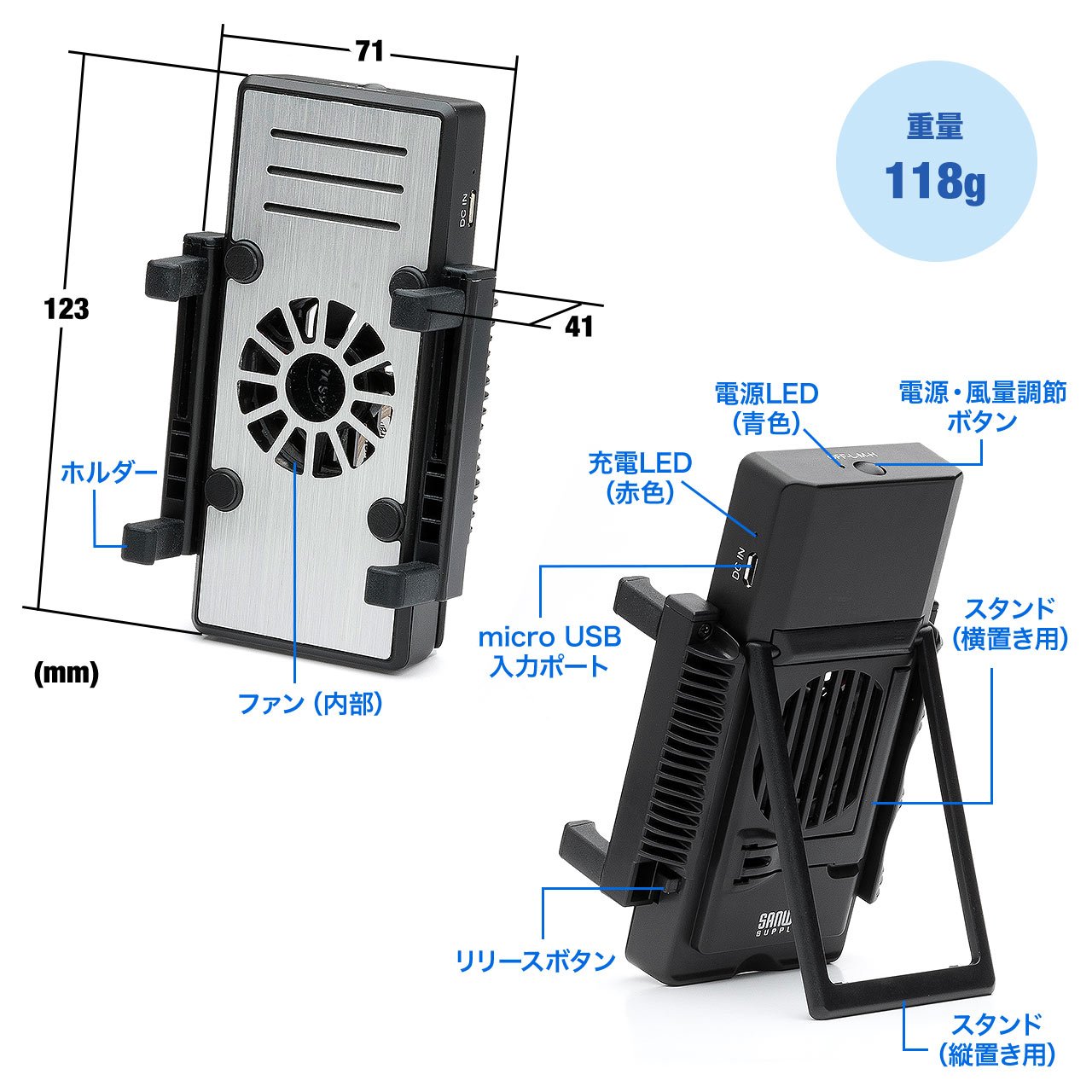

■ Size: W71 × D41 × H 123 mm

Weight ■: about 118 g

■ Fan size: W40 × D10 × H40 mm

■ Fan speed: 4000 ± 10% rpm

■ Maximum air volume: weak / 3.5 CFM, medium / 4.5 CFM, strong / 5.0 CFM

■ Noise Level: Weak / 24 dBA, Medium / 27 dBA, Strong / 33 dBA

■ Available time (fan rotation only): Weak / about 4 hours, medium / 3.5 hours, strong / about 3 hours

■ Battery: Lithium ion polymer battery

Battery capacity: 3.7 V / 1000 mAh (3.7 Wh)

Input voltage: DC 5 V

Input current: 0.5 A

■ Charging time: about 1.5 hours

Producing countries ■: China

■ Warranty period: 6 months from date of purchase

■ Instruction Manual: Yes

■ Compatible models: smart phone with width 53 to 95 mm, depth 15 mm or less

【please note】

※ If you are wearing a case, the effect may decrease, or it may not be installed in this product.

※ microUSB cable is sold separately.

* Depending on the usage environment, there may be a difference in the effect.

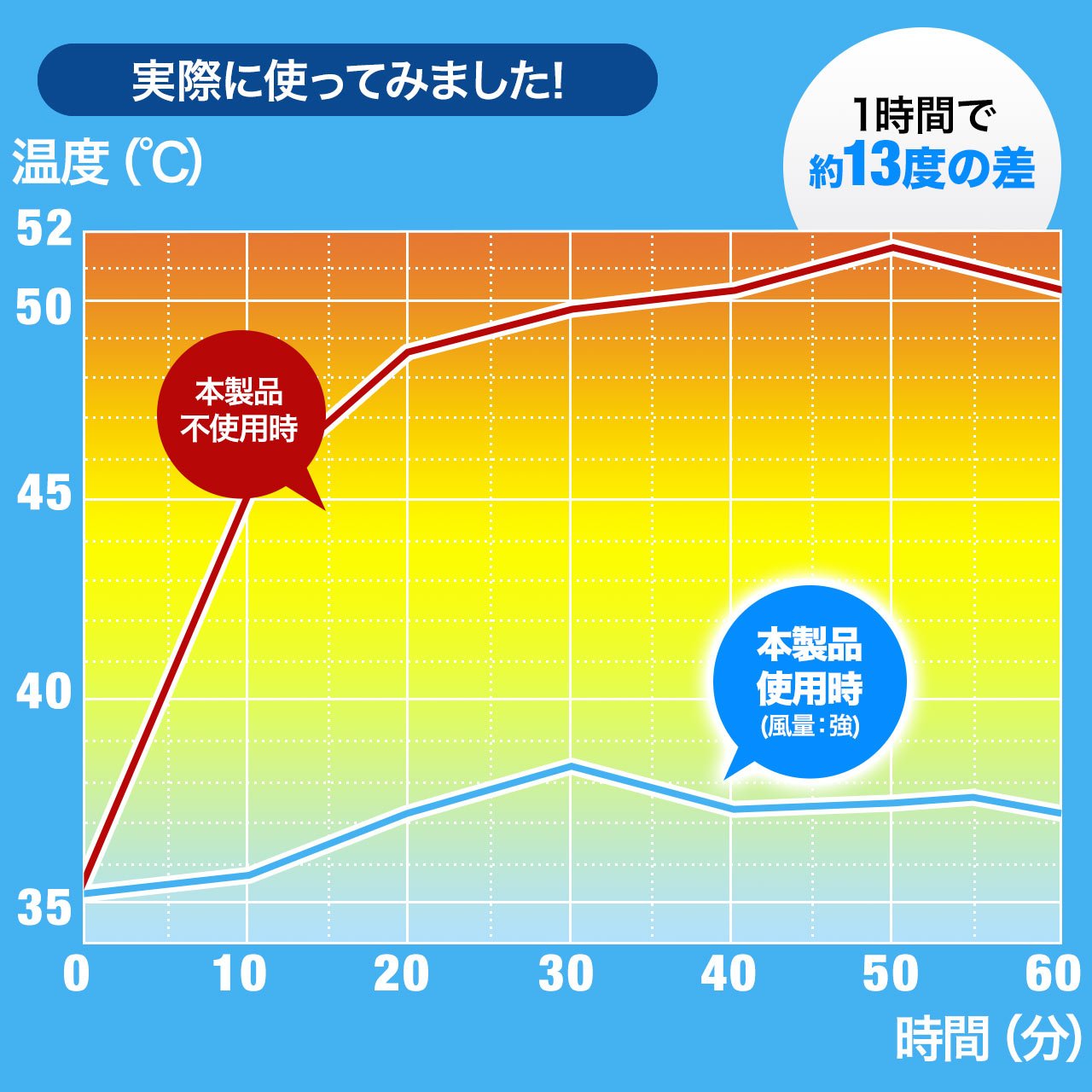

The graph of "I tried to use" is our measurement value when using Xperia Z4 and browsing a video for 1 hour in a room of about 28.7 degrees.

※ The cable for battery storage is not included.

Please prepare separately.

* Although you can cool while carrying around, smartphone operation while carrying it with your hand is very dangerous.

Please stop it.

* Information on errors in part of instruction manual

There was an error in the content described in the instruction manual of the product enclosed.

We sincerely apologize for any inconvenience.

-Modification place-

■ 2. Specification

Battery

[False] Lithium ion battery

[Correct] Lithium ion polymer battery

Features:

• Please enter model number Confirm this is compatible:
• It is a smart cooling cooler that blows the smart head with a cooling fan with seven blades to cool it.
• Because of long-time use, watching / shooting of movies, deterioration of the battery, etc., you can let the heat of the hot smartphone escape.

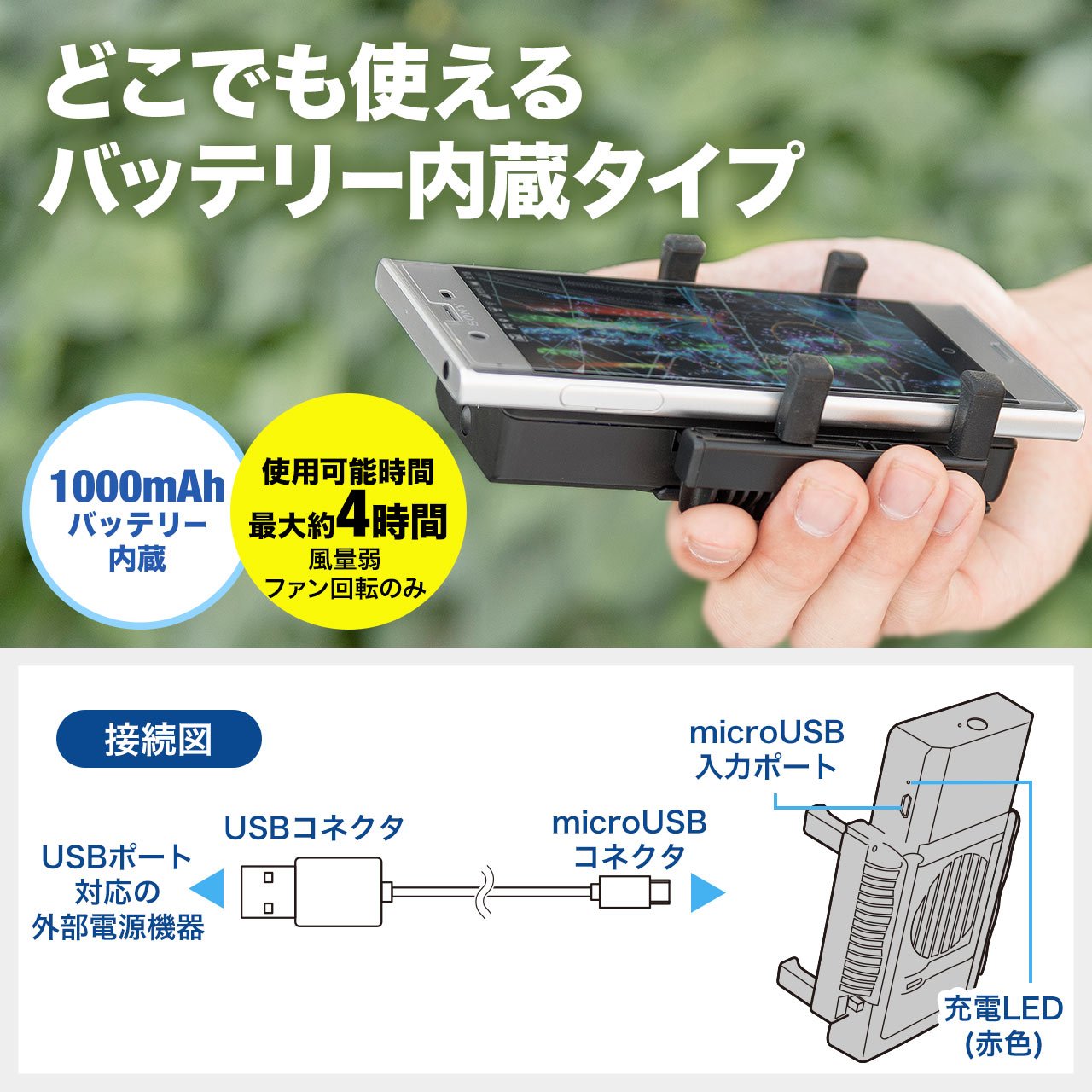

• Built-in 1000 mAh battery, you can use it anywhere you need without power if you charge in advance.
• (* Fan rotation is possible for about 4 hours with full charge.)

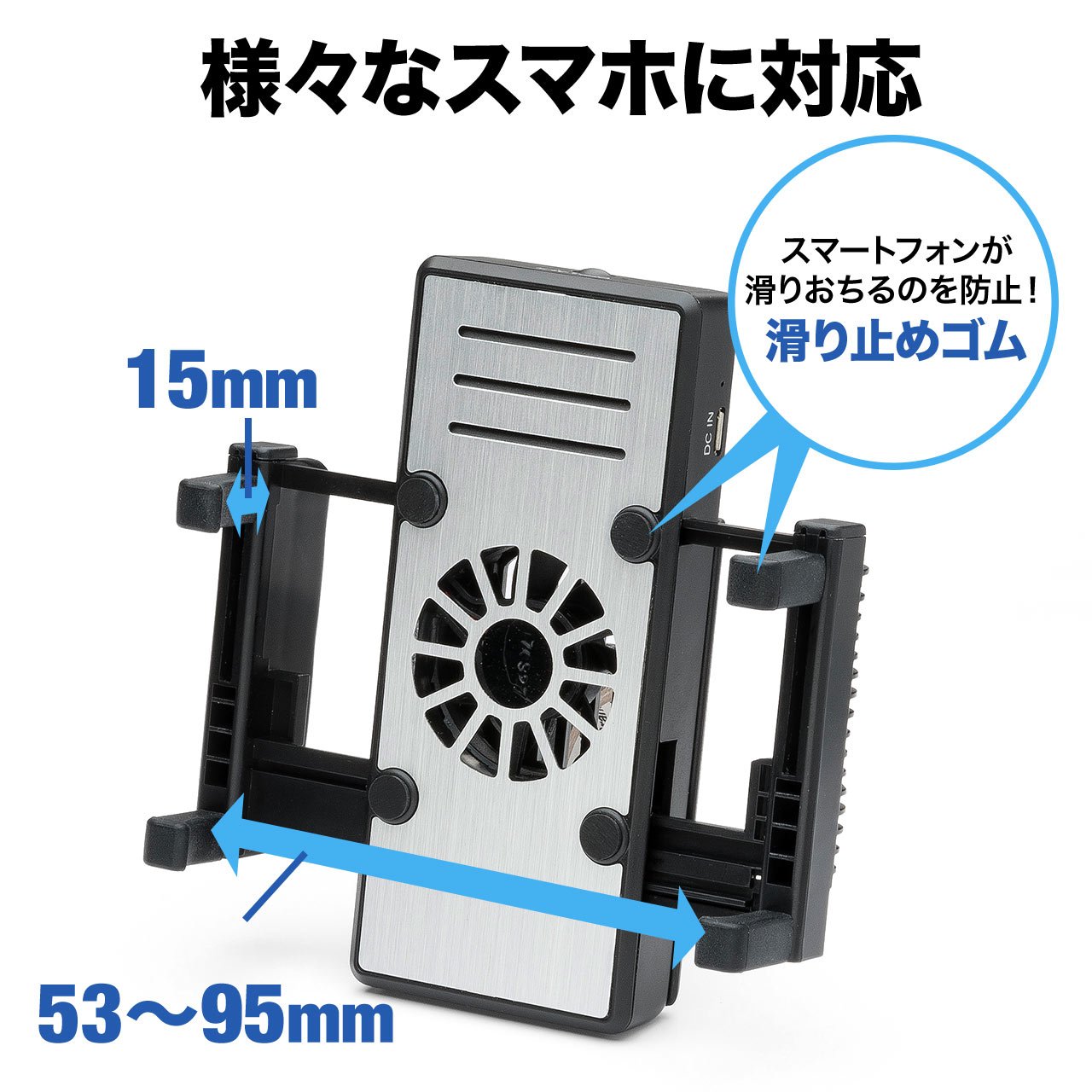

• It is a type that fixes the main body of the smartphone and fixes it, it corresponds to a smartphone with a width of 53 to 95 mm and a thickness of 15 mm or less.

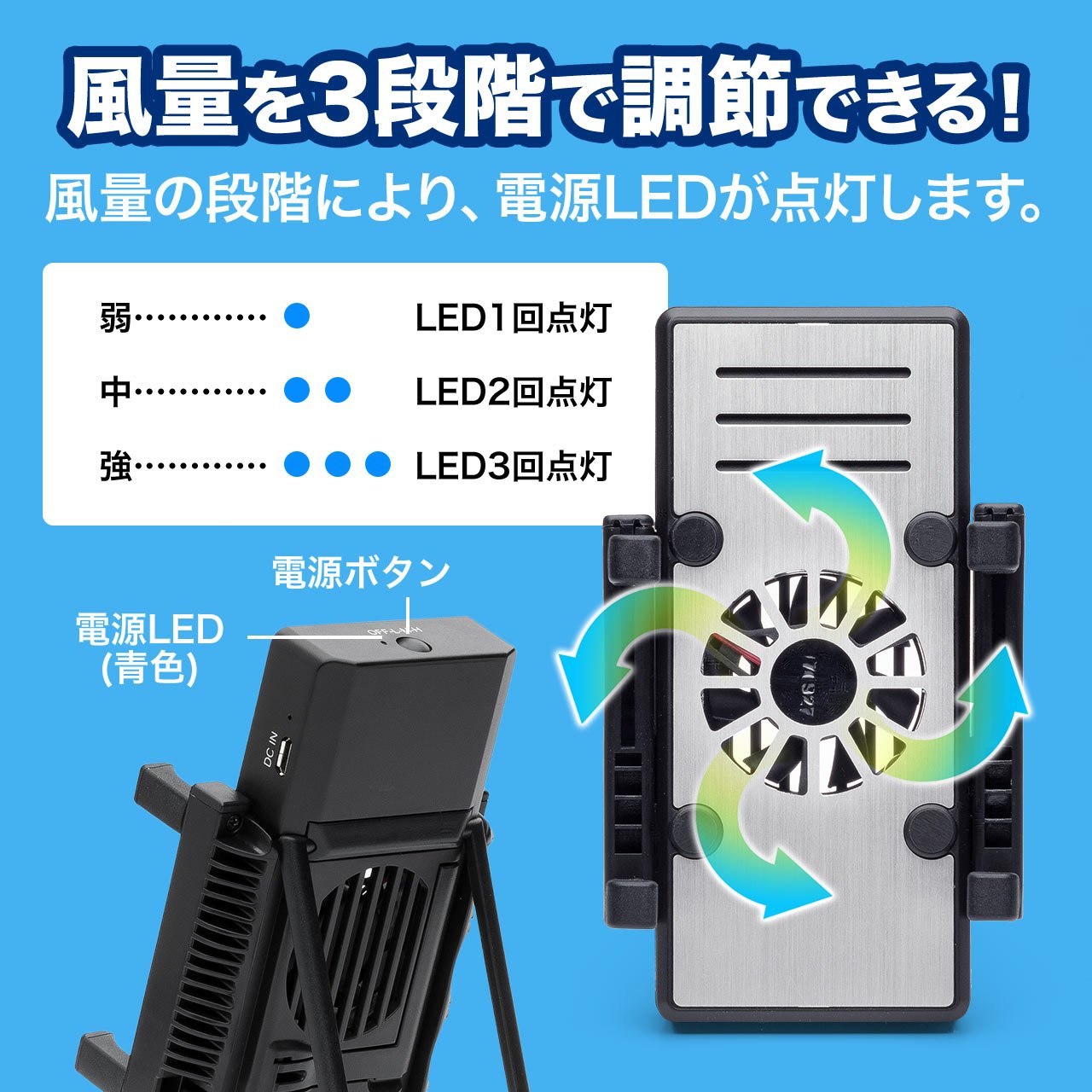

• It has three levels of air volume adjustment, Low (Mild), Mid (Medium), Hi (Strong).

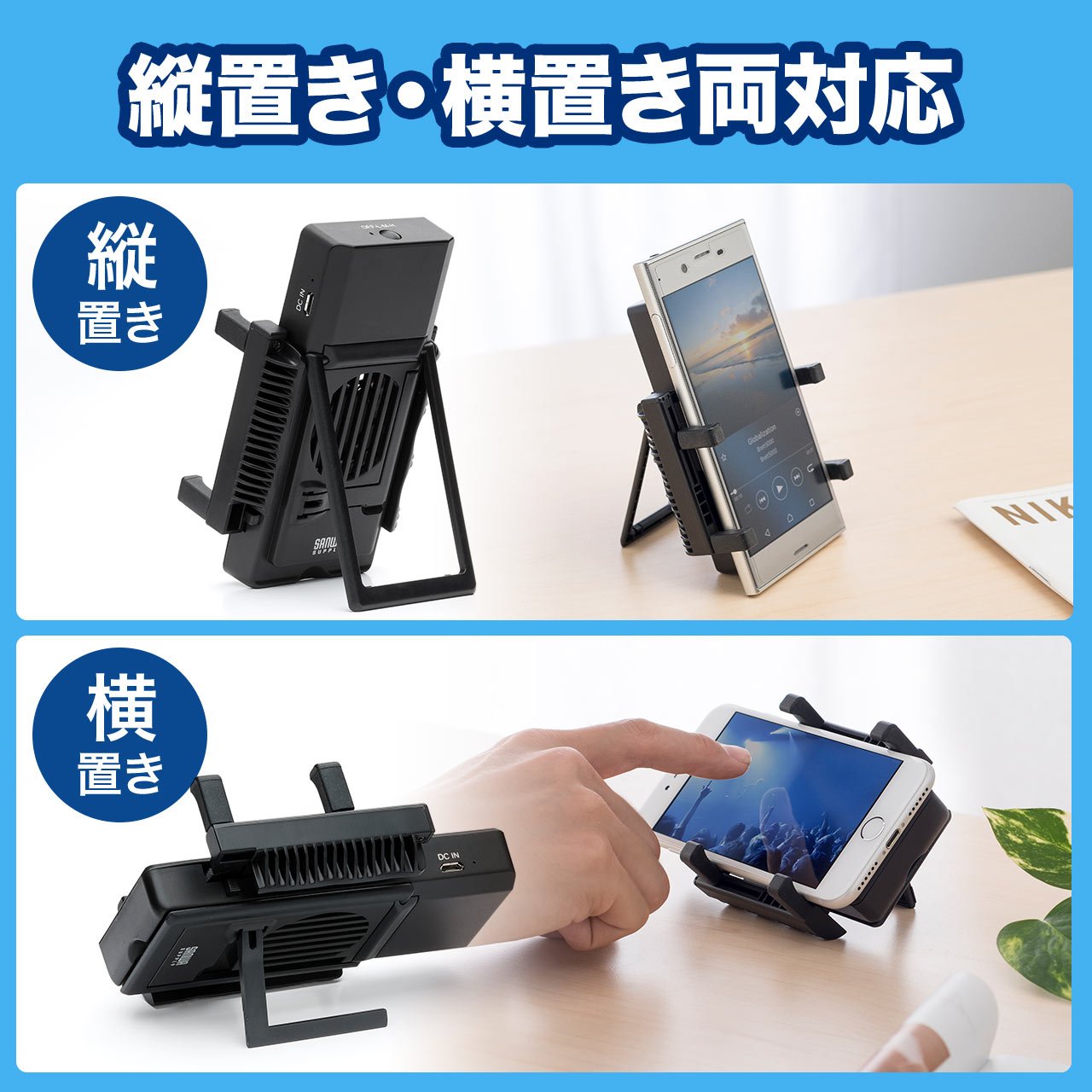

• It can be used depending on the application etc. to use, with a stand for both vertical and horizontal installations.

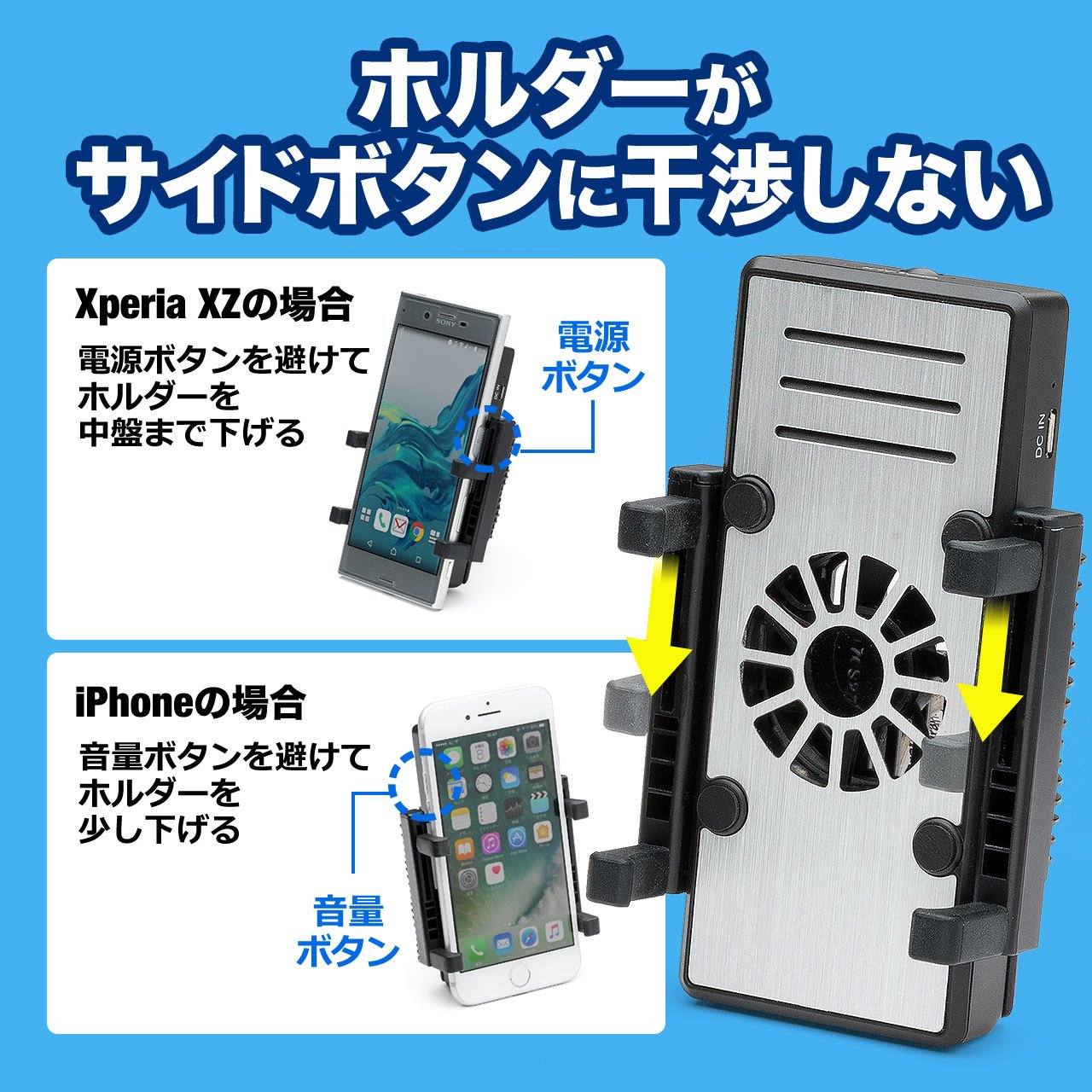

• A holder holding a smartphone is a movable type that prevents interference with a button.

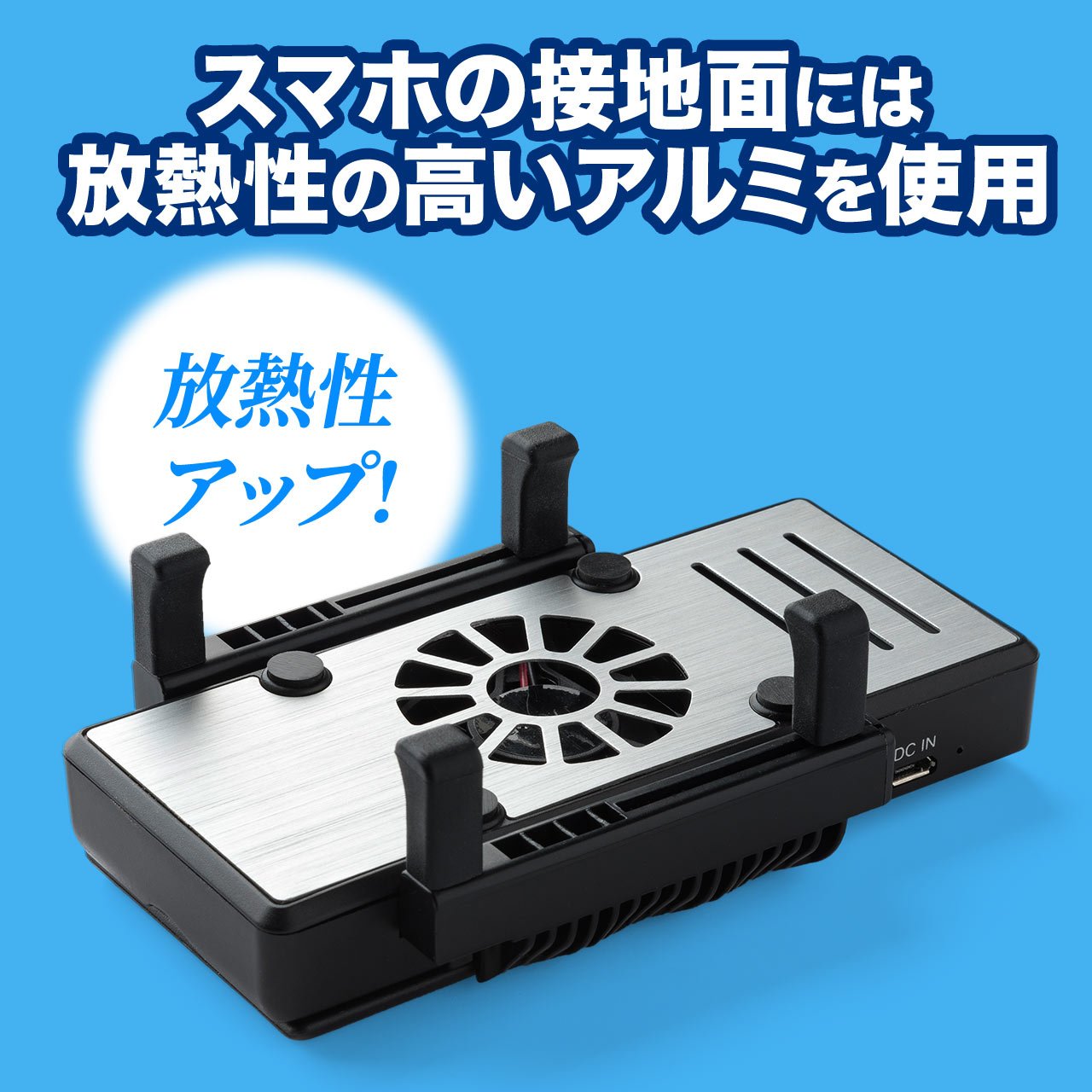

• Aluminum material with high heat dissipation property is used for the ground plane with the smartphone.

Product information:

Shipping Weight: 158 g

Package Dimensions: 4.80 x 8.00 x 14.50 cm
