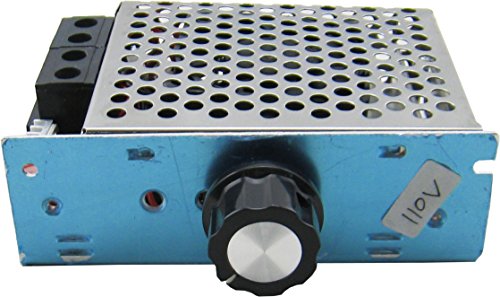

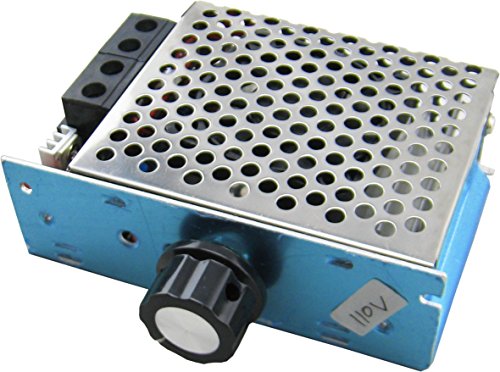

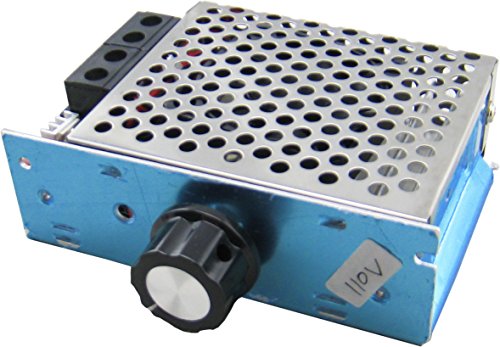

Product Description

Parameters:
Using Voltage: AC 110V
Maximum power: 10000W (connected resistive load)
Voltage Regulation: AC 0 - input supply voltage
Size :( length) 111MM * (width) 77MM * 37MM (excludingHandle)
How to use:

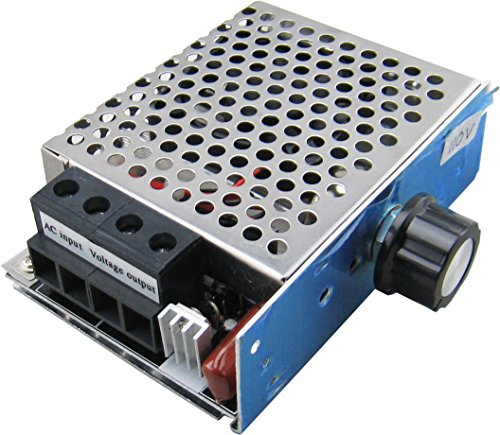

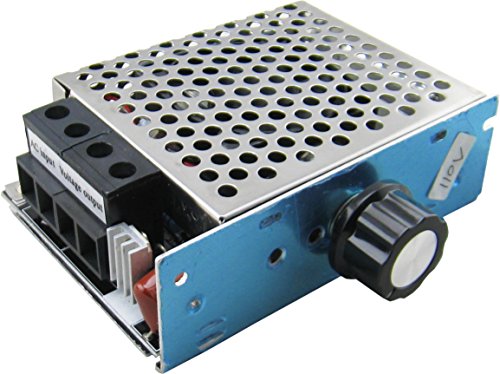

SCR regulator Connects to the front with the electrical circuit,Input and output lines Respectively Connect，do not need to Distinguish between Live Wire and Neutral Wire.Turn the potentiometer Rotating rod, Can play dimming,Speed Control,Regulator,thermostat Effect.
Application:
The use of new ultra-high-power two-way SCR,Resistive load can be adjusted between 0 ---- input voltage,For use with appliances.Such as: Electric furnace,Water heaters heat transfer,Lighting Dimmer,Large motor Speed Control and so on.Available for less than 10,000 watts of electric power (resistive load) of large electrical power Using due to the large, it is generally sufficient household appliances or small factories using.
Note:
Note that the load can not exceed the maximum power,For the first time to pay attention to temperature, if the temperature is high (over 80 degrees) to pay attention to the heat treatment,Otherwise it will burn modules and appliances;(Inductive or capacitive loads Starting current is large,Is usually 2-4 times,Power should be used to reduce,Preferably less than half of the left margin)
Ultra-high-power electronic voltage regulator, Suitable for lighting lanterns control engineering, electric wire, boiler heating control, electric motors and other control tools.
Product Features
1 trigger circuit voltage regulator IC control
2 SCR special increase dual protection varistors and RC snubber circuit。

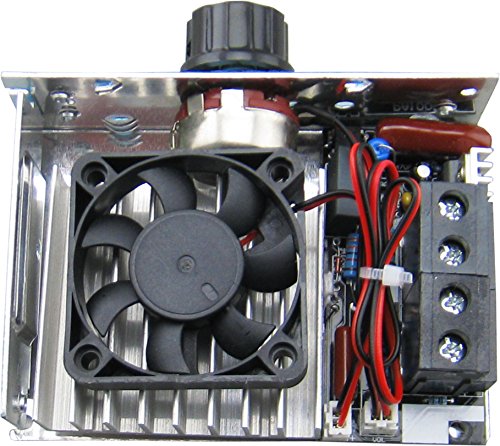

3. Add intelligent temperature control fan to improve the cooling effect
packing including：
1x AC 110V SCR Super High Power 10000W Electronic regulator

Feature

Using Voltage: AC 110V
Maximum power: 10000W (connected resistive load)
Voltage Regulation: AC 0 - input supply voltage
High Power 10000W Electronic regulator
Motor Control Thermostat Temperature control Speed Control
Brand : Yeeco
Item model num : 1300259
MPN(PartNumber) : Y1300259
EAN : 0701203237629
