Item Descriptions:

Number of package items:

Improved version:

Brighter

Increasing the number of LED lights to 8, thanks to the improvement of solar panels, it is brighter than before, the range of lighting is wider, the lighting time has been extended by 2 hours.

Better heat resistance, waterproof

Two membranes were provided, and the addition of a closed loop improved the waterproofing effect and heat resistance.

The sensor range has become wide.

Application location:

It is an outdoor location such as the front door, parking lot, park, post, garden, edge side, garage, balcony, playground, driveway, alley, garden etc.

Energy saving · Power saving

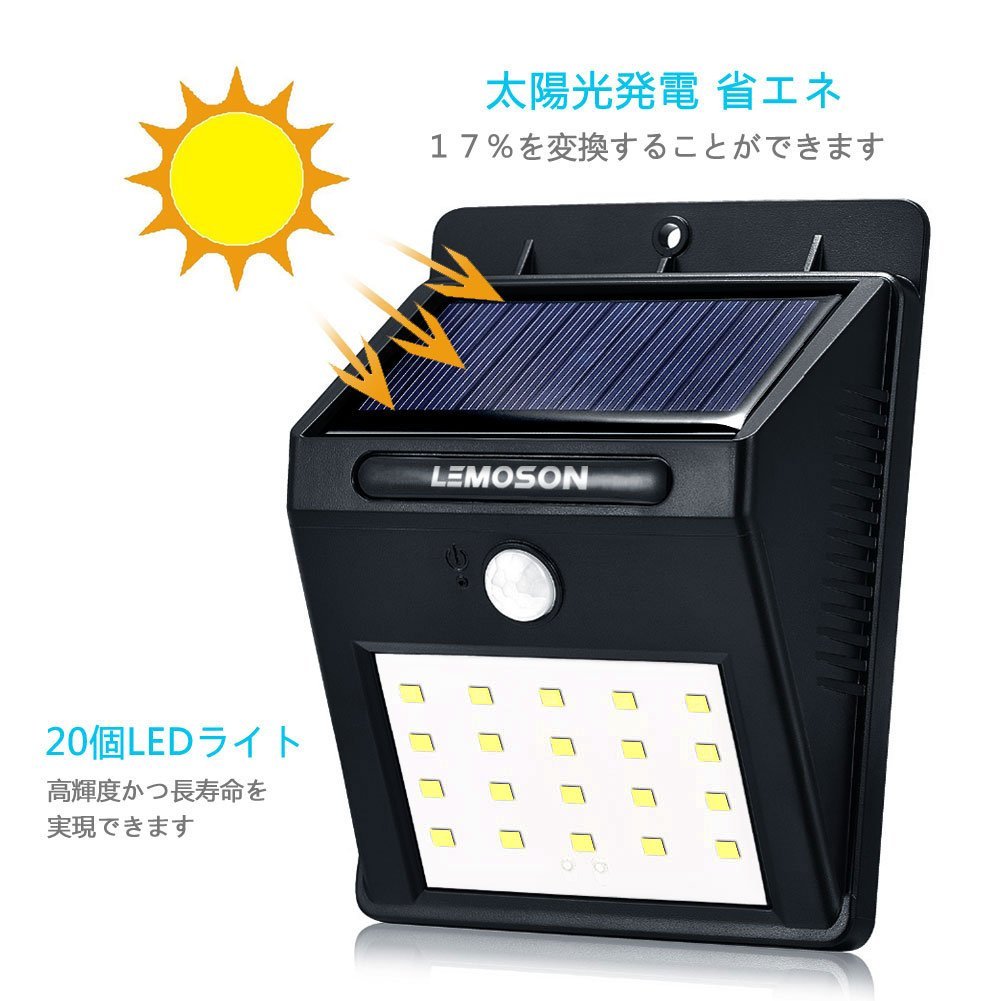

1. High brightness LED lights are installed, it is automatically charged with solar energy in the daytime, and solar energy is converted into electricity.

It is environmentally friendly on energy saving with clean energy born from the power of nature.

Please choose a sunny place.

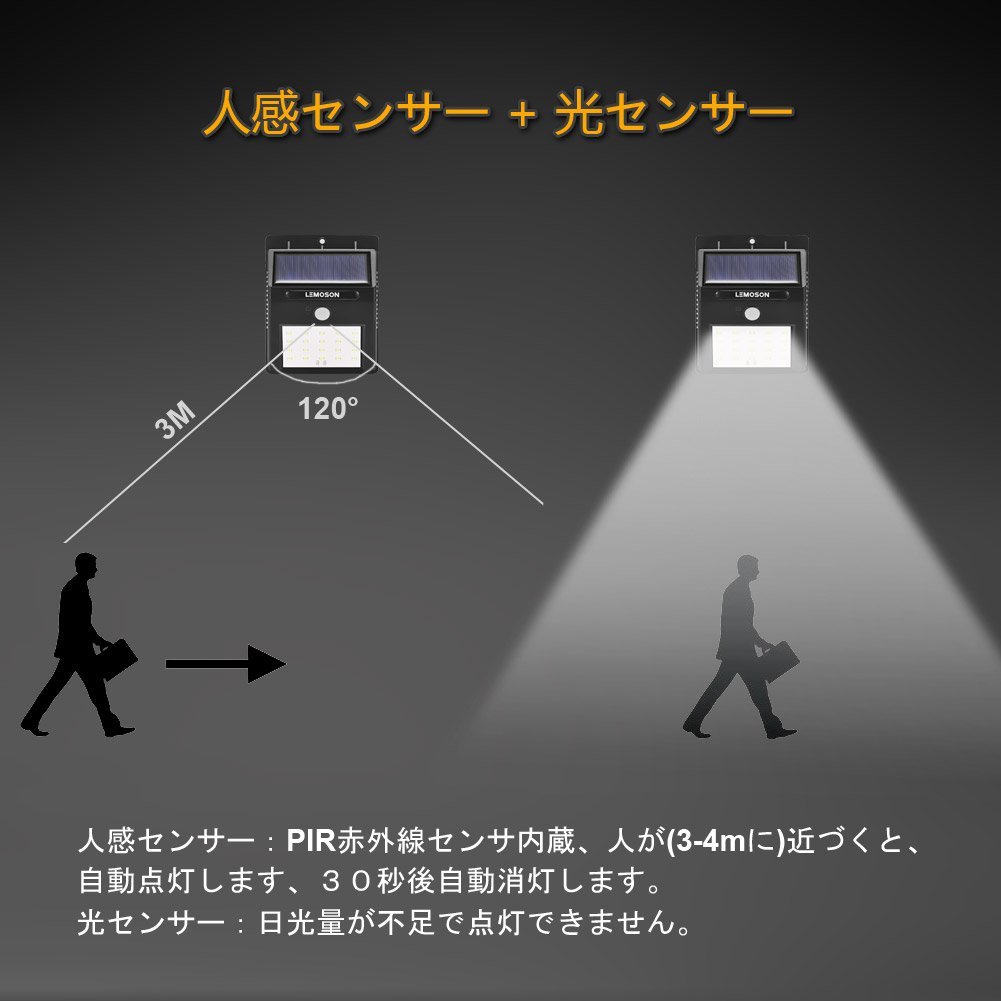

2. Human sensor and illuminance sensor: Built-in human sensor, in the dark surroundings, when the person passes, the light will be turned on automatically.

It turns off automatically after about 30 seconds.

The sensitive range is 3-5 meters.

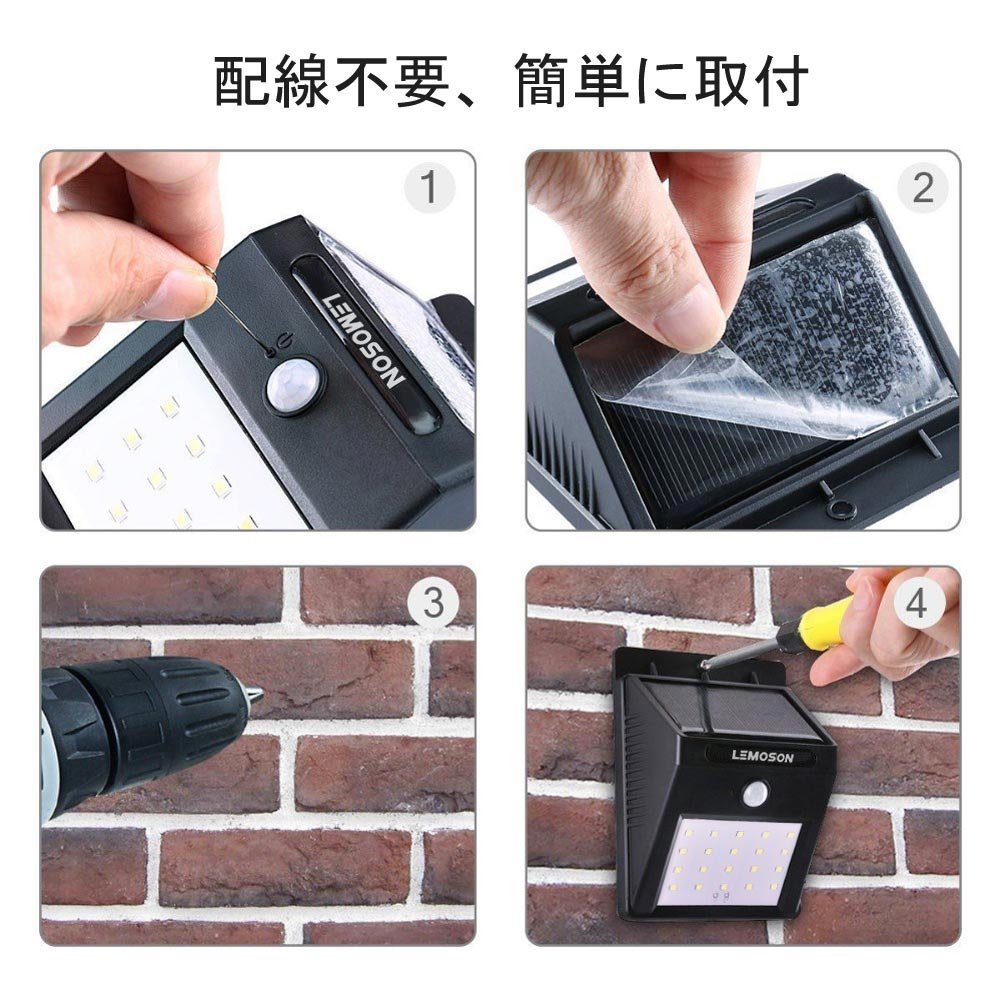

Easy installation:

Activation method of solar energy mode:

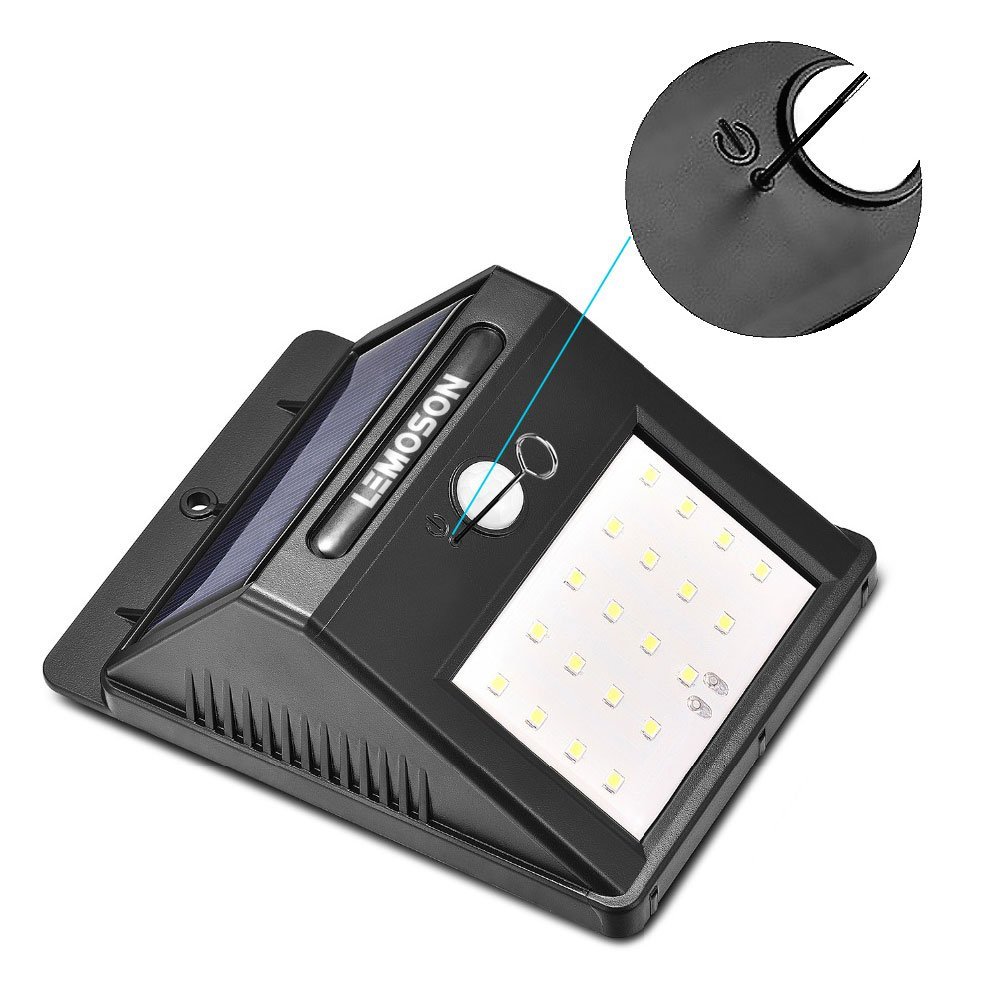

Before using the product, lightly point the switch hole with the locking needle, the solar energy usage mode will be activated.

2, Installation method: Attach the light to the wall or the pillar with the provided hinge, screws.

Installation is easy because wiring is unnecessary.

The shape is also smaller and lighter, and it is the Ministry of Construction.

There is no maintenance work to replace the lamp regularly.

You can easily install it on the entrance or the front of the garden or the wall of the veranda etc.

(Recommended installation altitude 1.5 m - 2 m) Please choose a sunny place as direct sunlight as possible for as long as possible.

Product Specifications :

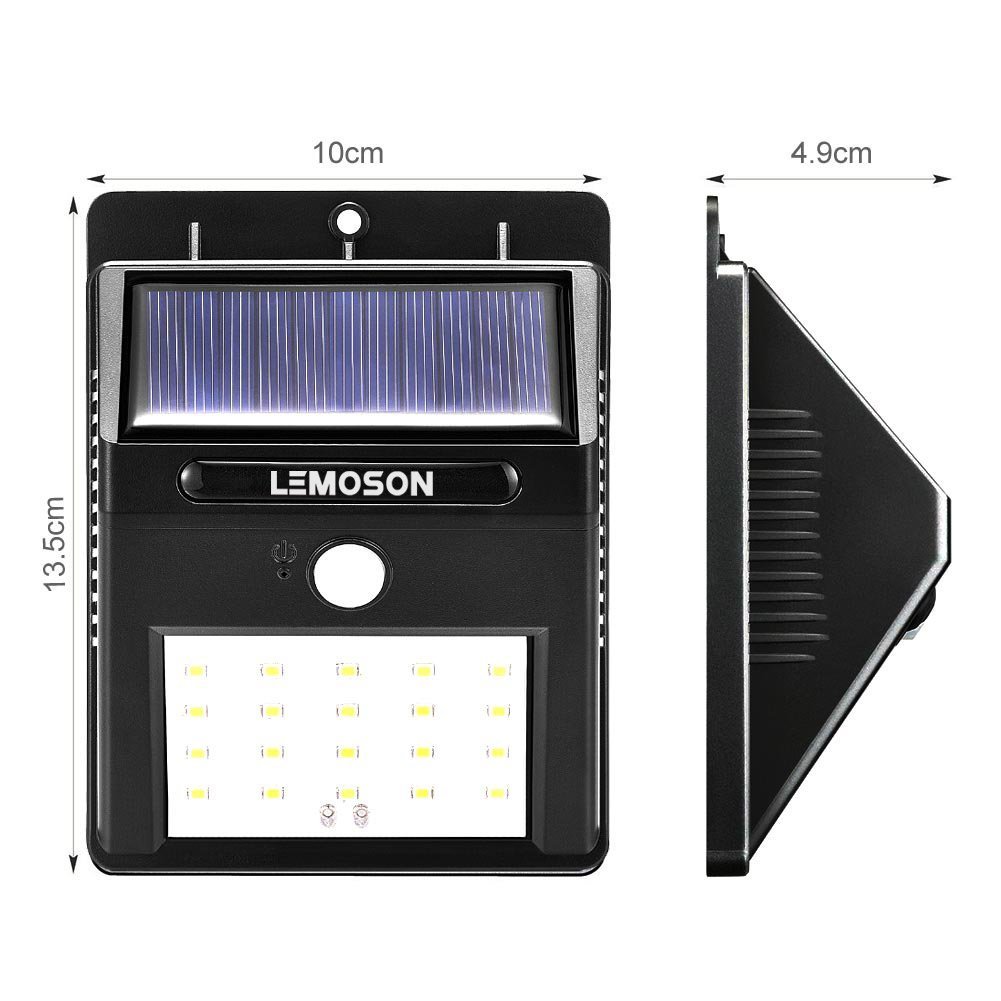

Size: 96 * 124 * 48 mm Solar panel: 0.48 W Conversion efficiency of 17%

Lithium battery: 2.96 WH LED light: 1 W, 6000 K - 6500 K 20 pieces

Color: Black Weight: Approx 200 g

Nighttime sensor: <10 lux Material: ABS Plastic

Sensor Sensing Distance: 3 M Sensor Angle: 120 °

Charging time: 7 hours Operating time: about 12 hours

Waterproof rating: IP65

(Although it is waterproof,

Long time

If it sinks into the water, it may break.

In case

Packing contents:

Main body x 2

Screw x 2

Concrete plug x 2

Switch needle x1

Instruction manual: with Japanese and English instructions

Notes:

First, the lighting performance is influenced by the solar energy accumulated in the daytime.

It changes according to the intensity of sunlight, geographical location of the place of use, weather conditions and seasons.

Second, waterproof, but limited to rain and moisture.

Three, solar energy is the most

Please install it in a place where the sun is completely hit.

Four, cloudy days etc can not be fully charged so lighting time of light may be shortened.

Five, in places where sunlight to the solar panel is significantly less as shown below, the lighting time will be short, so it is not suitable for installation.

① A place where the solar panel enters the shade between 9:00 AM and 3:00 PM.

(If shadows are formed on a part of a solar panel, sunlight can not be converted to electric energy.)

② Places where snow or snowfall occurs in winter such as mountainous areas.

③ A place where the solar panel can not be set south.

④ A place where the solar panel is stained by fallen leaves, dust, mud, bird droppings, etc.

Features:

• Once fully charged, it can be used for about 12 hours.
• In order to fully charge, direct sunlight of 7 hours or more is necessary.
• In the case of cloudy, it can not fully charge fully.
• Human sensor and illuminance sensor: Built-in human sensor, in the dark surroundings, when a person passes, the light automatically lights up.
• It turns off automatically after about 30 seconds.
• The sensitive range is 3-5 meters.
• Energy saving: adopt solar energy charging system and do not use electricity.
• You can convert 17% of solar energy into a large capacity battery (model number 18650).
• Charging time can be greatly shortened.

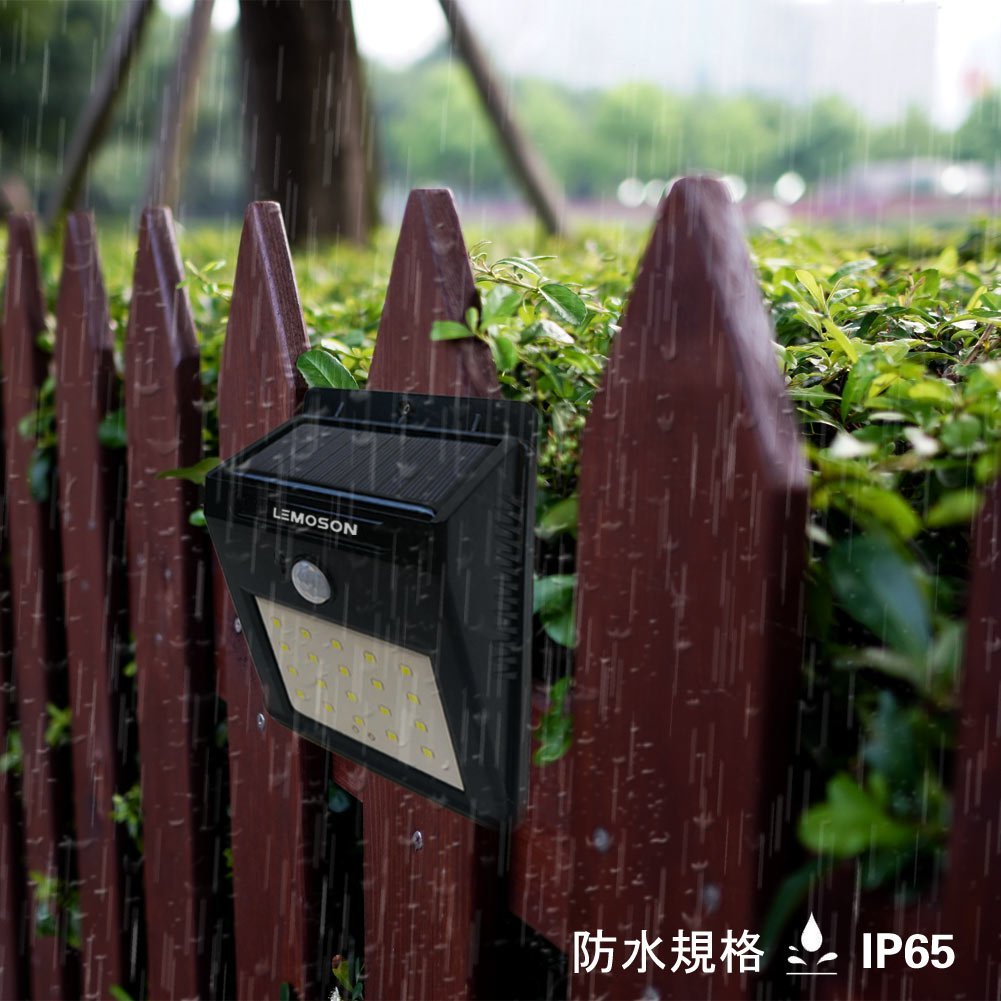

• Waterproof function: Waterproof standard IP65 grade certification, applied outdoors, there is no worry of bad weather such as heavy rain and snow
• No wiring required, easy installation: Can be installed within a few minutes.
• We provide screws.
• Apply to front and rear doors, garage, corridor, veranda, garden, outdoors, stairs and so on.

Product information:

Shipping Weight: 181 g

Package Dimensions: 5.51 x 10.21 x 13.31 cm
