Item Descriptions:

color:

black

| Style name:

Body

Product introduction

■ Blood pressure management with smart application ■ Supports more accurate measurement "Handy height sensor function" ■ Graphical measurement data can be managed! Blood pressure recording application "Blood pressure memo" ■ Blood pressure of "now" and "always"

Simultaneous display of values! Average value comparison display (Can be compared immediately after measurement) ■ Larger and easy to check! Character size 12 mm

General name: Automatic Electronic Blood Pressure Monitor (Classification: 167)

Product name: Handwheel sphygmomanometer EW-BW53

Contraindication / prohibition:

[Warning] (The possibility of death or serious injury is assumed.) ● If you have severe blood circulation disorder in the chest, be sure to consult with your doctor before using.

There is a danger of getting sick.

● It may be impossible to measure those with few blood flow at the measurement site or those with high frequency of arrhythmia.

The judgment will depend on the doctor.

● Please do not use for children.

● Please do not use for people who can not express their intention by themselves or those who can not operate by themselves.

[Contraindication / Prohibition] (It is a precaution to properly use the sphygmomanometer.) ● If you measure yourself, let's take a diagnosis based on your doctor's guidance.

Please follow the doctor to take medicine.

Do not judge self-judgment, treatment of measurement result.

● Do not roll a cuff (compression belt) on untreated hands such as scratches.

● Do not roll a cuff (compression band) on the arm that is undergoing treatment by IV infusion or transfusion.

There is a danger of injury or accident.

● Do not use near a flammable gas such as anesthetic gas in a hospital.

There is a possibility of ignition ● Please do not use under high concentration oxygen such as high pressure oxygen chamber in hospital and oxygen tent.

There is a possibility of ignition.

● Do not put the arm where the stent has been placed in the cuff (compression zone).

Item specification etc.:

● Sales name: handwheel sphygmomanometer EW-BW53 ● Rating: DC 3V (AAA alkaline dry battery LR03 × 2) ● Classification: Mechanical equipment 18 Blood pressure test or pulse wave inspection instrument ● General name: Automatic electronic sphygmomanometer

(JMDN code 16173000) ● Type of medical equipment: managed medical equipment ● Display method: digital display method ● Measurement method: oscillometric method ● Measurement range: Pressure 0 to 280 mmHg Pulse rate 30 to 160 beats / min ● Accuracy: Pressure ± 3 mmHg

Within 5% of pulse rate ● Operating temperature and humidity: 10 ℃ ~ 40 ℃ 30% ~ 85% RH ● Storage temperature and humidity: -20 ℃ ~ 60 ℃ 10% ~ 95% RH ● measurable wrist circumference: about 12.5

~ 22.0 cm ● Body size: 6.4 (length) × 8.9 (width) × 3.4 (thickness) cm ● Weight: 121 g (excluding dry cell) ● Electrical shock protection: Internal power supply equipment BF type ● Error in blood pressure measurement by clinical performance test:

Method Standard deviation: within 8 mmHg ● Rapid exhaust: Time required for rapid exhaust from 260 mmHg to 15 mmHg: 10 sec or less ● Stability of indication of pressure in cuff: 10,000 cycles simulated measurement cuff

Table of internal pressures

Changes in the value: 3mmHg below

Specifications Note:

(1) Do not use for purposes other than blood pressure measurement.

(2) Do not disassemble, repair, or modify.

It may ignite, cause a breakdown or an accident.

Please do not peel off the explosion seal.

(3) Do not use this sphygmomanometer together with other medical equipment.

There is a danger of accident.

(4) Do not place equipment that generates electromagnetic waves, such as mobile phones, during measurement close to it.

There is a possibility that the sphygmomanometer malfunctions.

(5) You may be measured by yourself under the guidance of a doctor.

You may be instructed to measure at the same time every day at the same side's hands and posture.

For example, at the measurement time, measure in the morning when measuring in the morning when there is no urge to immediately after waking up, or when it is difficult, measure before you break the body before breakfast.

Let's measure correctly according to the doctor's instructions.

(6) The compression belt (cuff) can be rolled on either side of the left or right hand.

However, it is said that there is a case that the difference in blood pressure is about 10 mmHg on the left and right, so please measure with the same side hands every time.

(7) Precautions at the time of measurement · Measure with a natural posture with reduced feeling.

With your palm up, do not move the muscles of your body or arm, lightly extend your fingers and relax.

· Do not talk while measuring.

· When touching the pressure gauge body (cuff), or when there is body movement during measurement, errors may be measured or measurement may not be possible.

(8) To measure accurate value · Measure blood pressure once, rest for 4 ~ 5 minutes and measure once more.

(9) If measurement fails, the remeasurement mark "U12" will be displayed.

(10) If you can not measure correctly, or if you want to continue measurement, press the start ▶ end button once, turn off the power, make sure to rest for 4 to 5 minutes, then press start ▶ end button to measure.

(11) When "(Battery Mark)" or "U01" appears, or the display disappears during measurement, nothing is displayed, it is the time to replace the battery.

Always replace two new AAA alkaline batteries of the same manufacturer at the same time.

(12) Start ▶ Remove the surface fastener of the cuff (compression band) if there is a time when air can not escape even if you press the end button.

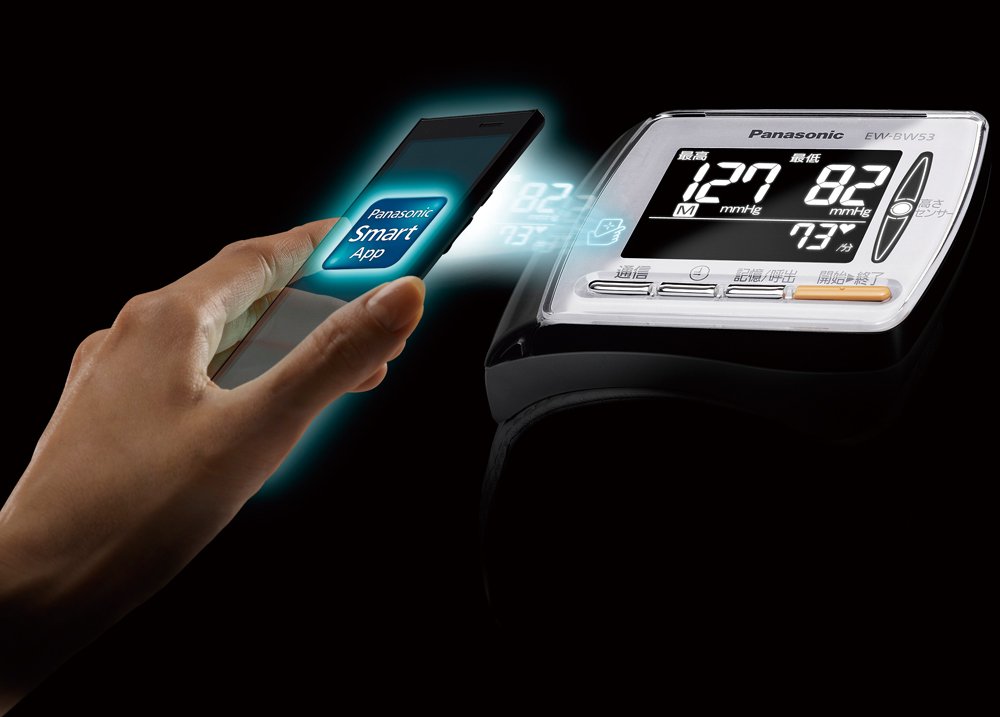

(13) Points to note when using the touch access function · Do not bring products with Felica functions other than smartphones and mobile phones close to touch marks.

· During touch access, please do not release your smartphone or mobile phone from touchmark.

· When using the blood pressure management management application and sending and receiving large volumes of data at the time of version upgrade, communication charges of smartphones and mobile phones may become high, so use of packet flat rate fee service of each mobile company

We strongly recommend it.

Information on Manufacturers and Manufacturers:

● Manufacturing selling agency: Panasonic Corporation ● Address: 1-5-1 Higashi Shinbashi, Minato-ku, Tokyo Panasonic Tokyo Shiodome Building ● Inquiries: Customer consultation center ● Telephone: 0120-878-365 ● Manufacturer: Panasonic Manufacturing

Beijing limited company (Panasonic Manufacturing (Beijing) Co., Ltd.) ● Country of manufacture: People's Republic of China

Effect / indication:

To measure systolic blood pressure and diastolic blood pressure non-invasively for health management.

Attention (Disclaimer)> Please be sure to read

【Inquiries concerning repair of Panasonic products】

Panasonic repair consultation window TEL: 0120-878-554

Reception hours: 9: 00 ~ 19: 00 (Sundays and holidays and New Year's holidays 9: 00 ~ 17: 30)

Search by "Panasonic repair" from the Internet

Features:

• Specific management medical equipment Medical equipment certification (approval) number: 224 AKBZX00060000
• Size: length 6.4 × width 8.9 × thickness 3.4 cm
• Main material: ABS resin
• Power supply: DC 3 V (AAA alkaline battery LR 03 × 2)
• Warranty period: 12 months
• Body weight (kg): 121

Product information:

Shipping Weight: 263 g

Package Dimensions: 7.59 x 11.91 x 15.39 cm
