Product Description
Operating Temperature Range :-20°C~60°C;
Safe Overload: 150%F.S.;
Ultimate Overload 200%F.S;
Input End Red , Black- ;
Output End Green , White-;
Test Insrtument E2000;
Force Testing Equipment Actual Load;
Excitation Voltage 5-10V DC;
Total Size 8 x 1.3 x 0.9cm / 3.1" x 10.5" x 0.3"(L*W*T);
Thead Hole Diameter 3mm / 0.118" ;
Center Hole Distance 1.8 x 1.18cm / 0.708" x 0.464"(L*Radius);
Cable Length 19.5cm / 7.7";
Weight 21g;
Package Content 1 x Weighing Load Cell;

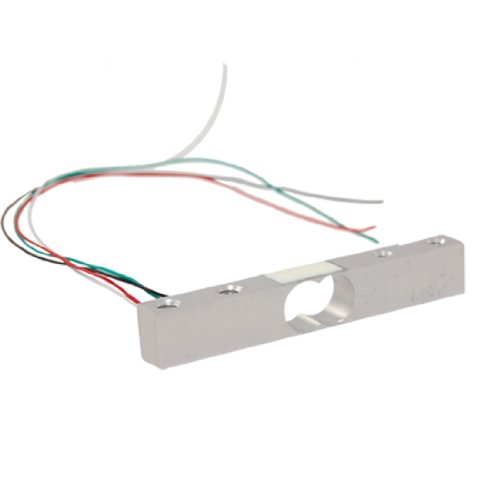

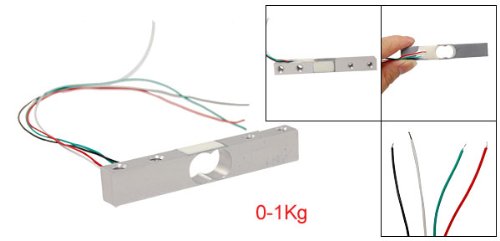

This weighing sensor load cell is widely used in electronic counting scales,platform scales etc. Its range is 0-1Kg.
