Item Descriptions:

Style name:

With one slave unit

Product introduction

Pursuit of ease of use such as enhancement of guidance by voice and installation of large screen liquid crystal.

KX - PW 503 inherited a compact body, a stylish design that is highly popular.

Equipped with convenient new functions such as "call rejection" function and "good night mode".

"Memory interception reception" function which can print by selecting from history is installed.

"Eavesdropping prevention", "Interactive handsets between two handsets" correspondence.

"Key lock" function which prevents the button operation of the parent machine from being accepted to prevent children's misdialing etc. is installed.

A cordless handset that can be increased by selecting up to six units from "Kana display type", "Kanji display type", "oversized reception volume + big button type", "bone conduction type" etc.

"Voice change" function which changes female voice to low voice like men is installed.

"Selected and mobile" function which automatically carries a business identification number when calling to mobile phones beginning with "080" and "090" is installed.

Corresponds to "relay antenna (optional item)" enabling expansion of call area of ​​cordless handset.

"Extension name display" 12 chord ringing melody (4 tunes) built in which the name can be registered in the slave unit and the extension arrives at the display of the master unit or slave unit.

Door phone connection (up to 2), door phone warp function installed.

From Amazon

Pursuit of ease of use such as enhancement of guidance by voice and installation of large screen liquid crystal

Enrich guidance by voice

In addition to the operation guidance of fax transmission / copying which was adopted for the conventional product KX-PW 603 series of Panasonic Corporation, this product also provides guidance for operation during telephone directory registration and ink film replacement, when recording paper gets jammed and ink film

Notifications when it is lost, etc. We have enriched the function to guide by voice easily in various usage scenes.

It also features a "speech dial" function to inform the pressed dial button by voice.

Large screen LCD for easy viewing

Compared with the KX-PW 503 series, it has about 2 times larger LCD screen, characters are about twice as large in the vertical direction, making the LCD backlight brighter

It is easy to see.

In addition, display of pictograms on the screen also makes it easier to check the setting mode by increasing the type.

KX-PW503 inherits a popular compact body, stylish design

This product inherits the stylish design that adapts to the interior, compact body that can be neatly located in narrow places popular in the KX - PW 503 series.

Also, for those who do not use faxes or copies only occasionally, a recording paper insertion port lid is attached to prevent the entry of dust and dust into the recording paper insertion slot even when the recording paper tray is removed.

Equipped with convenient new functions such as "call rejection" function and "good night mode"

In order to use this product more securely and conveniently, when you press a call refusal button during an incoming call or during a call, you can send a message refusing the call to the other party. You can easily switch off the phone or easily reject incoming calls.

Reject "function or if you set it in advance, when you want to become good night or want to quietly, the incoming phone will switch to an answering machine without making a sound, and in case of fax reception memorize it" Good night

Mode "is carried.

When the sleep mode is set, no ring tone sounds for both the base unit and the slave unit, and when the message is recorded, the answering button flashes, and when receiving a fax, it shows that there was an incoming call by turning on the liquid crystal screen.

The sound of the intercom when connecting to the intercom, and the voice of the key confirmation sound and operation guide do not flow.

It is also possible to set the timer for night-sleeping mode in the time zone specified every day.

"Memory interception reception" function which can print by selecting from history is installed

This product intercepts the received contents of the fax into the memory when the recording paper or ink film is missing or when receiving the fax in the "good night mode".

In that case, it has a function to print faxes from the sender's information from the received history and delete them from the memory.

"Eavesdropping prevention" and "Interactive handsets between two hands" correspondence

This product uses the digital cordless system of 2.4 GHz for wireless communication between the master unit and the slave unit, and adopts frequency hopping spread spectrum technology.

In frequency hopping, the communication frequency is switched at high speed between the master unit and the slave unit, so it is extremely difficult to intercept radio waves (eavesdropping).

In addition, by adopting time division multiple access, voice calls are multiplexed to realize bidirectional handset phone calls.

In this way, it is difficult to be tapped by the advanced technology unique to digital, and cordless phones can be used safely and conveniently, such as not only regular phones but also in-house contacts and telephone calls.

Other features

"Key lock" function which prevents the button operation of the parent machine from being accepted to prevent children's misdialing etc. is installed.

A cordless handset that can be increased by selecting up to six units from "Kana display type", "Kanji display type", "oversized reception volume + big button type", "bone conduction type" etc.

"Voice change" function which changes female voice to low voice like men is installed.

"Selected and mobile" function which automatically carries a business identification number when calling to mobile phones beginning with "080" and "090" is installed.

Corresponds to "relay antenna (optional item)" enabling expansion of call area of ​​cordless handset.

"Extension name display" which allows you to register the name on the handset and displays the name of the handset on the display of the base unit or slave unit when the extension arrives.

Built-in 12 chord incoming melody (4 songs).

Door phone connection (up to 2), door phone warp function installed.

Features:

• Please enter model number Confirm this is compatible:

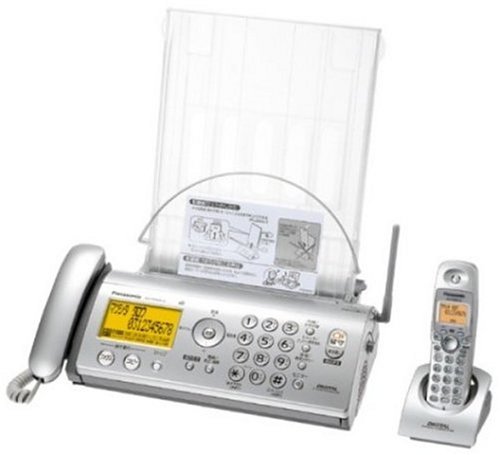

• Manufacturer model number: KX-PW505DL-S
• Approximately 100.5 × 332.5 × 193 mm (handset, excluding protrusions) / about 355.5 × 332.5 × 231 mm (when receiving tray tray, handset, excluding protrusion), slave unit: size (height × width × depth)
• About 161 × 47 × 39 mm, charging base: about 64 × 80 × 90 mm
• Weight: Base unit: Approximately 2.9 kg (when installing 10 m for trial ink film), slave unit: about 140 g (including battery pack), charging base: about 80 g
• Power consumption (maximum / standby): Base unit: about 130 W / about 0.9 W, handset: about 1.5 W / about 0.6 W
• Call rejection: parent machine: ○, child machine: ○ (operated by the parent machine)

Product information:

Shipping Weight: 4349 g

Package Dimensions: 14.10 x 27.20 x 41.91 cm
