The MINI AV2HDMI converter is a universal converter for analog composite input to HDMI 1080p (60Hz) output. The analog to digital conversion in this module employs 10 bits maximal 162Msps sampling， black/white level expansion， color transition improvement， dynamic range exp0ansion， blue stretch， auto-detect and auto-convert the composite signal to 1080p (60Hz) output. Making video come alive， delivering the sharpest， most realistic HD visuals available.


Features

  1. No need to install drivers， portable， flexible， plug and play.
  2. Provide advanced signal processing with great precision， colors， resolutions and details
  3. Support PAL， NTSC3.58， NTSC4.43， SECAM， PAL/M， PAL/N standard TV formats input.
  4. Support HDMI 1080p or 720p output.

Specifications

  1. Input ports: 1xRCA (Yellow， White， Red)
  2. Output ports: 1xHDMI
  3. Dimensions (mm): 66(D)x55(W)x20(H)
  4. Weight (g): 40
  5. Composite input: PAL， NTSC3.58， NTSC4.43， SECAM， PAL/M， PAL/N
  6. HDMI output: 1080p/60Hz， 720p/60Hz

Contains:
1 x Mini AV to HDMI Converter
1 x USB Cable
1 x User manual







HDMI Interface Mini HD Video Converter Box HD To AV/CVSB Video HDMI To AV Adapter HDMI2AV Support NTSC and PAL Output

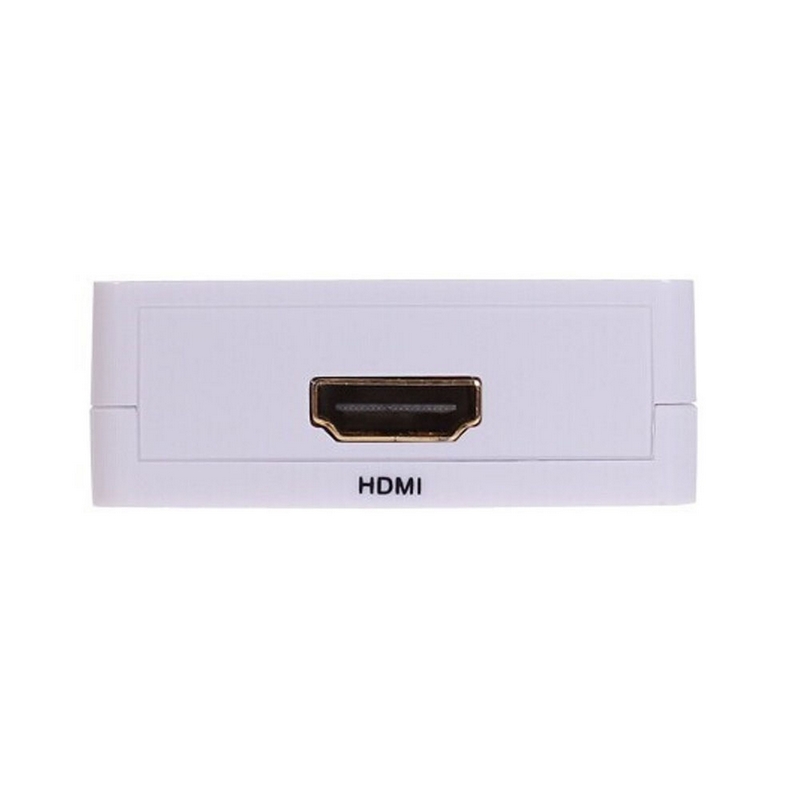

Input ports: HDMI; Output ports: 3RCA (Yellow，White，Red)
No need to install drivers， portable， flexible， plug and play
Support NTSC and PAL two standard TV formats
High-Speed HDMI Cable， Supports Ethernet， 3D， and Audio Return
Compatible HDMI1.3

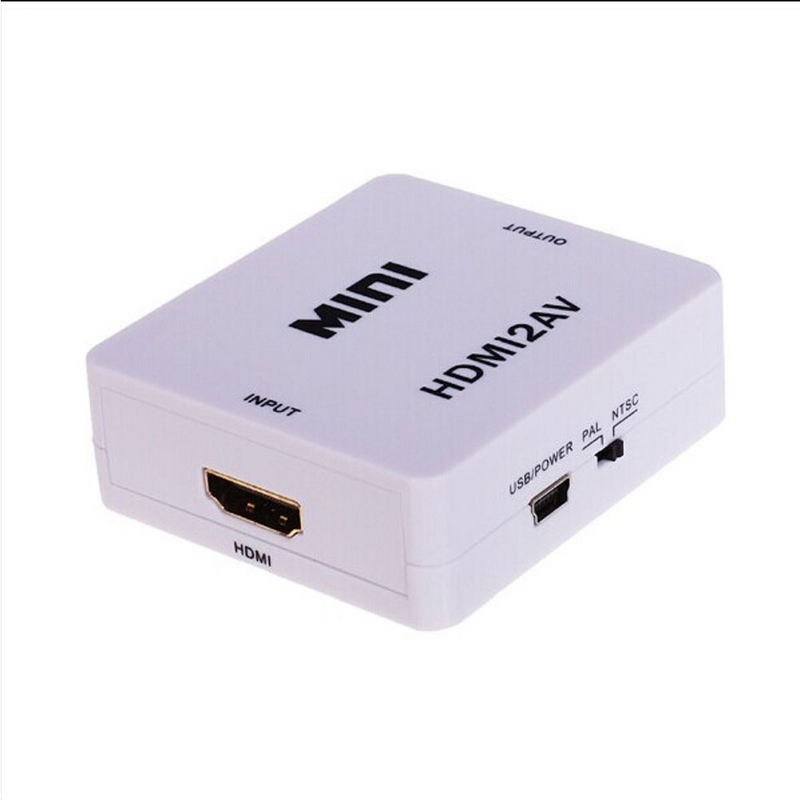

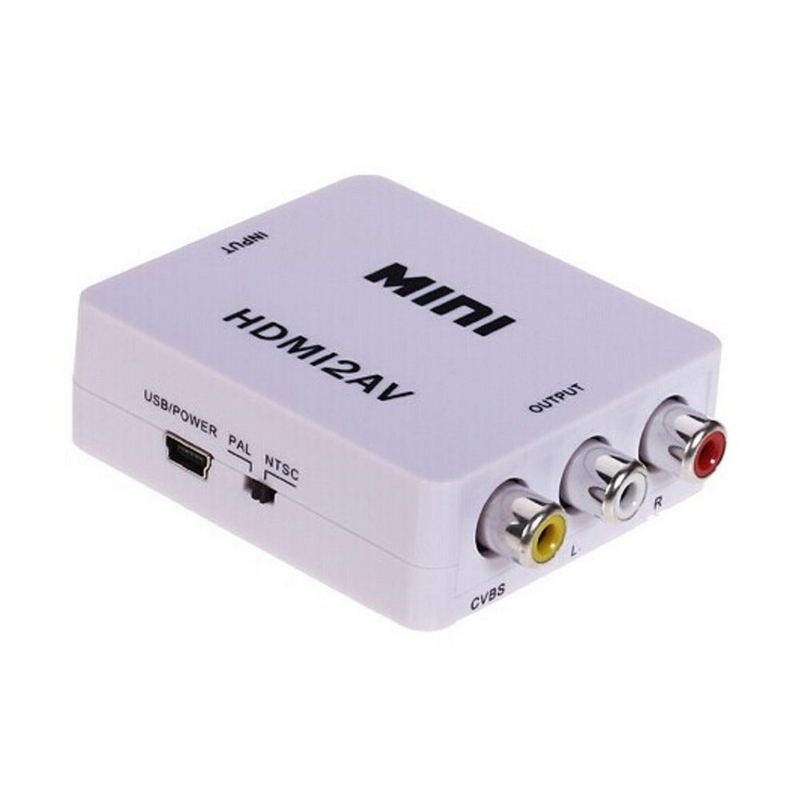

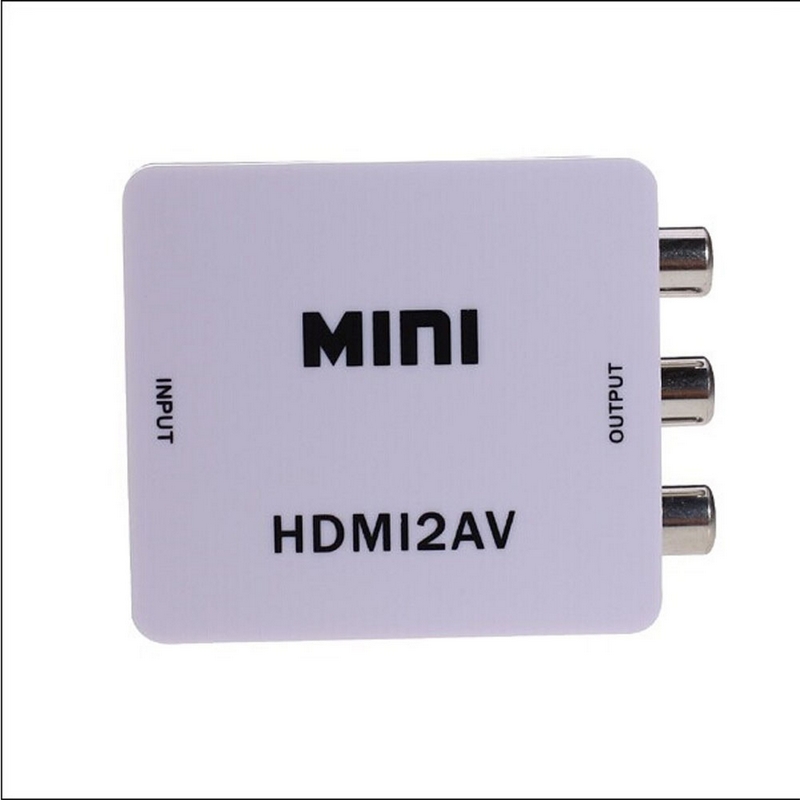

Product Descriptions:

MINI HDMI to AV signal converter which will convert HDM video signal or audio signal to AV (CVBS) composite video signal and the FL / FR stereo audio signals， while support DVI system sideline signals.
To help users convert the high quality of the HDMI video signal into normal CVBS signal (standard-definition 480i， 576i，).it can play on TV， VHS VCR， DVD recorders， etc and support NTSC and PAL two TV format.

No need to install drivers， portable， flexible， plug and play.

Support NTSC and PAL two standard TV formats output
Compatible HDMI1.3

Input ports: 1xRCA (Yellow，White，Red).

Output ports: 1xRCA (Yellow，White，Red).

Dimensions(mm): 72(D)x55(W)x20(H)

Wight (g): 40

Composite input:PAL，NTSC3.58，NTSC4.43，SECAM，PAL/M，PAL/N. 6. Composite output: PAL，NTSC.

Package Contents:

1×HDMI to AV Converter)

1×USB Cable

1×User Manual
