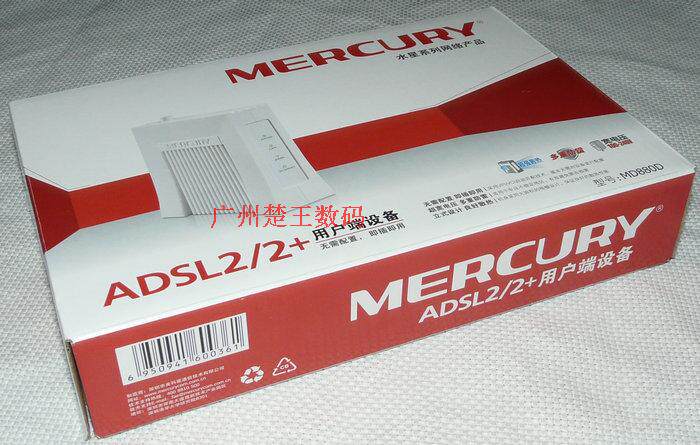

Products for the new standard: host a station， power adapter 1， a separator， a network cable， telephone lines 2， brochures， packaging boxes， crates



Logo logo on products for the telecommunications standard， Mobile， China Unicom (Railcom， China Netcom) are common



The main function

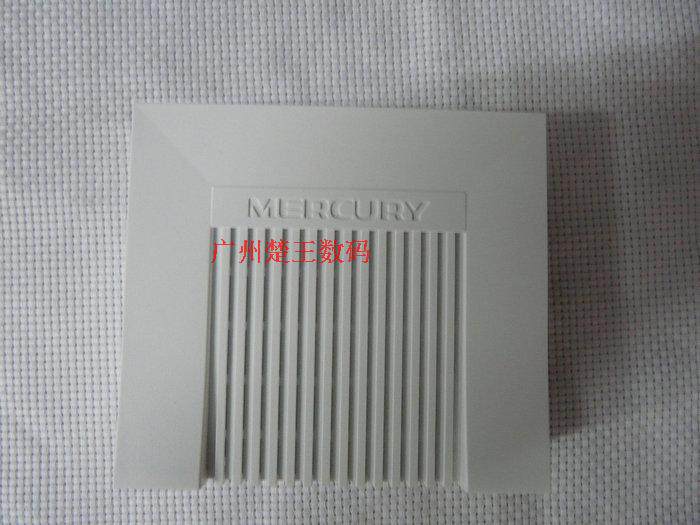

The new ID design， more compact

Supports bridging functions， built-in PPPOE / PPPOA dialing

Color user port， supports TR068 standard， supports TR069

Product Specifications

Dimensions: 118.4mm * 90.3mm * 40.4mm

Technical standards: ITU G.992.1 (G.dmt) Anneex A

            ITU G.994.1 (G.hs)

            ANSI T1.413 Issue 2

External Interface: WAN: an ADSL / ADSL2 + port (RJ-11)

External Interface: LAN: an adaptive 10 / 100Base-T Ethernet port (RJ-45)

Data transfer: G.992.5 (ADSL2 +)



           Maximum downlink 24M bit / s maximum uplink 1M bit / s

Total supply: 5V DC: 1A

Device power consumption: <3W

Working temperature: 0 ℃ ~ 40 ℃

Operating humidity: 5% ~ 95% (non-condensing)
