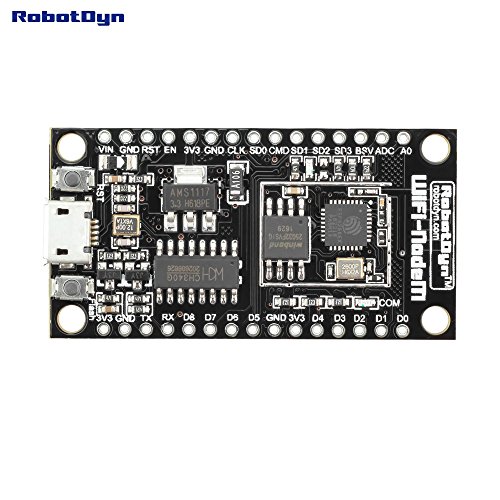

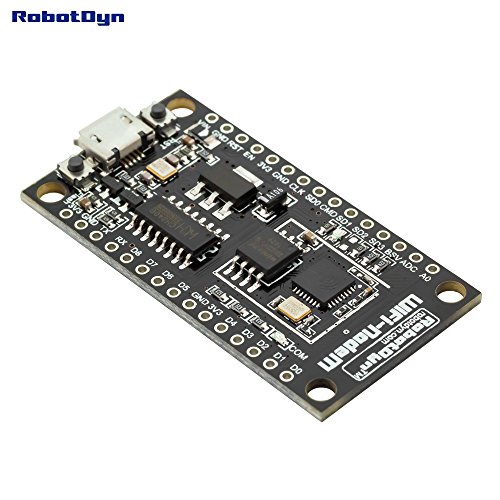

RobotDyn - 3 PCS - Compact NodeMCU V3 Lua WIFI module integration of ESP8266 + extra memory 32Mb flash, USB-serial CH340G





3 PCS - NodeMCU ESP8266 + 32Mbit, USB-TTL CH340G


1 PC - NodeMCU ESP8266 + 16Mbit, USB-TTL CP2102


1 PC - NodeMCU ESP8266 + 32Mbit, USB-TTL CH340G


1 PC - NodeMCU ESP8266 + 8Mbit, USB-TTL CP2102


1 PC - NodeMCU PRO ESP8266 + 8Mbit


3 PCS - NodeMCU ESP8266 + 32Mbit, USB-TTL CP2102

Product Description

Bulk packing. Included 3 units. Inside: Each one unit in an independent anti-static bag with label.

WI-FI NodeM ESP8266+extra memory, module is based on widely explored esp8266 System on Chip from Expressif.

WI-FI NodeM ESP8266+extra memory, compatible for NodeMCU board. We add extra memory size to 32Mb (Megabit). This better, for make big project with big library. You not need to worry about size of memory.

On board have USB-TTL serial converter CH340G, with Micro-USB socket. PowerIn for DC 4~9V, to pin VIN.

Pin headers 2.54mm (0.1") 15 pins x 2 lines in set. Not soldered.

It combined features of WI-FI accesspoint and station + microcontroller and uses simple LUA based programming language.

WIFI NodeM ESP8266+extra memory,, offer:
- Arduino-like hardware I/O. And can programming in Arduino IDE
- Event-driven API for network applicaitons
- 10 GPIO's D0-D10, PWM functionality, IIC and SPI communicaiton, 1-Wire and ADC A0 etc. all in one board
- Wi-Fi networking (can be uses as access point and/or station, host a web-server), connect to internet to fetch or upload data.
- For developing can use install to breadboard.


Product official page:
http://robotdyn.com/catalog/boards/wifi_nodem_esp8266_32m_flash/
* For get a detail information of product, instruction, schematic diagram, dimension diagram, guide and software, Pls visit to official page of product.

RobotDyn(R) - registered trademark in USA.
Zhuhai RobotDyn Technology Co.,Ltd - Developer and manufacture.

Feature

WI-FI NodeM ESP8266+extra memory, module is based on widely explored esp8266 System on Chip from Expressif
WI-FI NodeM ESP8266+extra memory, compatible for NodeMCU board. We add extra memory size to 32Mb (Megabit). This better, for make big project with big library. You not need to worry about size of memory
Arduino-like hardware I/O. And can programming in Arduino IDE
Antenna: integrated to PCB layer (under logo)
Brand : RobotDyn
MPN(PartNumber) : 7075044
EAN : 6970622935605
Product Dimensions(LxWxH) : 9x6x2cm ; 23 g
Package Dimensions(LxWxH) : 9x6x2cm ; 23 g
