Item Descriptions:

Compact and bright LED light olight S2!

specification:

Cree XM-L2 / U3 LED mounted

Brightness

MAX 950 lumen

5 steps Brightness switching +

Strobe function installed

It is with detachable pocket clip.

It can be mounted in either the head direction or the end direction.

The protection grade is IPX - 8 (1.5 M), the impact resistance is also strong!

Specifications: LENS: PMMA TIR lens

LED light:

Cree XM-L2 / U3 LED mounted

MAX 950 lumen

Material

: High Quality Aircraft Aluminum Alloy

Brightness is 5 kinds, Turbo mode 950 lumens, 2 minutes

H (400 lumens, 245 min))

M (80 lumens, 19 hours)

L (10 lumens, 144 h)

Waterproof rating: IPX 8

Battery: 1 x 18650 OR 2 x CR 123 A

(Sold separately)

Light irradiation intensity: 5000 CD

MAX Irradiation distance: 142 meters

Total length: about 103 mm

Diameter: about 23 mm

Weight: Approximately 50.5 g (excluding batteries)

Compact, lightweight, high power, waterproof performance IPX 8 excellent weatherproof waterproof

Equipped with CREE XM - L2

, Very bright light of MAX 950 lumens.

It is suitable for overall uniform light distribution, lighting in the range of 5 to 10 m.

If it is 400 lm or more, the object in front can be clearly illuminated at a distance of about 10 m.

Attached double clip to make it easier to insert into a pocket.

You can remove the clip, it is made of rugged steel.

It is not too hard and not too soft, so I do not feel stress on pulling in and out.

Because it has body size to some extent, it is easy to grasp, easy to operate buttons.

A sufficiently compact body will not get in the way of taking it anywhere.

Two compact CR123A lithium batteries or 18650 rechargeable batteries can be used for a compact body with a total length of 103 mm and a head diameter of 23 mm.

You can load a large capacity rechargeable battery while it is a compact body.

The body uses an aluminum alloy of an aircraft grade.

TYPE 3 HA surface treatment resistant to rubbing is applied.

The bezel ring and the blue ring around the switch are made of stainless steel alloy

PVD coating

I was doing vivid blue which was done.

PVD is a vacuum evaporation technology that can provide vivid color with excellent abrasion resistance if it is thin film coating.

Waterproof performance

IPX 8

It is excellent all-weather specification waterproofness.

The tail cap is equipped with a magnet.

You can paste it on a material that responds to magnetic force such as an iron plate.

It helps hands-free work etc.

Battery: 1 x 18650 OR 2 x CR 123 A.

For 18650 size design, rattling is 2 x CR 123 A, so you can eliminate rattling by using it in the included battery sleeve.

Attention is required for the direction of the battery

: Unlike ordinary light

The direction of the electrodes is opposite

It is becoming.

Orientation is also written on the side of the manual and light, but it does not light up, although it will not break down even if it is loaded in the opposite direction.

The body uses an aluminum alloy of an aircraft grade.

TYPE 3 HA surface treatment resistant to rubbing is applied.

Lighting mode

It consists of 5 stages of brightness + strobe.

[Turbo / 950 lm]

Turbo mode prevents malfunction due to fever, only in the first two minutes later the output drops to 50% MAX 170 minutes to maintain illumination.

[Hi / 400 lm] MAX Maintain illuminance for 245 minutes.

[Mid / 80lm] Same as S1 and maintaining illuminance for MAX 19 hours

[Low / 10 lm] 2 lm brighter than S1.

MAX 144 hours light intensity maintenance

Low ~ Turbo is switched by long press of the switch while lit, the mode is memorized, the mode last used during re-lighting

Illuminate from.

To switch to Turbo mode without switching Double-click while it is off, in this case mode storage

It will not be done.

[MoonLight / 0.5 lm] Faint light enough to be seen directly with the naked eye.

MAX 60 day illumination

[Strobo] Blink fast with the same brightness as Turbo

When MoonLight is turned off, press and hold the switch for a while, it will not be remembered.

Strobo is triple from any state

Click, it will not be remembered.

Method of operation:

Switch is only one button at the head.

It lights when clicked, and goes out when clicked again.

When three dimming dimming is lit, the brightness gradually changes when the switch is pressed for a long time, and its brightness is fixed when you release your finger from the switch at any brightness.

The dimming is remembered even after turning off.

When the switch is pressed quickly, the flash blinks quickly, and when you press the switch again lightly, it goes out.

Pressing the switch twice rapidly when it lights up will result in "timer mode".

Timer mode

Pressing the switch twice rapidly when it lights up will result in "timer mode".

The timer can be selected from 3 minutes or 9 minutes and can be switched by pressing the switch twice rapidly in the timer mode.

It turns off automatically at the set time.

If you press and hold for more than 1 second when it is off, it will be in Moonlight mode (0.5 lumens).

A thin wire is attached to the string of the attachment part of the strap so that a string can be easily passed through.

Package list :(

S2 Baton - 18650 Battery with battery 3400 mAh

Flash light body

user manual

Battery cover

User's manual(

Japanese instructions available

S2 Baton - 18650 Battery with battery 3400 mAh

strap(

A thin wire is attached to the string of the attachment part of the strap so that a string can be easily passed through.

Package list :(

S2 Baton

Flash light body

user manual

Battery cover

User's manual(

Japanese instructions available

strap(

A thin wire is attached to the cord of the attachment part of the strap so that a string can be easily passed through.

【Notes】

Leaving the exhausted batteries in the equipment for a long time will cause liquid leaks and damage the equipment.

Please take out the batteries as soon as you run out.

If you do not use for a long time please remove the battery.

Use different batteries of different types and brands (maker names), use the batteries of the same type or the same brand, use batteries that are used for new batteries, or mix used batteries, you get fever, leakage, rupture

There are times when it happens.

When replacing the batteries, please use new batteries of the same type and the same brand name.

Features:

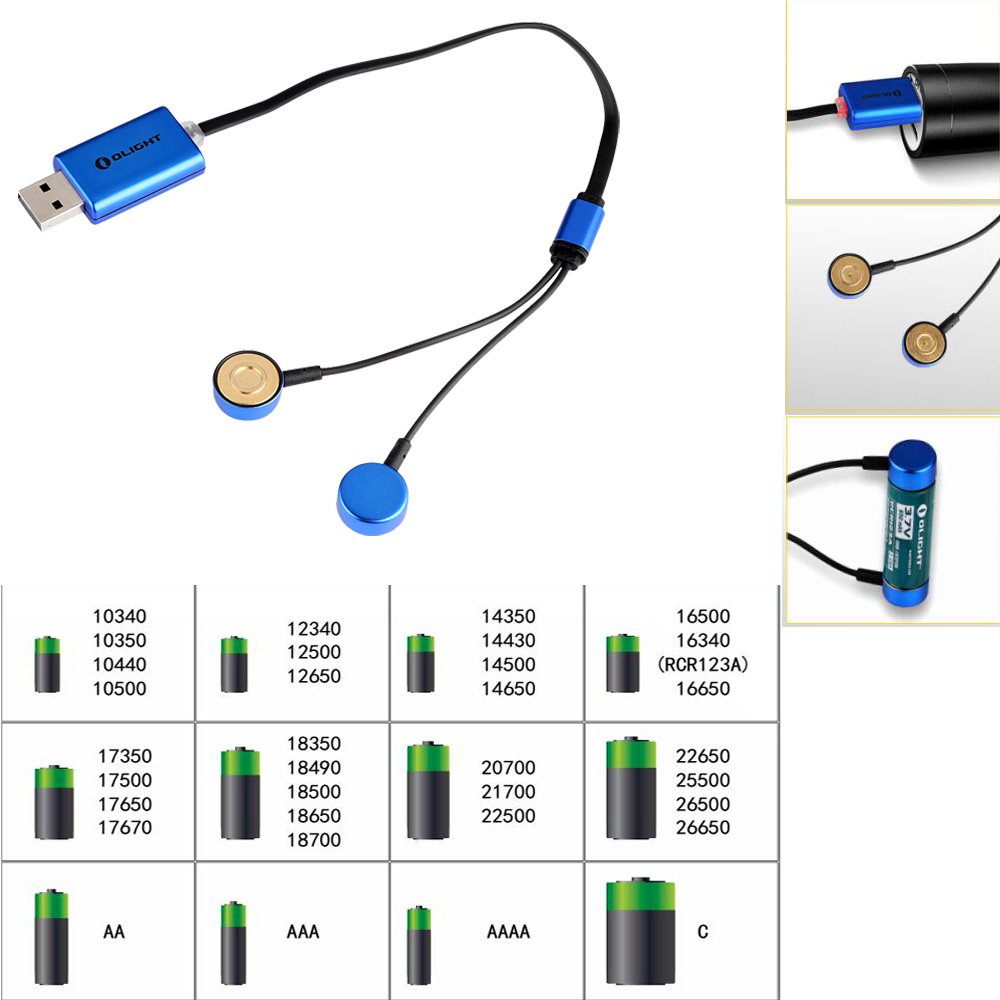

• Rechargeable batteries: Rechargeable batteries such as 18650/17670/16340 / RCR 123 A / 14500 / AA / AAA / AA / 10340/10350/10440/10500/12340/12500/12650/14350/14430/14500】
• Size: Approx. (L) 300 mm x (W) 8.7 mm x (TH) 21 mm, Weight: 20.5 g

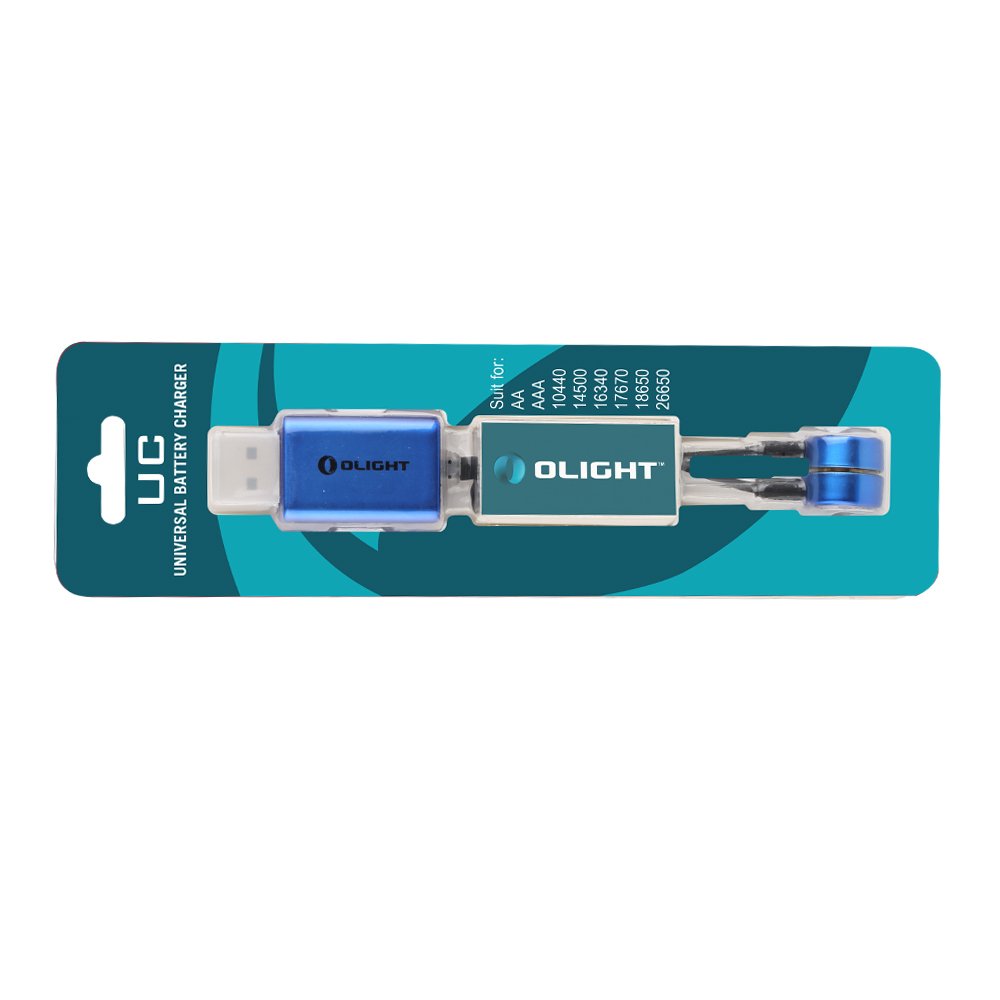

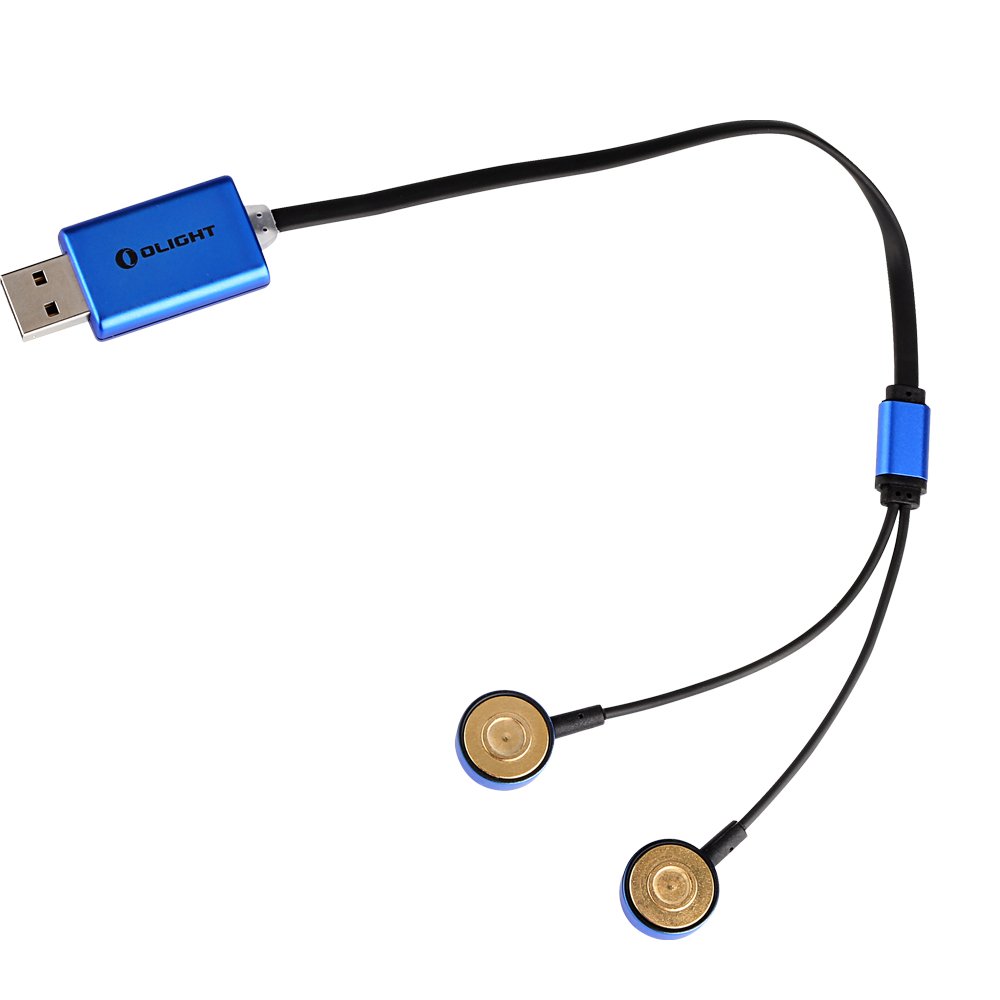

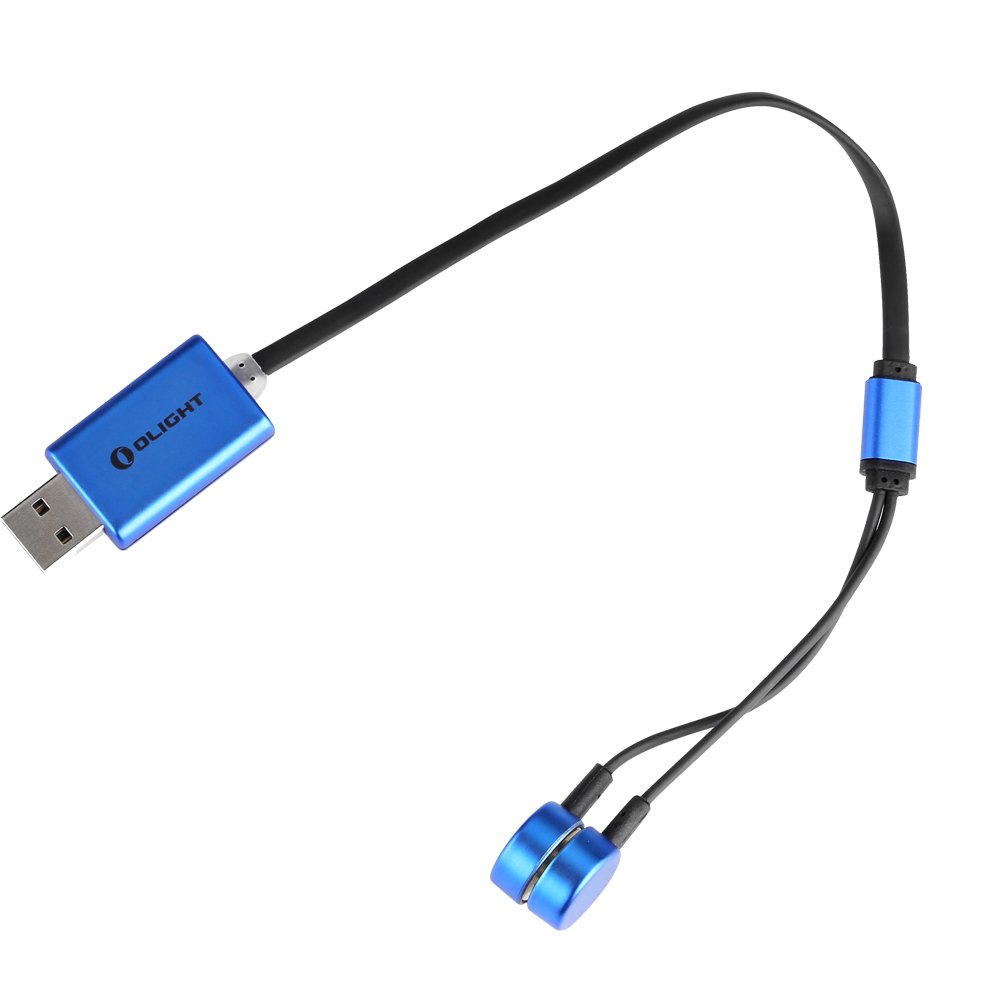

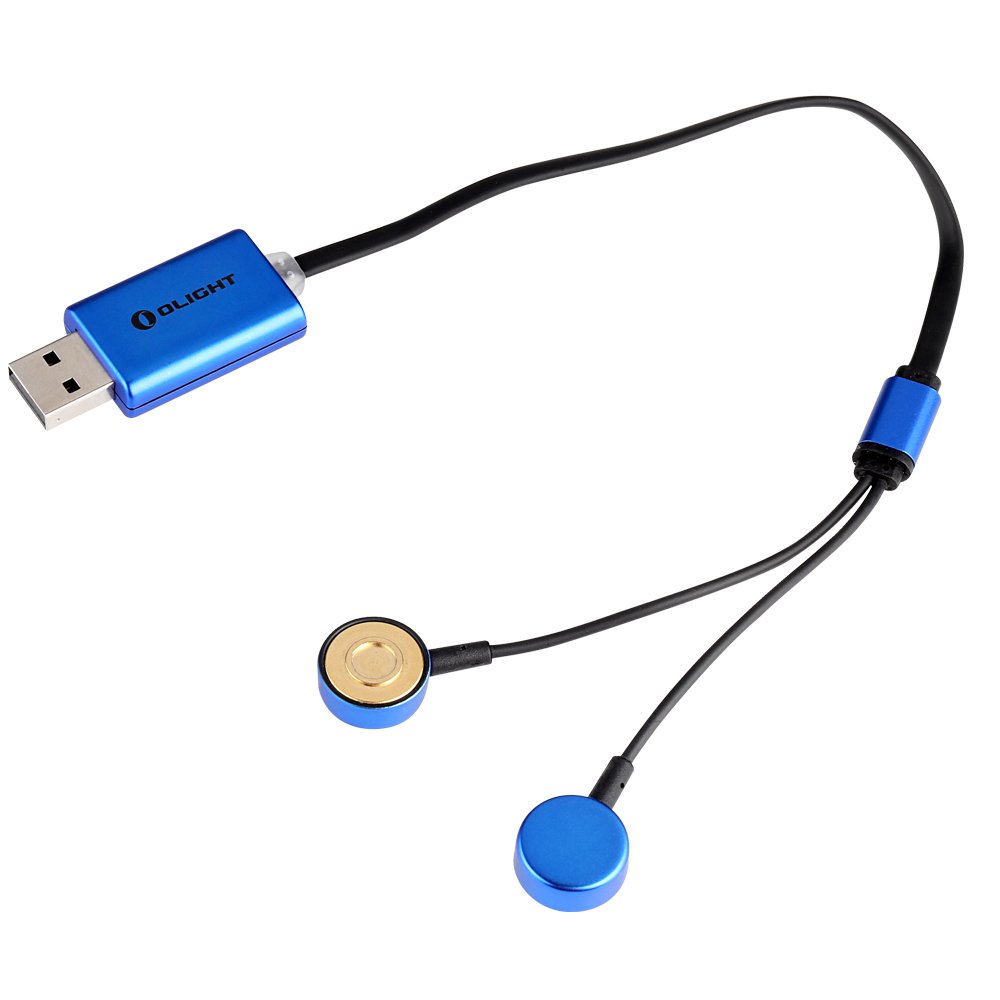

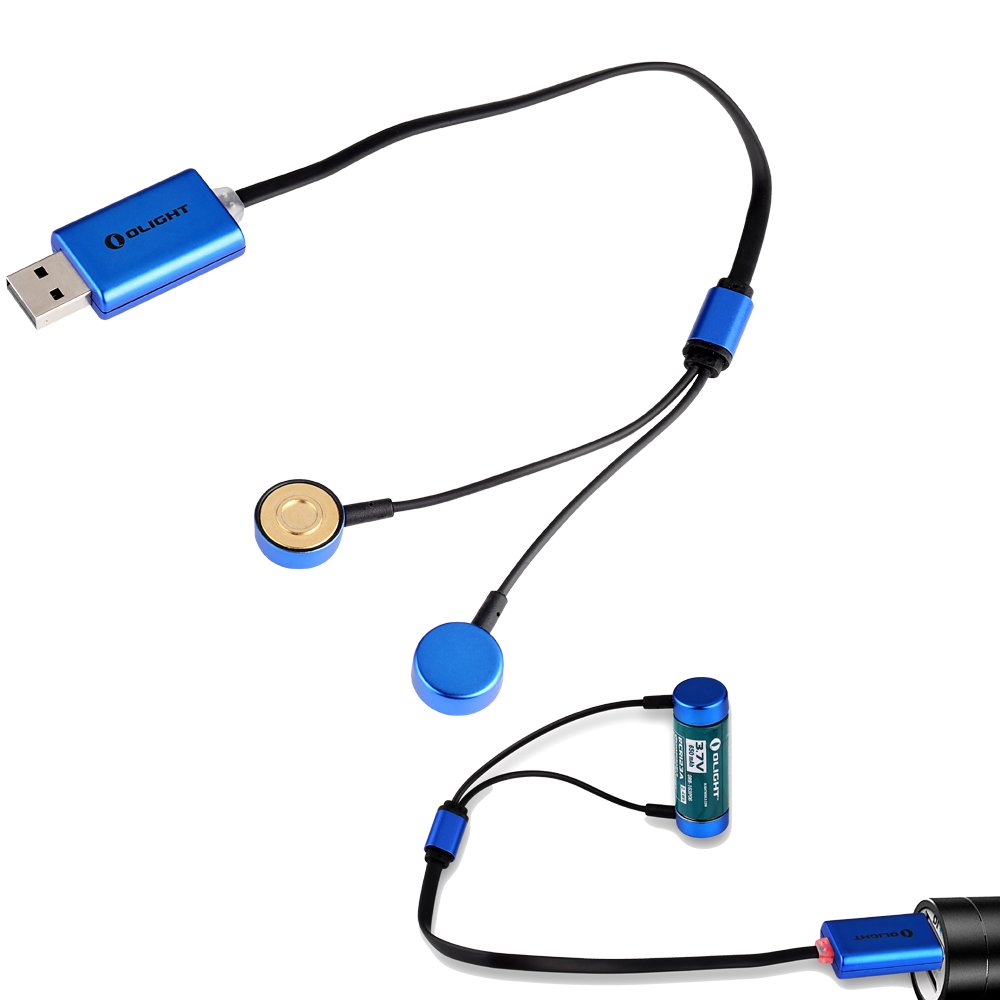

• Package list: OLIGHT UC Charger 2 points (UC charger door only, there is no light body) ※ Batteries are sold separately, please understand.
• Olight has absolute confidence in our products.
• For that reason, we offer 5 year warranty and high quality customer support for all products.
• ※ Please note: Olight products only Olight® Direct JP is an authorized dealer please note!

Product information:

Shipping Weight: 58 g

Package Dimensions: 3.00 x 10.01 x 19.71 cm
