Product Description

*High Precision
*Capacitive Type
*Outstanding Long-Term Stability
*Full Range Temperature Compensated
*Relative Humidity And Temperature Measurement
*Calibrated Digital Signal
*Extra Components Not Needed
*Long Transmission Distance, Up To 100 Meters
*Low Power Consumption
*Three-Core Shielded Cable As Outgoing Line
Description:
SE-RHT05 Output Calibrated Digital Signal. It Applys Exclusive Digital-Signal-Collecting-Technique And Humidity Sensing Technology, Assuring Its Reliability And Stability. Its Sensing Elements Is Connected With 8-Bit Single-Chip Computer.
Every Sensor Of This Model Is Temperature Compensated And Calibrated In Accurate Calibration Chamber And The Calibration-Coefficient Is Saved In Type Of Programme In OTP Memory, When The Sensor Is Detecting, It Will Cite Coefficient From Memory.
Small Size & Low Consumption & Long Transmission Distance(100m) Enable SE-RHT05 To Be Suited In All Kinds Of Harsh Application Occasions. Single-Row Packaged With Four Pins, Making The Connection Very Convenient.

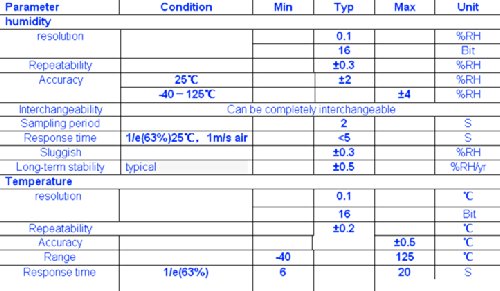

Technical Specification:
*Model SE-RHT05
*Power Supply 3.3-6V DC
*Output Signal Digital Signal Via 1-Wire Bus
*Sensing Element For RH Polymer Humidity Resistor
*Sensing Element For T Apply Dallas DS18B20 For Detecting Temperature
*Operating Range Humidity 0-100%RH; Temperature -40~120Celsius
*Accuracy Humidity +-2%RH(Max +-5%RH); Temperature +-0.3Celsius
*Resolution Or Sensitivity Humidity 0.1%RH; Temperature 0.1Celsius
*Repeatability Humidity +-1%RH; Temperature +-0.2Celsius
*Humidity Hysteresis +-0.3%RH
*Long-Term Stability +-0.5%RH/Year
*Interchangeability Fully Interchangeable

Feature

ong distance signal transmission, Ultra-low power, 4 pin installed, completely interchangeable
Recommended cable length of less than 20 meters with a 5K pull-up resistor, more than 20 meters, according to the actual situation of use of appropriate pull-up resistor

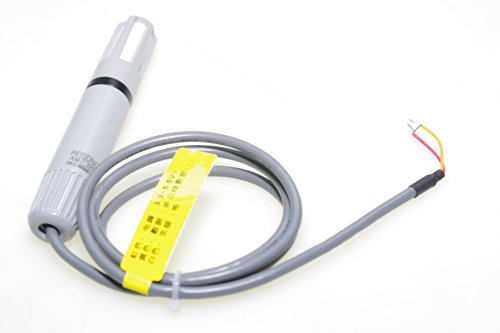

Connector is a three-core shielded cable, the red core for the power cord, black core for the ground , yellow core is the signal line
Compatible Models:HVAC, test and inspection equipment, Auto, data logger, consumer goods, Automatic control, Weather Station, appliances, humidity regulator, Medical
