Item Descriptions:

Style name:

body

Product introduction

Dualizing the image engine is an indispensable factor in talking about high-speed continuous shooting of up to about 8 frames per second.

Dual DIGIC 4 also makes a big contribution to the high-speed processing of large capacity data sent from CMOS sensor.

In order to express richer gradation, 14bit A / D conversion (16384 gradations) is adopted.

It can reproduce rich grayscale with high image quality captured by CMOS sensor.

In-house developed technology of CMOS sensor that Canon has cultivated is fruit at an advanced level.

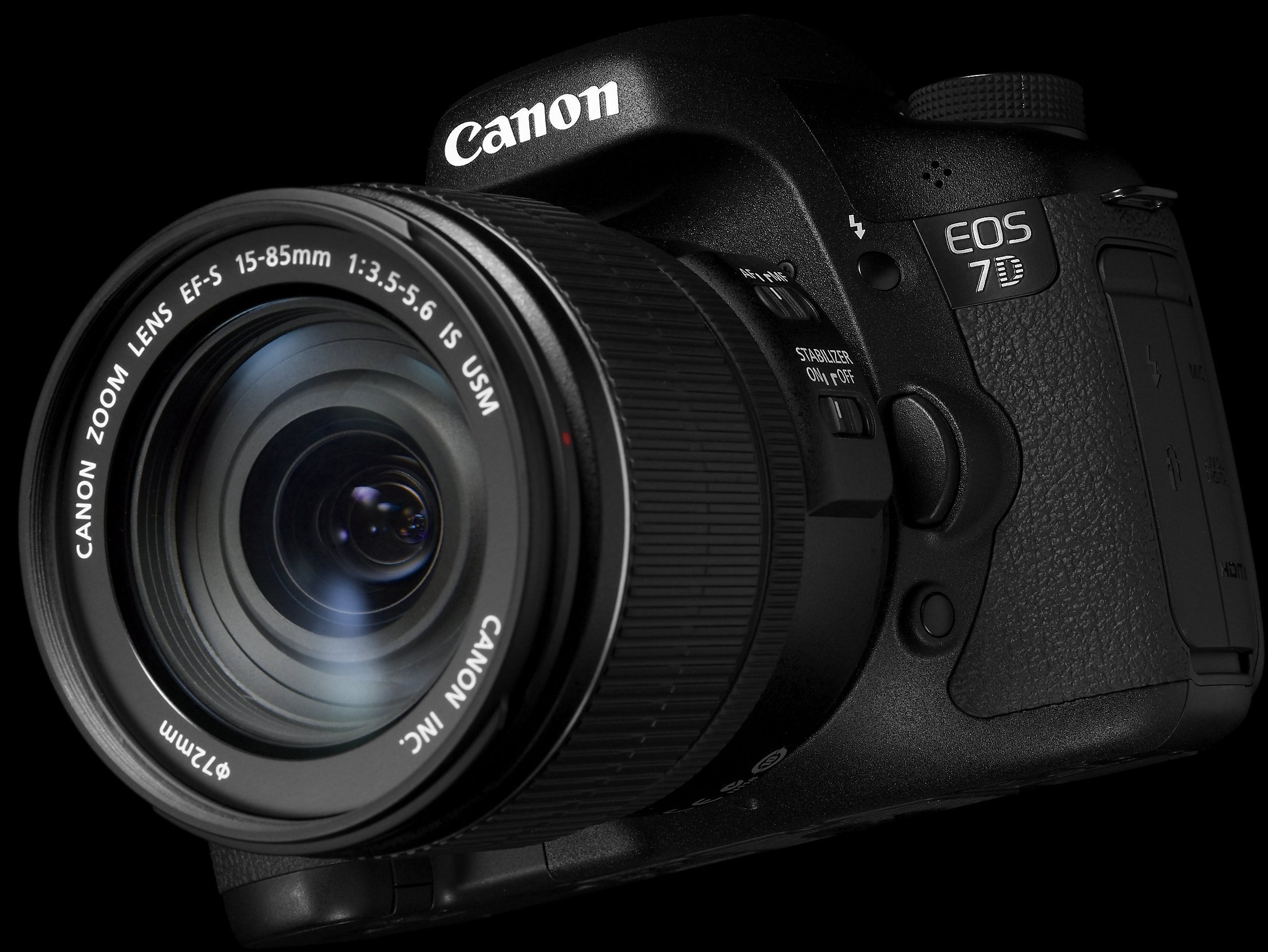

The EOS 7D has a CMOS sensor of about 18 million pixels (APS - C size, effective shooting field angle equivalent to about 1.6 times the focal length of the lens notation).

From Amazon

In addition to functions and performances comparable to those of professional aircraft, Canon EOS 7D digital amateur single lens reflex realized various ways of use

■ Higher image quality than ever

Dual DIGIC 4 that produces high speed and high image quality in the new era

By dualizing the video engine, high-speed continuous shooting of up to about 8 frames / second and high-speed processing of large volume data sent from the CMOS sensor became possible.

The ability of the dual DIGIC 4 to feel especially the noise processing ability.

In addition to color noise, it exerts high performance in removing luminance noise, which affects the natural impression of the image.

In addition, we have refined many functions such as improvement of regular ISO sensitivity by increasing the speed of low noise development processing, various image processing functions, full HD movie shooting, live view shooting function and so on.

Gradation is more beautiful and smooth.

14 bit A / D conversion processing.

In order to express the gradation, 14 bit A / D conversion (16384 gradations) is adopted.

It can reproduce rich grayscale with high image quality captured by CMOS sensor.

It suppresses white toki, black trouble, tone jump, and delicately reproduces subtle changes of light such as sunset.

Approximately 18 million pixels CMOS sensor

The EOS 7D is equipped with a CMOS sensor of about 18 million pixels (APS - C size, effective shooting angle of view is equivalent to about 1.6 times the focal length indicated by the lens).

About 18 million pixels are laid out without waste in a space of only 22.3 × 14.9 mm.

The resolution feeling and gradation that are produced can be recorded as deep images without granular feeling, even precise details and delicate colors that could not be drawn so far.

In addition, in order to process large volume data of about 18 million pixels at high speed, high speed / 8 channel signal reading is adopted.

Contributing to high-speed continuous shooting of up to about 8 frames per second.

High sensitivity and wide dynamic range without compromise even at high pixel

The new CMOS sensor pursues further improvement of light collection efficiency.

In addition to eliminating the microlens gap (microlens gap) for each pixel lined up on the sensor, shorten the distance from the microlens to the photodiode and catch the light efficiently.

Also, by introducing a miniaturization process in the manufacturing process, the area of ​​the photodiode is secured.

Even for high pixel of about 18 million pixels, high ISO sensitivity · low noise, wide dynamic range possible.

Furthermore, on the low sensitivity side, it creates images with a wide dynamic range, which are difficult to whiten.

Commonly used ISO sensitivity 100 ~ 6400.

Wide ISO sensitivity to realize low noise and high image quality in all areas.

Commercial ISO sensitivity of 100 to 6400 (extended H: 12800) realized wide sensitivity setting.

On the high sensitivity side, hand-held shooting is safe indoors where the light intensity is insufficient, at the stadium, at sunset, and so on.

Also, because it can increase the shutter speed, it also supports subject blurring.

Even raising the sensitivity is low noise, so clear images are obtained.

Meanwhile, the ISO 100 on the low sensitivity side is advantageous for portrait photography that utilizes narrowed-down landscape photographing and large aperture lenses.

By setting the ISO sensitivity automatically, the sensitivity is automatically set in the ISO 100 to 3200 range according to the shooting scene.

■ Comfortable shooting

High-speed continuous shooting of up to about 8 frames per second, capturing the unseen world with the naked eye

Ball games where players move aggressively, movement of wild animals unreadable ahead, moments when wild birds fly.

In addition, continuous shooting performance has evolved to capture the decisive moment.

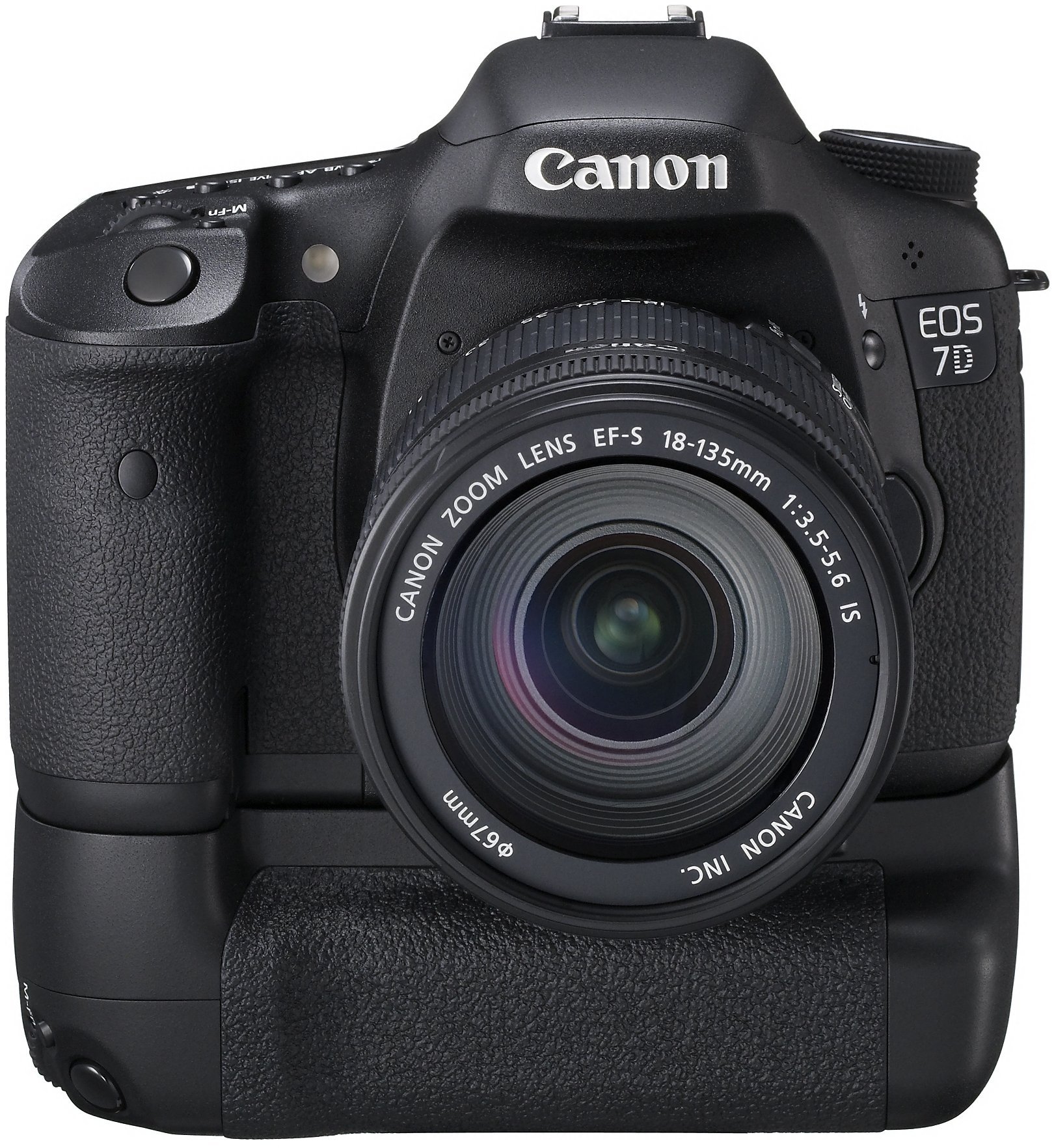

It is small compared to a professional machine, but high-speed continuous shooting of up to about 8 frames per second is possible without equipping an external battery grip.

Dual DIGIC 4, CMOS sensor, high speed shutter, high performance 2 motor system, AF system with dedicated microcomputer cooperate, high speed performance realized.

About 100% field of view depicting a world that the line of sight is captured Finder

The basic attitude of a single lens reflex camera is to shoot while looking into the viewfinder.

EOS 7D realizes a viewing field ratio of about 100% that the photographer desires.

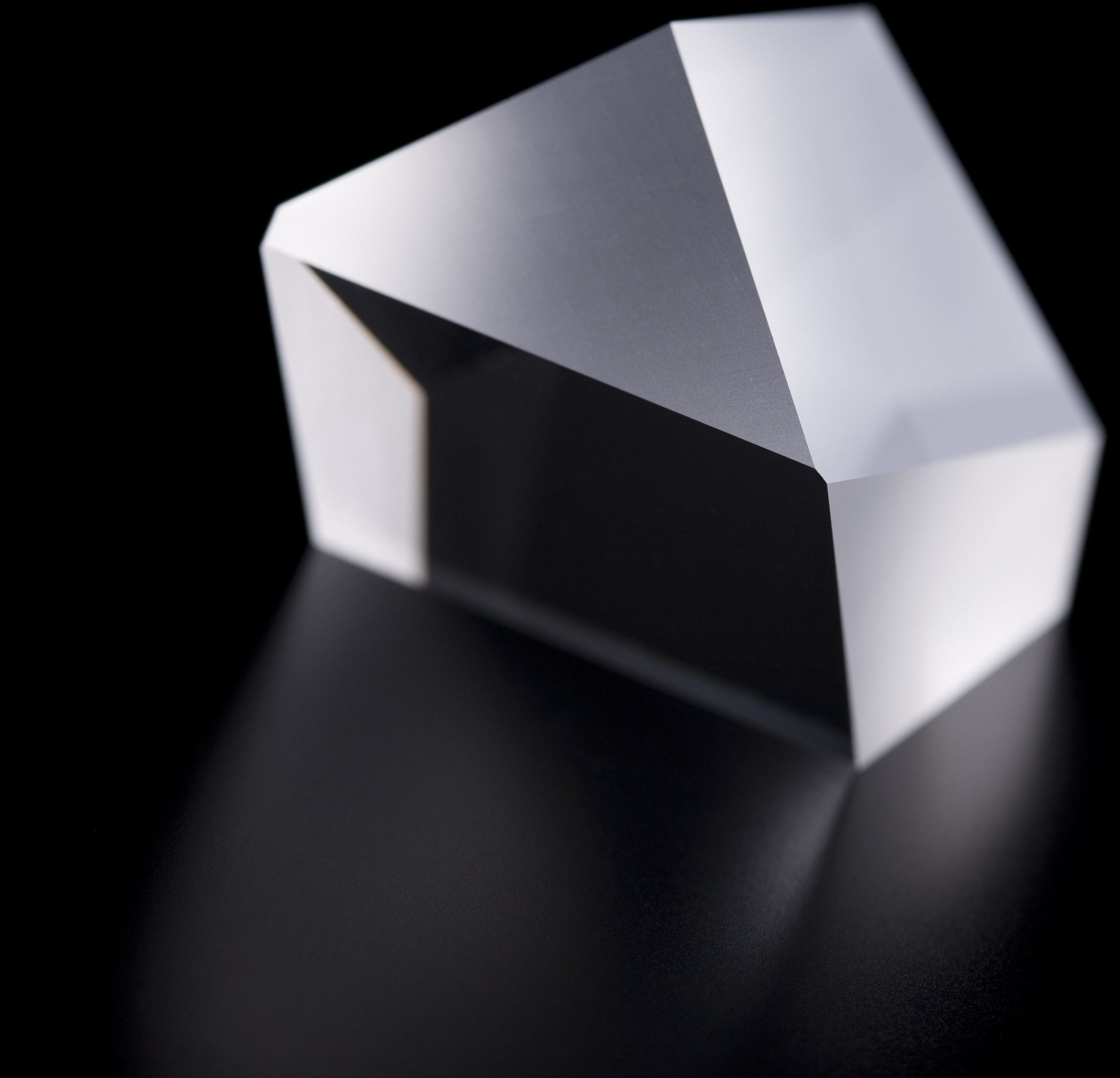

The penta prism adopts a large size which greatly exceeds the conventional APS - C size CMOS sensor loading machine.

Furthermore, the magnification is 1.0 times, the viewing angle is 29.4 °, and the eye point is 22 mm, achieving precision comparable to that of the Pro machine.

Also consider carefulness of "look" that you feel when you look through the viewfinder.

Adopted an eyepiece that effectively combines glass material that suppresses chromatic aberration and plastic aspherical lens.

Center F 2.8 compatible · Dual cross sensor arrangement.

All cross 19 points AF sensor

Since the subject is captured with 19 points of AF sensor arranged in the entire AF area, catching accurate movements such as animals and sports can not be predicted.

Cross (longitudinal / lateral) distance measurement corresponding to F 5.6 is possible for all distance measurement points, realizing acquisition performance which can not be obtained by either vertical or horizontal line detection.

The line sensor of the central focus detection point which is used frequently arranges F 2.8 light flux correspondence · dual cross (longitudinal / lateral) sensor which enables high focus accuracy.

It is effective when using a large aperture lens which requires more severe focusing accuracy.

The center-up / middle / lower 3-point horizontal line detection sensor suppresses variations in detection because it measures the distance twice with 2 lines and staggered arrangement.

At the same time, it is possible to perform AF quickly even from the large defocus (large blur) state.

63 divided dual layer metering sensor adopted.

New development and metering system "iFCL metering".

In order to further pursue exposure accuracy, we developed a new photometric system "iFCL metering".

A 63-division dual layer photometric sensor of a newly developed vertical two-layer structure with colorimetric function realizes highly accurate exposure determination under various light sources.

Added influence of color to exposure and AF information to the light caught by 63 division dual layer photometric sensor optimized for 19 point AF.

Also, by detecting the subject area from the AF information and mounting an evaluation photometry algorithm with emphasis on the subject area, it has become possible to make a preferable exposure determination according to the scene in consideration of the exposure balance of the main subject and the background

Expansion of Expression

Full HD EOS movie further evolves, the degree of freedom of exposure expands, corresponding to manual exposure.

There are three types of recording quality of full HD movies, and you can choose frame rates.

Since CMOS sensor readout is performed with 8 channels, it achieves 60 fps in HD / SD picture quality.

Even when the subject and the screen move fast, smooth video can be recorded.

Picture Style, Auto Lighting Optimizer Function, Light Peripheral Amount / Auto Correction Function, Noise Reduction at High Sensitivity Shooting, High Brightness / Tone Priority Functions can be reflected on video.

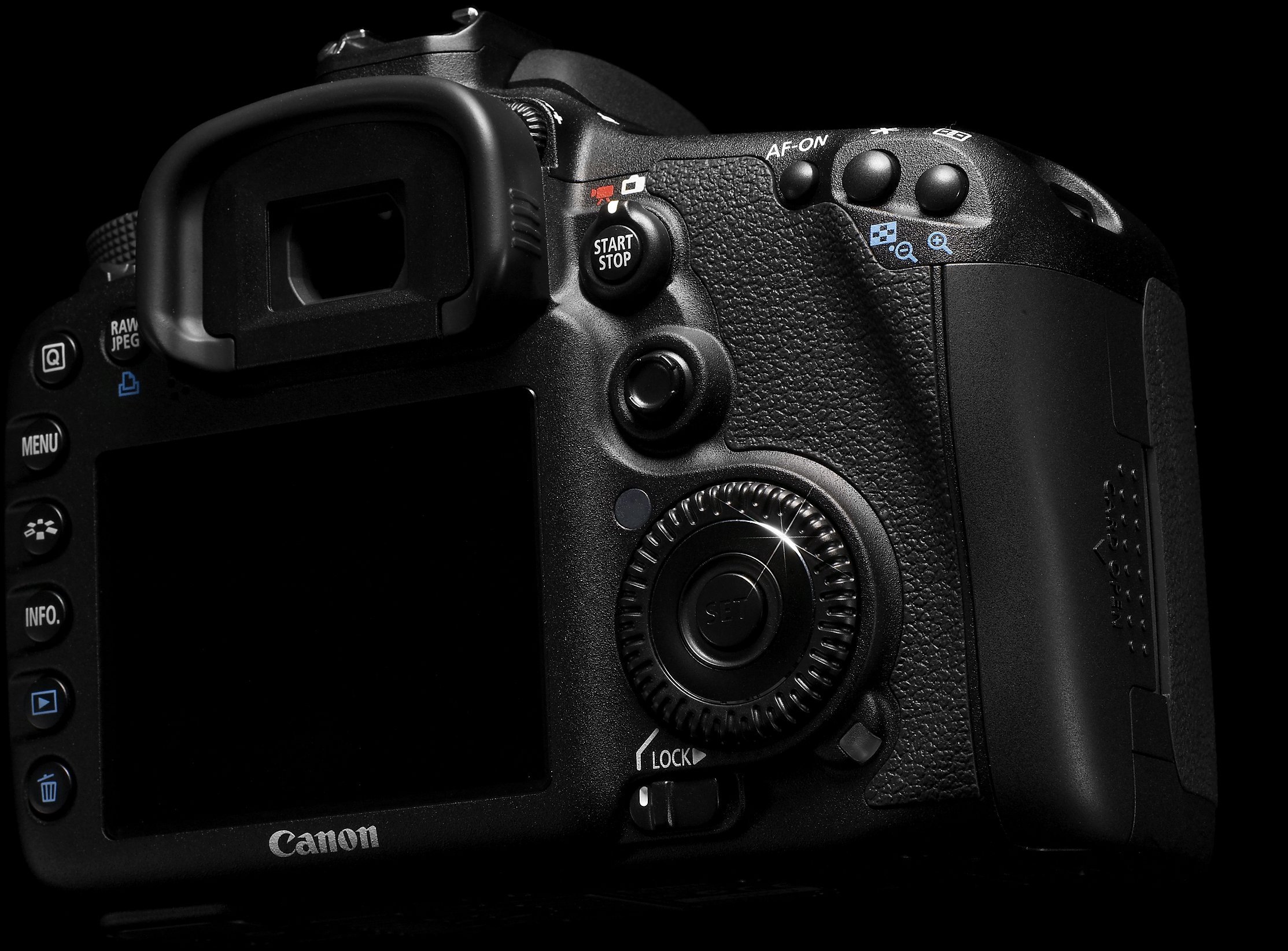

To start movie shooting, switch "Live view shooting / movie shooting" switch to "movie shooting" and press "Start / Stop" button.

Improved operability.

Also, flexible exposure control is possible according to the expression intention and light intensity.

By shooting the mode dial according to the manual exposure, it is possible to achieve the same effect as in normal still image shooting.

It can respond flexibly to scenes where brightness and darkness are complicated, scenes where it is difficult to obtain the intended exposure, high / low key expression, expressions making full use of the blurring tint of the large aperture lens, etc. Also, when the brightness of the scene suddenly changes,

Is automatically driven to generate a working sound.

Comfort operation

Remove reflections from the cause.

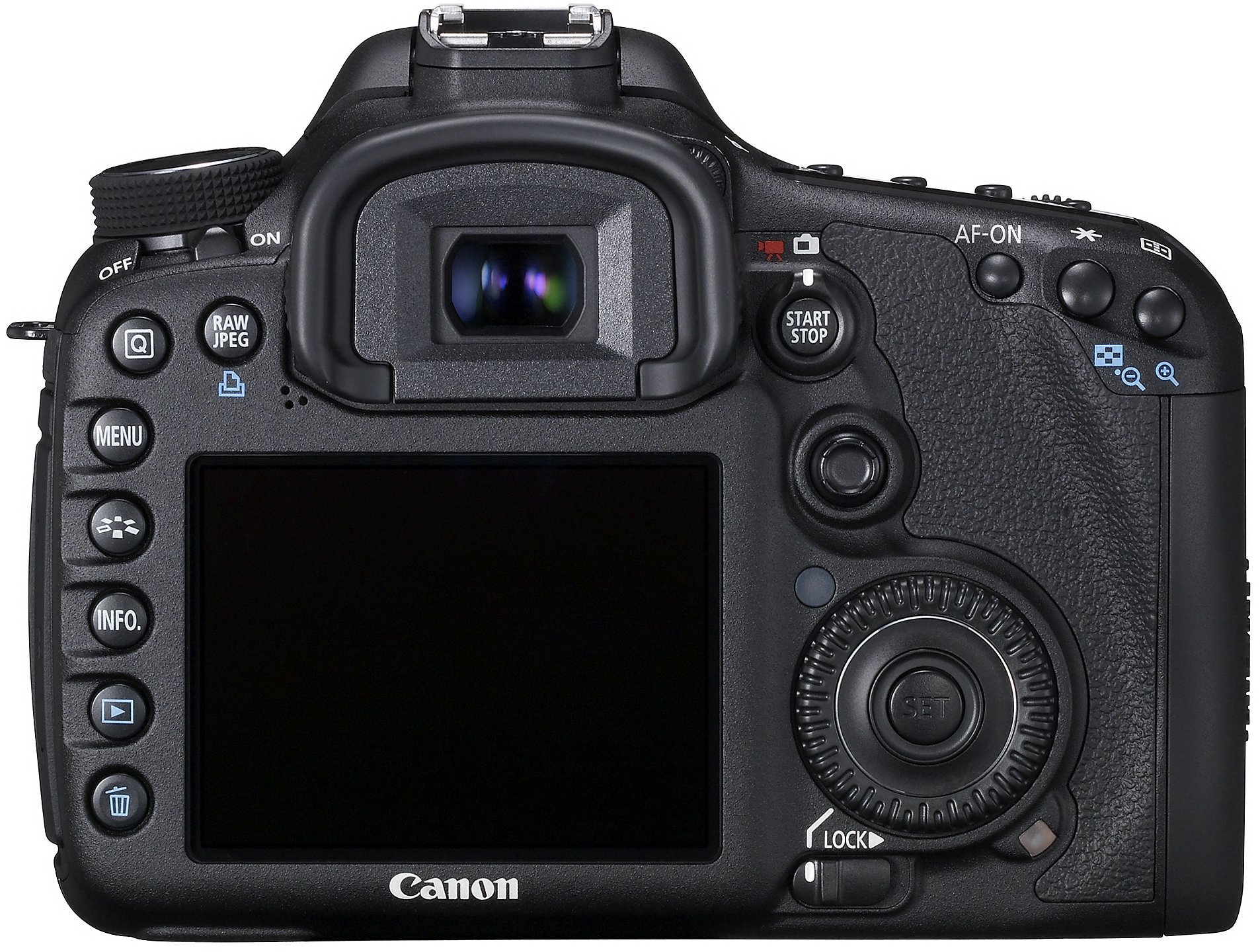

Tempered glass adoption 3.0 type clear view liquid crystal II

Rather than reducing the reflection of light, developed with the idea to remove the cause, 3.0 type clear view liquid crystal II installed.

One of the reasons for reflection is a solid structure that has a gap (air layer) between the protective cover of the LCD monitor and the liquid crystal panel, filling the gap with an optical elastic body, and bringing it into close contact.

It suppresses reflection and demonstrates better visibility even outdoors during the day.

Adopted strengthened glass that is resistant to external shocks for the protective cover of the LCD monitor.

The liquid crystal panel has a wide viewing angle of about 920,000 dots (VGA).

Since it is excellent also in coloring property and color reproducibility, sufficient resolution can be obtained even when enlarged display, and focus check can be performed comfortably.

Features:

• Please enter model number Confirm this is compatible:
• ● EOS 7D body 18 million pixels APS - C size CMOS sensor / dual DIGIC 4 / visual field rate about 100% · optical viewfinder with magnification of about 1.0 times / 3.0 type clear view liquid crystal II mo ...
• -----
• -----
• -----
• -----

Product information:

Shipping Weight: 453 g

Package Dimensions: 15.19 x 20.29 x 25.40 cm
