Item Descriptions:

Product standard

Product Type: AC Adapter

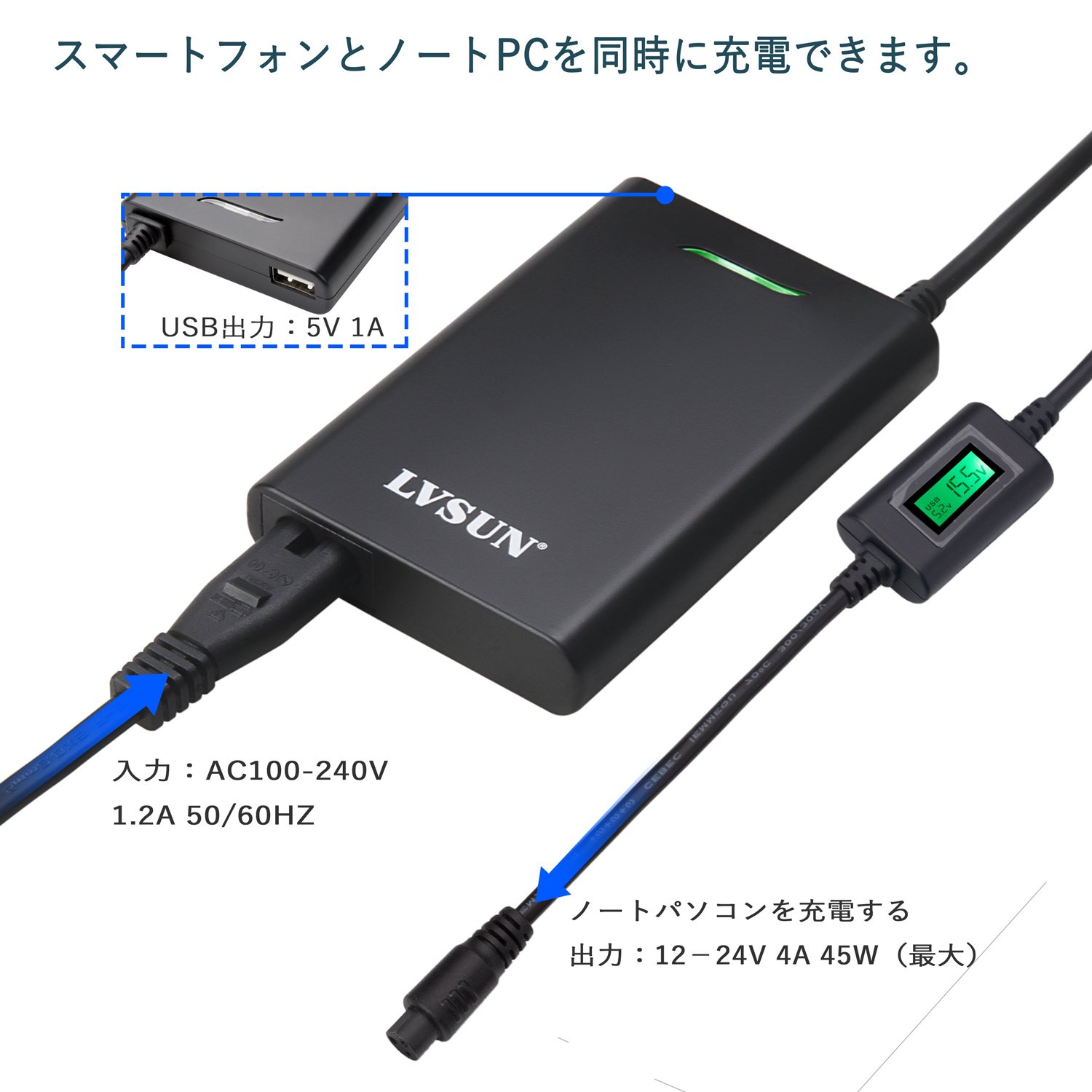

Input: AC100-240V1.2A50 / 60HZ

Output: 5 V - 24 V 4 A 45 W (MAX)

USB output: 5 V 1A (MAX)

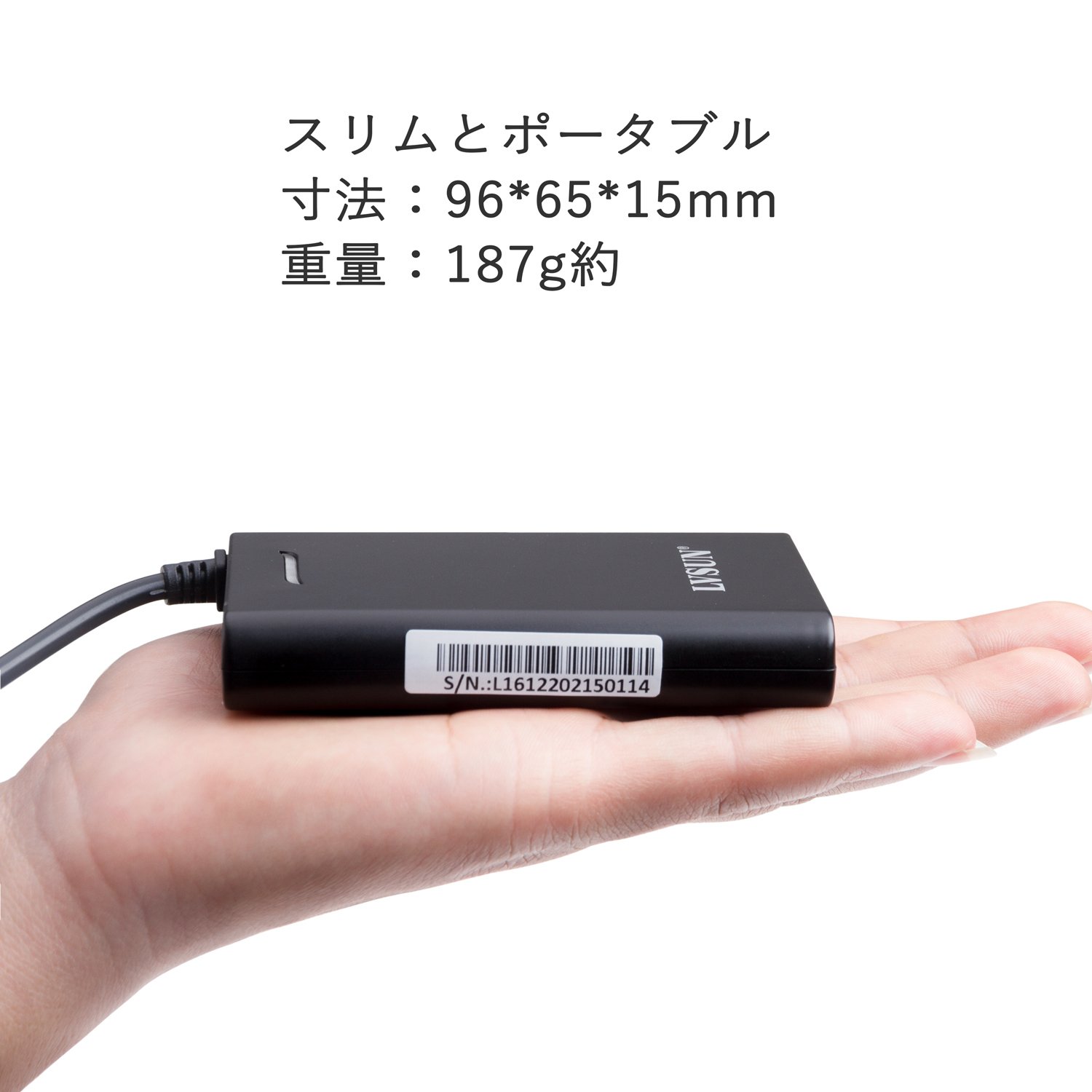

Size: 96 * 65 * 15 mm

Weight: 187 g

Built-in protection: OCP, OVP, SCP, OTP

Efficiency: 90%

Product description

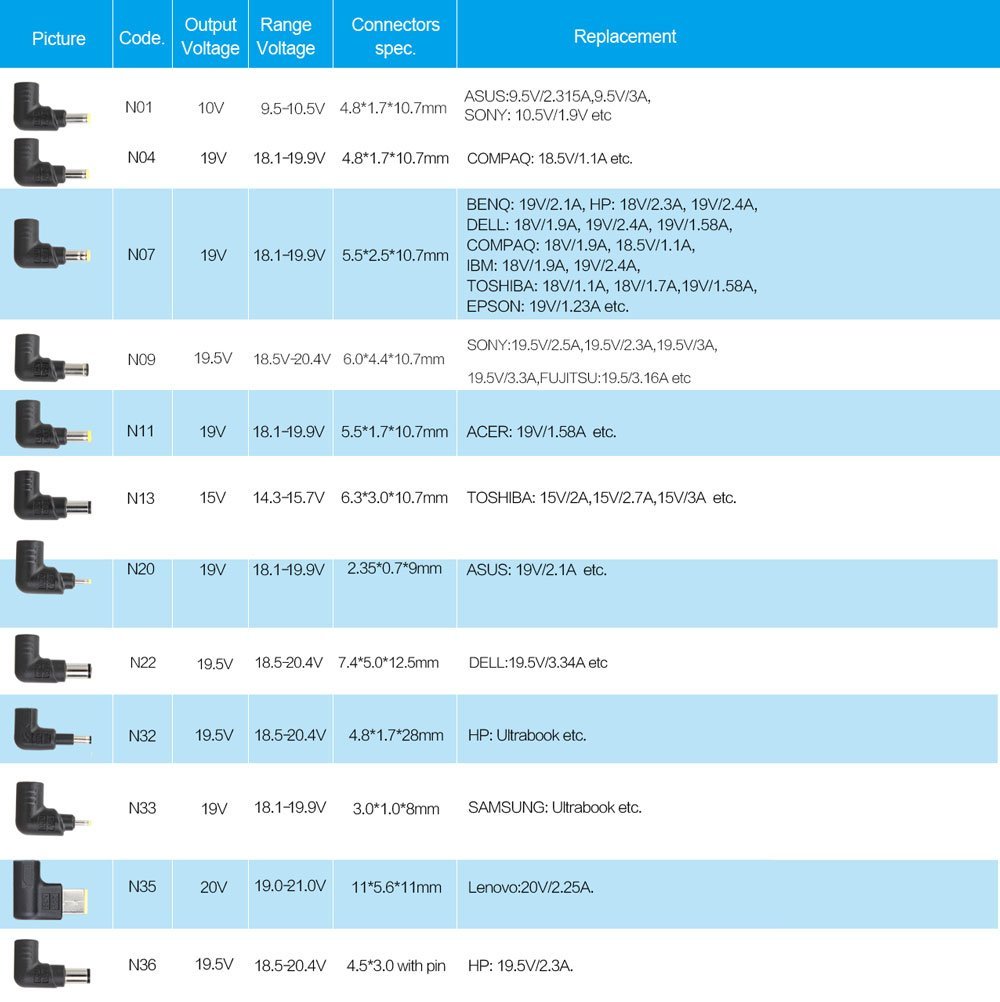

DC plug list:

1.N01 4.8 * 1.7 * 10.7 mm 10.5 V Fit for ASUS: 9.5 V / 2.315 A, 9.5 V / 3A, SONY: 10.5 V / 1.9 A etc.

2.N04 4.8 * 1.7 * 10.7 mm 18.5 V Fit for HP / COMPAQ: 18.5 V / 1.1 A etc.

3. N07 5.5 * 2.5 * 10.7 mm 19 V Fit for BENQ: 19 V 2.1 A; IBM: 18 V 1.9 A, 19 V 2.4 A; DELL: 18 V / 1.9 A, 19 V / 2.4 A, 19 V / 1.58 A; HP: 18 V / 2.3

A, 19 V / 1.4 A; TOSHIBA: 18 V 1.1 A, 18 V 1.7 A, 19 V 1.58 A; EPSON: 19 V / 1.23 A etc.

4. N09 6.0 * 4.4 * 10.7 mm 19.5 V Fit for SONY: 19.5 V / 2.15 A, 19.5 V / 2.3 A etc.

5.N 11 5.5 * 1.7 * 10.7 mm TOSHIBA: 19 V / 1.58 A etc.

6. N13 6.3 * 3.0 * 10.7 mm TOSHIBA: 15 V / 3A, 15 V / 2A, 15 V / 5 A, 15 V / 2.7 A etc.

7. N20 2.35 * 0.7 * 9 mm Asus: 19 V / 2.1 A etc.

8. N 22 7.4 * 5.0 * 12.5 mm 19 V Fit for DELL: 19.5 / 3.34 A etc.

9. N32 4.8 * 1.7 * 28 mm 19.5 V Fit for HP: Ultrabook etc.

10.N33 3.0 * 1.0 * 0.8mm 19V Fit for Samsung: Ultrabook etc.

11.N35 11 * 5.6 * 11 mm square 20 V Fit for Lenovo: 20 V 2.25 A etc.

12.N36 4.5 * 3.0 with pin 19.5V Fit for HP: 19.5V 2.31A etc. etc. (Note: Not compatible with Dell Inspiron 147000 series)

please note

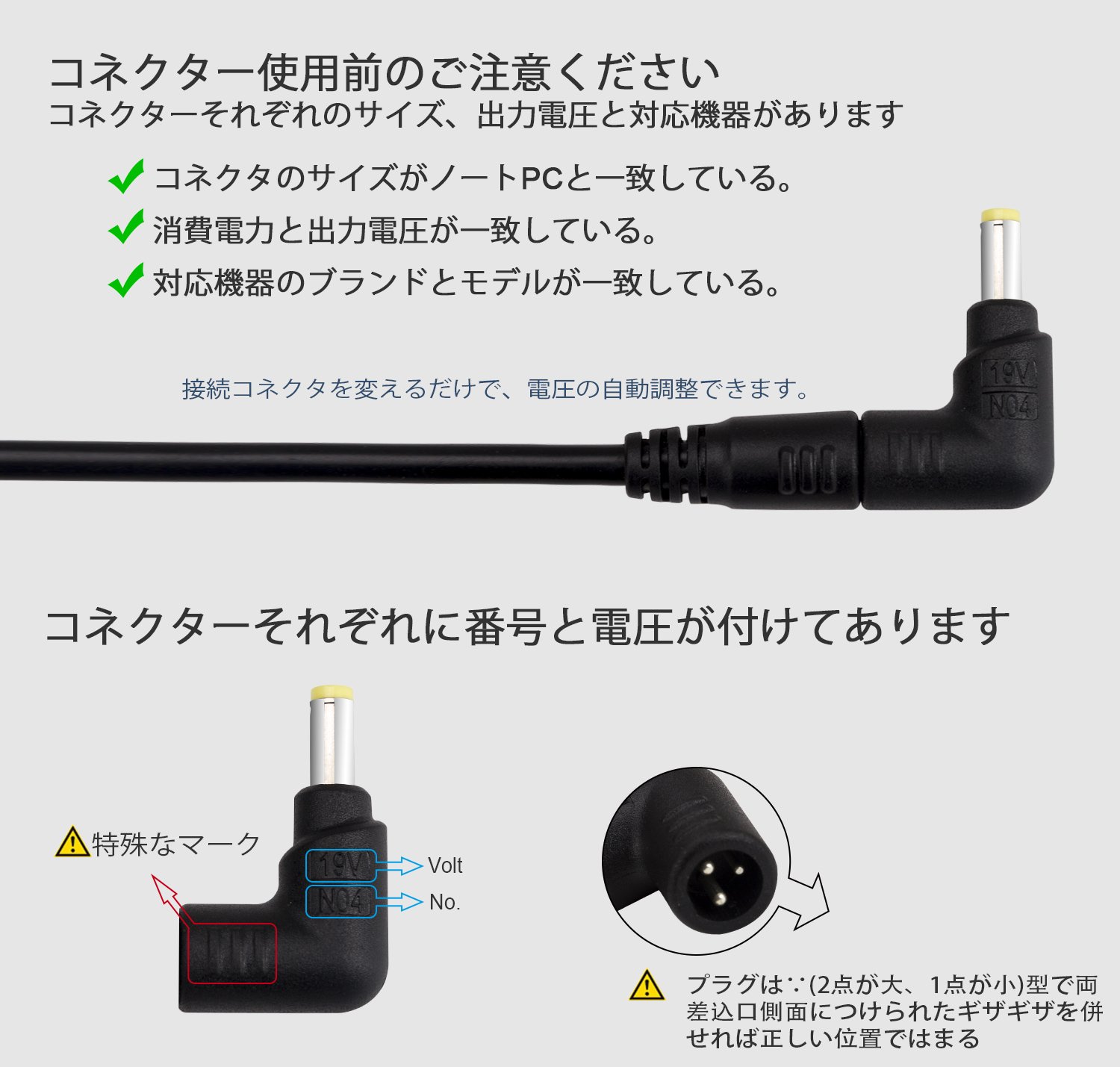

The DC plug fits in the correct position if ∵ (2 points large, 1 point small) type together with the jaggies attached to the side faces of both insertion ports.

It can correspond to devices whose consumption voltage is 45 W or less (45 W or more can not be supported).

Please confirm before you purchase whether you can correspond to your equipment. Thank you.

If you have any questions or questions in the product, please do not hesitate to contact us anytime.

Features:

• Please enter model number Confirm this is compatible:

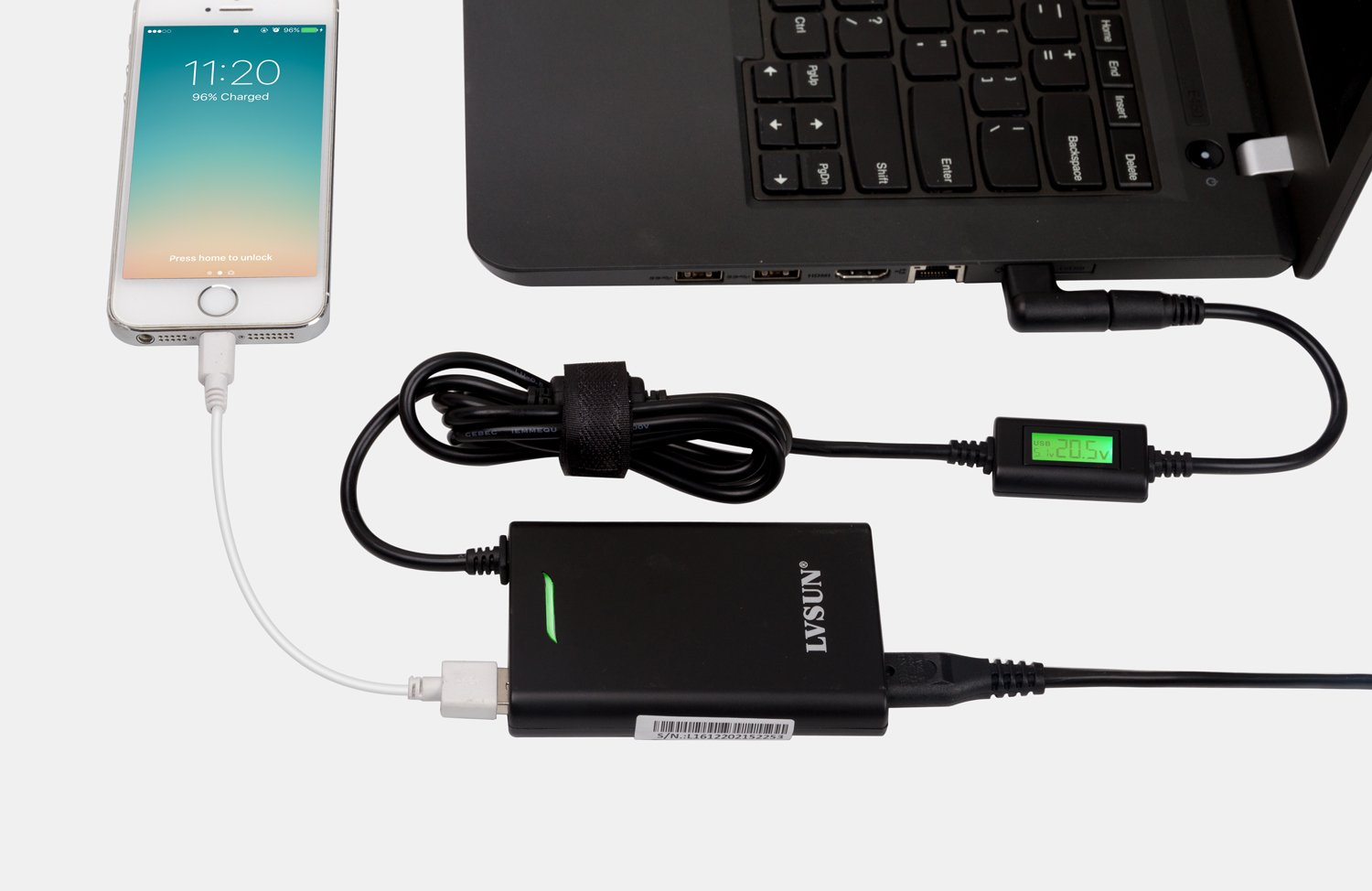

• 15 mm thin shell, compact size, ultra electric power 45 W, this device can supply power to laptops and smartphones on a business trip, various accessories become unnecessary, less belongings, less traveling!

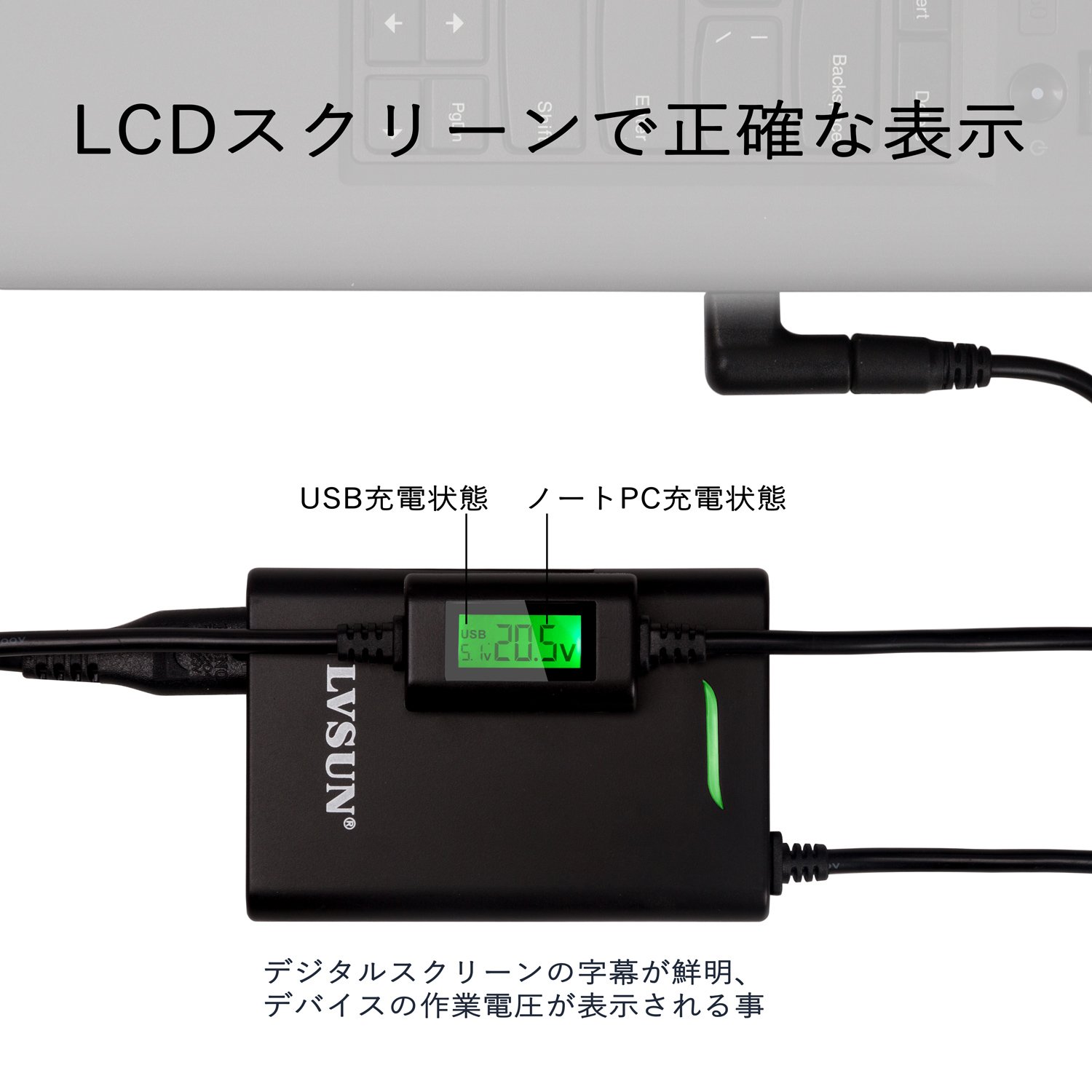

• The working status can be displayed with the LED lamp, the working voltage is displayed on the LCD monitor, the purpose is to be able to check the operation without failure of the target product.
• The circuit protection system automatically protects the system when overvoltage, overcurrent, overheat, short circuit occurs.
• There is a versatile AC power adapter: There are 12 types of attached plugs, Toshiba dynabook 19V, hp 19.5V, dell 19.5V, lenovo 20V, Sony 10.5V, Asus 19V, VersaProacer Fujitsu 19V, Samsung 19V and so on.
• ※ Note: This product is offered with 12 kinds of plugs, but please understand when it becomes inconvenient.
• If you would like to purchase another type, please contact us with the message to our store, sorry to trouble you, but also you can tell us the brand and model of the device you have.

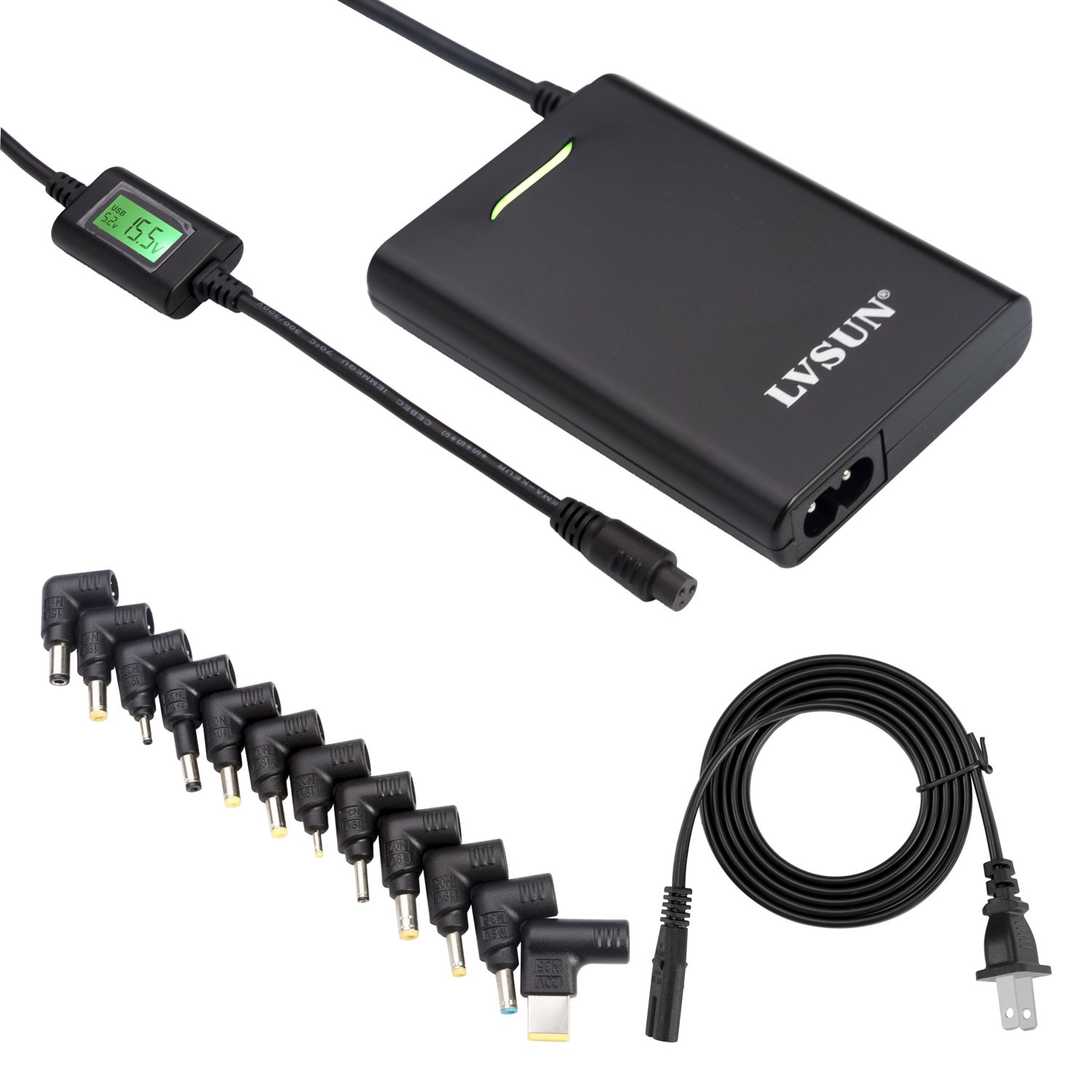

• Product Details: 1 * AC power adapter, 1 * power cord, 12 types of replaceable connector included.
• Warranty deadline: 2 years, if by any chance goods defective, please feel free to contact us anytime.
• Please purchase immediately.

Product information:

Shipping Weight: 371 g

Package Dimensions: 4.70 x 11.40 x 17.09 cm
