Product Description

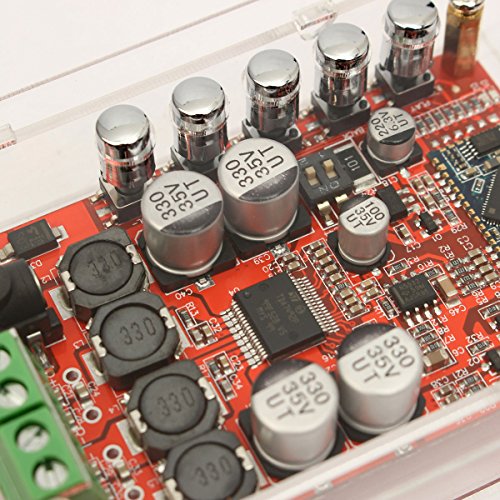

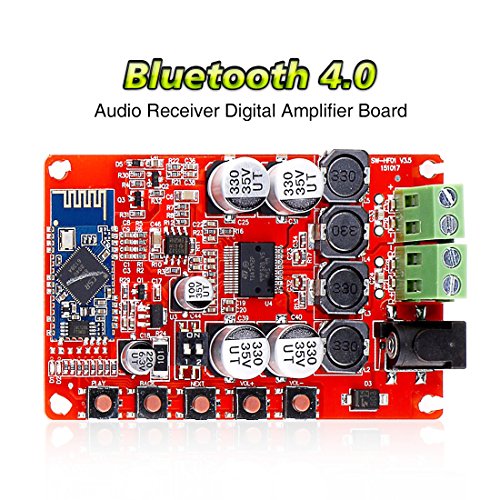

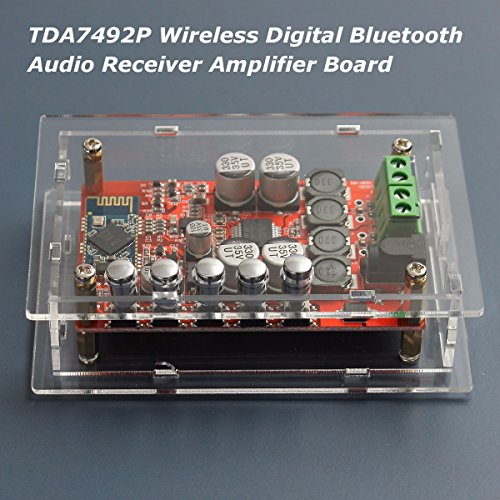

ELEGIANT Digital Amplifier Board

Power: 2.1 interface 8 ~ 25V DC power supply
Audio input: stereo input various versions of the Bluetooth connection， using CSR8630 Bluetooth chip， Bluetooth V4.0， high software compatibility
Output Impedance: 8 ohms Best(4，6，8，16 ohm impedance can drive speakers)
Output Power: powered 25V ，6-ohm impedance output 2 X 50W， 8 ohm impedance output 2X40W dual-channel
If you directly use Bluetooth， when power， wait 3s~10s， until led Blue and Red light flashing alternately， then you can use your device to find my Bluetooth module， you will find"SANWU Audio"， then connect it， can directly use it. Remember back to even.

Parameter

Material: PCB
Color: Red
Digital Amplifier Board: 3.2 X 2.0 X 0.7 inches(L*W*H)

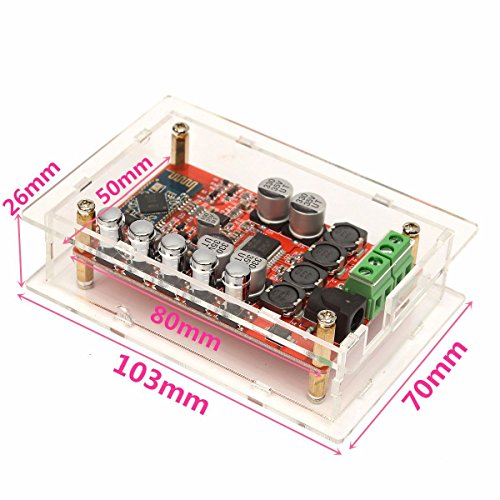

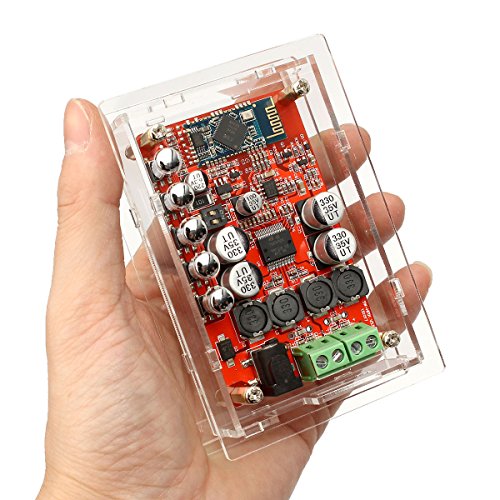

Protective Case: 4.0 X 2.7 X 1.0 inches(L*W*H)
Net Weight: 0.2 pounds

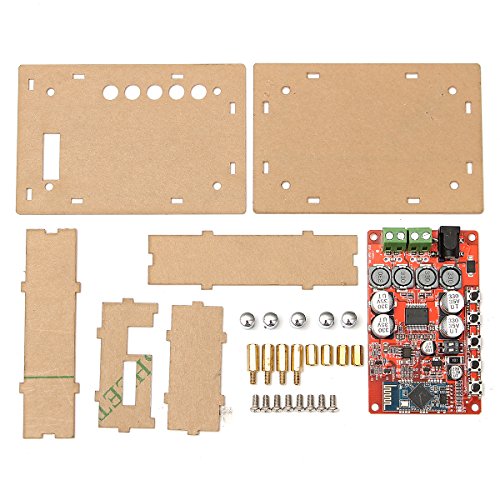

What's In The Box?

1 x ELEGIANT Digital Amplifier Board
1 x Protective Case

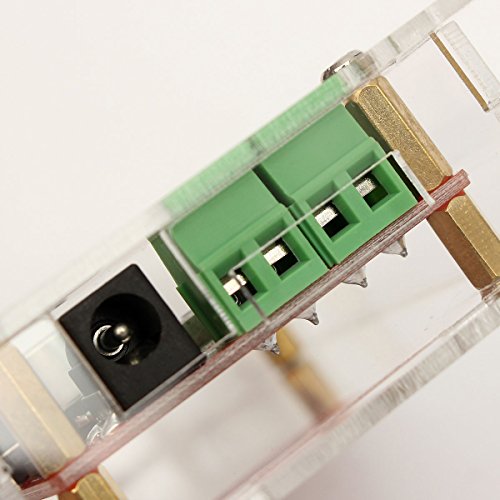

1 x 2.1mm x 5.5mm Male Connector

Feature

Thermal overload protection and short-circuit protection
Standby and mute features， externally synchronizable
Differential inputs minimize common-mode noise
Designed to optimize the circuit layout， the sound quality is very good and powerful
Fully protected against overvoltage， undervoltage， overcurrent and thermal overloads， etc.
Brand : ELEGIANT
MPN(PartNumber) : ELEGIANTFurmores3147
Product Dimensions(LxWxH) : 9x6x2cm ; 45 g
