Product Description

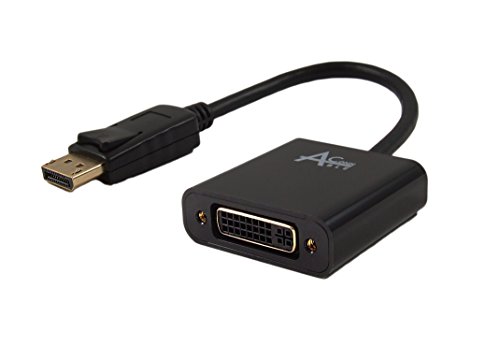

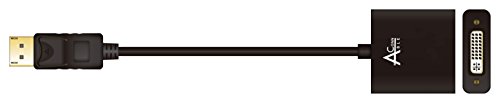

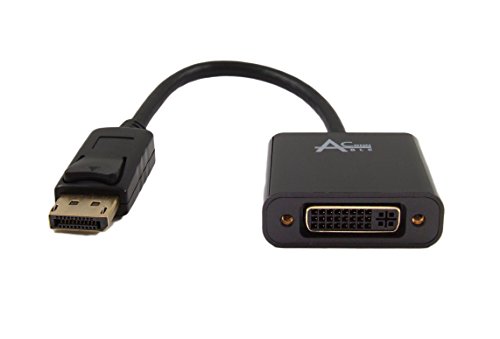

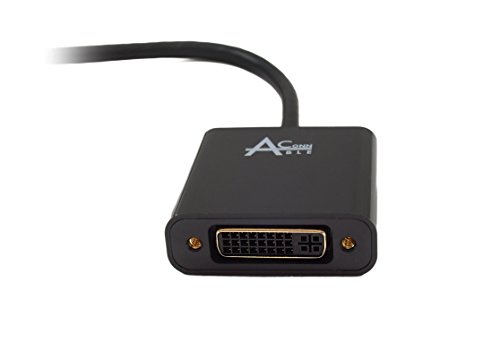

The Ableconn DP2DVI00B provides a easy and cost-effective solution for connecting a notebook or desktop PC to a DVI display such as monitor or projector. Simply connect the DisplayPort male end of the adapter into an DisplayPort connector of notebook or desktop PC and the female end of the adapter to your DVI cable from the display. (DVI cable is not included)

Specifications
* Input: DisplayPort male
* Output: DVI Female
* Built with NXP PTN3361B chipset
* Converter Type: passive
* Type 2 Dual-Mode DisplayPort (DP++) cable adapter
* Connect up to 2 monitors via AMD Eyefinity Multi-Monitor graphics card (one adapter per monitor); An active adapter is required to support more monitors
* Support PC resolutions up to WUXGA 1920x1200 and HDTV resolutions up to Full HD 1080p 1920x1080
* Compliant with DisplayPort Specification v1.1a at 1.62/2.7 Gbps data rate.
* Support Digital Video Output in 18/24/30 (deep color) bits format. (6?bit， 8?bit， 10?bit per color RGB color format).
* Corrosion-resistant gold-plated connectors for maximum and long-term performance
* Certification: FCC， CE
* Weight: 1.3 ounce
* Dimension: DVI side: 1.8"(L) x 1.8" (W) x 0.6" (H); Total Length: 9.75"
* Audio Output: No

Feature

Connect a DVI monitor or a projector to a DisplayPort (DP， DP++) equipped PC. Configure your monitor for an Extended Desktop or Mirrored Display. Ideal for using your DVI monitor as a secondary display.
Support resolutions up to WUXGA 1920x1200 and up to Full HD 1080p 1920x1080.
Plug & Play without software driver installation. No external power adapter required.
Built with high quality cable and over molded strain relief design to ensure superior flex life， tensile strength， and moisture protection. Corrosion-resistant gold-plated connectors for maximum and long-term performance.

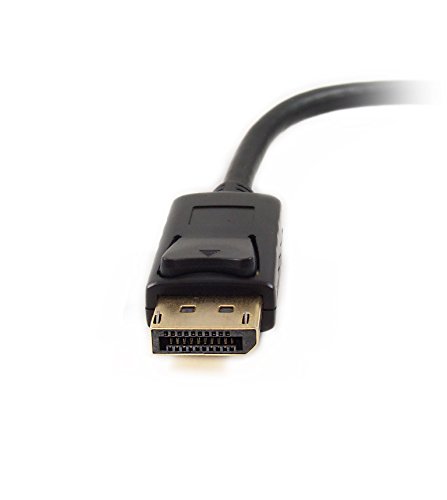

DisplayPort connector with latches provides a secure connection with a release button that must be depressed before unplugging. VGA connector features screw locking.
Brand : Ableconn
Item model num : DP2DVI00B
MPN(PartNumber) : DP2DVI00B
EAN : 0710500995361
