Item Descriptions:

Style name:

Telephoto basic model

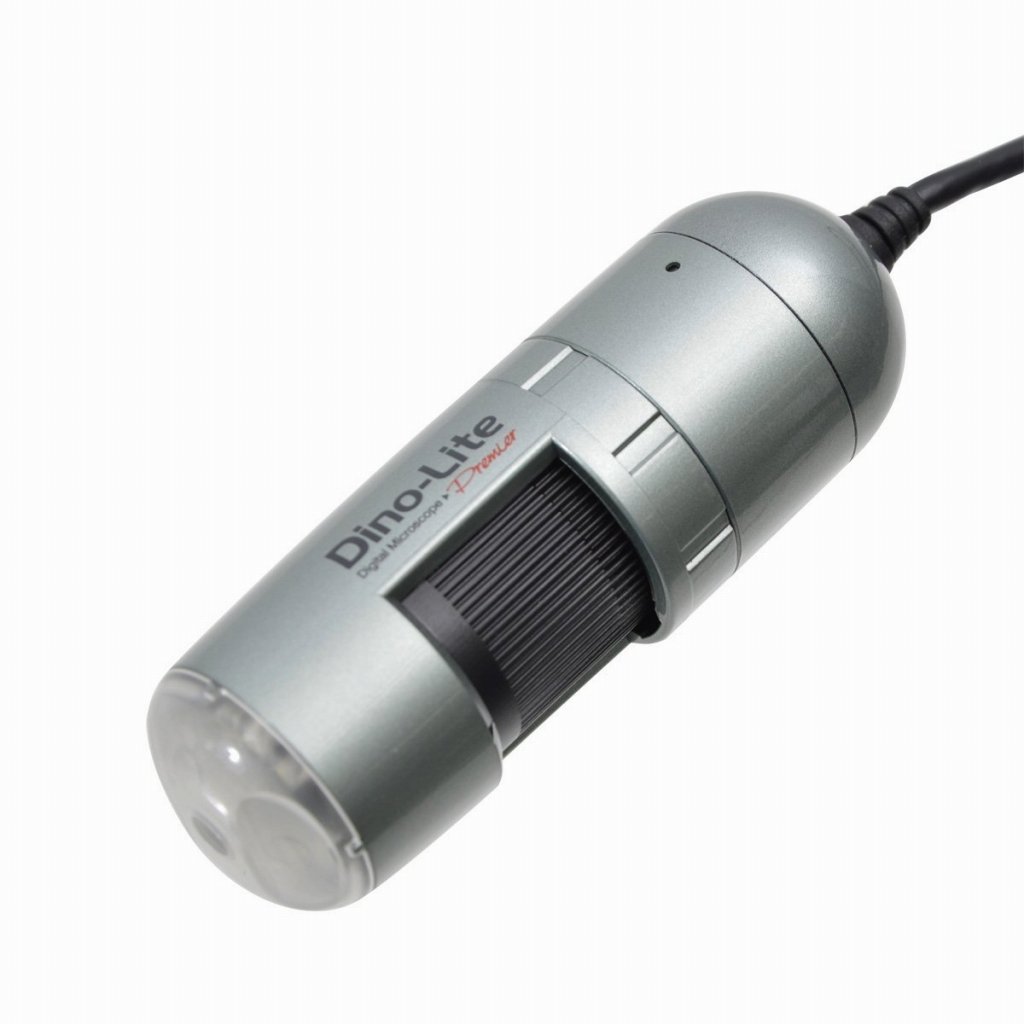

"Key features of the Dino-Lite Premier E 500x

■ Ultra high magnification 500 times realized

500 times super high magnification is realized.

For industrial, research and scientific applications, it is effective when large expansion rate is required.

■ One touch shooting button installed

With touch switches on the body, you can record images without touching the computer.

With the body on hand, you can shoot as it is, so you will not miss the opportunity.

■ Includes high-performance DinoCapture 2.0 software with innovative new functions

You can observe it on the monitor or save it as a movie or still image.

Various tools to measure the size and angle of the object, advanced features such as automatic distance measurement, automatic discrimination, IP camera, bar code reading, etc. are equipped.

In addition, calibration (calibration) can improve measurement accuracy.

■ Become new body Performance UP

1. Connection design to prevent disconnection of cables

2. To minimize the use of adhesive, increase body rigidity

3. Improved the movement of the image while adjusting the focus.

Precise adjustment is easy even at high magnification.

4. Improved the movement of the magnification dial.

Move smoothly to each magnification.

5. Electrostatic discharge prevention.

About Dino-Capture (software for Windows Dino-Lite)

Dino - Capture software for Dino - Lite & Dino - Eye; Dino - Capture has a rich variety of functions unparalleled, and also realizes an easy - to - use interface, and is fully Japanese.

● Abundant drawing tools (6 types)

● Various measurement tools (11 types)

● Fulfilling display function

● Image quality control etc ...

By combining this Dino-Capture and Dino-Lite, we can respond to a wide range of needs.

* The software for Mac differs from the software for Windows.

Features:

• Please enter model number Confirm this is compatible:
• Size (width × depth × height) Width 32 × depth 93 × height 32 (mm)
• Weight 92 g
• Supported OS Windows XP / Vista / 7/8, Mac OS X 10.5 or later
• Accessory body, main body mounting base, software CD-ROM
• Calibration sheet, warranty card, storage bag, cable band
• Resolution VGA (640 × 480), approximately 300 thousand pixels
• Power USB bus power interface USB 2.0
• Sensor 0.3 Mpixels, 1/4 inch CMOS
• Exposure / correction automatic exposure / automatic correction / automatic color balance / saturation / contrast correction
• About 500 times magnification (single focal point)
• Adapted confirmed standard CE, FCC, ROHS
• Warranty period 1 year

Product information:

Shipping Weight: 299 g

Package Dimensions: 6.71 x 16.61 x 16.61 cm
