Product Description

SPECIFICATION

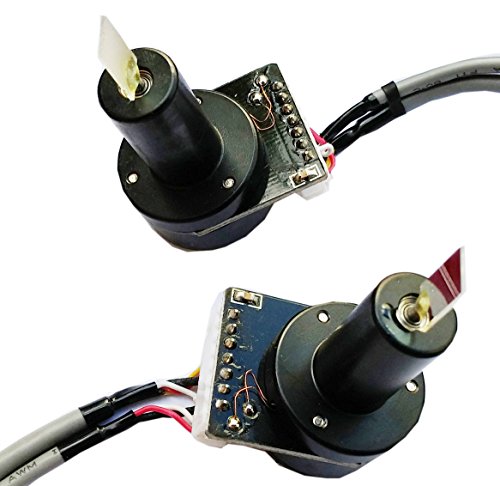

Closed Loop Moving Magnet Scanner
Input resistance: 200K ohms, differential
Signal Input voltage:±5V
Input voltage requirements: +15V/1.0A,-15V/0.6A
Operating temperature range:0~50 degrees C
Optical angle:±30° max
Scanner speed:>15Kpps (30K ILDA test-pattern ,±20°optical)
Mirror dimensions WxL: 7mm*11mm*0.6mm (wide wave-length)
Board size:7.4cm (long) * 5.0cm (wide) * 2.5cm (high)

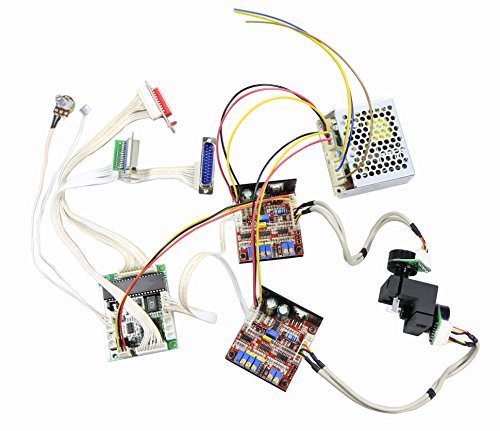

Standard package includes(same as the picture showing) :
2×Scanners

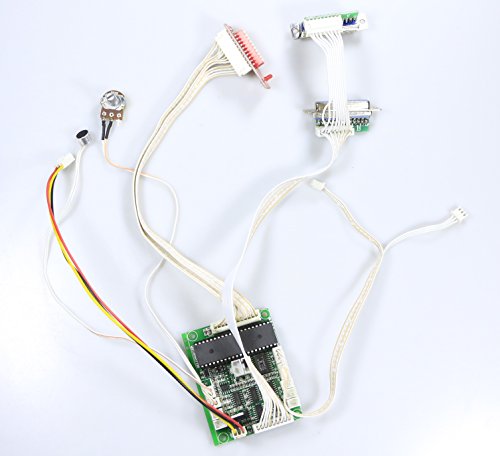

1x main board (show card)
2×Driver board
2×Mirrors
1×Scanner mount
1×power supply (PUS)
2×Cables driver to scanner
2×Cables driver to PUS
2×Cables driver to input signals
2x DB25 connector
1x microphone connector
1x dipswitch
1×User manual

Feature

IS Input scale (adjusted only in factory)
SG Servo gain (power of the feedback signal for internal PID controller
LFD Low frequency damping (correct overshoot),HFD High frequency damping (correct undershoot)
LIN Zero offset (electrical offset of the driver, adjusted only in factory),PS Position scale (increases or decrease input sensitivity of the computer, DO NOT change it)
for stage Christmas New Year Party DJ Laser lights
Brand : eHaiSong
EAN : 0756320479704
Package Dimensions(LxWxH) : 15x12x9cm ; 612 g
