Product Description
DMX512 wireless receiver/transmitter transmits standard DMX512 protocol data (generated by console) by wireless way.
No time delay when signal data is transmitting, signal data is real time and reliably. This product adopts a 2.4G ISM frequency section.
High effective GFSK modulate, communication design; 126 channels jumping frequency automatically, high anti-jamming ability.
Operating manual:ID code and LED color corresponding relationship:(1: RED/2: GREEN/3: RED+GREEN/4: BLUE/5: RED+BLUE/6: GREEN+BLUE/7: RED+GREEN+BLUE
1. Press momentary switch above the side led indicator to indicate ID setting
2. Press again to set IC, to the color ID desired, adding 1 each time you press the switch will advance the color ID code.
3. Working condition: LED constant lit up: No DMX or wireless signal. Red LED flash: Transmitting. Green LED flash: receiving .
4. RF frequency 2.400 - 2.525G, total 126 channels, it's searching automatically.
5. ID Code 1-7 groups ID code, press 'KEY' for setting, it only can work under same ID code of transmitter and receiver. (Same LED Color)

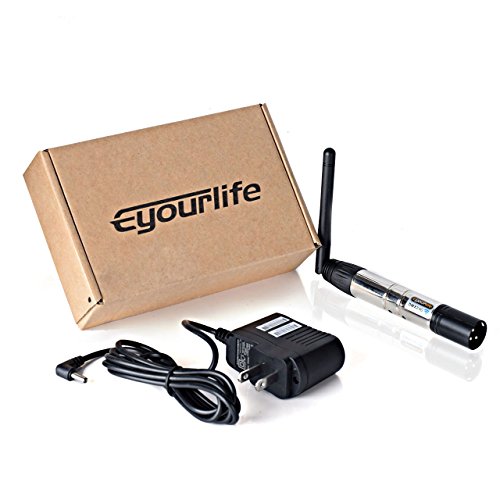

Package Included

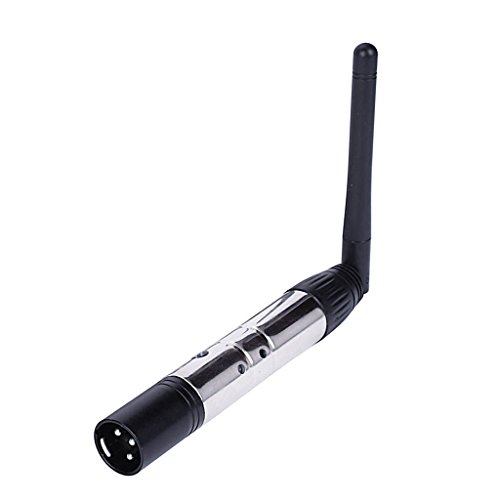

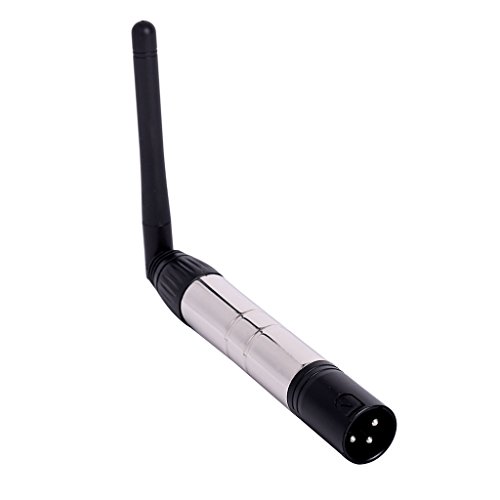

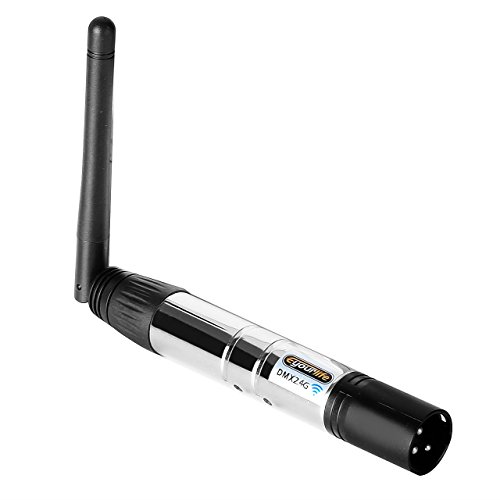

1 x DMX512 wireless transmitter (male)
1 x Power adapter (US Plug)
1 * User Manual
Feature
2.4G wireless DMX512 transmitter,Automatic 126-channel jumping, high anti-jamming ability.
