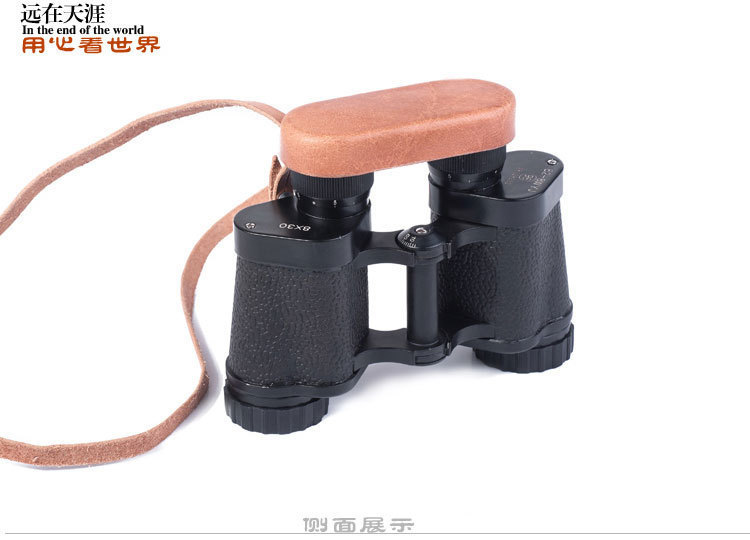

Genuine Type 62 ( 298 plants ) telescope 8X30, independent focusing eyepiece
Spot wholesale

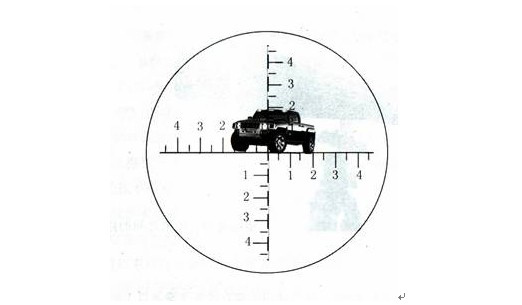

Ranging telescope reticle of Use
Partition on the telescope mirror has a vertical and horizontal partition partition, small cell partition is 5 mils , a large grid partition is 10 mils .
Coordinate distance function and use a telescope : calculating the distance and size of objects
Use mil calculated from the ( main purpose )
Calculating a distance between the object and the observer in the case of the height or width of an object of a known
Mil formula : L = 1000xH / a
Formula : L represents observer distance to the target ( m )
H represents the width or height of the target ( m )
A represents a differentiated version of the telescope by measuring the angle of the target level or target direction angle ( mils )
Example: a jeep height 1.8 m , measured at low angles of 0-20 ( 20 mils ) , find the distance between the jeep and the observer ? ? ?
Therefore, the distance between the jeep and the observer is 90 m
Telescopes can see clearly in the dark of night do?
Can not (because of different telescopes and infrared night vision telescope is pure optics, infrared night vision electronic equipment).
Night vision binoculars features: a wide field of view in particular, the effect is very good to use at night, as long as the light will be able to see the target slightly, even faint light, starlight, moonlight you can. Its principle is to make use of outside light more clearly see the target, no other telescope.
Type 62 8X30 binoculars are the advanced countries of the world with reference to the characteristics of the telescope, based on the successful development of all-day requirements of high sealing, high-performance binoculars, can use a variety of harsh environmental conditions, and has an extremely compact size, it is widely used in many areas such as transportation, ocean, forestry, aviation, electricity, Kan police, hunting, after 40 years of history test, has been highly regarded.
The Type 62 is also equipped with the longest domestic standard binoculars, telescopes collectors can be called "Getting Started mirror."
62 telescope manufacturers are more known are: Yunnan Optical Instrument Factory (298 plants), Nanjing Jiangnan Optical Instrument Factory (Jiangnan plant), Jiangxi Optical Instrument Factory, 3802 plants, 3803 plant 3881 plants, 8807 plant, 5228 Factory (formerly state-owned Xi'an Chaoyang Instrument). But the history of the oldest, largest production number to Yunnan Optical Instrument Factory. China's first Type 62 is factory produced, now "62-8WYJ" a great improvement in the optical properties, commonly known as one of the top section of the cloud optical models, but also the highest-priced 62-style market several

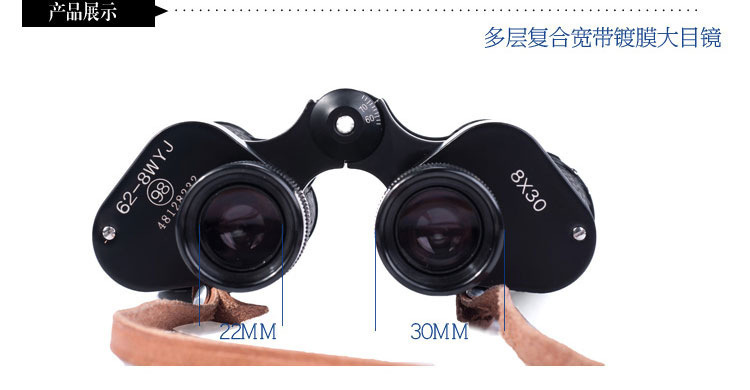

Type 62 light cloud top models (Figure)

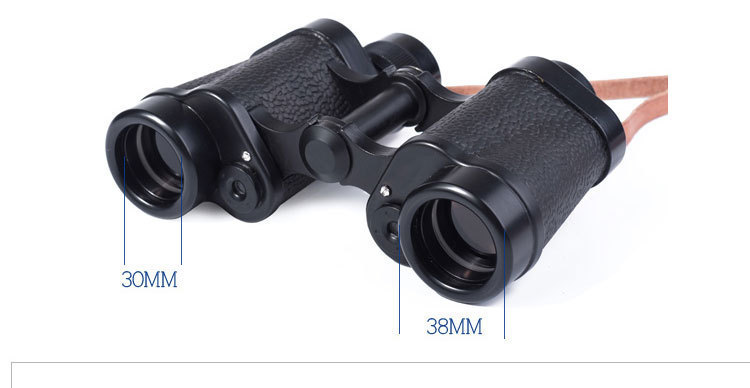

Specifications 8X30
Implementation of the standards: (GJB)
Magnification: 8 times
Vision: 8o301
Objective lens diameter: 30 mm
Exit Pupil Diameter: 11.2 mm
Resolution: ≤ 7 "
Weight: 630 g Total weight: 1200 g

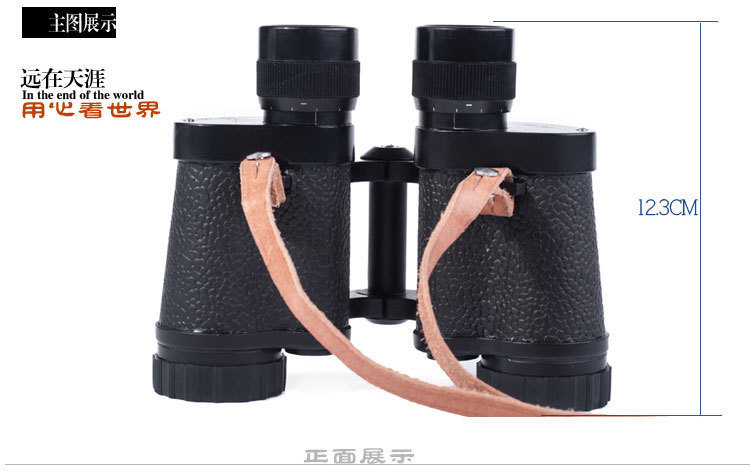

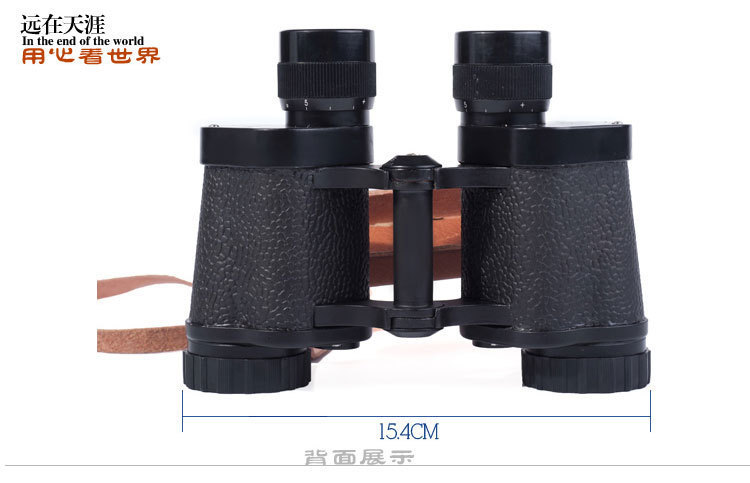

Size: 19CMX9.5CM * 16CM (Carton)
Features:

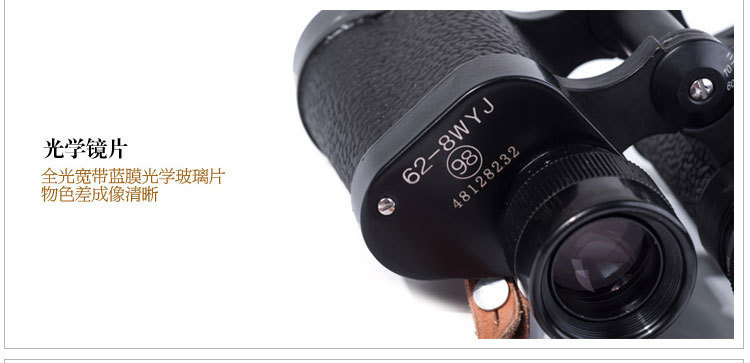

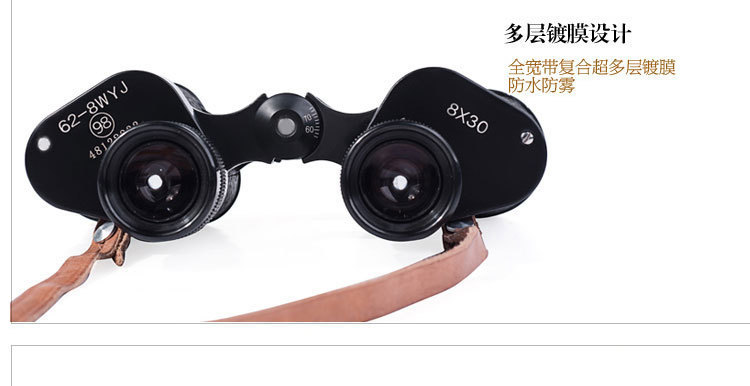

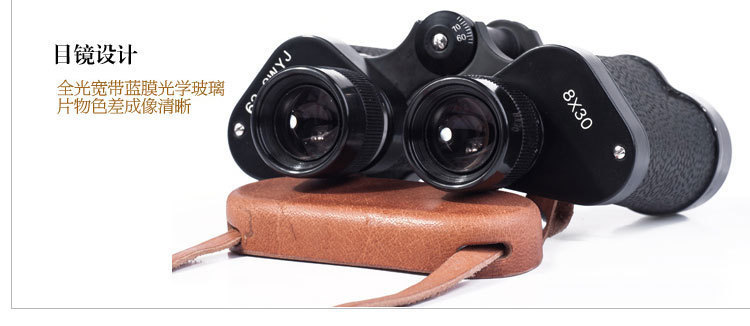

A fully coated, crisp imaging, making 62 telescope observing brightness, image quality and color of things like respect authenticity and abroad, such as superior to similar telescope.
2, with a vision, a large exit pupil diameter, exit pupil distance long excellent performance. 62 telescopes at dusk, dawn and other low-light environments and circumstances to wear gas masks (or glasses) can also clearly observe the target comfortably.
3, the prism chamber for dry protection, professional waterproof eyepiece, high sealing performance, 62 telescopes can well meet the needs of all-weather operations.
4, the operating temperature range of -43 ~ +55 , 62 telescopes can well meet the operational needs of different geographic theater.
5,62 telescope all-metal construction, durable; CdS armored, shock absorption, anti-slip design, with a strong ability to withstand bumps and vibration, can withstand the impact of gravity of 20 or more, fully adapted to field conditions.
6,62 telescope mirror with the partition, the target can be rough measure distance and azimuth.
Reticle:
A telescope within the left eyepiece reticle can be observed in the direction of the target is known, and the level of sight angle measurements.
2, scale reticle vertical partition, partition level and sight reticle.
2-1, the horizontal and vertical partition partition each princess is 5 mils, 10 mils is great formatting.
2-2, sight reticle to the measured target height of 2 meters are designed to measure ranging from 400m to 2000m; in the 1000m, every little princess sight reticle is 100m, every big princess is 500m.
Filters:
When in the case of strong light, or light smoke was observed, can be set in the eyepiece filters to reduce glare on the human eye irritation or increase the contrast of the scene smoke.
7,62 telescope fully achieved (GJB) requirements, all-weather use
8, using the component design, Type 62 ** telescope has a good general repair performance.

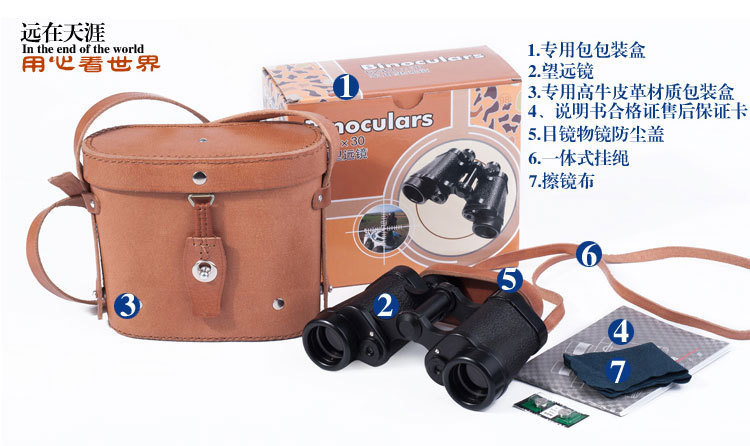

Full set consists of:
8x binoculars 1
Leather package mirror box 1
Wipes 1

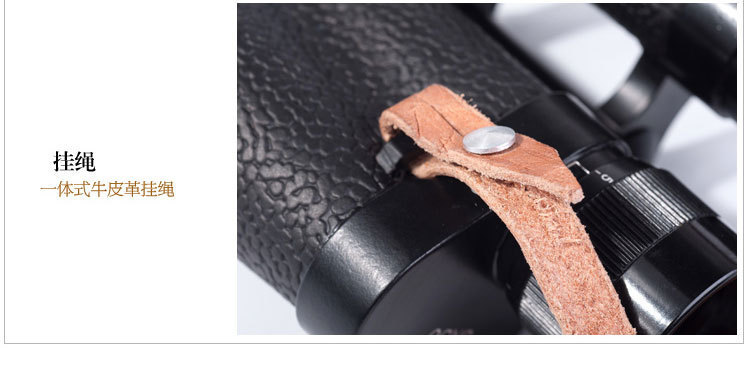

Eyepiece cap with a neck strap
Use 1 part maintenance manual
Maintenance and use of the telescope
1 Wipe the lens with the supplied cloth or other soft, clean cloth (paper).
2 When removing the residual dirty spots or stains can drop on one or two drops of alcohol.
3 telescope stored in a dry environment.
4 Do not try wiping or removing internal telescope telescope.
5 do not directly observe the sun through a telescope.
6 Do telescope Chongshuai, stress or other violent actions.
