INTRODUCING: 5 IN 1 MINI HD DVR A1004N 4 CHN 1080P
&
A Rugged Weatherproof Industrial Vehicle AHD Camera THAT COMES WITH IT!
Rugged Weatherproof Industrial Vehicle AHD Camera
SPECIFICATION FOR A1004N AHD DVR 4 CHANNEL HD 1080P:
- Model: A1004N
- Main Processor: Hi3515C
- Video Compression: H.264
- Operating Systems: embedded Linux
- User Interface: support 16-bit true color graphical menu interface and mouse operation
- Preview Screen: 1 / 4
- Video Standards: PAL ( 625 line, 50f/s ); NTSC ( 525 line, 60f/s )
- Display Quality: monitor: D1, VGA; HDMI: HD
- Video Resolution: 1080P
- Playback Quality: AHDL ( 960H ) / D1 / HD1 / CIF / QCIF
- Channel Type:
AHDNH / 1080N 4CH
AHDM / 720P 4CH
AHDL / 960H 4CH
AHDM / 720P 2CH + IP 720P 2CH
IP1080P 8CH / 4CH
IP720P 8CH / 4CH
- Motion Detect: 192 ( 16 x 12 ) detection zones, multi-level sensitivity
- Audio Compression: G.711A
- Record Mode: manual, alarm, motion detection, timing
- Space Occupation:
video CIF: 4 - 5G / day x channel, D1: 8 - 10G / day x channel
720P 20G / day x channel; 960H 12 - 20G / day x channel
- Record Storage: 3.5 inch HDD and network
- Backup Mode: network backup, USB HDD, USB writer

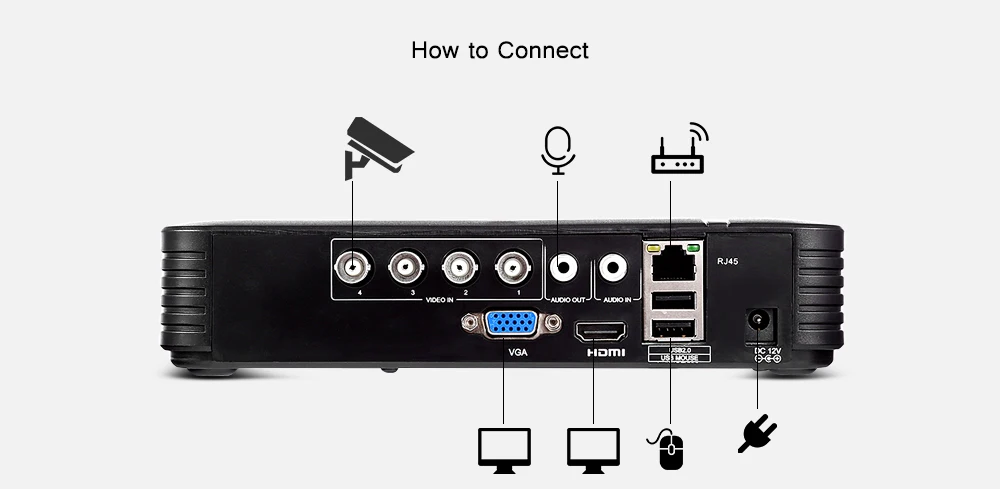

- Video Output: ( 1CH VGA, 1CH HDMI ) for 4CH
- Video Input: 4CH BNC
- Audio Output: 1CH RCA
- Audio Input: 1CH RCA
- Network Interface: RJ45 10 / 100M
- USB: 2 x USB 2.0
- HDD: 1 x SATA port ( max 4TB/per ) 3.5inch HDD
- Power Supply: 12V 2A
- Adapter Cable Length: 0.9m
- Mouse Cable Length: 1m
SPECIFICATION FOR Rugged Weatherproof Industrial Vehicle AHD Camera :
Image Type CCD (SONY1/3,SONY1/4,SHARP1/4,for option)
• Resolution(pixels):PAL:500(H)*582(V),NTSC:510(H)*492(V)
• Lens:2.8mm
• Lens angle:120°
• Signal to noise ratio:＞48dB
• Horizontal Resolution:420TV Lines,480TVLines,540TVLines for optional
• PAL/NTSC Normal/Mirror image for optional
• 18 pcs LEDs for night vision
• Power Supply:DC12V±10%
• Power Consumption:≦2W
• Operating Temperature Range:-20°Cto +70°C
• Dimension:82(L)*73(W)*58(H)mm
• Weight:380g
• Waterproof Rate:IP66
Description for Vehicle AHD Camera:
• It is a small camera which is for DVR.
• This camera together with suitable formonitoring children , old people and vehicle, houses , companies , shops and factories etc
• The automatic day/night sensor and infraredLEDs to provide clear image in dull condition.
