Sign smart (SainSmart) 1.8 "TFT color LCD display module with SPI interface & MicroSD for Arduino UNO MEGA R3

Item Descriptions:

Standard items indispensable for electronic work

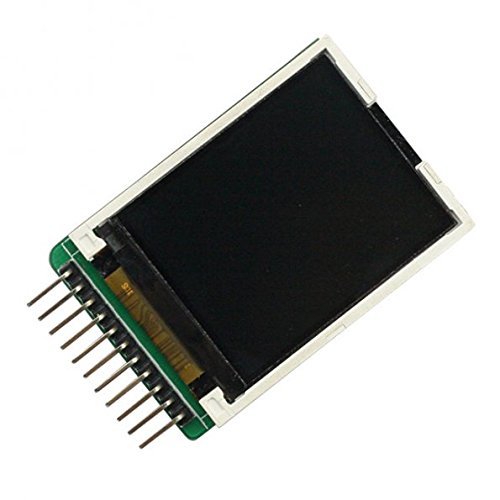

Sign smart 1.8 inch color LCD module

is

Arduino / UNO / MEGA / Raspberry Pi

Correspondence



1.8 inch, 128 x 160 resolution, compatible with SPI connection



The IC can display the ST7735R, 18-bit color

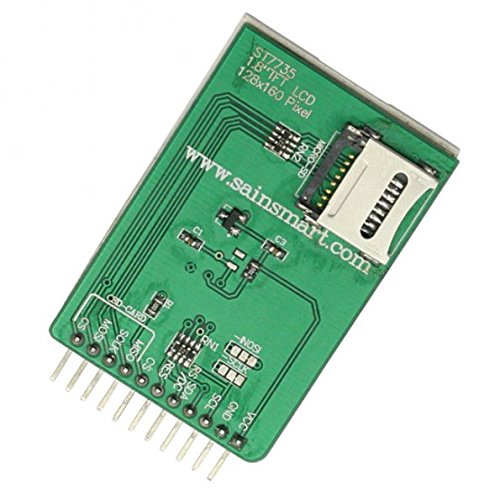

Since I added one SD card socket, it is easy to save images

Please download sample code and related materials here



https://s3-ap-northeast-1.amazonaws.com/sain-amzn/20/20-011-920/TFT18.rar



specification



SPI interface



Resolution: 128 W * 160 H dot



Size: 5.00 x 3.4 cm



Liquid crystal size: 28.03 W * 35.04 H mm



Dot size: 0.06 W * 3 * 0.18 H mm



Dot pitch: 0.18 W * 0.18 H mm



Visible angle: 6 o'clock



SPI Bus interface



IC Driver: ST7735R



※ There is no written instruction etc

Features:

  • Please enter model number Confirm this is compatible:
  • 1.8 inch, 128 x 160 resolution, compatible with SPI connection
  • The IC can display the ST7735R, 18-bit color
  • Since I added one SD card socket, it is easy to save images
  • Arduino / UNO / MEGA / Raspberry Pi compatible
  • Size: 5.00 x 3.4 cm

Product information:

Shipping Weight: 4 g

Package Dimensions: 1.52 x 13.97 x 14.22 cm
