Product Description

Introduction

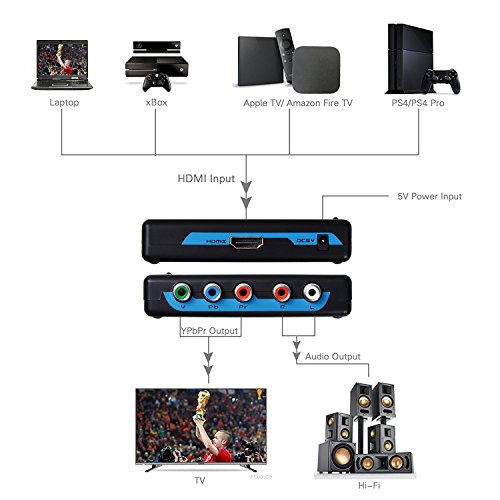

The product converts DHMI video signal to Analog component/YPbPr, Taking the input resolution from your device and converting into an analog signal at the same resolution.The converter also separates the audio stream from the HDMI signal(HDMI LPCM2-cHANNEL) and converts it to analog stereo audio that can be used with the Component display.

Feature
Ease to Use: install in seconds, no settings.
Taking the input resolution from device and converting it into an analog signal at the same resolution.
Audio output format:2 channel LPCM
Supports 225MHz/2.25Gbps per channel(6.75Gbps all channels)bandwidth for HDMI input
Support HDMI resolution:
480P@60Hz,576P@50Hz,720P@50/60Hz,1080i50/60Hz,1080P@50/60Hz
Support Component video resolution:
480P@60Hz,576P@50Hz,720P@50/60Hz,1080i50/60Hz,1080P@50/60Hz
Support PS3,PS4,Blu-ray DVD,Xbox,Notebook and so on

Note:
1.The converter doesn't support audio decoding.Please assure the output audio format of the input device is set to LPCM in case there's no sound output for the converter
2.Some traditional CTR display not work after connected witch this Converter This mainly caused by these Displays only supporting 480i and 576i YPbPr interlaced resolution. Therefore, we suggest to choose LCD Display or those can support YPbPr CRT Displays.
3.Some connected Displays may have no image after setting the resolution of HDMI source at 1080P.This not caused by our products but YPbPr channel of Displays not supporting resolution at 1080P.
4.Please don't give us bad review,any questions please contact us by email:ivy.wang@links3c.com,We will try our best to solve problem for you as soon as possible.Thanks.

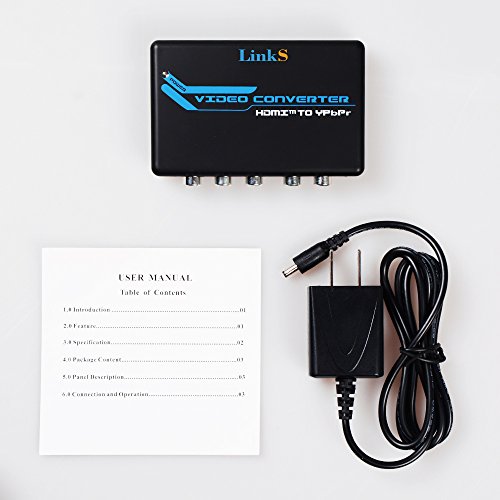

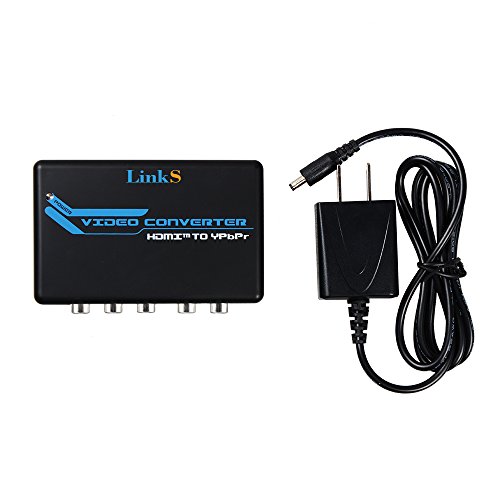

Package content:
1pcs Main unit HDMI to Component Video Converter
1pcs 5V power Supply
1pcs User Manual
