Leading technology， excellent quality



TD-8620T is fully compatible with ADSL / ADSL2 / ADSL2 + standard， supports bridging functions in ADSL2 + mode， capable of delivering up to 24Mbps downstream rate and 1Mbps upstream rate， the transmission distances of up to 6.5km; TD-8620T by common central office device compatibility testing， and access to national compulsory product certification (3C certification) and telecommunications equipment into the network permits， quality has guaranteed.



Plug and Play， no configuration



TD-8620T Built PVC pool， including the vast majority of the country use VPI / VCI combination， users simply connect the device correctly， eliminating the need to dial-up Internet access， do not worry about not configure the ADSL Modem， there is no need for forgotten VPI / VCI and worry， you can enjoy， internet fun!









Professional design， effective lightning protection



TP-LINK has accumulated years of experience in mine development circuit， lightning protection circuit technology to take multiple layers of defenses， effectively prevent lightning damage， guarantee the stable operation of the device.







Wide voltage range



TD-8620T practical use for the domestic environment， the use of switching power supply to meet the 100 ~ 240V operating voltage range， to eliminate the supply voltage instability caused by frequent dropped equipment， security and stability when security devices.









Compatibility is good， the common choice



Fully compatible with Telecom， China Unicom， mobile， CRC and other carriers central office， widely used in a variety of access environment， the current total of more than tens of millions of TP-LINK ADSL access network equipment， is a common choice for millions of users.

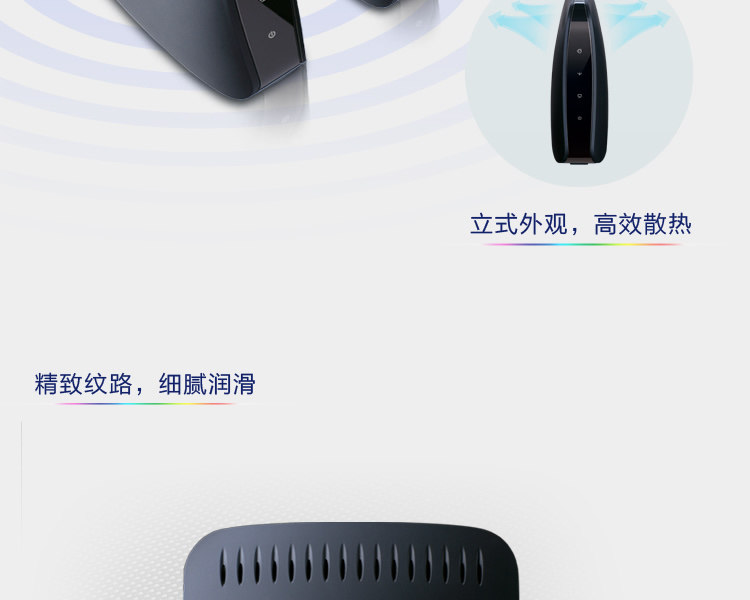

Internally and externally， effective heat dissipation



A new generation of low-power energy-saving chips， green， effectively reducing overall equipment heat; vertical display， top design beautiful willow cooling holes， both scientific and stylish， fully guarantee effective cooling equipment.











Hardware Specifications















Protocol Standards



IEEE 802.3， IEEE 802.3u

ANSI T1.413， ITU G.992.1， ITU G.992.2， ITU G.992.3， ITU G.992.5













ADSL speed



Downlink: 24Mbps (ADSL2 +)， 8Mbps (ADSL)

Upstream: 1Mbps













Operating Mode



RFC1483 (EoA) (Bridge)

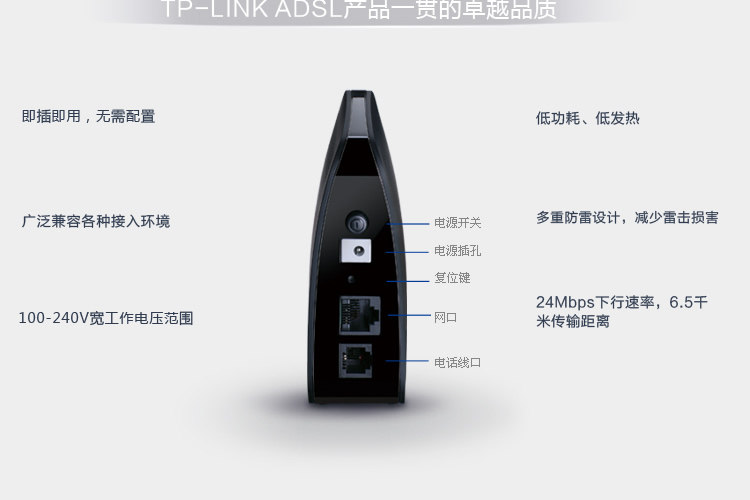

Interface



A 10 / 100M adaptive RJ45 ports (Auto MDI / MDIX)

An RJ11 port













Button



A power switch button

Reset Reset button













LED



POWER Power indicator

LAN status indicator

ADSL Status Indication

Internet Status Indicator













Size



106mm x 102mm x 37mm (L x W x H)













Power supply



External Power Adapter Output: 5V DC 1A









Other















Packing Accessories



A ADSL2 / 2 + CPE TD-8620T

A power adapter

A Quick Installation Guide

A network cable

A voice separator

Two telephone lines













Environment



Operating temperature: 0 ℃ to 40 ℃

Storage temperature: -40 ℃ to 70 ℃

Humidity: 10% to 90% RH non-condensing

Storage humidity: 5% to 90% RH non-condensing
