Studio : ANTV

Publisher : ANTV

Binding : Electronics

Product Description
Search Signal Strength and Select Antenna before order.
- Find out which channels are available at your location via DTV Reception Maps (http://dtv.gov.maps).
- For weak signal reception, an amplified antenna with longer range is recommended.
- The number of channels received will also be affected by the building structure or surrounding obstacles, or electromagnetic interference nearby.
Reception Tips
- Test the antenna in multiple locations before mounting the to determine the best reception location. - Place the antenna in a clear path between transmitter and reception location.
- Any surrounding obstacles will cause signal reflecting and weakening. In this case, an antenna with longer receiving range is recommended.

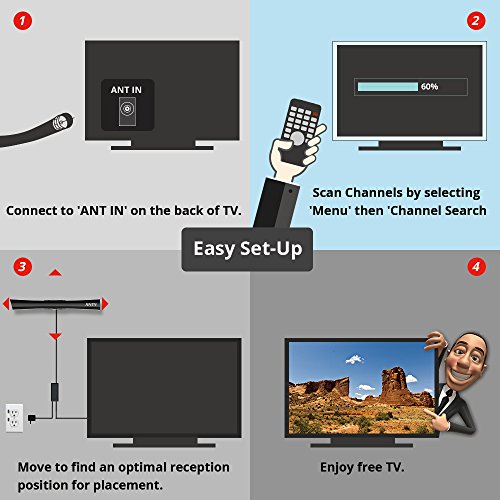

- Run a channel scan every time you reposition the antenna.
- Re-scan channels monthly to find all available channels including newly added or changed.
- Install the antenna in a location that is as high as possible and near a window for better reception.
- Keep the antenna away from any high-power consumption devices to avoid interference.
Technical Specification
Range: 40 miles from point of signal origination
Frequency Range: 87~230MHz, 470~862MHz
Receiving Range: VHF/UHF
Reception Pattern: Omni-directional
Polarization: Horizontal / Vertical
Color: Black
Gain: 26dB Max
Output Level: 100dBμV Max
Impedance: 75Ω
Noise Figure: ＜ 5dB
Power Supply: via AC/DC adapter (DC12V/50mA)
Cable Length: 10ft

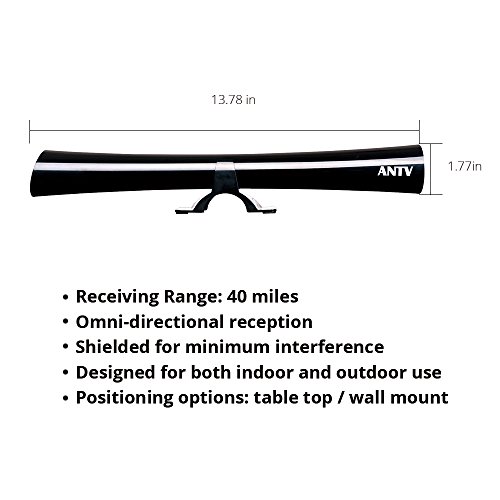

Size: 1.77×1.77×13.78 in

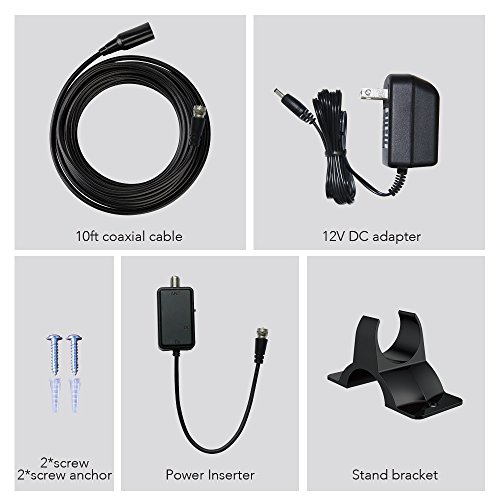

Before you start your installation, please check the contents.
1) Ampli￢fied Antenna
2) AC/DC Power Adapter
3) Power Inserter

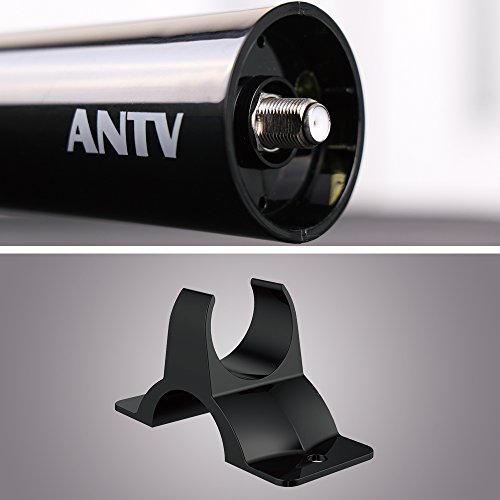

4) Antenna Stand

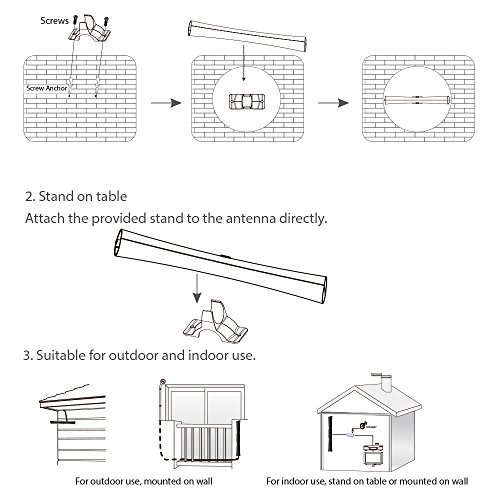

5) Self-Drilling Drywall Anchor with Screws Kit (2 pcs)
6) 10ft Coaxial Cable
7) Manual
