Product Description

Attention!
This camera displays a mirror image.
This camera only supports NTSC video systems. Please make sure your monitor supports NTSC video systems before purchasing.
Bluetooth signals will disturb the signal of the 2.4G wireless transmitter and receiver.

Installation:

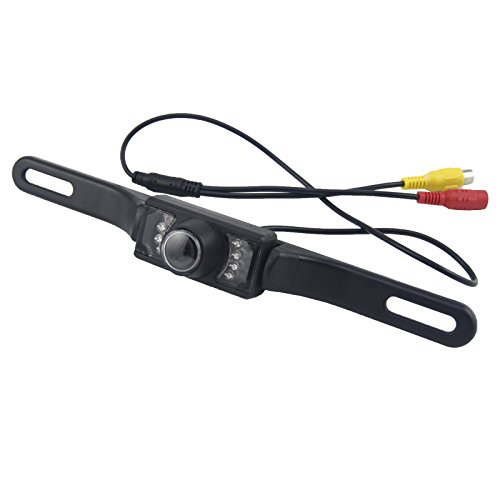

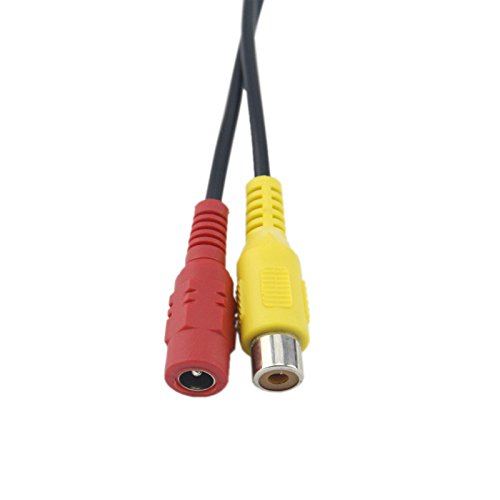

The camera is designed to be installed on your license plate. During installation， please connect the transmitter's DC and AV jack using the backup camera's DC and AV sockets， and then connect the transmitter wire to the harness wires that connect the backup light to the tail light assembly (Please note that the red wire is positive， and the black is negative). Then connect the receiver's RCA output end to the car monitor. Please mind the sealing during installation to prevent water leaking in.

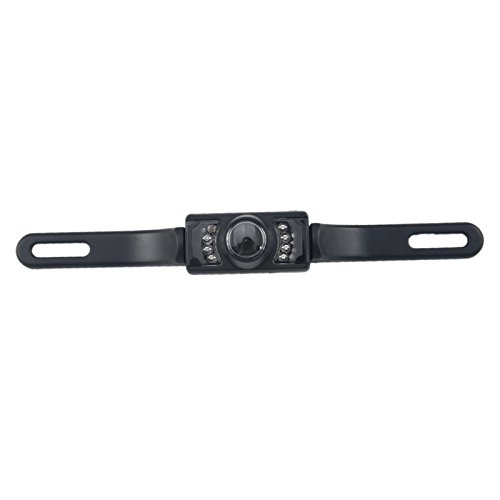

Car Rear View Camera:
Image Device: 1/3¡± Color CMOS
Lens Angle: 135°
Lens: 3.6mm
TV System: NTSC
Effective Pixels: 510 x 496 pixels
Horizontal Resolution: 420 TV lines
Electronic Shutter: 1/601/15，000 seconds
Minimum Illumination: 0.10.5Lux/F = 1.2 (0Lux with IR on)
Power Requirement: 12V DC 60mA (MAX 300mA with IR on)
Operating Temperature: 50-122¡ãF/10-50¡ãC
Operating Humidity: Max. 95%

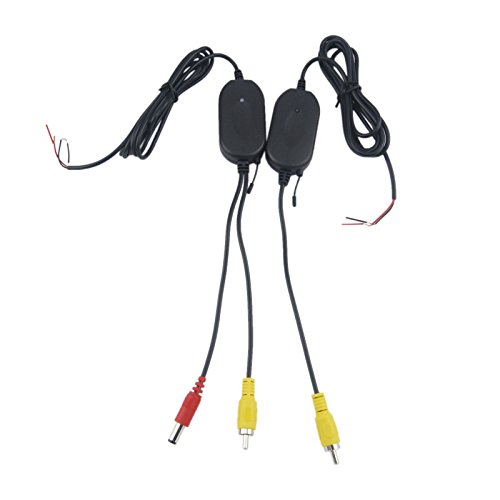

Transmitter:
Dimension: 2.4 x 1.2 x 0.6"
Cable Length: 4.9'
Input: 10-12V DC
LED Power Display: Included
2.4G Wireless/ Color Video: Included
Working Range: 32.8' / 10m

Receiver:
Dimension: 2.4 x 1.2 x 0.6"
Cable Length: 6.7"
Input: 10-12V DC
2.4G Wireless/Color Video: Included
LED Power Display: Included
Working Range: 32.8' / 10m

Feature

The rear view displays automatically when vehicle is shifted to reverse
135° wide viewing angles. High definition.

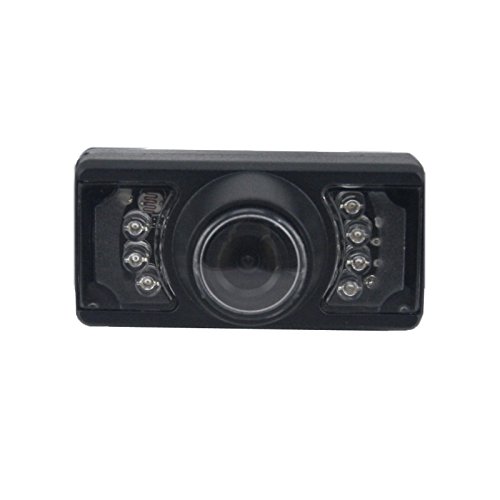

During the day it is in color. 7 infrared LED ensure good visibility at night.
On-screen parking lines helps you observe the distance from your vehicle to rear objects.

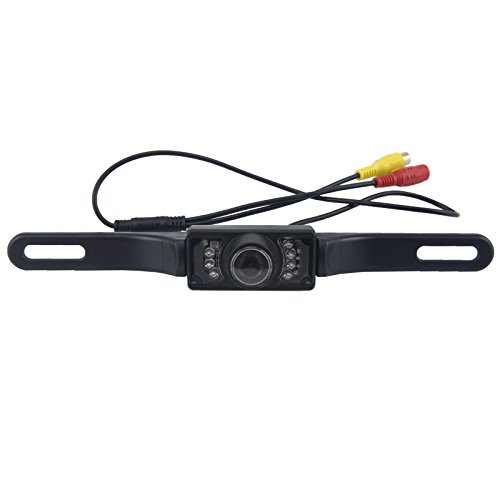

Comes with a 2.4G wireless transmitter and receiver. Designed to be installed above the license plate
Brand : Orion Motor Tech
MPN(PartNumber) : OMT-CRC-10030
EAN : 6693852097751
