Product Description

See Everything in Great Detail
Seeing is believing with 720P HD video. This system brings all the color back to life with its high-performance lens and advanced image processing technology.

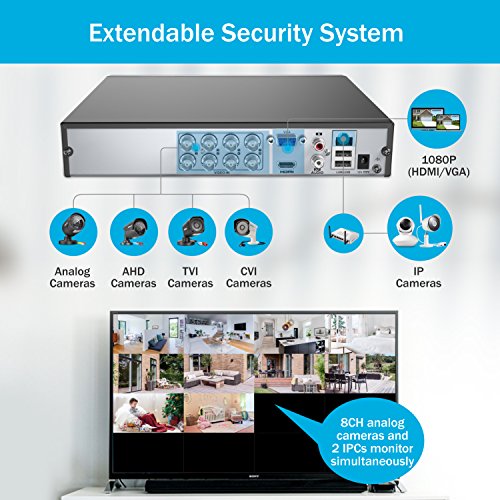

DVR Supports 960P IPC Connection
This 4-in-1 DVR supports analog, AHD, TVI and IP camera connection. And while you are connecting analog cameras, 960P IPC is also connectable without the need to switch the mode.

Smart Playback Function
The intelligent smart playback function allows you to customize a specific searching area, then videos will be speed up when nothing happens in that region, when motion is detected, videos are played in normal speed.

Email Alarm with Images
From now on, you can get alarming emails with images captured by cameras when unexpected activity is detected in your house allowing you to get everything under control by only one glimpse.

Specifications:
Analog video input: 8-ch BNC interface (1.0Vp-p, 75 Ω)
HD TVI input: 720P/1080P
AHD input: 720P
CVBS input: Support
IP video input: 2-ch, Up to 960p resolution
HDMI/VGA output: Support up to 1080P
Audio output/output: 1ch, RCA (Linear, 1 KΩ)
Video compression standard H.264+/H.264
Encoding resolution& Frame rate: 1080p lite/720p: 12 fps; 960H: 25fps(P)/30fps(N)
Synchronous playback: 2-ch
SATA: 1 SATA interface (Up to 6 TB for each disk)
Network interface: 1; RJ-45 10 M/100 Mbps self-adaptive Ethernet interface
USB interface: Rear panel 2 x USB 2.0

Image sensor: 1/4" color CMOS
Video Resolution: 1280*720
Lens: 3.6 MM
Number of Infra-Red LEDs: 24
Day and Night Function: Support IR-CUT
Weatherproof: IP66 Indoor / Outdoor

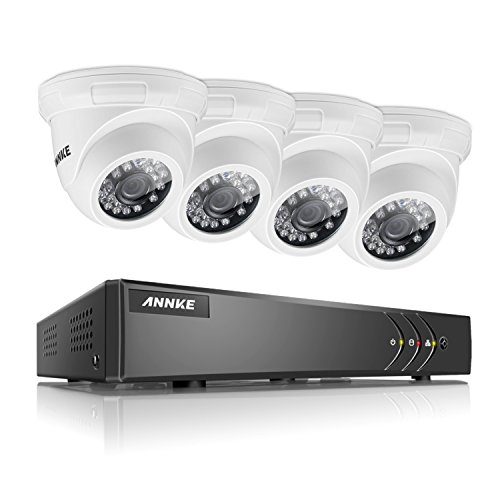

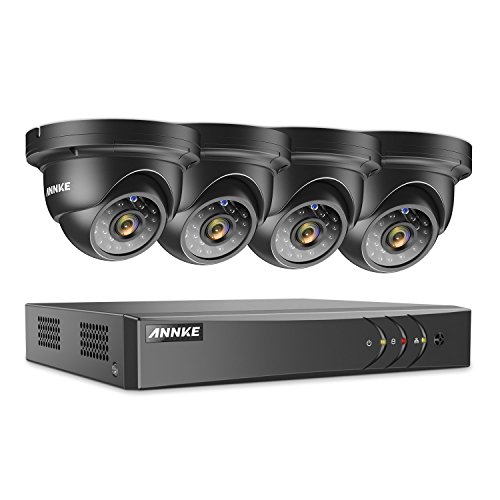

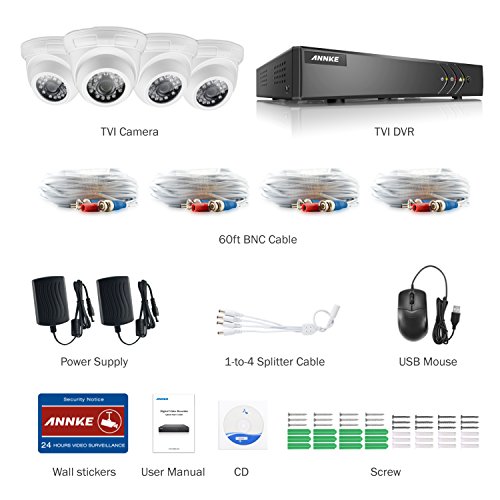

Package Included:
* 1x 8CH 1080N DVR, NO HDD Included
* 4x 720P HD Wired Cameras
* 4× 60ft BNC video cable
* 1x Power Adapter
* 1x User Manual
* 1x Software CD

Feature

ANNKE "8CH DVR w/ 4 cameras kit" is superior to a "4CH DVR w/ 4 cameras", it provides you the flexibility to extend additional cameras without additional DVR purchased when needed in future. Amazing 4-in-1 DVR which supports Analog, HD-TVI, CVBS and IPC.
Stunning 720P smooth and clear video recording, viewing and playback. Robust DVR supports extra IP camera connection. Up to 66ft/20m night vision with smart IR. IP66 weatherproof indoor&outdoor cameras.
Double your storage with H.264+ compression available, lower bitrate and smaller file size, your 1TB hard disk can be used as 3TB or more. Videos are transmitted at up to 500m in coaxial cable. Enjoy high speed real-time videos with ease.
Instant motion triggered email alarm with snapshots as attachments; customizable motion detection regions; remote access on Android and iOS devices, install the app by scanning QR-code.
Multiple smart detection and alarm, motion detection, video loss detection, invasion detection, crossing-line detection etc. Easy USB backup. CE&FCC certified system with qualified power adapters.
Brand : ANNKE
MPN(PartNumber) : AU-N81RA0-14DU-P
Package Dimensions(LxWxH) : 47x37x32cm ; 5171 g
