Product Description

PROZOR Digital to Analog Audio Converter converts coaxial or toslink digital PCM audio signals to analog L/R RCA and 3.5mm Jack audio.
It also can be used for PS3, XBox, Blue-ray player, HD DVD, etc. which have no RCA(L/R) outputs or 3.5mm Jack output.

Features:
Converts coaxial or toslink digital PCM audio signals to analog L/R RCA and 3.5mm Jack audio simultaneously ( not capable of being reversed)
Available for connection to an external device such as an amplifier via standard RCA jacks or a headphone via 3.5mm jack cable
Supports uncompressed 2-channel LPCM digital audio signal output
Supports sampling rate at32KHz, 44.1KHz, 48KHz and 96KHz;
24-bitS/ PDIF incoming bit stream on left and right channels
Provides electromagnetic-noise-free transmission
Easy to install and simple to operate
Compact size and easy to carry
Certificated by FCC RoHS

Specifications:
Color: Black
Housing: Full Metal
Weight: approx 90g

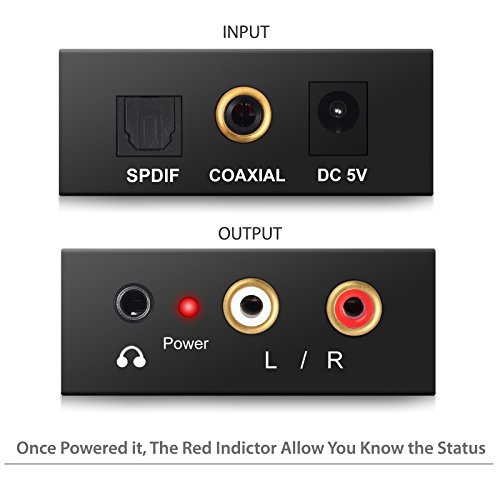

Input audio connector: 1 x Toslink, 1 x RCA (Coaxial)
Output audio connector: 2 x RCA(R/L), 1 x 3.5mm Jack
Powered by 5.5mm USB power cable
Consumption: 0.5W (max)

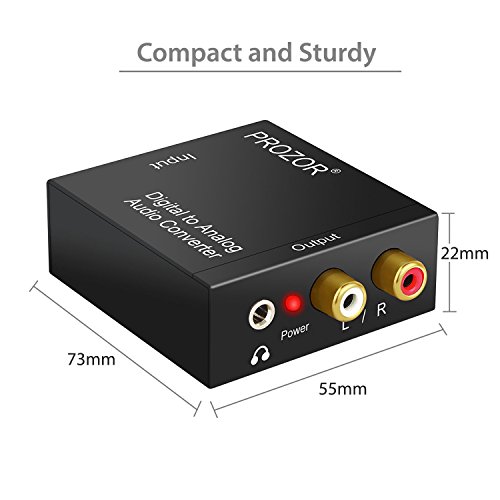

Dimension: 73 x 55 x 22 mm
Package List:

1* PROZOR digital to analog audio converter

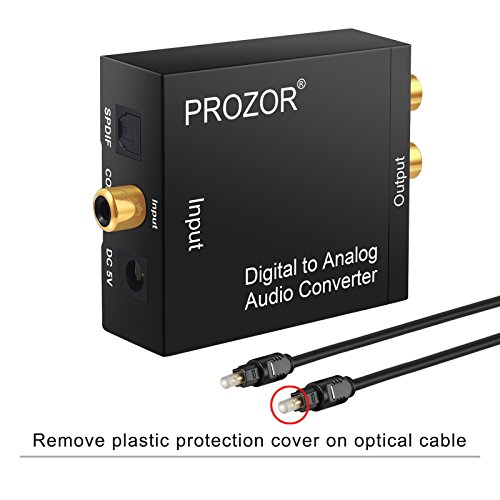

1* Toslink cable (Optical cable)
1* USB power cable
1* User manual
Note:
Do Not Use Other Plugs, It Can Only Use 5V 1A Plug
Please don't forget to set the audio output to PCM or LPCM as it is not compatible with 5.1 Channel Signal

Warranty:
This PROZOR Digital to Analog Audio Converter Provides 18 Months Warranty.

Feature

PROZOR Digital to Analog Audio Converter: Converts coaxial or toslink digital PCM audio signals to analog L/R RCA and 3.5mm Jack audio simultaneously ( not capable of being reversed)
Input Audio Connector: 1 x Toslink, 1 x RCA (Coaxial); Output Audio Connector: 2 x RCA(R/L), 1 x 3.5mm Jack; Powered by 5.5mm USB Power Cable (Power Adapter is NOT Included); Do Not Use Other Plugs, It Can Only Use 5V 1A Plug
Supports Sampling Rate at 32KHz, 44.1KHz, 48KHz and 96KHz; 24-bit S/ PDIF Incoming Bit Stream on Left and Right Channels
Supports Uncompressed 2-channel LPCM or PCM Digital Audio Signal Output; Provides Electromagnetic-noise-free Transmission(5.1 channel is incompatible, please set the audio output to PCM or LPCM）
Easy to Install and Simple to Operate; Can be Used for PS3, PS4, Xbox, Blu-ray Player, HD DVD, Home Cinema Systems, AV Amps, Etc
Brand : PROZOR
Item model num : DAC001
MPN(PartNumber) : DAC001
EAN : 0738759979185
Product Dimensions(LxWxH) : 3x1x3cm ; 159 g
Package Dimensions(LxWxH) : 17x11x3cm ; 159 g
