Item Descriptions:

Color:

HDMI to Composite / S Terminal Converter

In case

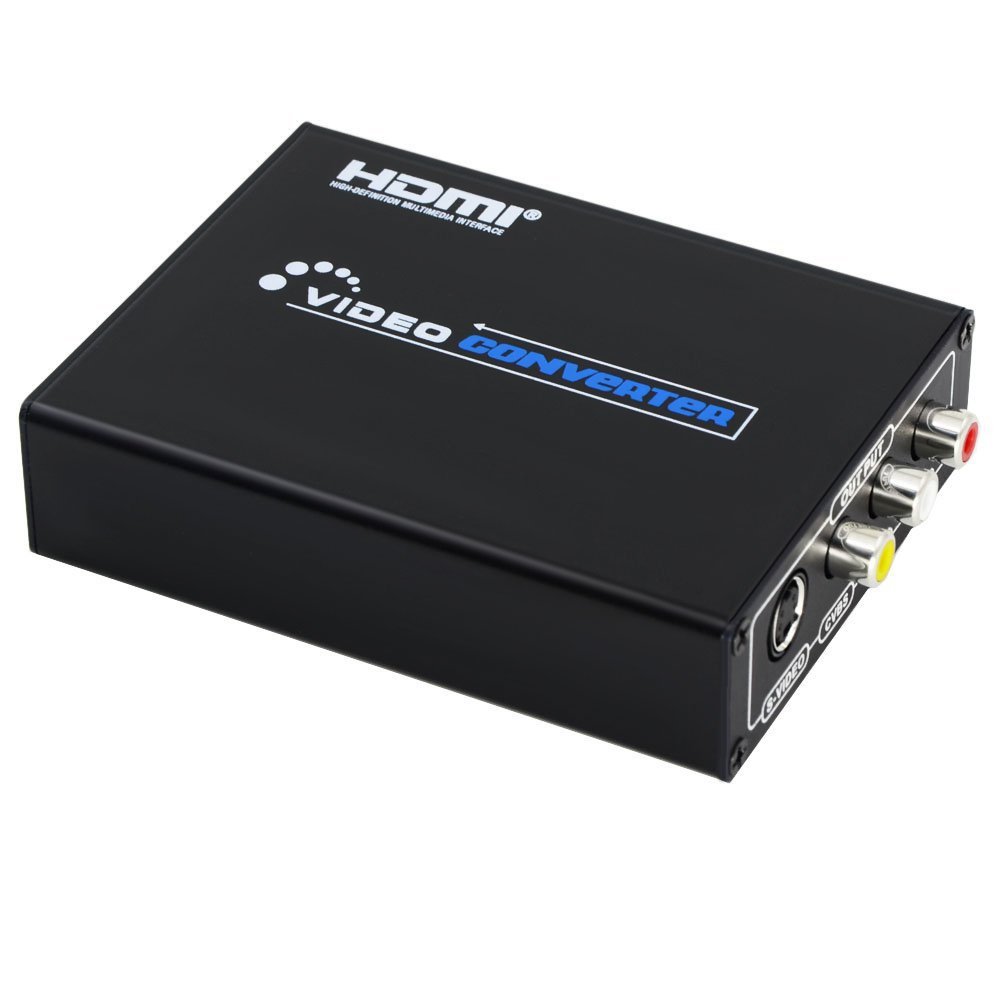

ELEVIEW HDMI to Composite / S Terminal Converter

● This product

HDMI signal (video + audio)

To

Composite (RCA · yellow pin)

Or

S terminal (S-Video)

Convert it into a video signal,

Audio (L / R · Red White Pin)

It outputs at the same time.

● Compact size, no driver required, just plug in the cable can be used, easy to operate.

● The adoption of a new eco metal casing with excellent heat dissipation properties makes it more stable than plastic, greatly extending the service life.

There is no problem for 24 hours continuous work!

● With this unit, you can connect devices with only HDMI terminals to older TVs and amp speakers without HDMI ports, and you can enjoy HD video and games on regular TV.

NTSC / PAL compatible:

Since the video output can be switched not only to the NTSC system but also to the PAL system, it is an HDMI conversion adapter that can be used even by people overseas.

In Japan, please switch to NTSC.

● For example, on a TV without HDMI terminal,

Fire TV

When you want to use, this product is exactly like a ship in transit.

● Converted image quality / sound quality etc also varies depending on the performance / specification of TV / monitor side, so S video is recommended when the output side has S terminal.

This unit converts the digital signal of HDMI to an analog signal and outputs it, it does not output the image quality and sound quality of the digital HDMI signal as it is

, Please note on your purchase in advance.

The warranty period is 12 months from the purchase date.

We would appreciate hesitate to contact us if you have any questions.

※please note:

In case

◆ Depending on TV / monitor side settings / specifications, it may not be output normally.

◆ In order to operate this machine stably, be sure to use the supplied power supply.

◆ When input equipment is a personal computer, it is necessary to install the signal output interface with HDMI.

The input resolution of this machine is

1080P

Because we can respond up to,

4K × 2K

It is not supported.

◆ Japanese manual will be sent by e-mail, so if you do not receive it by any chance, feel free to contact us

[email protected]

Please contact us.

【Product Specification】:

Input resolution:

480p (60Hz), 576p (50Hz), 720p (50Hz / 60Hz), 1080i (50Hz / 60Hz), 1080p (50Hz / 60Hz)

Output signal:

CVBS (1.0 Vpp), S-Video (Y: 1.0 Vpp, C: 0.3 Vpp)

Output video method:

PAL / NTSC

Output Video Resistance:

75 Ω

Power supply:

DC 5V

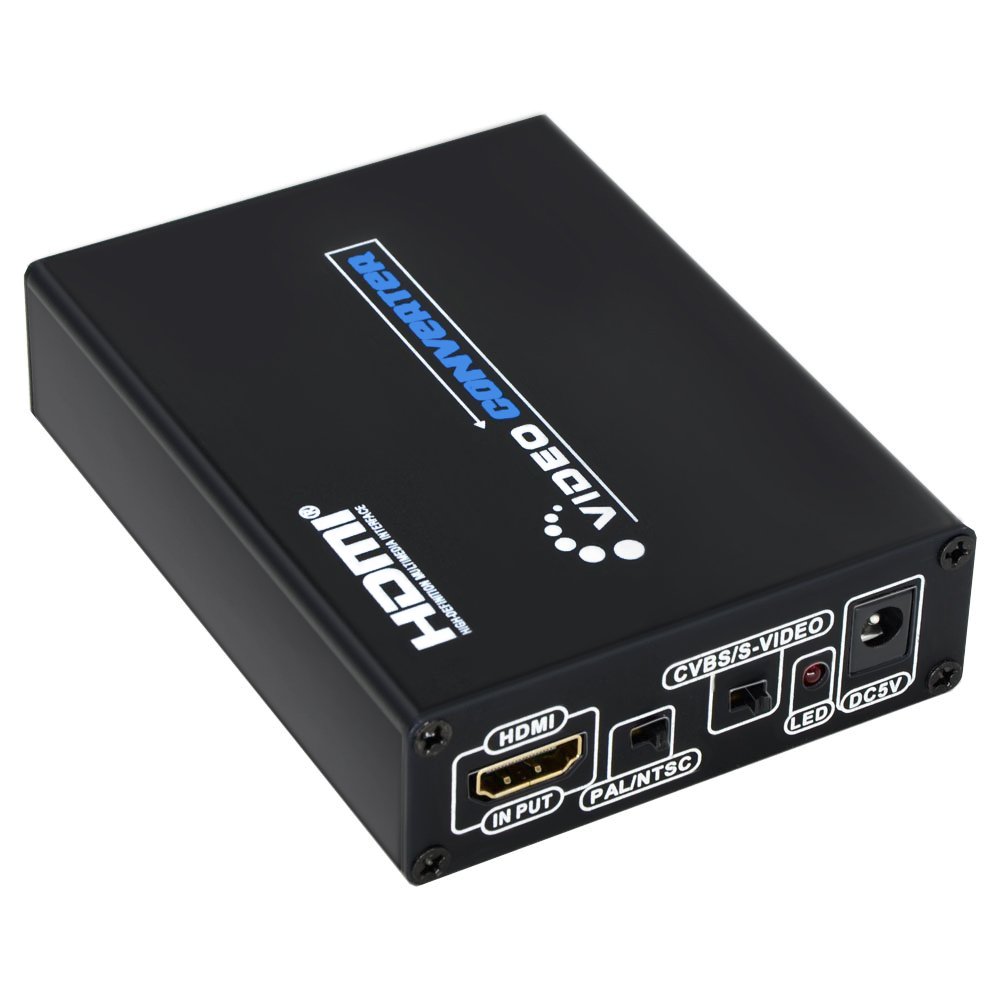

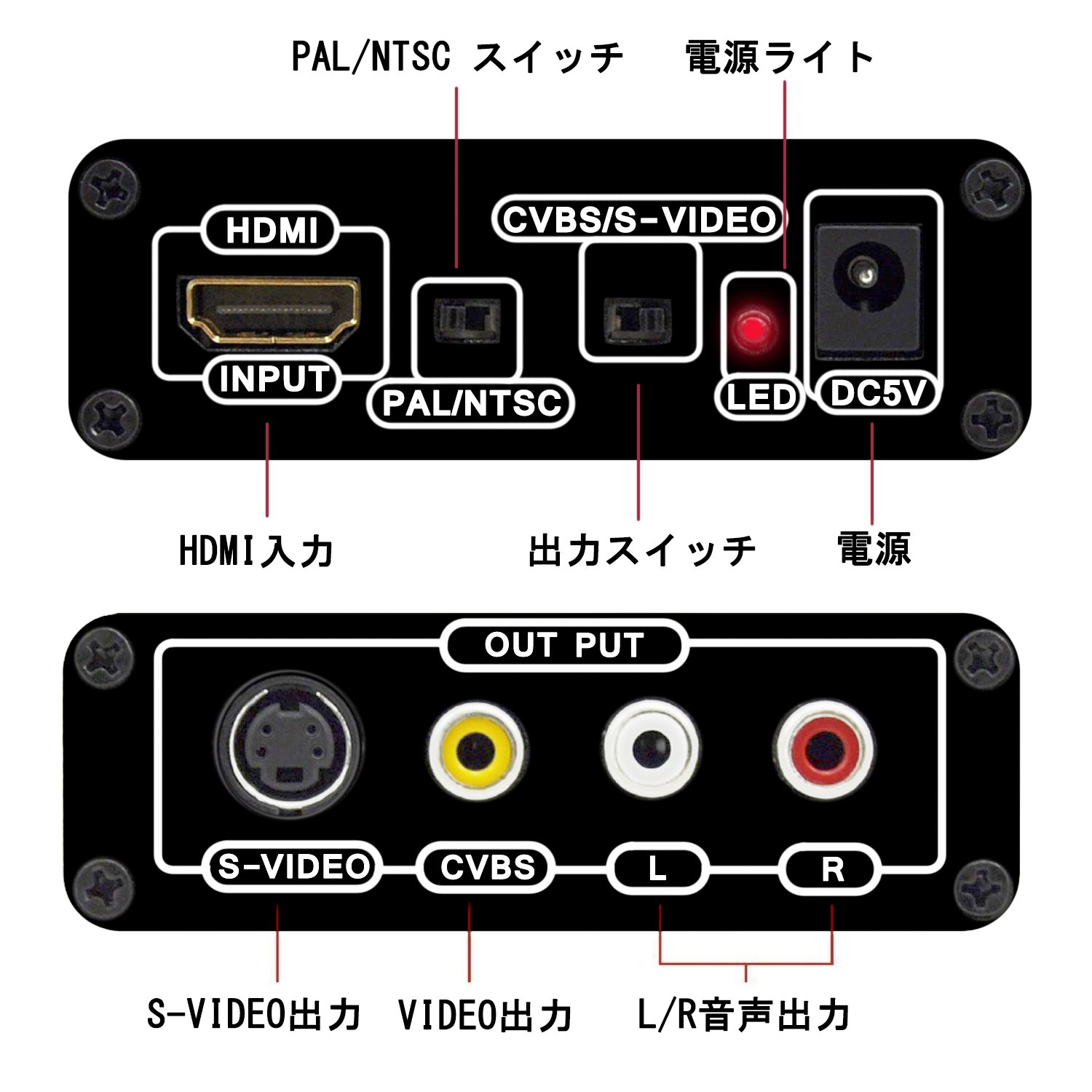

input:

HDMI

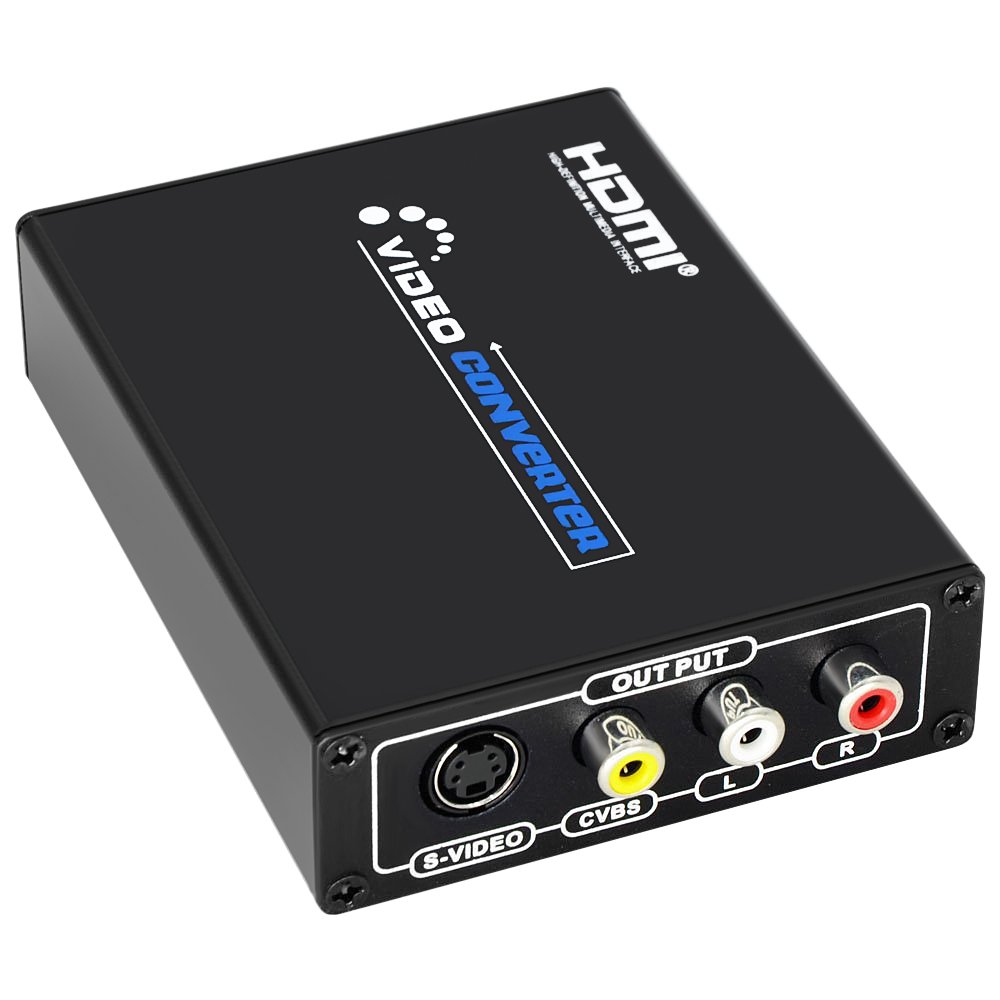

output:

Composite (CVBS yellow), S terminal, L / R sound (white red)

Body size (approx):

11.8 x 8.4 x 2.8 cm

Packing size (approx):

19 x 15.5 x 6.5 cm

Working temperature:

-25 ℃ to 75 ℃

Work humidity:

10% - 60%

Material:

metal

Color:

black

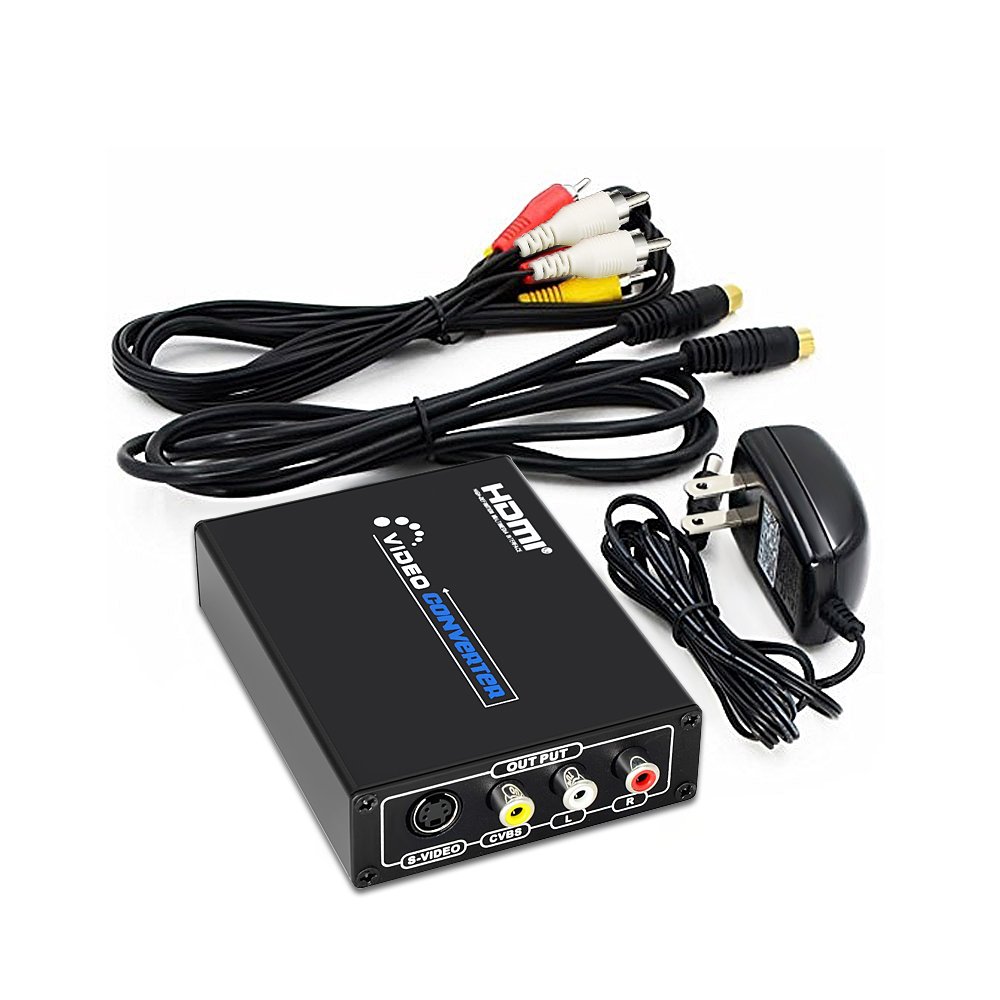

【Package Contents】:

1 x body

1 x Power adapter (PSE approved)

1 x RCA cable (length 1.5 m)

1 x S-Video cable (length 1.5 m)

1 x English Instruction Manual (PDF download)

Features:

• Please enter model number Confirm this is compatible:

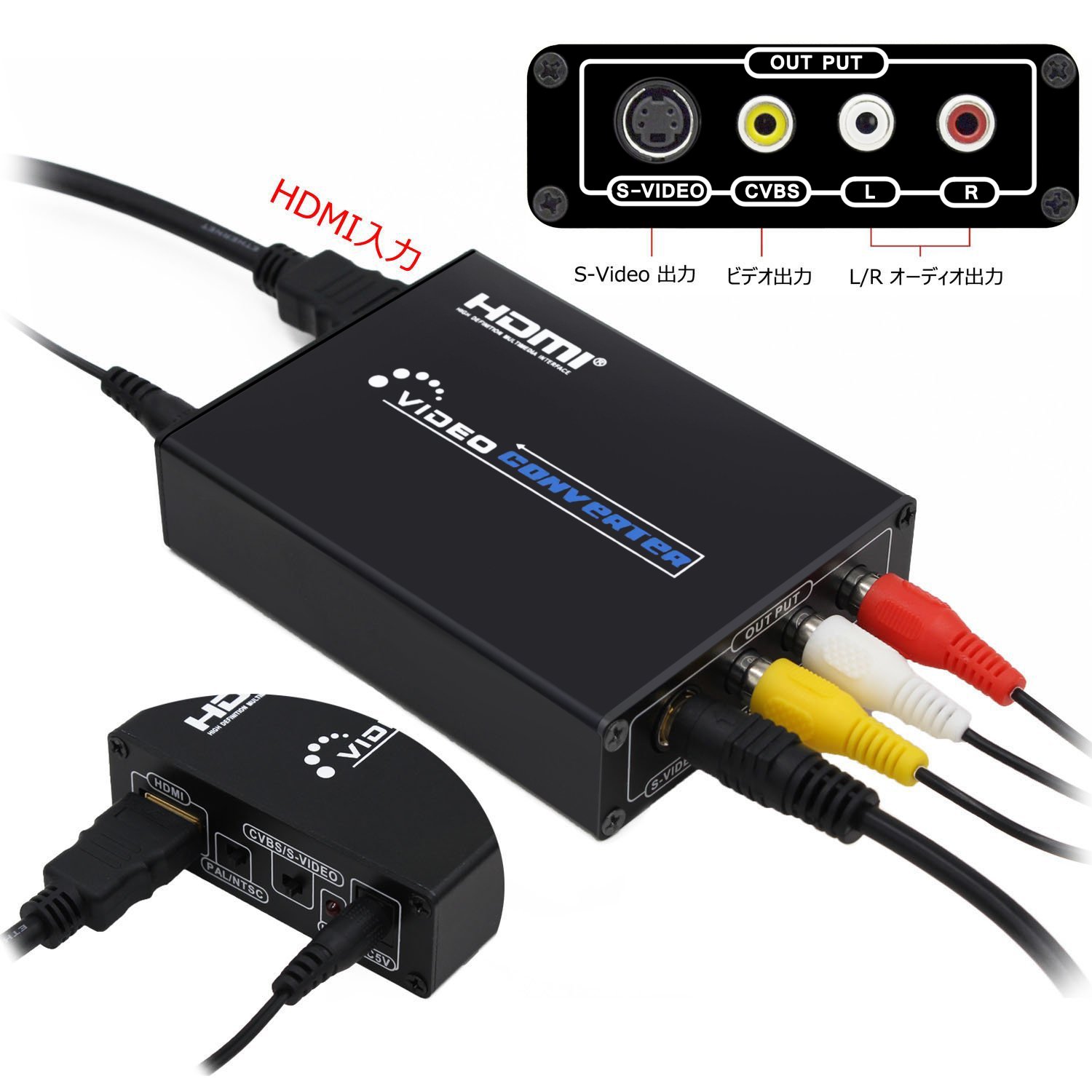

• 【HDMI → RCA Converter】 This product converts the HDMI signal to Composite (CVBS · Yellow pin of 3 color terminal) or S terminal (S-Video) video signal and converts the sound (L / R · Red White pin) and
• It is a converter that outputs at the same time.
• A clearer picture can be shown.
• HDMI can be converted to analog / composite video / audio L / R, HDMI can be converted to S-VIDEO analog video / audio L / R.
• Complete conversion support of analog composite video and L / R audio is supported.
• You can enjoy HD screens and games on old CRT TVs too.
• The video output can be switched not only to the NTSC system but also to the PAL system, so it is an HDMI conversion adapter that can be used even overseas.
• In Japan it seems that there are many NTSC ceremonies.
• Because it adopted a new eco metal casing with excellent heat dissipation properties, it is more stable than plastic, and it gently stretches the service life.
• There is no problem for 24 hours continuous work!
• Compact size, no driver required, just plug in the cable can be used, easy to operate.

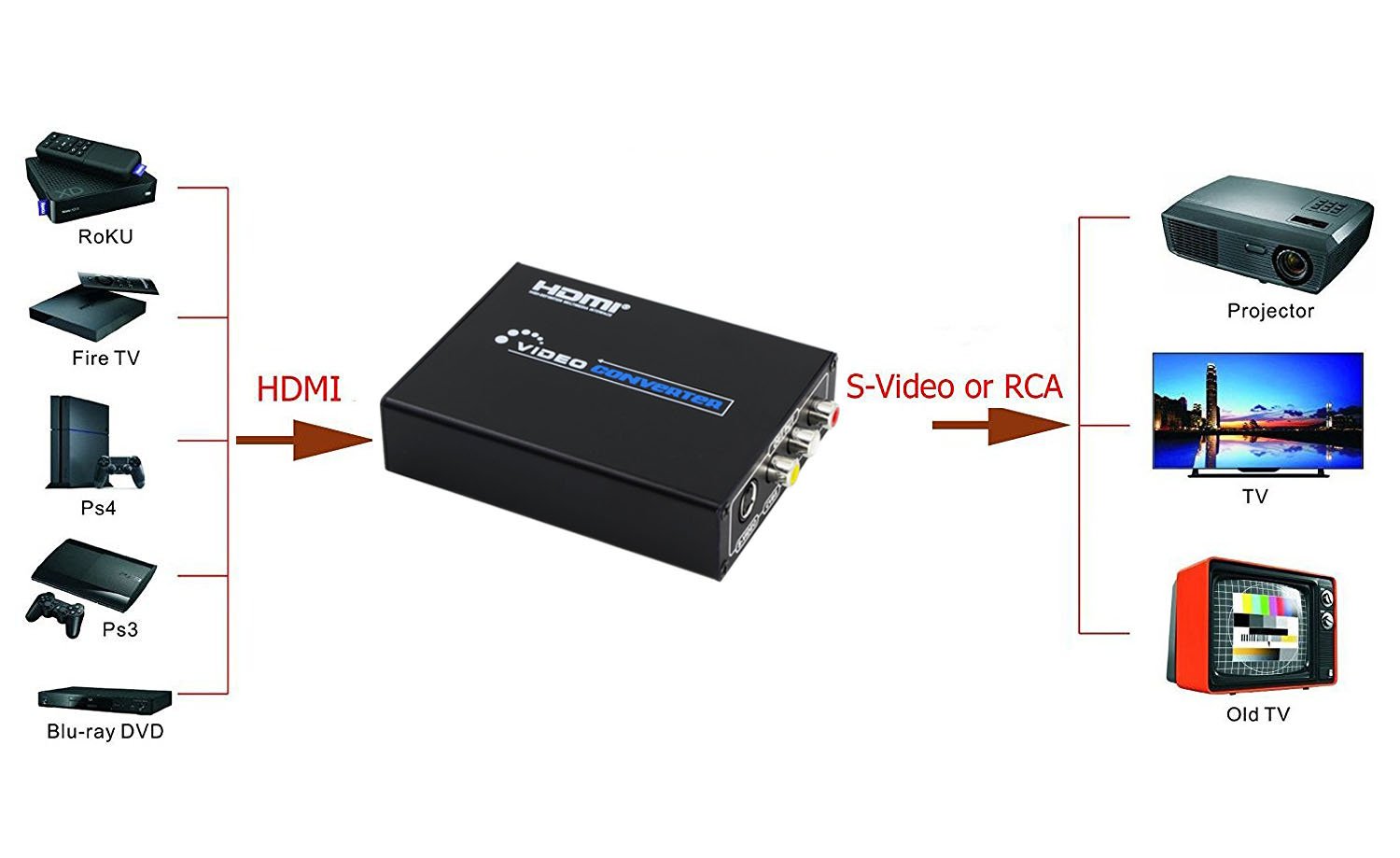

• Compatible models: Used for devices with HDMI output terminals such as Blu-Ray, HDTV box, PS3, PS4, Xbox 360, Wii, PC, HD camera, HD PVRs, DVRs, HD recorder etc.
• Package Contents: 1 x Body, 1 x AC adapter (PSE certified), 1 x RCA cable (length 1.5 m), 1 x S-Video cable (length 1.5 m), 1 x English instruction manual
• PDF sending) The warranty period is 12 months from the purchase date.

Product information:

Shipping Weight: 439 g

Package Dimensions: 6.81 x 15.39 x 19.61 cm
