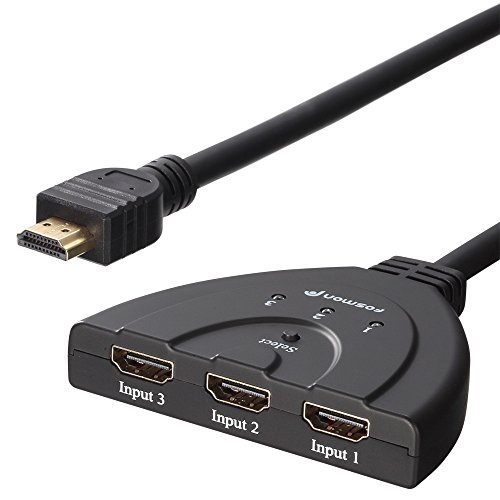

Fosmon HD1831 3-Port HDMI Switch with Pigtail Cable


  • Intelligent Function: Smart， automatic operation - has the key-press-switching function
  • Works well with Blue-Ray， Cable Box， PS3， Xbox36， etc. - Support 3D

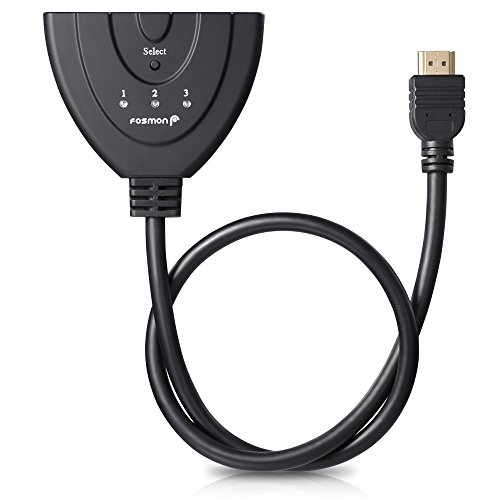

  • Comes with one fixed 1'3/4 ft. HDMI cable (pigtail) - Plug and Play
  • HDTV resolutions up to 1080p， computer resolutions up to 1920x1200
  • HD Audio and HDCP Compliant

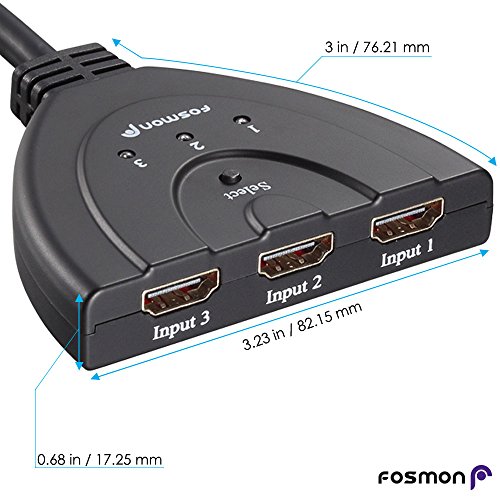

    • Product size : 10 x 8.5 x 0.75 inches

    Weight : 0.14 KG

    ASIN : B008GVOVK0

    Model No : HD1831

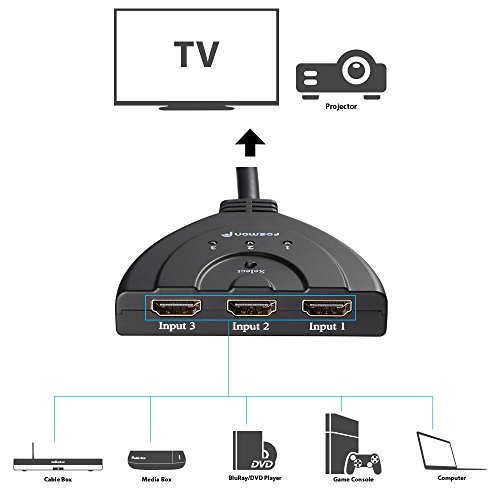

    Ran out of HDMI ports on your HDTV/monitor/projector? Want to reduce the mess of cables connected to it? Fosmon's 3x1 HDMI Intelligent Switch with Pigtail Support will take care of these problems. It has 3 HDMI input sources to provide plug-and-forget auto sensing capabilities that automatically switch inputs when a signal is detected. A button to manually switch between the 3 sources is also built-in.

    Powered from Connected Devices

    No power adapter is necessary to make this switch work， as long as the connected devices supply sufficient power. HDMI cables have the capability to deliver power from connected sources.

    HDMI Supported Features

    Up to 1080p， HDCP 1.0/1.1， 12-bit Deep Color， 3D， and uncompressed/compressed audio formats are some of the newer HDMI features supported on this switch.

    Gold-Plated Connector

    The 24K gold-plated connector on the 20in / 50cm cable resists corrosion and reduces tarnish.

    Features and Specifications

    3 HDMI inputs / 1 HDMI output

    Supports 12-bit Deep color per channel; maximum of 36-bits across all channels

    Supports 3D devices

    Maximum Single Link Video Range: 1920x1080p

    Supports HDCP pass-through

    Supports 2.5Gbps/250MHz per channel， maximum bandwidth per display is 7.5Gbps

    Supports uncompressed audio such as LPCM

    Supports compressed audio such as DTS Digital， Dolby Digital， DTS-HS and Dolby TrueHD

    24k gold-plated connector

    NOTE

    Plug-and-forget auto sensing only works correctly for devices that do not output continuous voltage over the HDMI port when turned off. Powering on a device gives it output priority over the other two devices. Output priority is given to the next device on the switch if the current output device is turned off. Make sure the connected devices supply enough power to the switch.

    Attention

    Does not work with Playstation 4 consoles
