Wiring Instructions:

Note:

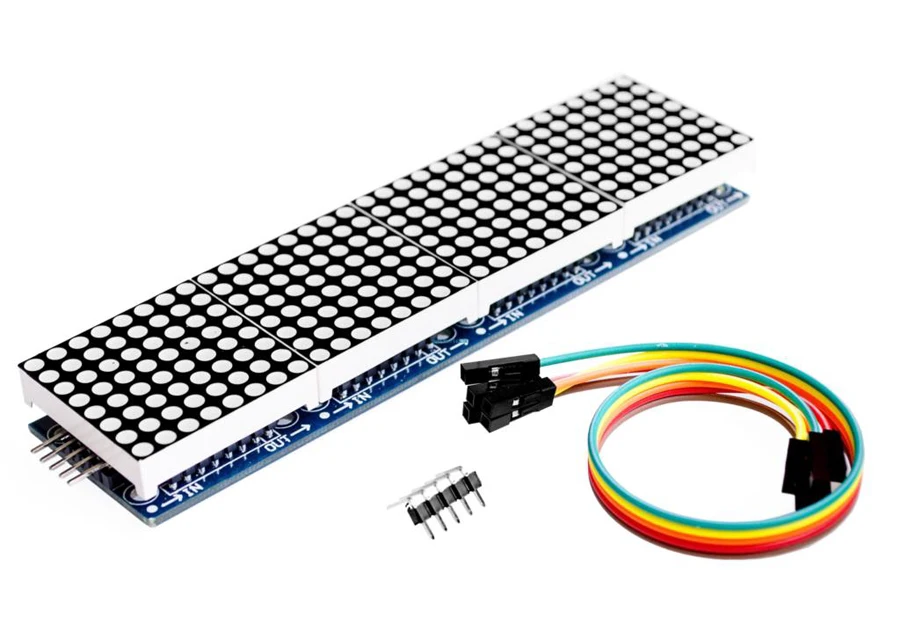

A single module can drive a 8x8 dot matrix common cathode

Operating Voltage: 5V

A single module can drive a 8x8 dot matrix common cathode

Operating Voltage: 5V

Dimensions: 12.8X12.8X1.3cm

Fixing screws with 64 holes with a diameter 3mm

Module with input and output interfaces support for cascading multiple modules

Quality:1Set

The left side of the module to the input port the right to an output port

When the control of a single module simply input port connected to CPU

When a plurality of cascaded modules input and output termination CPU an input terminal of the second output end of the first module a module the first two modules of the input terminal of the three termination modules and so on...

51 microcontrollers for example:

VCC 5V

GND GND

DIN P2.2

CS P2.1

CLK P2.0
