Product Description

Description:
The newest HDMI Network Extender build-in HDMI loop-out for local display, lossless quality and auto adjustment to match the cable length of CAT6. The HDMI extender over a single UTP cables with IR control is the right way to send your HDMI signal over long distances. Instead of using expensive HDMI cables, this device lets you use your existing Cat 6 cables while also performing the same functions like transferring Deep Color video and new lossless compressed audio. And if that weren't enough, you can use your existing remote to control your device through an IR blaster.

Specification:
Resolution supported: 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz
Network cable: Low resistance and consumption oxygen-free copper core（CAT6、CAT6A、CAT7）
Transmission length: CAT6 or higher level cable :60m at 1080P
IR remote control: Support 20~60KHz wide frequency IR remote control
Working temperature: 0℃～60℃
power: DC5V/1A 2pcs
power consumption: TX：3W；RX<2W
Product size: 2.82(W) x 2.62(D) x0.98(H)inch*2pcs

Installation Requirements
1. HDMI source device(computer graphics card, DVD,PS3, HD monitoring equipment etc).
2. HDMI display device like SDTV, HDTV, projector with HDMI port.
3. UTP/STP cat6/6A/7 cable, follow standard IEEE-568B.

PACKAGE CONTENTS
HDMI to RJ45 sender TX *1pcs
RJ45 to HDMI receiver RX *1pcs
DC5V/1A *2pcs
User manual *1pcs
IR blaster extension cable *1pcs
IR receiver extension cable *1pcs

Note:
1.High quality cat6 or cat6e cable is needed to work with this hdmi extender
2.Only supports the PCM audio output
3.Do not mix up HDMI to RJ45 sender and RJ45 to HDMI receiver before installation.
4. Do not hot plug when it is working.

Feature

1.HDMI Single cable transmission: It extends HDMI 1080P AV signal up to 60 with Cat6/Cat7 or higher level cables.
2.HDMI Lossless transmission: It extends HDMI AV signal to synchronous output Video display is as fluent as direct connection

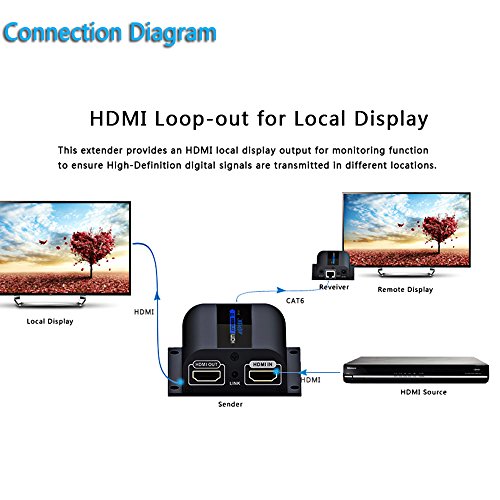

3.HDMI loop-out for local display or monitoring function. When transmitting a signal in 1080p resolution the CAT6/Cat7 operating distance is 60 meters.

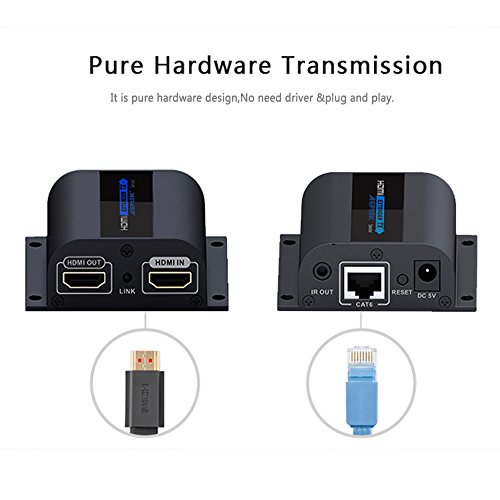

4.Pure Hardware Transmission: It is pure hardware design. No need driver& plug and play. Support 20~60KHz wide frequency IR remote control
5.Full HD Transmission: Adopt full HD transmission technology to make the video image more vivid. Cat6A/Cat6/Cat7 cable follows the standard of IEEE-568B. Supports uncompressed audio such as LPCM.
Brand : AGPtEK
Item model num : 181/181A/120/121
MPN(PartNumber) : 181/181A/120/121
EAN : 0713382785082
