Buyer Note:
1. This products only support 12V Engine vehicle, please kown it before order ;
2. Our elm327 is 100% original , and firmware version is V1.5 ;
3. The bluetooth version only support android system up than 4.3 version ;
4.Not work with some Russian Lada, UAZ, GAZ, VAZ, Ssangyong, Renault vehicle(In recent years you can try)
Support Protocols :
0.Automatic
1.SAE J1850 PWM(41.6Kbaud)
2.SAE J1850 VPW(10.4Kbaud)
3.ISO9141-2(5 baud init,10.4Kbaud)
4.ISO14230-4 KWP(5 baud init,10.4 Kbaud)
5.ISO14230-4 KWP(fast init,10.4 Kbaud)
6.ISO15765-4 CAN(11bit ID,500 Kbaud)
7.ISO15765-4 CAN(29bit ID,500 Kbaud)
8.ISO15765-4 CAN(11bit ID,250 Kbaud)
9.ISO15765-4 CAN(29bit ID,250 Kbaud)
A.SAE J1939 CAN(29bit ID,250*Kbaud)
B.USER1 CAN(11*bit ID,125*Kbaud)
C.USER2 CAN(11*bit ID,50*kbaud)
*default settings(user adjustable)

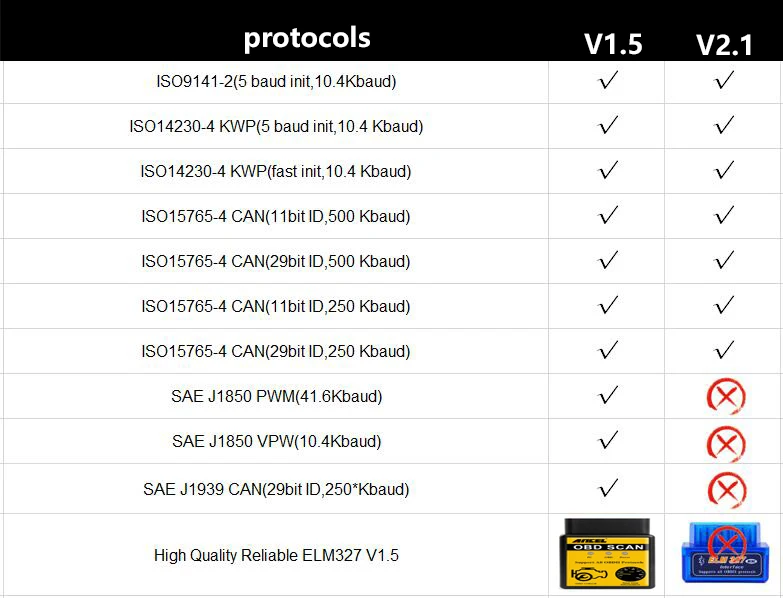

What is the different between V1.5 and V2.1
A4: Our ELM327 is V1.5, which is support full protocols version(9 protocols), especially J1850 Protocols for Japanese Cars and American Cars, other elm327 doesn\'t support 9 protocols

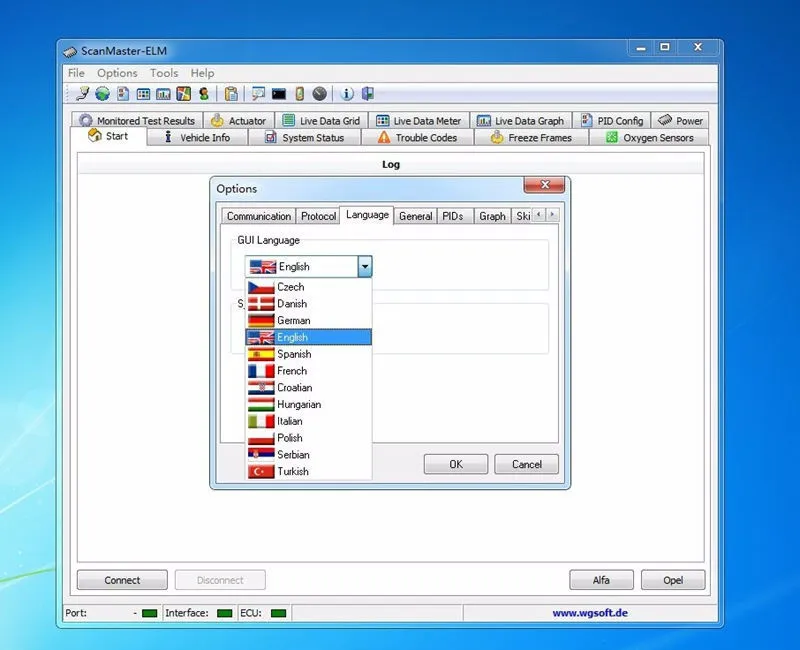

Support Language:
We only provide English softwares in the cd.
But you can download ELM 327 software of other languages to use this device.
There are free ELM327 softwares online to download, like "Torque" , "Forscan"
These software support almost all languages like Russian, Spanish, French, German, English, Italian, Portuguese...and so on.
OBD Support Car Makers:
Europe cars:
Works on After 2000 and newer OBDII/OBD2/OBD/CAN-BUS Vehicles
America & Australian Cars:
Works on all 1996 and newer OBDII/OBD2/OBD/CAN-BUS vehicles
Asia Cars:
Works on After 2005 and newer OBDII/OBD2/OBD/CAN-BUS Vehicles
ANCEL 327 support protocols :
1.ISO9141-2(5 baud init,10.4Kbaud)
2.ISO14230-4 KWP(5 baud init,10.4 Kbaud)
3.ISO14230-4 KWP(fast init,10.4 Kbaud)
4.ISO15765-4 CAN(11bit ID,500 Kbaud)
5.ISO15765-4 CAN(29bit ID,500 Kbaud)
6.ISO15765-4 CAN(11bit ID,250 Kbaud)
7.ISO15765-4 CAN(29bit ID,250 Kbaud)
8.SAE J1939 CAN(29bit ID,250*Kbaud)
9.USER1 CAN(11*bit ID,125*Kbaud)
10.USER2 CAN(11*bit ID,50*kbaud)
FAQ Area:(please read it before make order, friend)
Q: What\'s the version of this unit?
A: It\'s V 1.5 version of this unit.
Q: If it can do all most car models and diesel car models?
A: No, it can just support most standard OBD II car models, 24V Diesel car models can\'t be supported.
Q:My phone can connect with the unit, but it can\'t find my car?
A: check the protocol of this car if it can be supported, and try with more new cars.
Q: I can not connect with device and my car, how can i do?
A: could you try clear the Bluetooth connection history in the phone and connect again
Q: If I still have question, what should I do now?
A: please kindly contact with the Seller, please don\'t ever open a dispute or just left a negative feedback. Thank you
Q. Vehicle Linking Error?
A communication error occurs if the scan tool fails to communicate with the vehicle’s ECU (Engine Control Unit). You need to do the following to check up:
Verify that the ignition is ON.
Check if the scan tool’s connector is securely connected to the vehicle’s DLC.
Verify that the vehicle is OBD2 compliant.
Turn the ignition off and wait for about 10 seconds. Turn the ignition back to on and continue the testing.
Verify the control module is not defective.
Q: Operating Error?
A:If the scan tool freezes, then an exception occurs or the vehicle’s ECU (Engine Control Unit) is too slow to respond to requests. You need to do the following to reset the tool:
Reset the scan tool.
Turn the ignition off and wait for about 10 seconds. Turn the ignition back to on and continue the testing.
Q:. Scan tool doesn’t power up?
If the scan tool won’t power up or operates incorrectly in any other way, you need to do the following to check up:
Check if the scan tool’s connector is securely connected to the vehicle’s DLC;
Check if the DLC pins are bent or broken. Clean the DLC pins if necessary.
Check vehicle battery to make sure it is still good with at least 8.0 volts.
1. Icar Bluetooth setting:
NOTE: Even though it compatible with most cars, but different regions support the vehicle OBD2 protocol at different times, or some car is especially design, so it may not compatible with some cars which do not support OBD2 protocol. especially Japanese and Korea car
No equipment can guarantee 100% support for all cars
Start the engine before testing
Here is a list of the buyers in the shopping or after-sales service problems
Maybe some of your doubts will find the answer here
