Features

The Raspberry Pi 3 is the third generation Raspberry Pi. The new board is the first 64-bit Raspberry Pi, and comes with built-in Wi-Fi and Bluetooth. On the surface, the new board looks almost exactly the same as its predecessor, but a lot has changed under the surface. This is the first 64-bit Raspberry Pi, with a quad-core 64-bit ARM Cortex A53 clocked at 1.2GHz. That makes the new BCM2837 more than 50% faster than the Raspberry Pi 2, and almost ten times faster than the original Model B.

The Raspberry Pi 3 comes with both built-in Wi-Fi and Bluetooth 4.1. Hence, the new board supports Bluetooth “Classic” and Bluetooth LE, which makes the Pi 3 not just a desktop replacement, but a perfect hub for the emerging Internet of Things.

Specification

• Quad Core 1.2GHz Broadcom BCM2837 64bit CPU
• 1GB RAM
• BCM43438 WiFi and Bluetooth Low Energy (BLE) on board
• 40-pin Extended GPIO
• 4x USB 2 ports
• 4 Pole stereo output and composite video port
• Full size HDMI
• CSI camera port for connecting a Raspberry Pi camera
• DSI display port for connecting a Raspberry Pi touchscreen display
• Micro SD port for loading operating system and storing data
• Upgraded switched Micro USB power source up to 2.5A

Technical Datasheet

• Introduction by Raspberry Pi Foundation
• Technical datasheet

Limited Warranty

The Raspberry Pi is warranted against manufacturing defects for the period of ONE YEAR. Your original purchase invoice, showing the date of purchase of the product is your proof of the date of purchase. Buyer must return the faulty unit for warranty claim (postage paid by buyer).

This warranty does not cover any failure resulting in loss to software, data, lost profits, lost savings, any incidental damages or other economic consequential damages due to accident, abuse, misuse, negligence and acts of God.

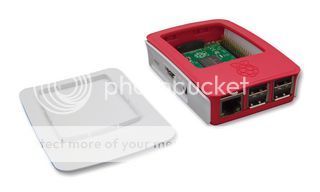

Official Case for Raspberry Pi 3

• Raspberry coloured enclosure with white removable lid and sides
• Removable lid provides easy access to the camera, display ports and supports access to an attached Raspberry Pi HAT device
• Removable GPIO side is provided for easy access to the 40-pin GPIO port

Package includes:

1. 1x Raspberry Pi 3 Model B
2. 1x Safety guide
3. 1x Quick start guide
4. 1x Official case for Raspberry Pi 3
5. 2x Aluminum heat sinks (1 big & 1 small)
6. 1x USB microSD card reader
7. 1x 1.0M High speed male-to-male HDMI cable
8. 1 year official warranty on Raspberry Pi 3

Important

It is recommended to get a 5V 2.5A power adapter if you want to connect power-hungry USB devices to Raspberry Pi 3.

Optional Raspberry Pi Accessories (combined shipping allowed):

Official Raspberry Pi 3 Power Adapter (5V 2.5A)

• Plug Type: Aus, Euro, UK, US
• Input Voltage: AC Min 90V
• Input Voltage: AC Max 264V
• Output Power Max: 13W
• Output Voltage Nom.: 5.2V
• Output Current Max: 2.5A
• Power Supply Output Type: Fixed
• Output Connector: USB Micro
• SVHC: No SVHC
• Protection: Short circuit, over current, over voltage
