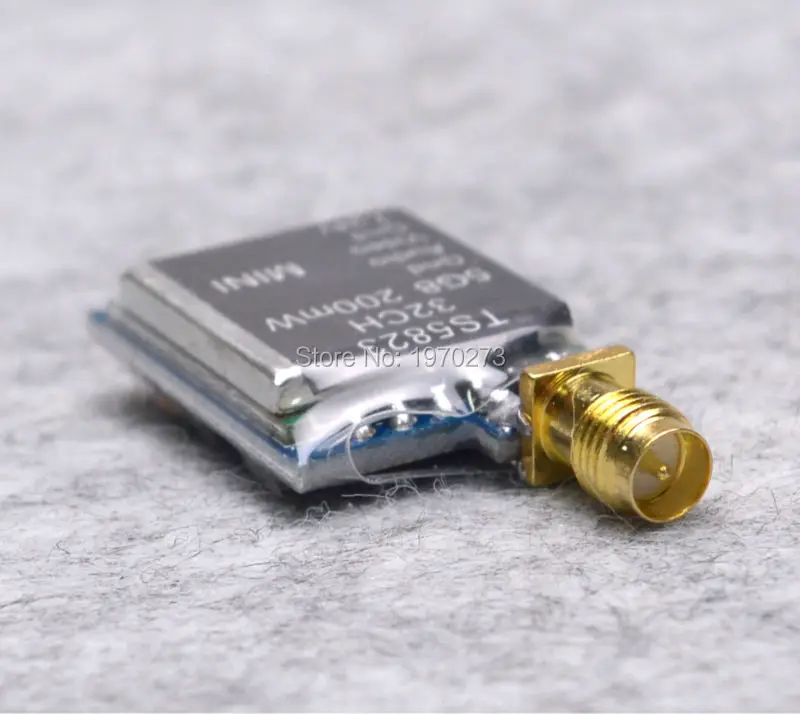

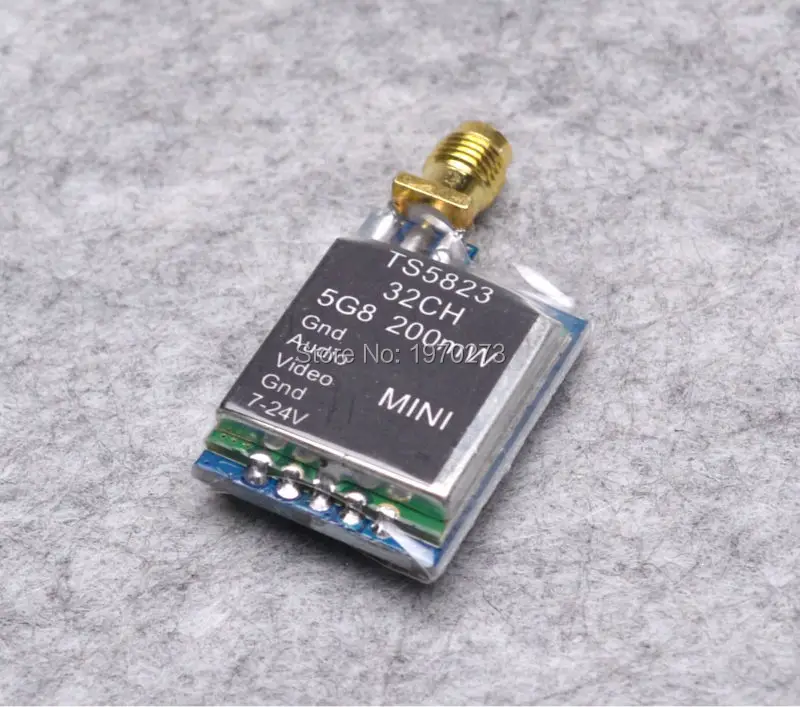

TS5823 Descriptions:
Transmitting unit weight: 7.3g (excluding antenna)
video format supported: NTSC/PAL
Working frequency: 5645-5945Mhz
Power input: 7-24V
Transmitting current: 190mA 12V
Video band width: 8M
Audio coding: 6.5M
Dimension: 30*20*8mm (excluding antenna)
Antenna connection: RP-SMA jack (TX module side)
*Note: TX antenna must be installed properly before it is switched on power on without install antenna or a improper antenna was used may easily burn the TX and such damage is not covered by warranty.

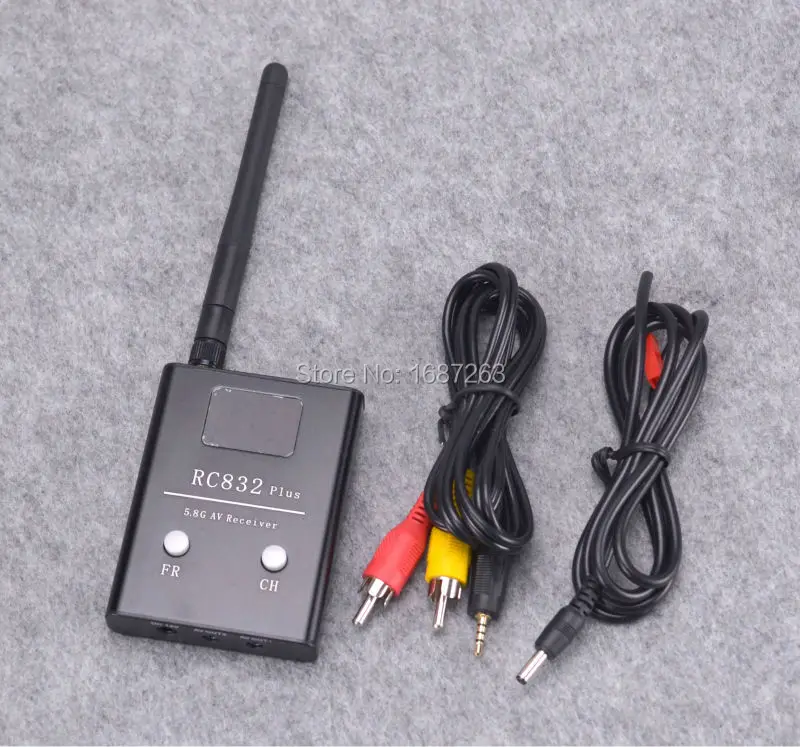

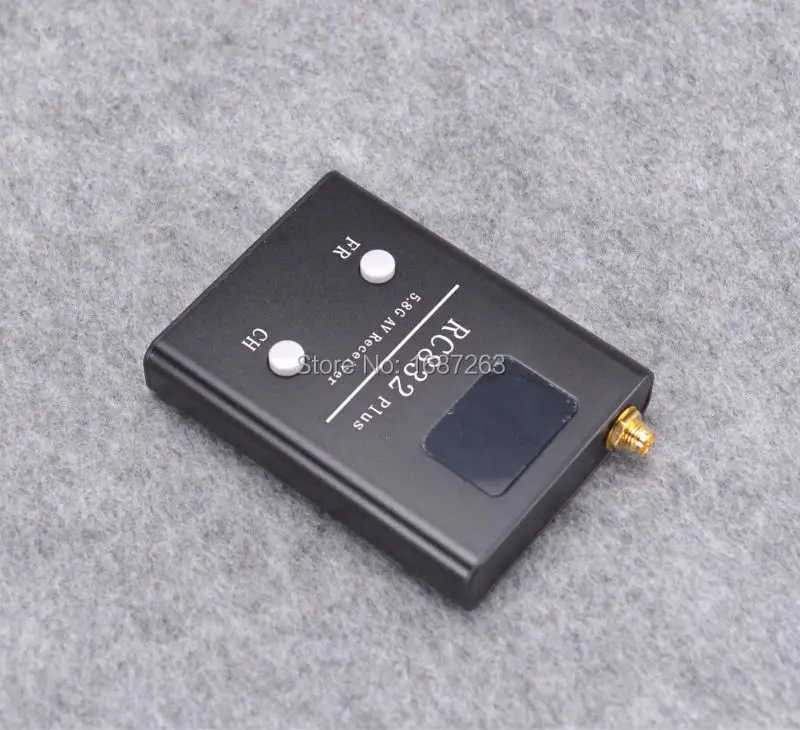

RC832 plus Description:
The RC832 plus Receiver is nice and small in size for easy integration into your ground station but big in quality and features. The receiver uses the same two button interface as the TS832 Transmitter making channel swapping a breeze. There are two independent AV outputs for both audio and video. So you can use a monitor and set of goggles or maybe a DVR to record your flight for when your significant other asks where you were for the last 4 hours. Powering the receiver at the field is as easy as plugging in a 3 cell lipoly into the included prewired cable with mini JST. It just doesn't get any simpler than this.
*For best range and video link stability we recommend using the Boscam 5.8GHz Cloud Spirit circular-polarized Antenna Set (SMA-RP) available below in the accessory's tab
Features:
? 48 channels: Cover A B E F H bands and L bands
? Two switching buttons for the band and channel
? Two digits display for the band and channel
? Power off memory for last channel and band
? dual Independent video and audio signal outputs
Specs:
Video format supported: NTSC/PAL
Antenna connection: RP-SMA jack
Power input: 12V
Working current: 200mA max
Antenna impedance: 50Ω
Antenna gain: 2db
Rx sensitivity -90dBm
Video impedance: 75Ω
Video format: NTSC/PAL auto
Dimension: 80x 65 x15mm
Weight: 85g

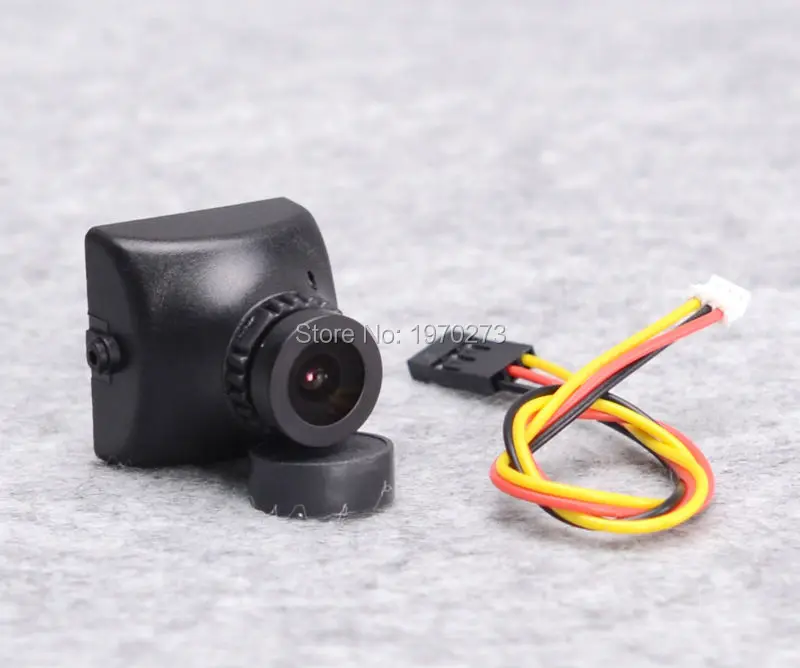

700TVL Camera Description:
It is the next generation of FPV camera. Optimized for high speed FPV flying we have improved low light handling and cut down the latency below 1ms (glass to glass on PUTAI products). To make sure this camera can make its way onto every quad you own it supports 7.5V to 13V input. This is not just a remake of similar cameras everything from the PCB to the plastic case have been optimized for FPV performance.
It comes preconfigured for any FPV flying condition with a 2.8mm wide angle lens. An additional sense when flying has proven to be very valuable and is increasingly used by the world's top pilots.
Since FPV cameras tend to be the "first point of impact" we have additionally added water resistance into the design.
Features
"Zero" latency (less than 1ms end to end)
700 TVL - the highest possible resolution without adding additional latency
Tuned both for day and night flying
2.8mm wide angle lens
Lightweight plastic enclosure matching popular older cameras for mounting compatibility
Wide voltage input range (7.5V - 13V)
Spec
Lens: 2.8mm
Model: PAL
Weight: 11g

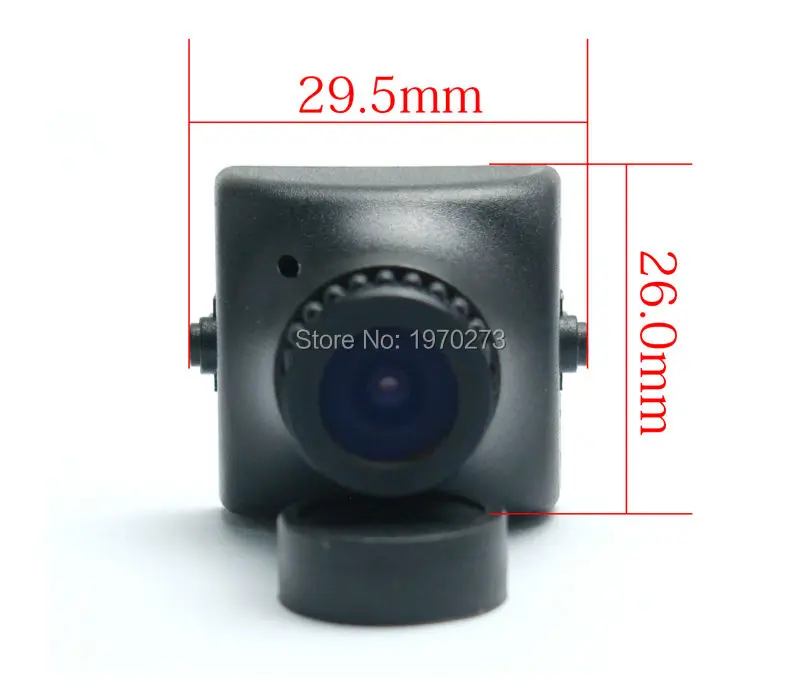

Size: 26mm x 26mm x 30mm

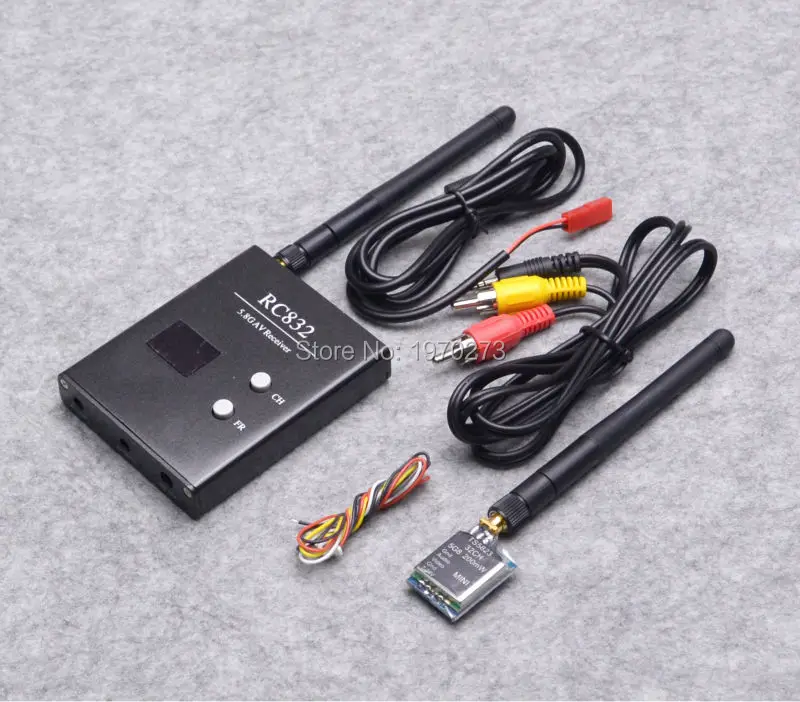

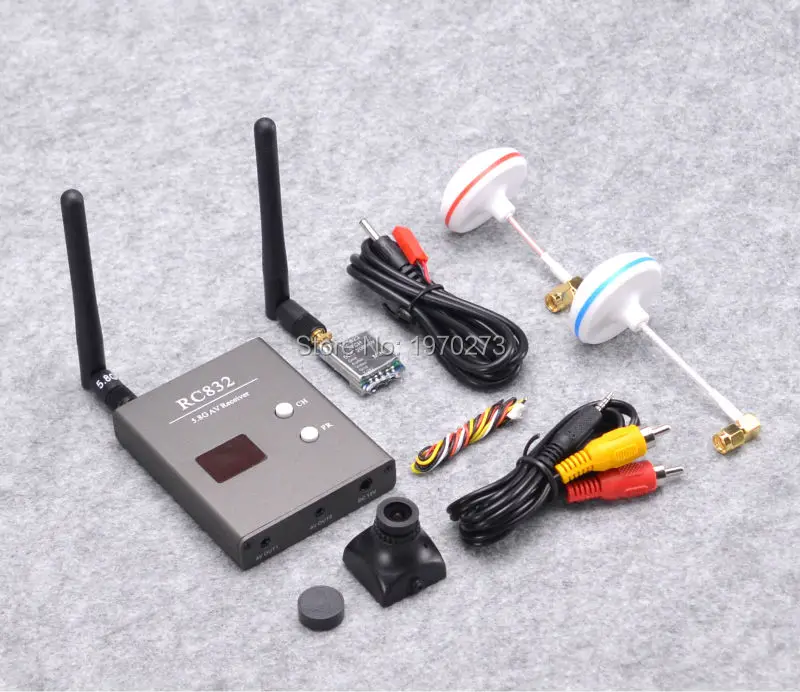

Package Included:
1pcs TS5823 transmitter
1pcs RC832 Receiver ( About the RC832 We will send the new version RC832 Plus receiver to you . )
1pcs 700TVL Camera
1pcs TX circular polarized antenna RP-SMA
1pcs RX circular polarized antenna RP-SMA
