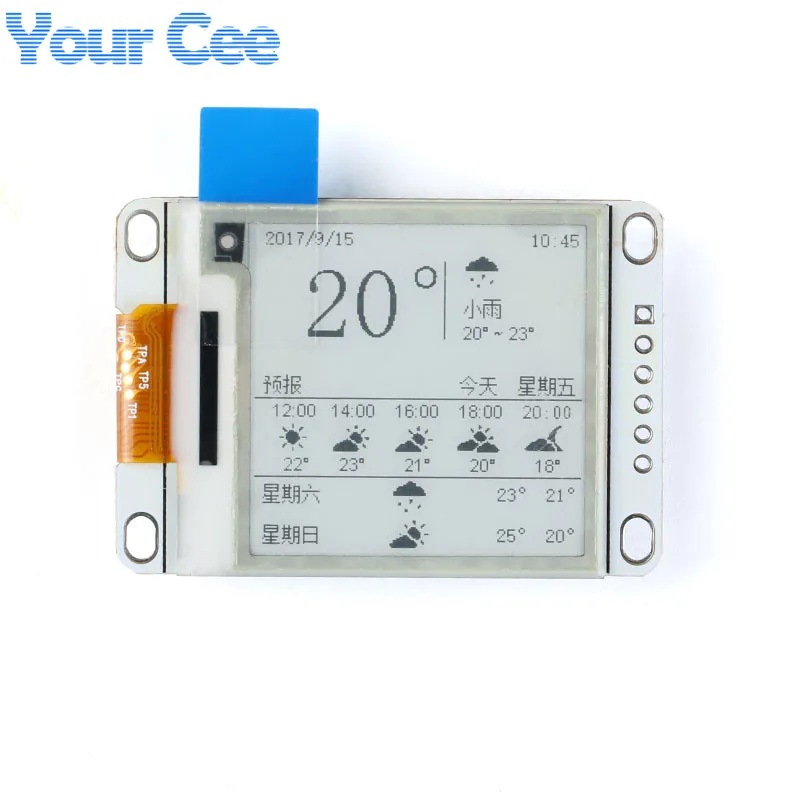

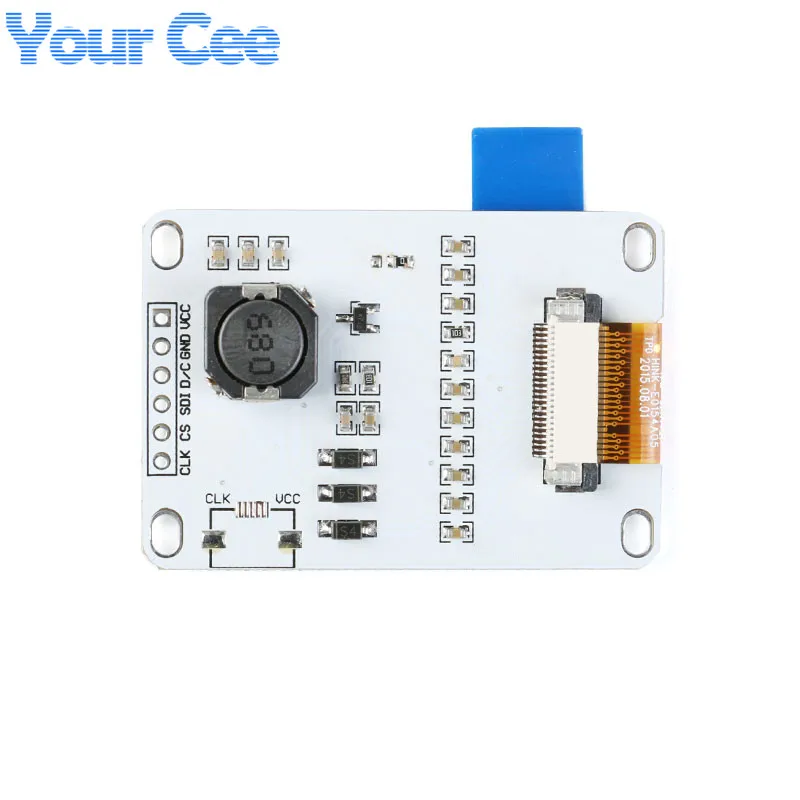

■在庫はない場合は、通常5～10日以内に発送。販売元直送の場合もあります、発送後に追跡番号を発行。 納品日数は最大10-15日の場合もあります。<br/>■初期不良・不良品による返品・交換(3日内)の返品送料はお客様負担となります。<br/>1.54 Inch E Paper Module E Ink Display Screen Module Black White Color SPI Support Global/ refresh Diy For Arduino<br/>1.54 Inch E Paper Module E Ink Display Screen Module Black White Color SPI Support Global/Part refresh Diy For Arduino<br/><br/><br><br><div class="ui-box-title">Product Description</div>        <div class="ui-box-body">            <div class="description-content" data-role="description" data-spm="1000023"><div class="origin-part"><p style="text-align: center;"> <img alt="1.54 Inch E-Paper Module E-Ink Display Screen Module  (3)" src="https://ae01.alicdn.com/kf/HTB14RVJkb_I8KJjy1Xaq6zsxpXaS.jpg"><img alt="1.54 Inch E-Paper Module E-Ink Display Screen Module  (4)" src="https://ae01.alicdn.com/kf/HTB15Roxj0bJ8KJjy1zjq6yqapXaB.jpg"></p> <div>  <span style="color: #ff0000;"><u><strong><span style="font-size: 22.0px;"><span style="font-family: times new roman   times   serif;">Product Parameters:</span></span></strong></u></span> </div> <div>  <ul>   <li> <span style="font-size: 18.0px;"><span style="font-family: times new roman   times   serif;">Size: 1.54 inches</span></span> </li>   <li> <span style="font-size: 18.0px;"><span style="font-family: times new roman   times   serif;">Color: black and white</span></span> </li>   <li> <span style="font-size: 18.0px;"><span style="font-family: times new roman   times   serif;">Viewing angle:&gt; 170 °</span></span> </li>   <li> <span style="font-size: 18.0px;"><span style="font-family: times new roman   times   serif;">Global / local refresh time: 2 / 0.3S</span></span> </li>   <li> <span style="font-size: 18.0px;"><span style="font-family: times new roman   times   serif;">Refresh method: global / local refresh</span></span> </li>   <li> <span style="font-size: 18.0px;"><span style="font-family: times new roman   times   serif;">Communication: SPI  only 4 I / O port</span></span> </li>   <li> <span style="font-size: 18.0px;"><span style="font-family: times new roman   times   serif;">Resolution: 200 * 200</span></span> </li>   <li> <span style="font-size: 18.0px;"><span style="font-family: times new roman   times   serif;">Controller IC: IL3829</span></span> </li>   <li> <span style="font-size: 18.0px;"><span style="font-family: times new roman   times   serif;">Operating temperature: 0 ~ 50 ℃</span></span> </li>   <li> <span style="font-size: 18.0px;"><span style="font-family: times new roman   times   serif;">Ultra-low power consumption: refresh 24.5mW</span></span> </li>   <li> <span style="font-size: 18.0px;"><span style="font-family: times new roman   times   serif;">Working voltage: 3.3V</span></span> </li>   <li> <span style="font-size: 18.0px;"><span style="font-family: times new roman   times   serif;">Module size: 46.4 * 32.0 * 2.2mm</span></span> </li>  </ul>  <div>   &nbsp;  </div> </div> <div>  <span style="color: #ff0000;"><u><strong><span style="font-size: 22.0px;"><span style="font-family: times new roman   times   serif;">Application:</span></span></strong></u></span> </div> <ul>  <li> <span style="font-size: 18.0px;"><span style="font-family: times new roman   times   serif;">Smart home</span></span> </li>  <li> <span style="font-size: 18.0px;"><span style="font-family: times new roman   times   serif;">Smart watch  smart wear</span></span> </li>  <li> <span style="font-size: 18.0px;"><span style="font-family: times new roman   times   serif;">Mobile payment  shelf labels</span></span> </li>  <li> <span style="font-size: 18.0px;"><span style="font-family: times new roman   times   serif;">Internet of Things products  industrial instrumentation display</span></span> </li>  <li> <span style="font-size: 18.0px;"><span style="font-family: times new roman   times   serif;">Support Global/Part&nbsp;refresh  refresh power consumption  refresh once displayed six months.</span></span> </li> </ul> <div>  &nbsp; </div> <div>  <span style="color: #ff0000;"><u><strong><span style="font-size: 22.0px;"><span style="font-family: times new roman   times   serif;">Product Size:</span></span></strong></u></span> </div> <div style="text-align: center;">  <span style="color: #ff0000;"><u><strong><span style="font-size: 22.0px;"><span style="font-family: times new roman   times   serif;"><img alt="QQ20171226145333" src="https://ae01.alicdn.com/kf/HTB1LSs4jZjI8KJjSsppq6xbyVXa2.jpg"></span></span></strong></u></span> </div> <div>  &nbsp; </div> <div>  <span style="color: #ff0000;"><u><strong><span style="font-size: 22.0px;"><span style="font-family: times new roman   times   serif;">Pin Definition:</span></span></strong></u></span> </div> <ul>  <li> <span style="font-size: 18.0px;"><span style="font-family: times new roman   times   serif;">VCC: 3.3V</span></span> </li>  <li> <span style="font-size: 18.0px;"><span style="font-family: times new roman   times   serif;">GND: Ground</span></span> </li>  <li> <span style="font-size: 18.0px;"><span style="font-family: times new roman   times   serif;">CLK: Clock simulation</span></span> </li>  <li> <span style="font-size: 18.0px;"><span style="font-family: times new roman   times   serif;">CS: chip select signal</span></span> </li>  <li> <span style="font-size: 18.0px;"><span style="font-family: times new roman   times   serif;">SDI: data input  similar to MOSI</span></span> </li>  <li> <span style="font-size: 18.0px;"><span style="font-family: times new roman   times   serif;">D / C: command / data switch</span></span> </li> </ul> <div>  &nbsp; </div> <div style="text-align: center;">  <p> <img alt="YX__21079" src="https://ae01.alicdn.com/kf/HTB1F.UzcQfb_uJkSmFPq6ArCFXai.jpg"> </p>  <p> &nbsp; </p>  <p> &nbsp; </p> </div> <div>  &nbsp; </div> <p> &nbsp; </p> <p> &nbsp; </p></div></div>        </div>
