Product Description

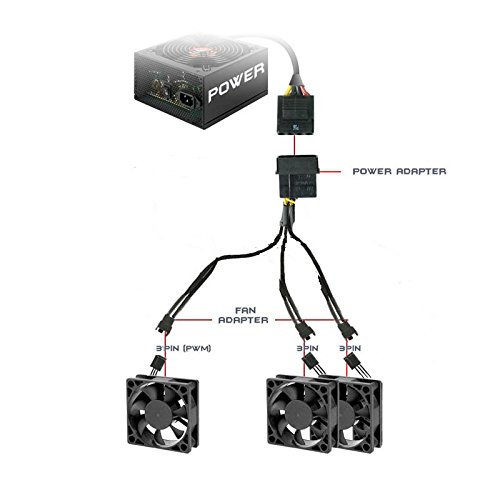

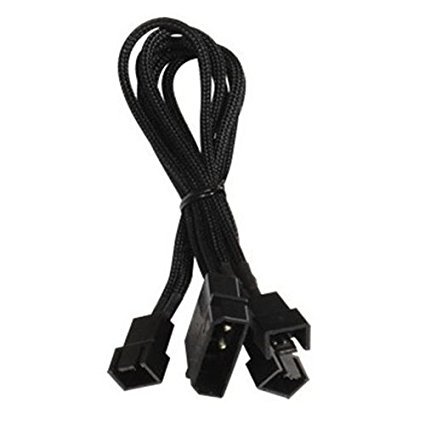

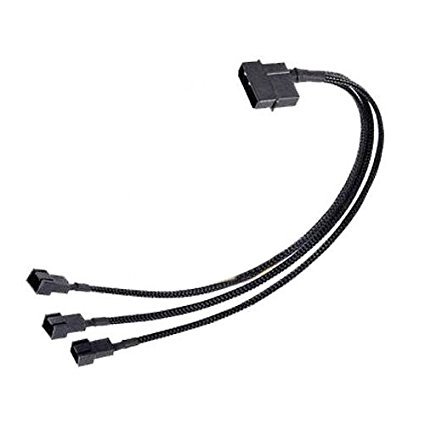

Multicolor Sleeved Available 4Pin Male to 3x 3Pin Fan Y Splitter Cable
Features:
High quality, individually sleeved cables
No more unsightly wires
No more mess and clutter


Specifications

Color: Black
Wire Gauge: 26AWG Tinned Copper - UL1007 Wire
Cable Length: 20cm

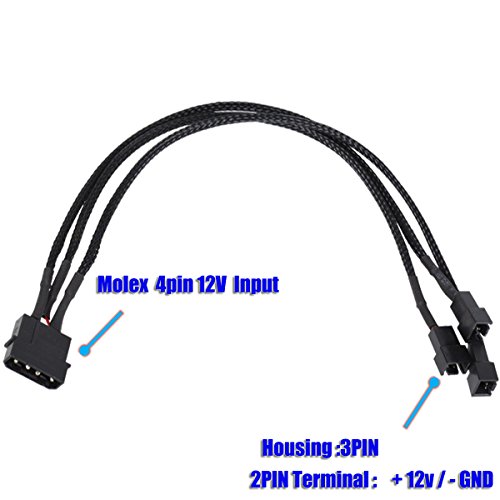

Connector A: 1 - 5.25" Molex 4 pin LP4 Male
Connector B: 3-3pin housing

Note:
1.Only the fan on 'CPU Fan' channel is used for monitoring.
2.All connected fans are following the same PWM signal speed control is the same for all fans when use fan controller software like AI stuite/Xspert FAN and EASY TUNE,etc
3.PWM capable connectors must necessarily be 4-pin, but not all 4-pin motherboard connectors implement or enable the PWM signal modulation by default. Please carefully consult your motherboard documentation in this respect.
4.This is only a fan splitter cable, NOT fan speed controller, Only 4pin PWM fans speed can be adjusted by fan controller software, 3pin fan would run in full speed,can not be adjusted when connect.

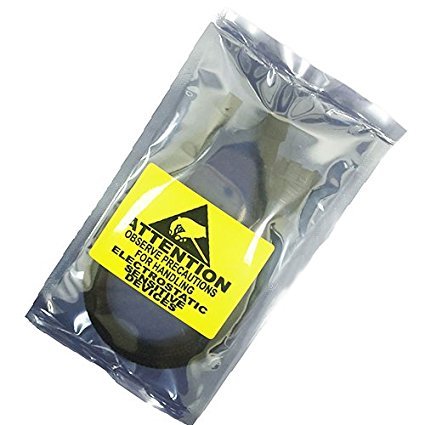

Packing list：
1 x 4Pin Male to 3x 3Pin Fan Y Splitter Cable
