Item Descriptions:

<Specification>

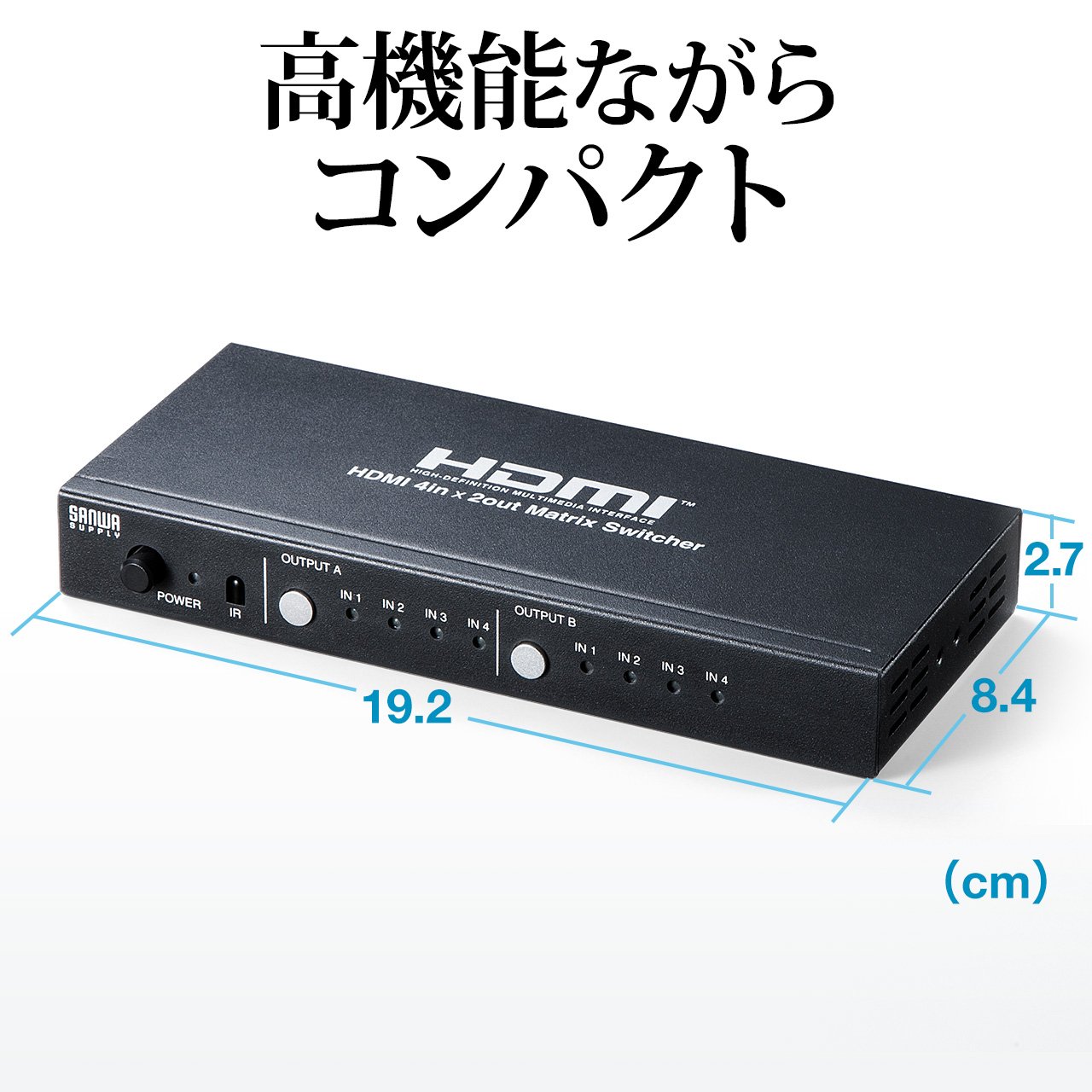

■ Size: W192 × D84 × H27 mm

Weight ■: 440 g

■ Interface:

For input / HDMI type A (19 PIN) × 4

For output / HDMI type A (19 PIN) × 2

■ Material: Steel

■ Switching method: main body switching button, remote control

Switching content: HDMI input / 4, HDMI output / 2 (matrix switching output)

Maximum resolution: 1080p (1920 × 1080), WUXGA (1920 × 1200)

■ Supported audio formats: AAC, Linear PCM (192 kHz), DTS Digital, Dolby Digital

■ Data rate (maximum): 10.2 Gbps

■ Pixel lock: 300 MHz (maximum)

Input DDC signal: 5 V

■ HDCP: Supported

■ Inter-device control (CEC): Not supported

■ Power consumption: 1.2 W

■ Environmental conditions (without condensation):

Operating temperature / 0 to 40 ° C

Storage temperature / -10 to 60 ° C

Operating humidity / 10 to 85%

Storage humidity / 5 to 90%

Producing countries ■: China

■ Warranty period: 6 months from date of purchase

■ Instruction Manual: Yes

■ Compatible equipment: Video equipment with HDMI output terminal as standard equipment, home game machine, personal computer

Regarding PS4 compliance released in 2016 ※,

Compact and lightweight models released on 2016/9/15 and PlayStation® 4 Pro released on November 10, 1016 are not supported because they are undergoing operation verification.

■ Supported output devices: TV, display, projector etc. with HDMI input terminal as standard

【please note】

* Depending on the specification of HDCP, the output may be re-recognized when the device is switched, so the video may be interrupted for several seconds.

* Be sure to turn off the power when connecting or disconnecting the HDMI device (plugging / unplugging the cable).

There is a risk of recognition failure, poor output setting, or damage to the equipment.

* Recommended cable length is within 5 m from HDMI equipment to switch to display.

* Depending on the HDMI device, it may be necessary to recognize the display at startup.

In that case, it is necessary to start the HDMI device after switching the port.

* It does not guarantee that it will operate normally with all equipment.

* Connection cable (HDMI cable) is not included.

Please prepare separately.

Features:

• Please enter model number Confirm this is compatible:

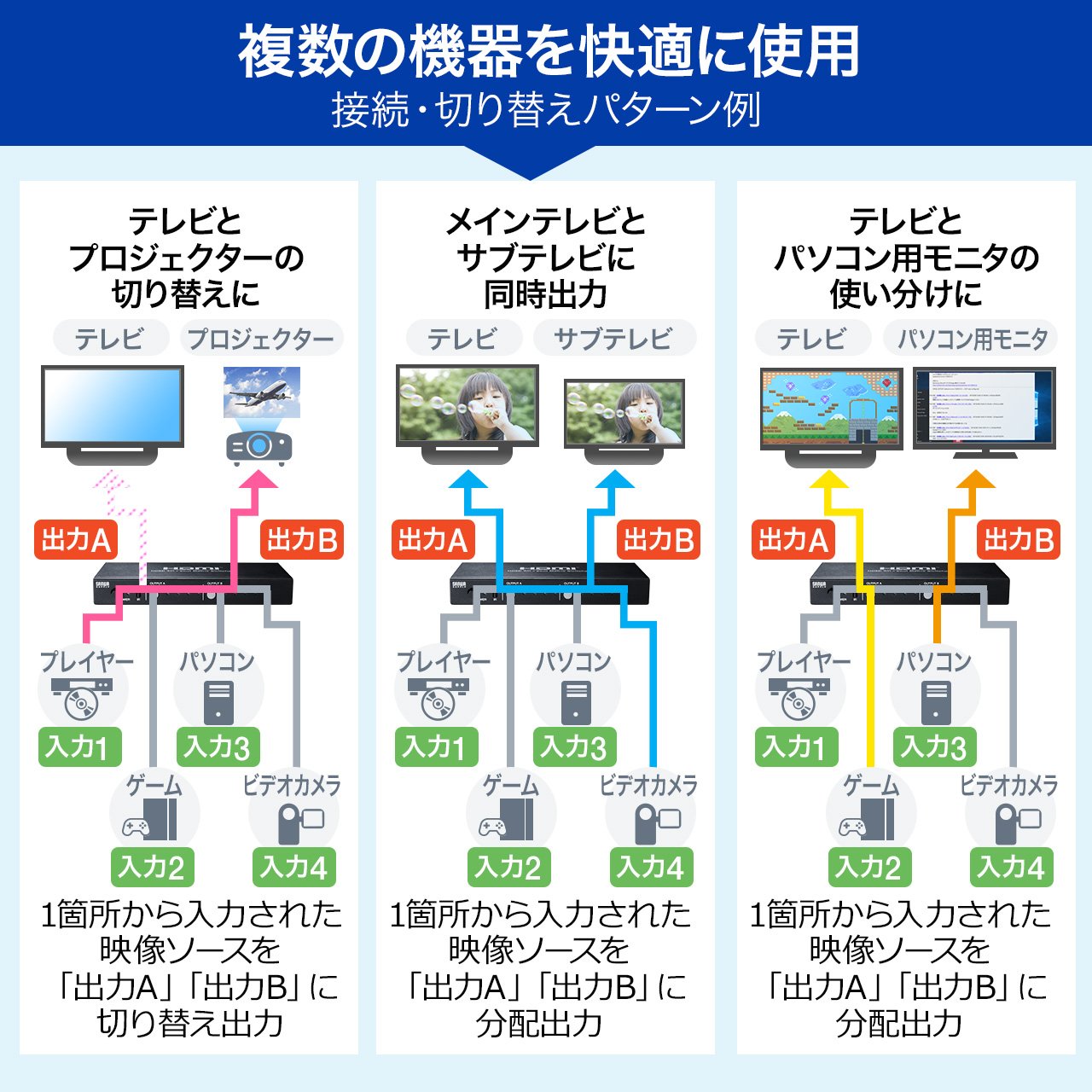

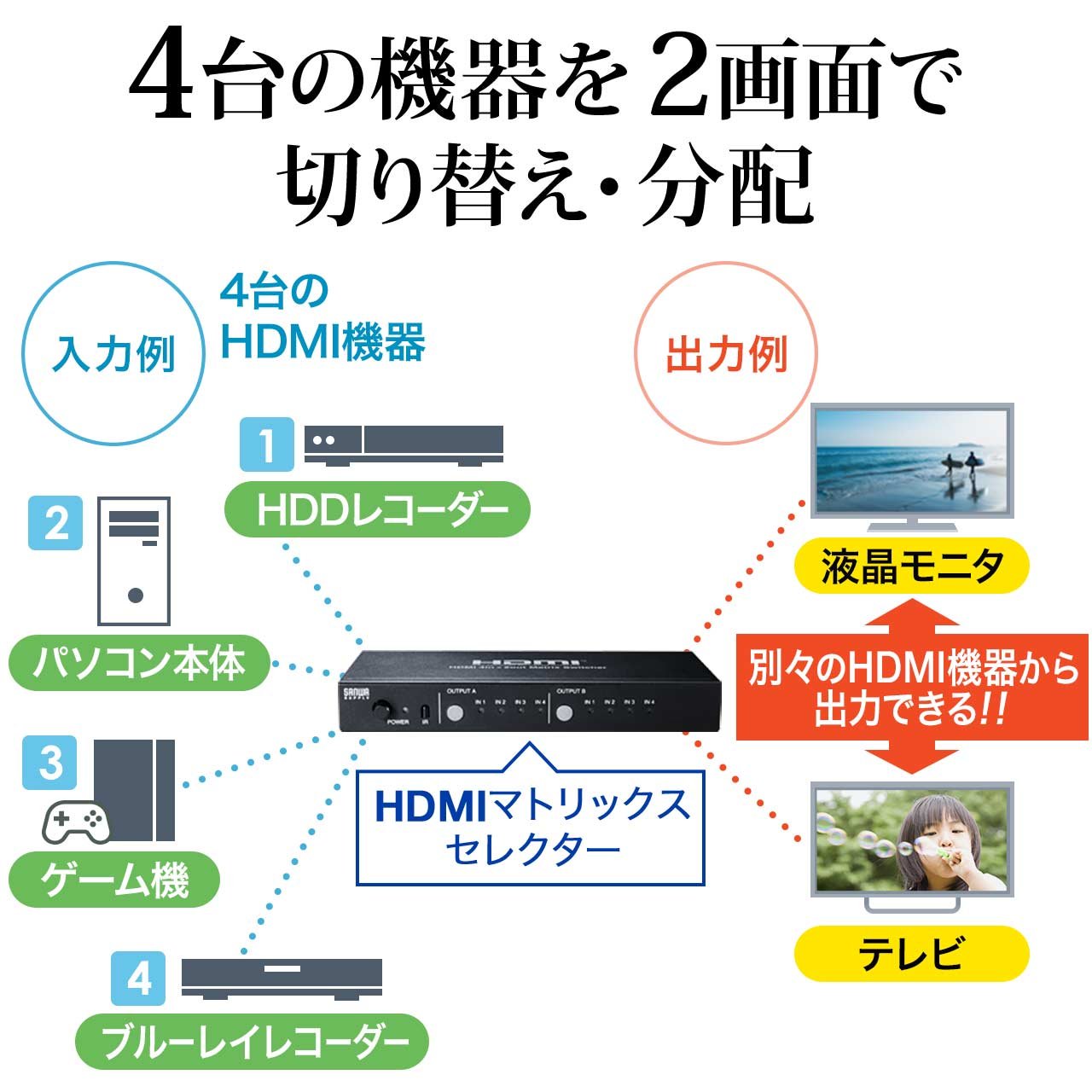

• It is an HDMI matrix selector that can freely select from 4 HDMI devices and output video and audio to two output devices.
• It is convenient when TV and projector etc are used differently.

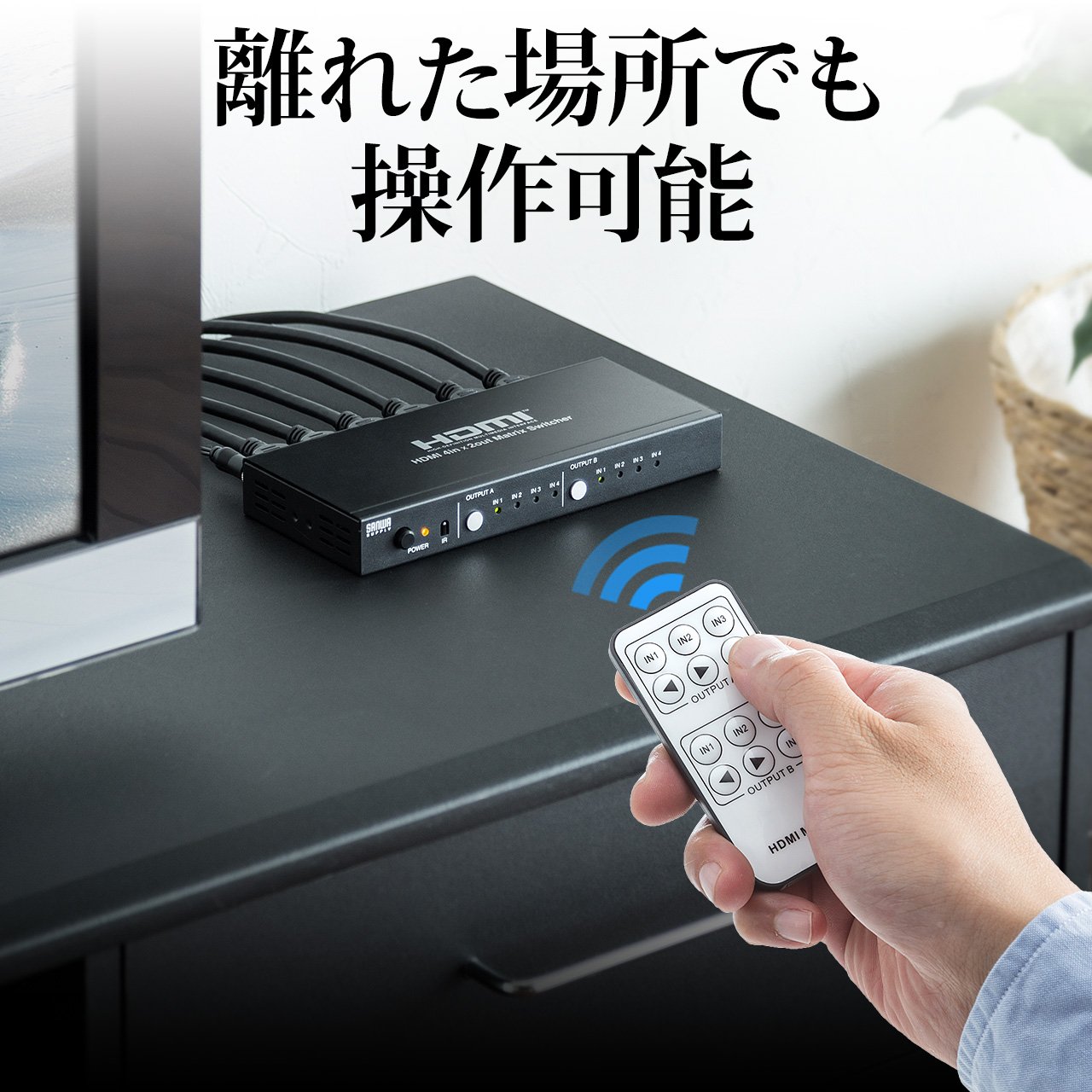

• It is with a remote control that can be switched even if it is far from the main unit.
• It supports Dolby True HD and DTS-HD.
• You can use it immediately by connecting an output device such as a TV with the playback device with the HDMI cable.

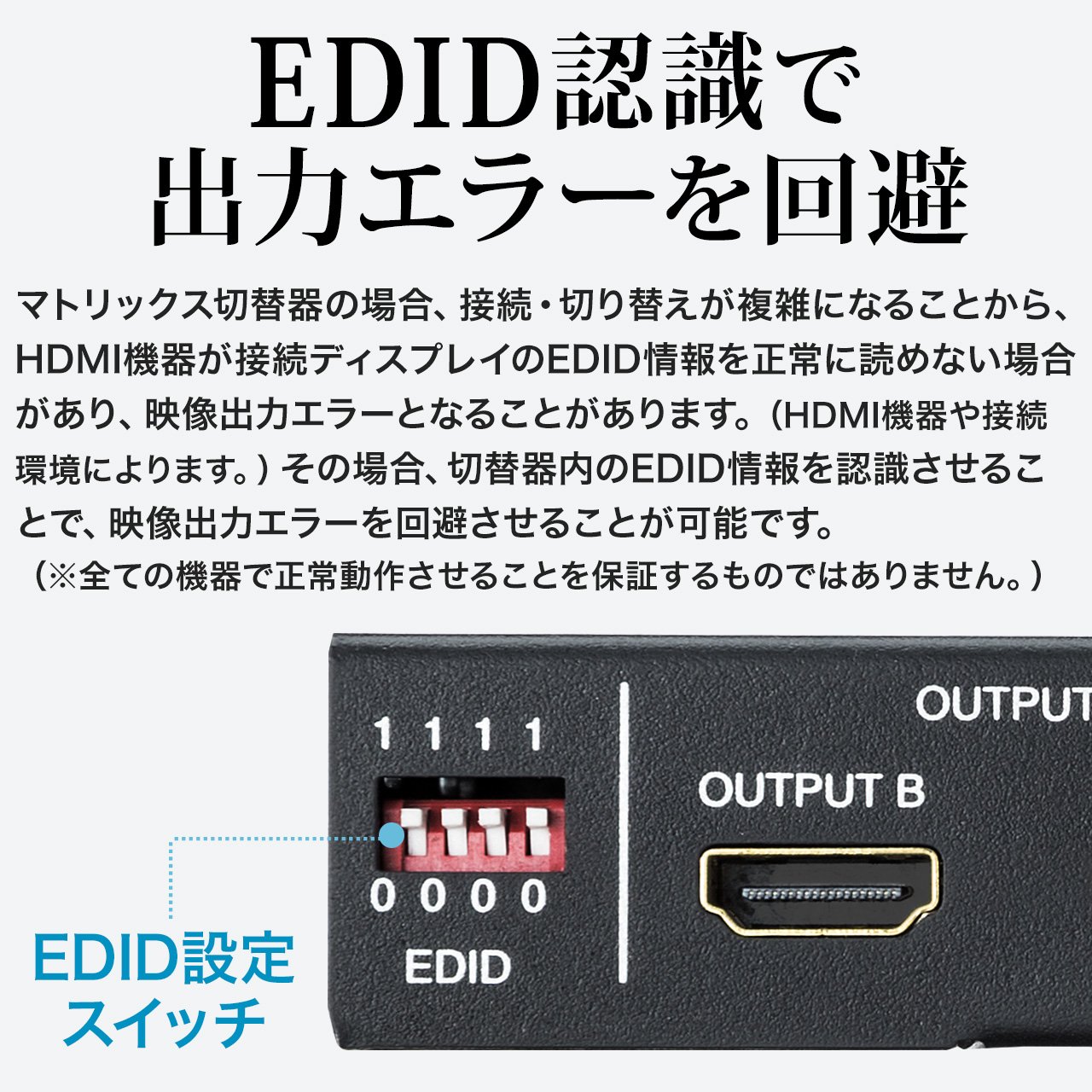

• It has an EDID recognition function that can avoid video output error.
• It supports 3D video and full high definition high definition video, and also transmits audio clearly.
• It is a compact size that does not get in the way while it is highly functional.

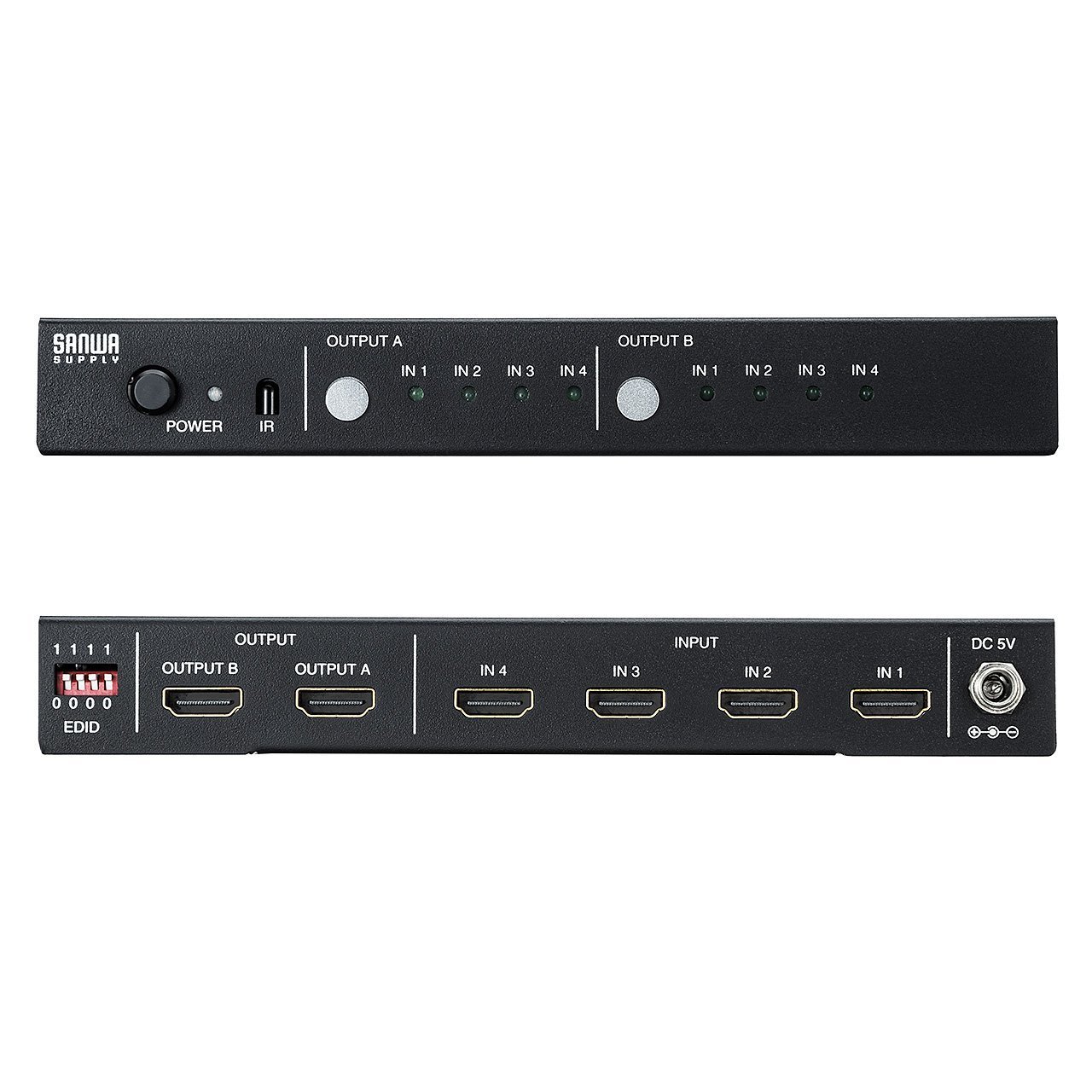

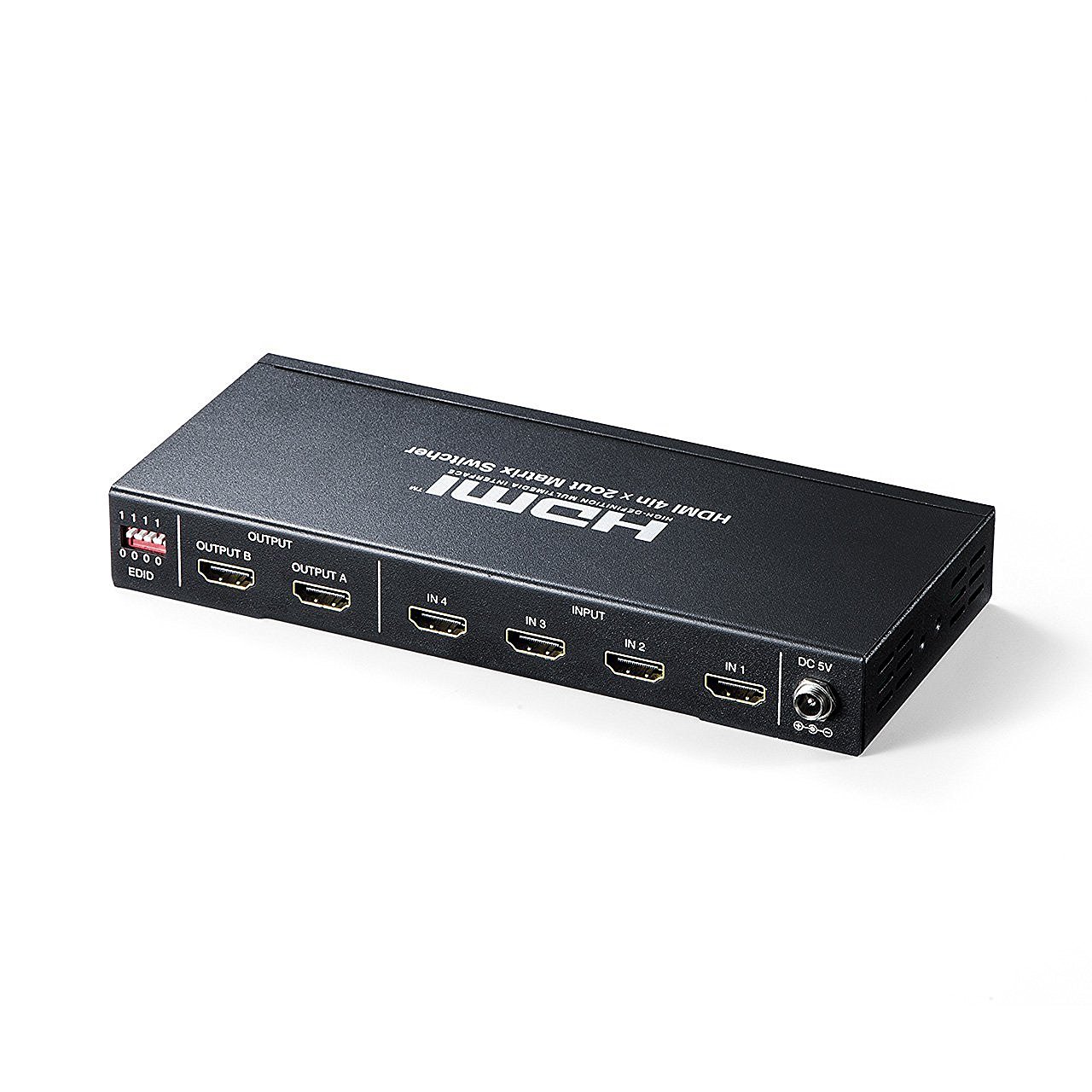

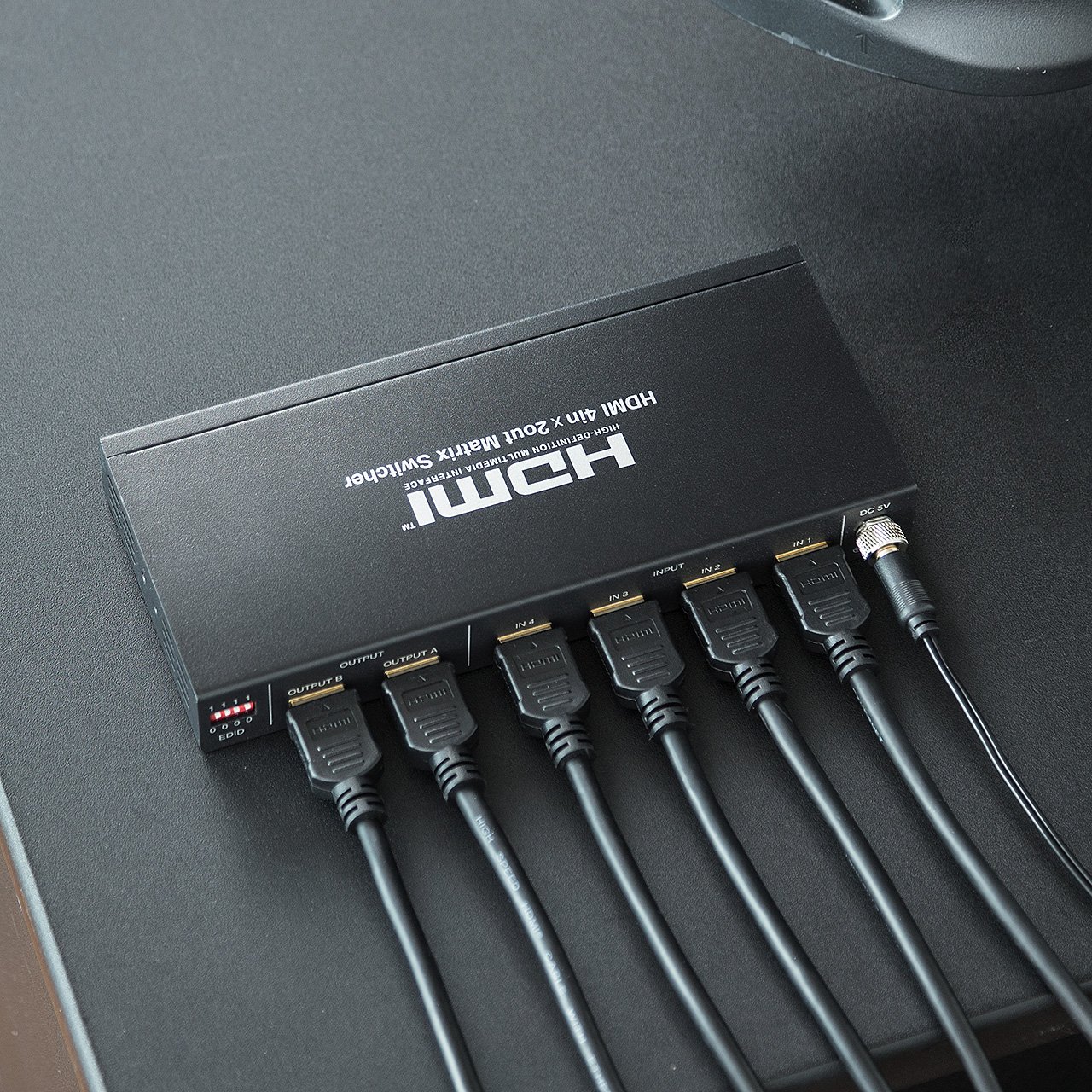

• Since all the terminals are on the back, you can wire it beautifully without leaving the cables in front.
• It is screw-fastened so that the power cable will not accidentally come off.
• All HDMI ports are plated with gold, they are strong against rust and prevent poor contact.

Product information:

Shipping Weight: 662 g

Package Dimensions: 5.33 x 18.54 x 24.89 cm
