Item Descriptions:
color:
200 mm
Left: State of production
Right: Dimensions
* Stroke length: about 50 mm / 80 mm / 100 mm / 150 mm / 200 mm can be selected.
· Input voltage: 12 VDC
· Speed: 20 mm / s
· Thrust force 500N
· Operating temperature: -15 ° C to + 60 ° C
【Wiring during propulsion】
① black line: plus / ② red line: minus
【Wiring on reverse】
① black line: minus / ② red line: plus
Left: 80 mm
* Dimensions of 80 mm (hole - hole): about 180 mm (shortest)
* Stretch ratio: about 80 mm
* Maximum length: about 260 mm
Right: 100 mm
Dimensions of 100 mm (hole - hole): about 205 mm (shortest)
Stretch ratio: about 100 mm
Longest length: about 305 mm
The image of the dimension is stuck on the place of each product image.
Left: 150 mm
* Dimensions of 150 mm (hole - hole): about 260 mm (shortest)
* Stretch ratio: about 150 mm
* Maximum length: approx 410 mm (longest)

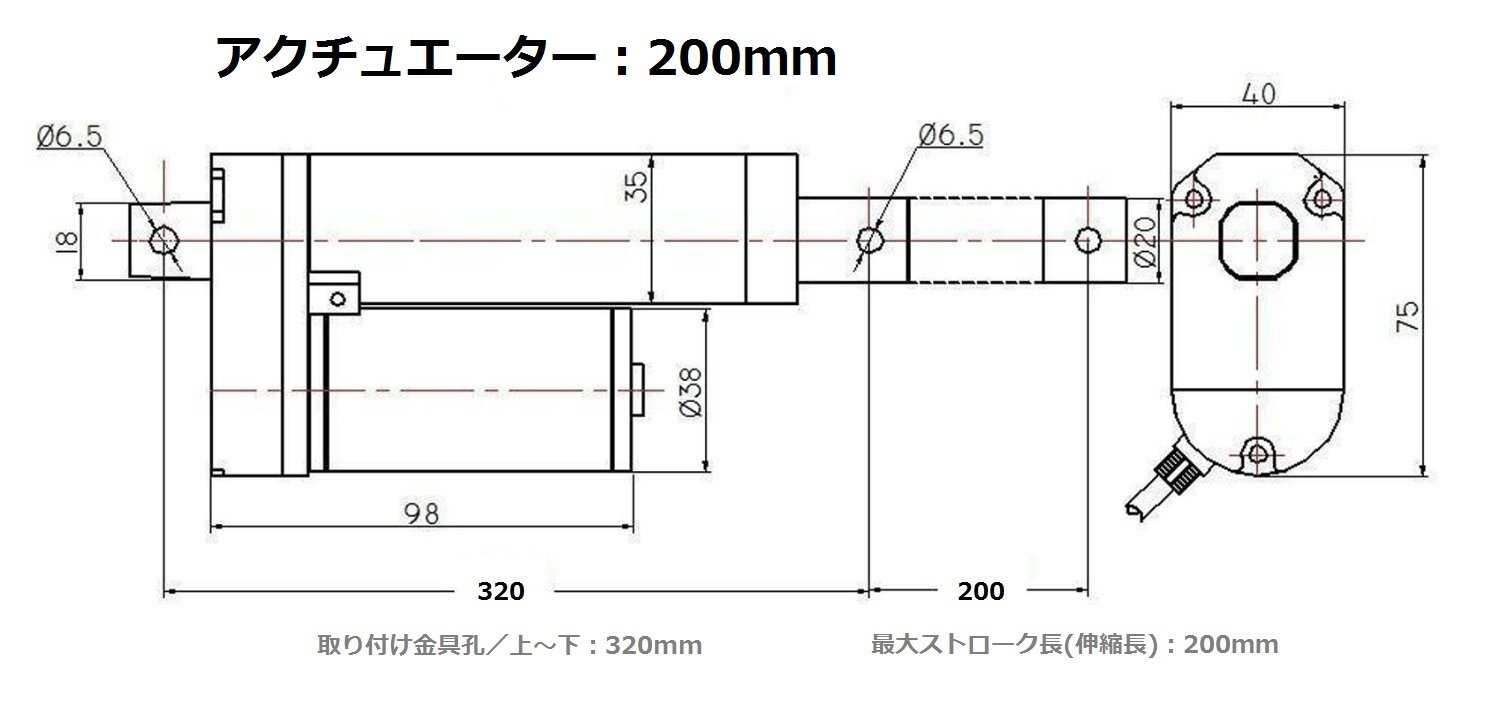

Right: 200 mm
* Dimensions of 200 mm (hole - hole): about 320 mm (shortest)
* Stretch ratio: about 200 mm
* Maximum length: approx. 520 mm (longest)
The image of the dimension is stuck on the place of each product image.
Left: Body reference

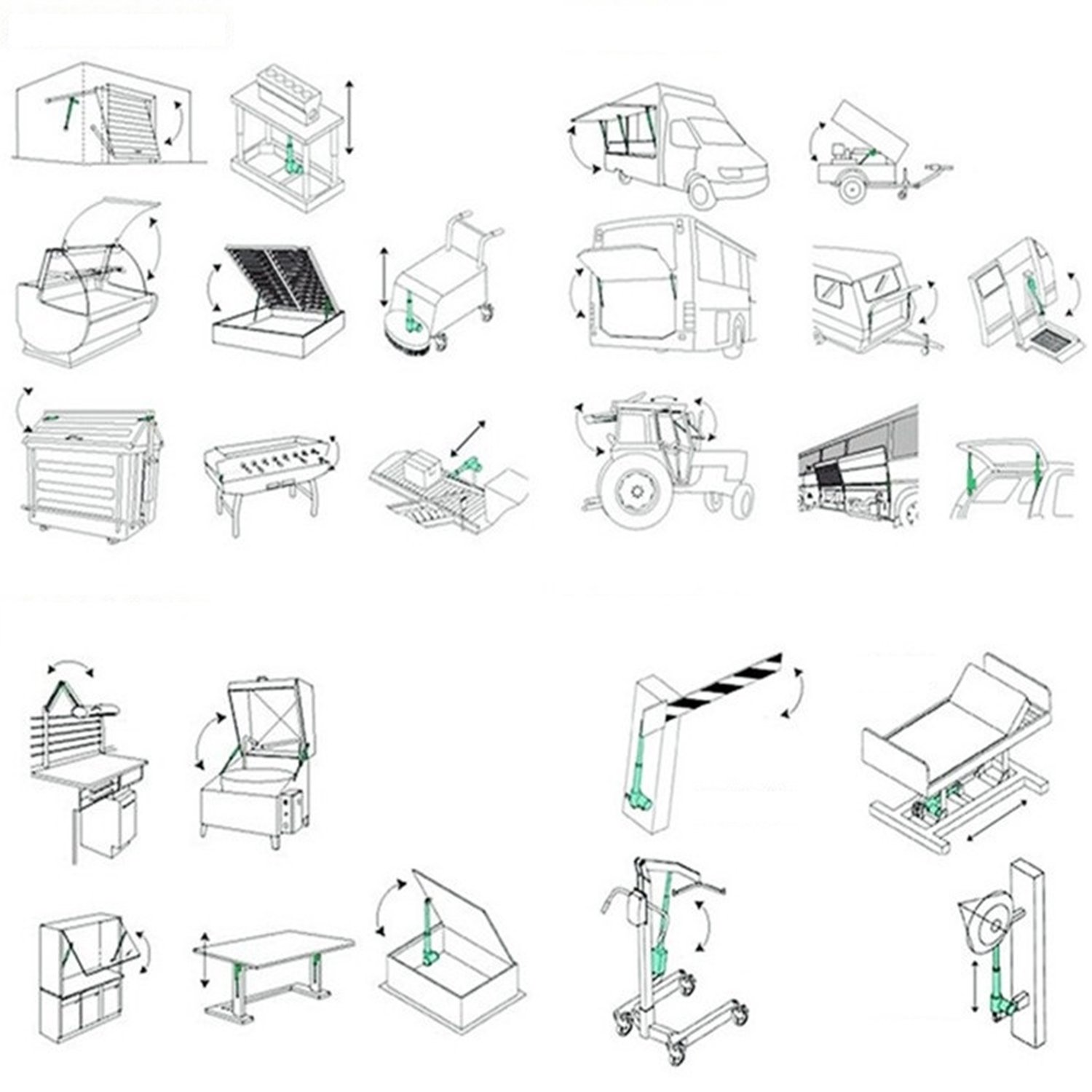

Right: 【Application example】
● Agricultural machinery ● Truck (attitude control) ● Lifter (lifting machine)
● Industrial equipment (welding equipment)
● Welfare equipment (bed / wheelchair / various nursing care equipment)
● Boat ● Car ● Bicycle ● Fan
● Home electric appliances ● Electric locks ● Welfare vehicles
● Lifter ● Gate ● Reclining
● Vehicle door opening / closing device ● Bathing care lift
● Engine fuel valve opening / closing device ● Examination table lifting device
● Step difference eliminator ● Smoke exhaust device etc.
■ It can be used for various purposes depending on other machine tools, industrial machines, and ingenuity.
In case
※ It is not specification to stop with load or resistance.
In case
※ Overseas items, there are small wounds.
There is no package or instruction manual ※.
Features:
- It is an electric actuator dedicated to 12 VDC.
- (* Since it is shipped from the Amazon FBA warehouse, it is recommended for customers who want to receive it as soon as possible.
- An internal small motor strokes the tip part of the tip.
- It can be used for various purposes depending on machine tools, industrial machines, and ingenuity.
- ● Input Voltage: DC 12V ● Maximum Stroke Length: Approximately 50mm / 80mm / 100mm / 150mm / 200mm Please choose from.
- ● Speed: 20mm / s ● Thrust force 500N ● Operating temperature: -15 ℃ ~ + 60 ℃ ● Instructions · Specifications · Box etc. are not available.
Product information:
Shipping Weight: 970 g
Package Dimensions: 5.00 x 9.40 x 33.50 cm
