Item Descriptions:

Switch 3 HDMI devices and output to TV

4K2K (maximum 4096 × 2160), corresponding to input and output of 60 Hz video.

If there is one 4K compatible HDMI input on the TV side, 4K images of all the devices connected to this product can be displayed as it is.

Moreover, it is possible to switch the video source of ultra high-definition technology "HDR (High Dynamic Range imaging)".

* When using HDR playback, please use HDR compatible output device and TV (display / projector).

* Operation confirmed in Blu-ray Disc player "Panasonic DMP-UB 90", home game machine "SONY PlayStation® 4 Pro".

※ Since this product does not have the repeater function, the image display quality depends on the total cable length of the HDMI cable of both the video output device side and the video display device side.

Be sure to use a high-grade Premium high-speed cable in case of resolution exceeding full HD.

HDCP 2.2 compatible

It supports digital content copyright protection technology HDCP 2.2 and HDCP 1.4.

Supports 4K resolution / 60 Hz (4: 4: 4) signal, also switches HDR video source

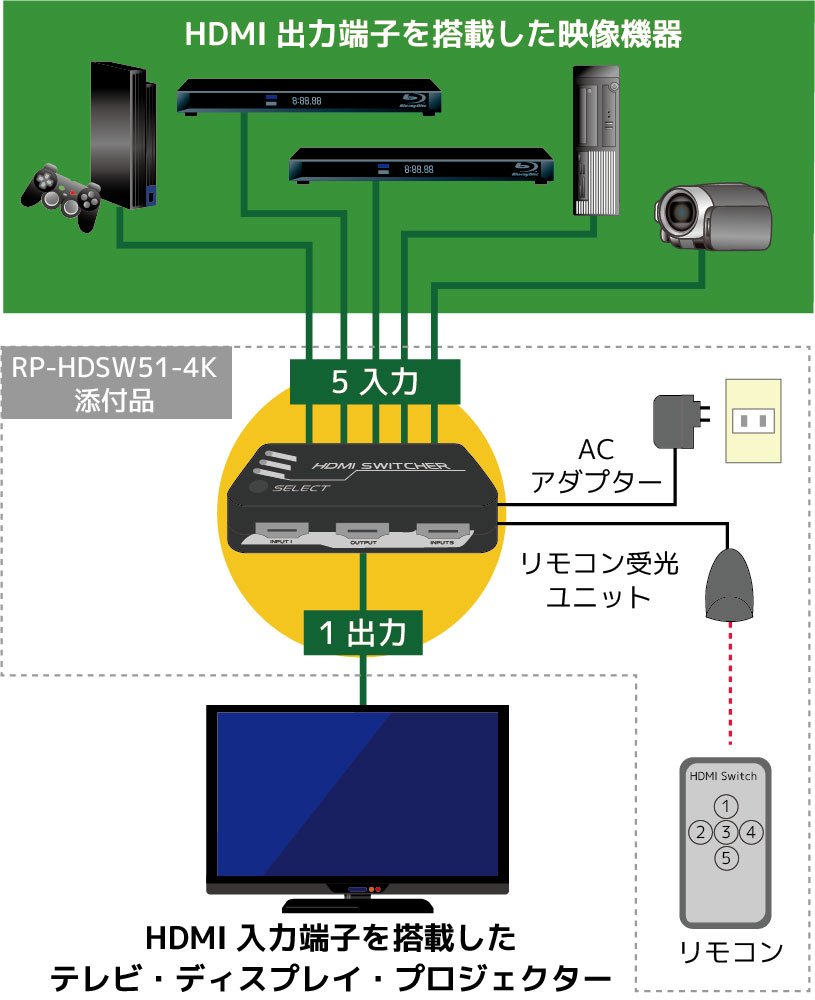

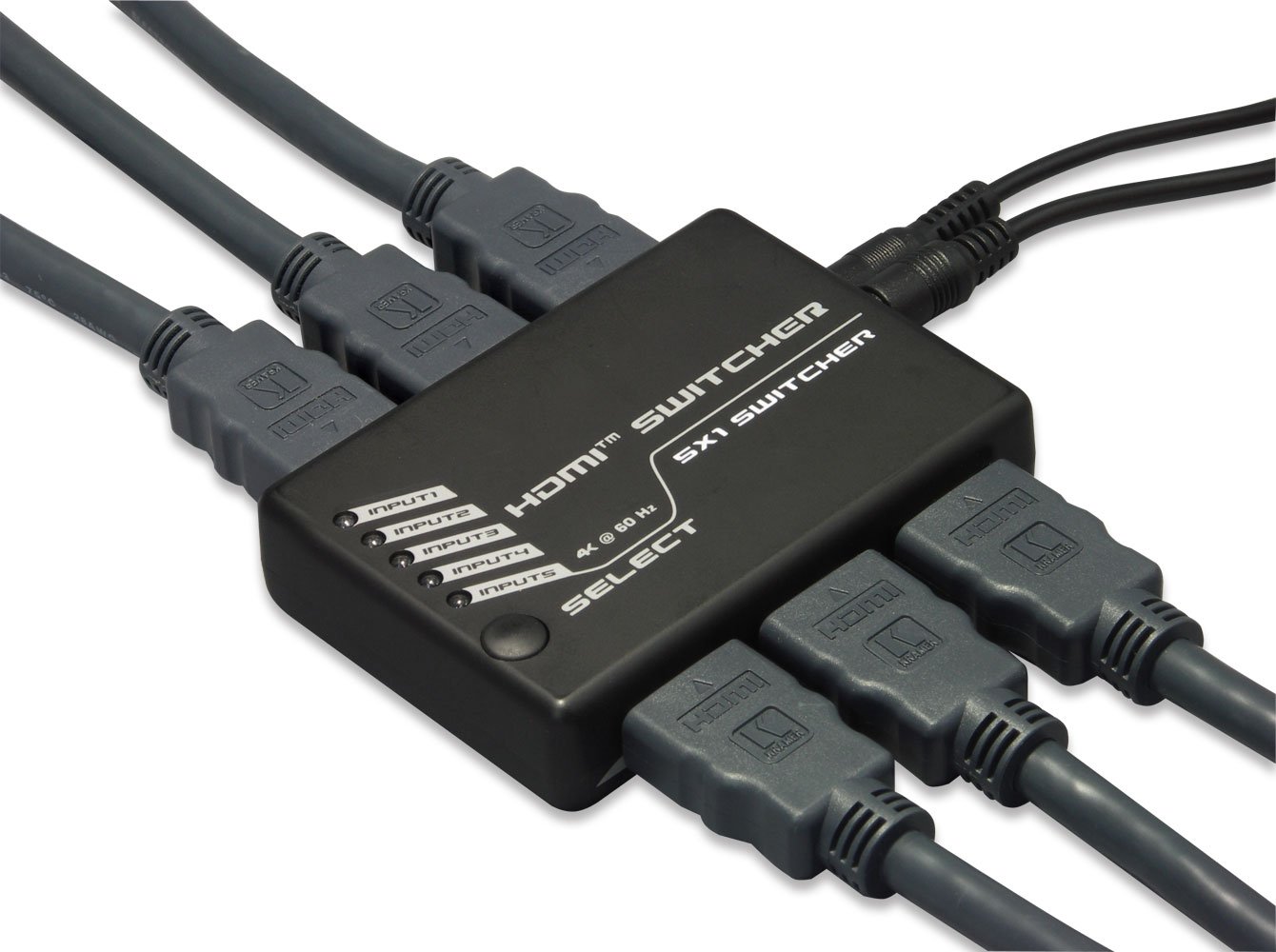

This product is an HDMI selector equipped with 5 inputs and 1 output.

Up to five HDMI output devices and one TV can be connected, and the image of the port selected by the user is output to the TV.

When the number of HDMI equipment such as recorder, game machine, personal computer and so on increases and the input terminal of the TV becomes insufficient, if you add this product, you can share one HDMI input terminal with multiple HDMI devices.

■■■■■ Specifications ■■■■■

[Corresponding display] TV equipped with HDMI input terminal, projector, display for personal computer

[Supported devices] Video equipment with HDMI output terminal, home game machine, personal computer

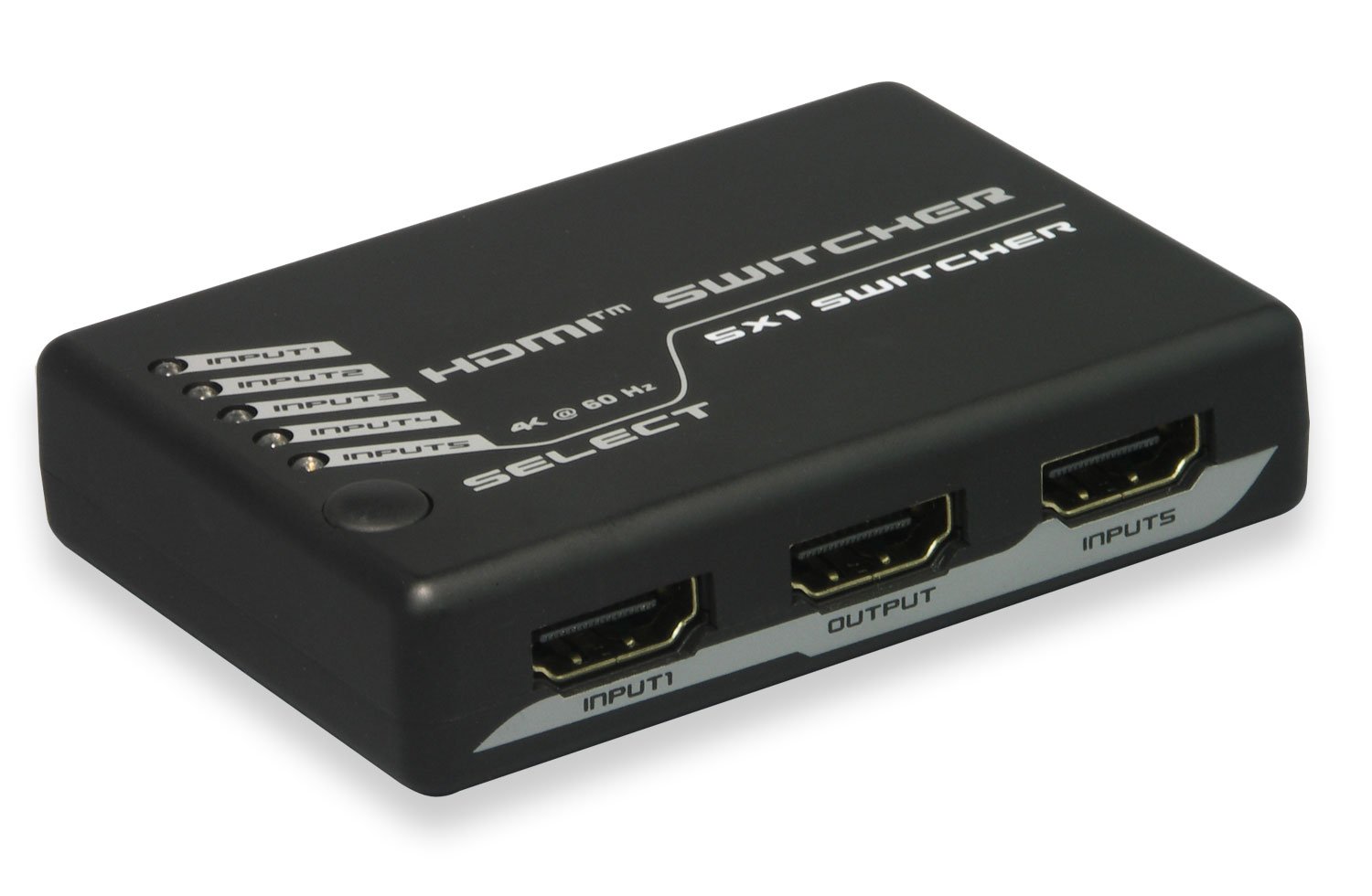

[Interface] Input: HDMI type A × 5, output: HDMI type A × 1

[Maximum output resolution] 4096 × 2160 (60 Hz / 4: 4: 4/24 bit)

[HDCP compliant] Compliant with HDCP 2.2 / 1.4

[Video amplifier band] 18 Gbps

[Pixel clock] 600 MHz

【Power supply voltage】 DC + 5V 1A (supplied from the attached AC adapter)

【Consumption current】 Max. 620 mA

Other

Selectable switching method (remote control · body button)

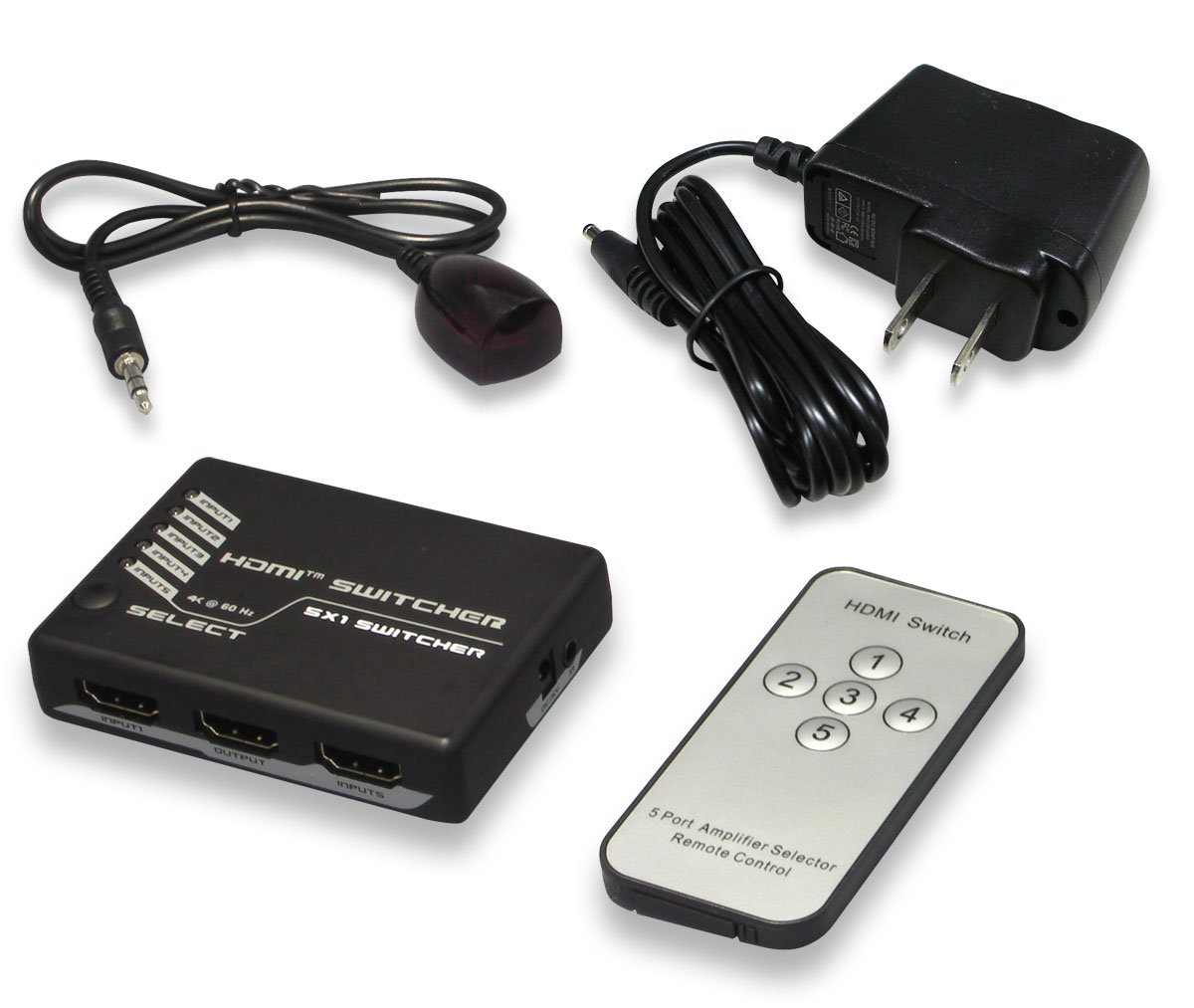

This product can switch the selection port from the place where it is separated by the attached infrared remote control other than the switching button on the top of the main unit.

When using the remote control, it is only necessary to install it in a place where only the light receiving unit attached is visible, and there is no need to worry about the arrangement of the main unit.

Automatic switching of port when device is turned on

When the power of the HDMI equipment turns on, the automatic switching function which the selected port automatically switches is adopted.

Stable operation by driving external power supply

An AC adapter is attached to this product.

Stable transmission can be performed even with high resolution, high frame rate data by supplying external power supply.

Features:

• Please enter model number Confirm this is compatible:
• Switch 5 HDMI devices and output to TV
• Supports 4K resolution / 60 Hz (4: 4: 4) signal, HDCP 2.2, HDR video source also switched
• You can choose from remote control · body buttons
• Adopt automatic switching method in which ports are switched when the equipment is powered on
• Stable operation even with high resolution data by driving external power supply

Product information:

Shipping Weight: 231 g

Package Dimensions: 4.80 x 14.50 x 19.41 cm
