Product Description

Description:
The pump is perfect for the family home thermal solar systems or any circulation pump application where conventionalpower is not available
Horizontal inlet and outlet with rotatable cap, easy installation. Max operating temperature up to 100°C with External circulating water flow
Super long working life.low consumption & low noise. Amphibious design.Submersible installation and entirely waterproof

DC 12V Hot/Cooling Water Circulation pump

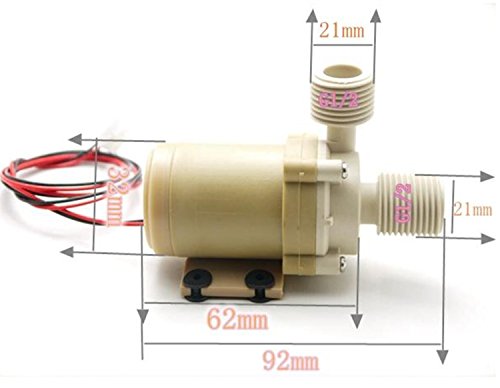

Inlet/Outlet: 1/2" male thead
Voltage: 12V DC
Maximum Rated Current: 500MA
Max Flow Rate: 6.5 L/Min
Max Water Head: 3 metre
Max system pressure: 10Bar
Max circulating water temperature: 100°C
Low noise: 30db at 1 metre

DC 24V Hot/Cooling Water Circulation pump
Inlet/Outlet: 1/2" male thead
Voltage: 24V DC
Maximum Rated Current: 800MA
Max Flow Rate: 10L/Min
Max Water Head: 5 metre
Max system pressure: 10Bar
Max circulating water temperature: 100°C
Low noise: 30db at 1 metre

Package Content：
1 x 12V or 24V Hot/Cooling Water Circulation pump

Feature

The pump is perfect for the family home thermal solar systems or any circulation pump application where conventionalpower is not available
Horizontal inlet and outlet with rotatable cap, easy installation
Max operating temperature up to 100°C with External circulating water flow
Super long working life.low consumption & low noise
Amphibious design.Submersible installation and entirely waterproof
Brand : ZJchao
MPN(PartNumber) : zjchao788
EAN : 0520041529099
