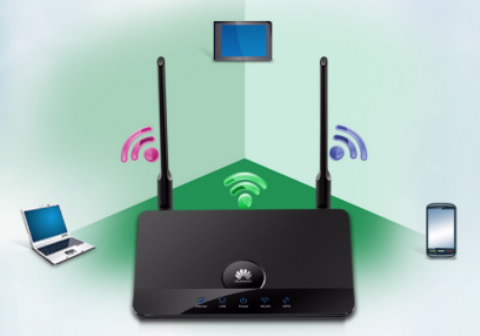

• Intelligent antenna system.

    The WS330 chooses two of its three antennas (two external 5 dBi and one internal 3 dBi antennas) based on the location of the devices to connect. This helps reduce dead spots for ubiquitous Internet access.

  • Bandwidth Control.

    The WS330 supports bandwidth control and allocates bandwidth to different computers in a home based on IP addresses， MAC addresses， physical ports and applications in the LAN. Family members can access the Internet， play games， and watch videos without interfering with each other.

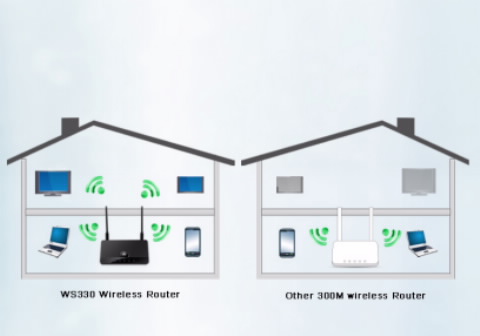

  • Same-layer and cross-layer all covered

    WS330 adopts the smart antenna of 2o3， it can select the best antenna combination according to the place of the access device， achieving Same-layer and cross-layer all covered.

    •

    Width

    177mm

    Depth

    105mm

    Height

    30mm

    Weight

    < 200 g


    One 10/100/1000Mbps Ethernet RJ-45 uplink port

    Four 10/100/1000Mbps Ethernet RJ-45 downlink ports

    Wi-Fi 802.11 b/g/n


    802.11b/g/n (2.4 GHz)

    ·Two external 5 dBi and one internal 3 dBi antennas

    ·Wi-Fi access rates of up to 300 Mbps

    ·Wi-Fi switch

    ·WPS

    ·WDS

    ·Wi-Fi Multimedia (WMM)

    ·64/128-bit wired equivalent privacy (WEP) encryption

    ·WPA-PSK/WPA2-PSK and WPA/WPA2

    ·Open System and Shared key authentication modes

    ·Hiding the service set identifier (SSID)


    1 USB 3.0


    Reset

    WPS/WLAN

    On/Off


    Power

    Internet

    WLAN

    WPS

    LAN1-LAN4


    Support SPI， ACL， DMZ

    Built-in firewall

    IP and MAC address binding against ARP attacks

    IP address filtering

    MAC address filtering


    Route function

    IP bandwidth control

    WDS wireless birdging

    Parent control


    Huawei RuMate APP

    Traffic statistics

    System security log

    Local Web management control


    12V DC，0.5A


    <6W


    Operating Temperature：0°C to 40°C

    Realtice humidity：5% to 95% ，non-condensing
