Product Description
Description:

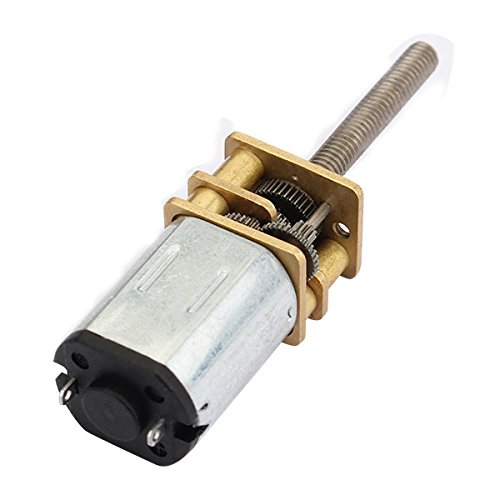

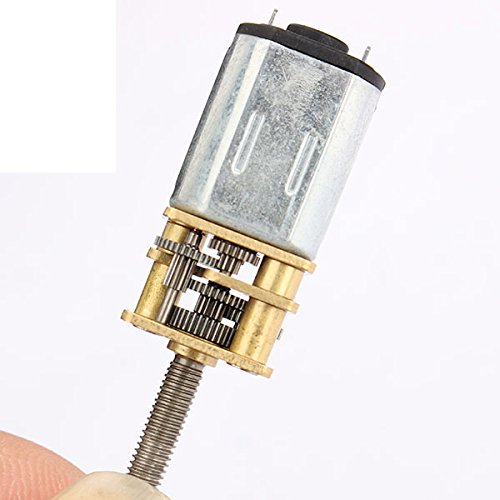

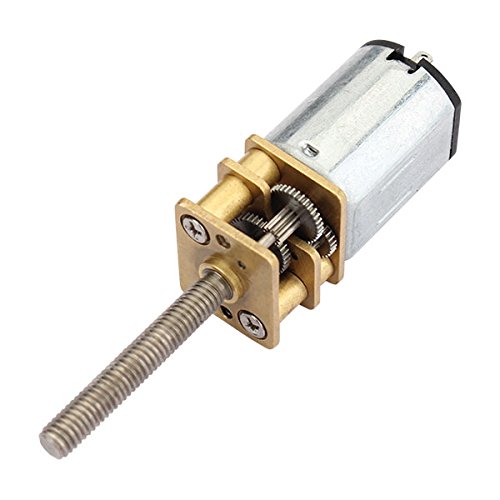

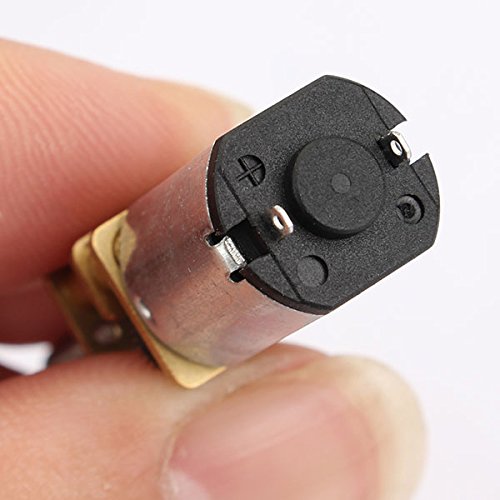

N20 DC 6V 55RPM Gear Motor M3 20mm Threaded Shaft Reduction Gear Motor

Specification:
Voltage: DC6.0V No-load speed: 55RPM Shaft diameter: 3mm Axial length: 20mm

1. Standard Operating Conditions
Item Specification Rated Voltage DC 6.0V Gear Ratio 1/298 Rotation CW Motor Position All position in horizontal Temperature 0 - 30 Degree Celsius Humidity 30% - 95%
2. Performance of Motor
Item Specification No-load Speed 16000 /- 10%rpm No-load Current 35mA (Max) Stall Current 600mA (Max) Stall Torque 10g.cm
3. Performance of Gear Motor
Item Specification Outer Speed 55 /- 10%rpm No-load Current 50mA (Max) Stall Current 600mA (Max) Stall Torque 3.0kg.cm Rated Torque 750g.cm Rated Current 150mA (Max) Rated Speed 40 /- 10%rpm Noise 50dB
4. Dimension
Item Specification The Outside Shafft Length 20mm Shaft End Play 0.05 - 0.50mm Screw Size M1.6 x 0.35 Diameter of Shaft M3 threaded shaft Outline Mounting Dimension Refer to the Outline Drawing
5. Product Drawing




6. Curve Drawing




Package Included:
1 x Motor
