RGB LED Strip Connector Kit 4 Pin With Extension Wire UL Listed 9.8 Feet/3 Meter 22 Gauge 4 Conductor, DIY Both Strip to Power Lead and Strip to Strip Jumper, Non-waterproof Use. 5 Connector Packed









For 10mm-RGB WATERPROOF 10mm


For 8 mm-3528 WATERPROOF 8mm


For 10mm-5050 NON-WATERPROOF 10mm


For 10mm-5050 WATERPROOF 10mm


For 10mm-3528 NON-WATERPROOF 10mm


For 10mm-3528 NON-WATERPROOF 8mm


For 10mm-RGB NON-WATERPROOF 10mm

Product Description

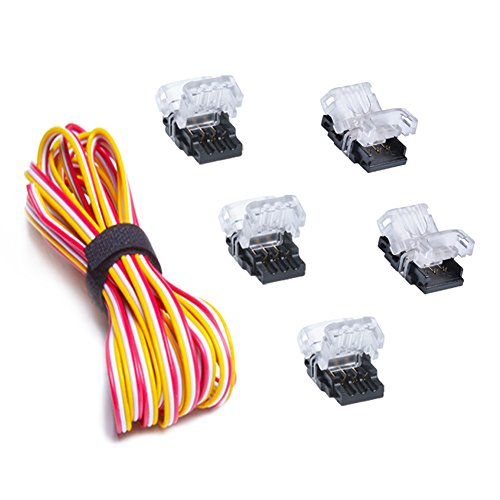

1.Package Include

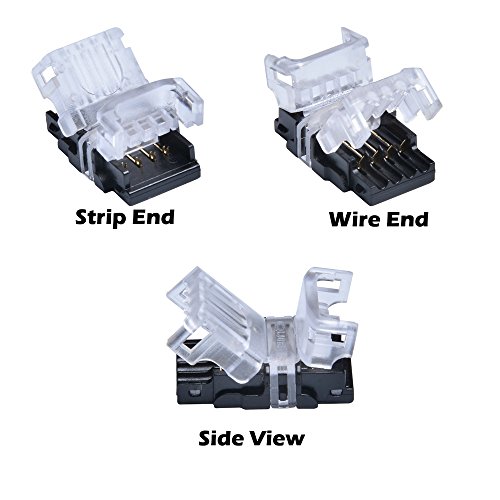

5 PCS RGB LED Strip Connector Terminal 10mm 4 Pin Non-waterproof
9.84 Feet / 3 Meter 22 Gauge 4 Conductor Extension Wire UL Listed

2.Special Benefit you can get with it.

Connect non-waterproof rgb strip light easily. Save your time.

You will be no more limited by distance between strip light to Controller or dimmer. This connector allow you to cut any length wire according to project's actual requirement, then attach wire to connector easily without stripping insulation.

With 2 connector and a wire, you are able to diy a strip-to-strip-jumper wire in order to extend strip light with any angle or direction. The length of this jumper wire can be decided by you fully.

No more worry strip light moving out of connector, the connector's teeth will pierce and grip the PCB tightly.

3.Tools needed to use

A pliers only

4.How to use (2 mode)

4-1 How to make a Strip-To-Strip-Bridge (jumper) connector ?

  1. Cut a wire for the length you want
  2. Insert wire into connector's wire end
  3. Clamp cap down
  4. repeat step 1-3 to add another connector to the wire

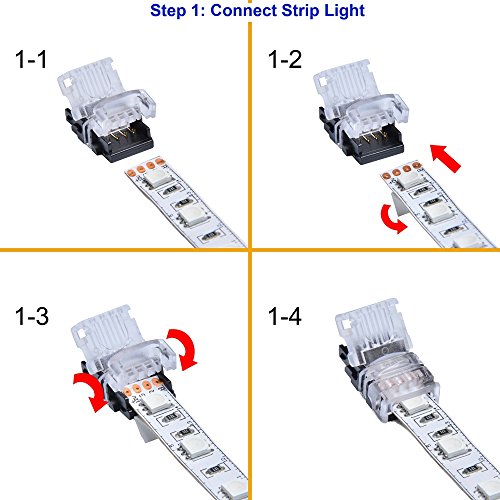

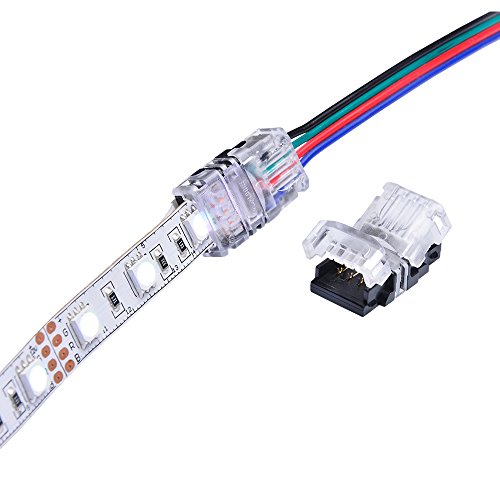

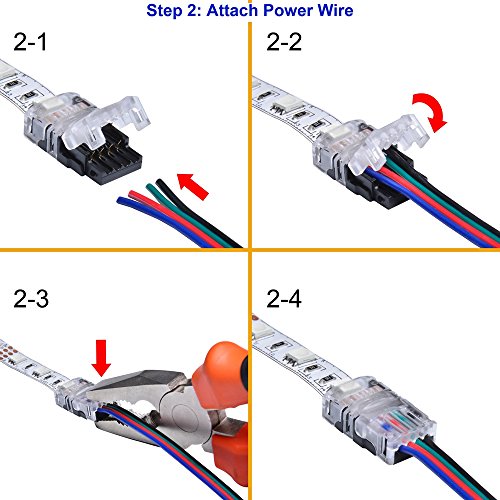

4-2 How to make a Strip-To-Controller connector

  1. Cut a wire for the length you want
  2. Insert wire into connector's wire end
  3. Clamp cap down
5.Technical Data

Working Voltage: <=24V
Max Current of Pin: 5A
Pin Quantity: 4 pin
Workable Strip Light Width: 10mm
Workable PCB Thickness:0.2~0.35 mm
Working Ambient TEMP.: -20~50℃
Heat Resistance:105℃


Feature

Applicable for IP20 SMD5050 RGB Non-waterproof strip light or WS2813 pixel strip light with 30~96 SMD per meter
Include RGB Strip Light Connector terminal and Wire, you can DIY board-to-board-bridge (jumper) or strip-to-controller connector wire that is up to 3 meter / 9.8 Feet long,no more worry about distance between strip light to controller or dimmer
Its clear cap will not mask light of first LED and will not drop dark area to your lighting target area. Really make your lighting effect uniform

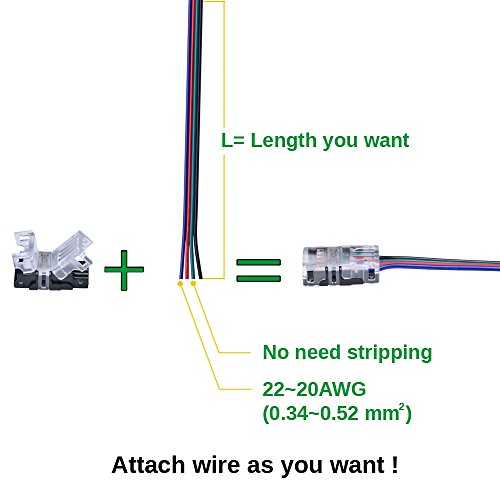

Attach the extension wire directly without stripping insulation with help of pin to pierce insulation and contact cable conductor inside
Innovative fixing cap and pin for gripping tape light and wire tightly,never worry strip light or extension cable moving out of connector, well support thick FPCB even with 3M foam VHB red adhesive tape
Brand : nicelux
Item model num : NLCSEN10XB4W3
MPN(PartNumber) : QJ-SE-N10XB-4
EAN : 0710619657730
Product Dimensions(LxWxH) : 20x12x3cm ; 68 g
Package Dimensions(LxWxH) : 13x7x3cm ; 68 g
