Product Description

The Intel® Edison is an ultra small computing platform that will change the way you look at embedded electronics. Each Edison is packed with a huge amount of tech goodies into a tiny package while still providing the same robust strength of your go-to single board computer. Powered by the Intel® AtomTM SoC dual-core CPU and including an integrated WiFi, Bluetooth LE, and a 70-pin connector to attach a veritable slew of shield-like "Blocks" which can be stacked on top of each other. It's no wonder how this little guy is lowering the barrier of entry on the world of electronics! The 9 Degrees of Freedom Block for the Intel® Edison uses the LSM9DS0 9DOF IMU for full-range motion sensing. This chip combines a 3-axis accelerometer, a 3-axis gyroscope, and a 3-axis magnetometer. By default, the IMU is connected to the Edison through the I2C bus but it can be configured to use the SPI bus. Each sensor in the LSM9DS0 supports a wide range of, well, ranges: the accelerometer's scale can be set to ± 2, 4, 6, 8, or 16 g, the gyroscope supports ± 245, 500, and 2000 °/s, and the magnetometer has full-scale ranges of ± 2, 4, 8, or 12 gauss. Additionally, the LSM9DS0 includes an I2C serial bus interface supporting standard and fast mode (100 kHz and 400 kHz) and an SPI serial standard interface.

Feature

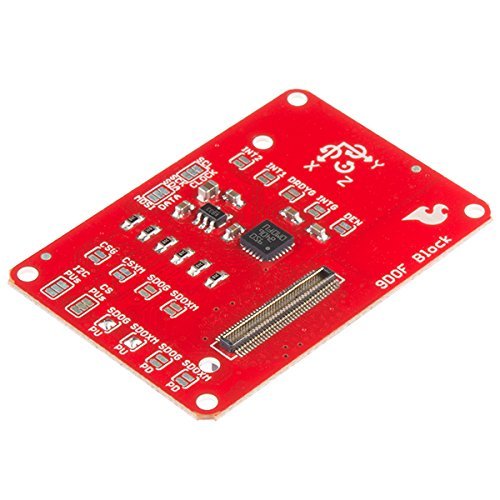

9 Degrees of Freedom Block for Intel Edison
LSM9DS0 9DOF IMU
Connects to Edison through i2c bus, but can be configured to use SPI
Blocks can be stacked on top of each other
Brand : SparkFun
Item model num : LYSB00SQPYZMU-ELECTRNCS
MPN(PartNumber) : DEV-13033
EAN : 4770240319229
Product Dimensions(LxWxH) : 6x3x1cm ; 9 g
Package Dimensions(LxWxH) : 5x4x1cm ; 9 g
