Item Descriptions:

■ Upstream USB - C female connector

- USB - C Power input port x 1 (60 W); - RJ 45 connector x 1 (3 W 1)

; · Como Audio Jack (IN / OUT)

■ USB-C Input · · USB Type-C female connector · · · Upstream PD powered, supports up to 60W · · Supports VESA USB Type-C · · DisplayPort Alt mode

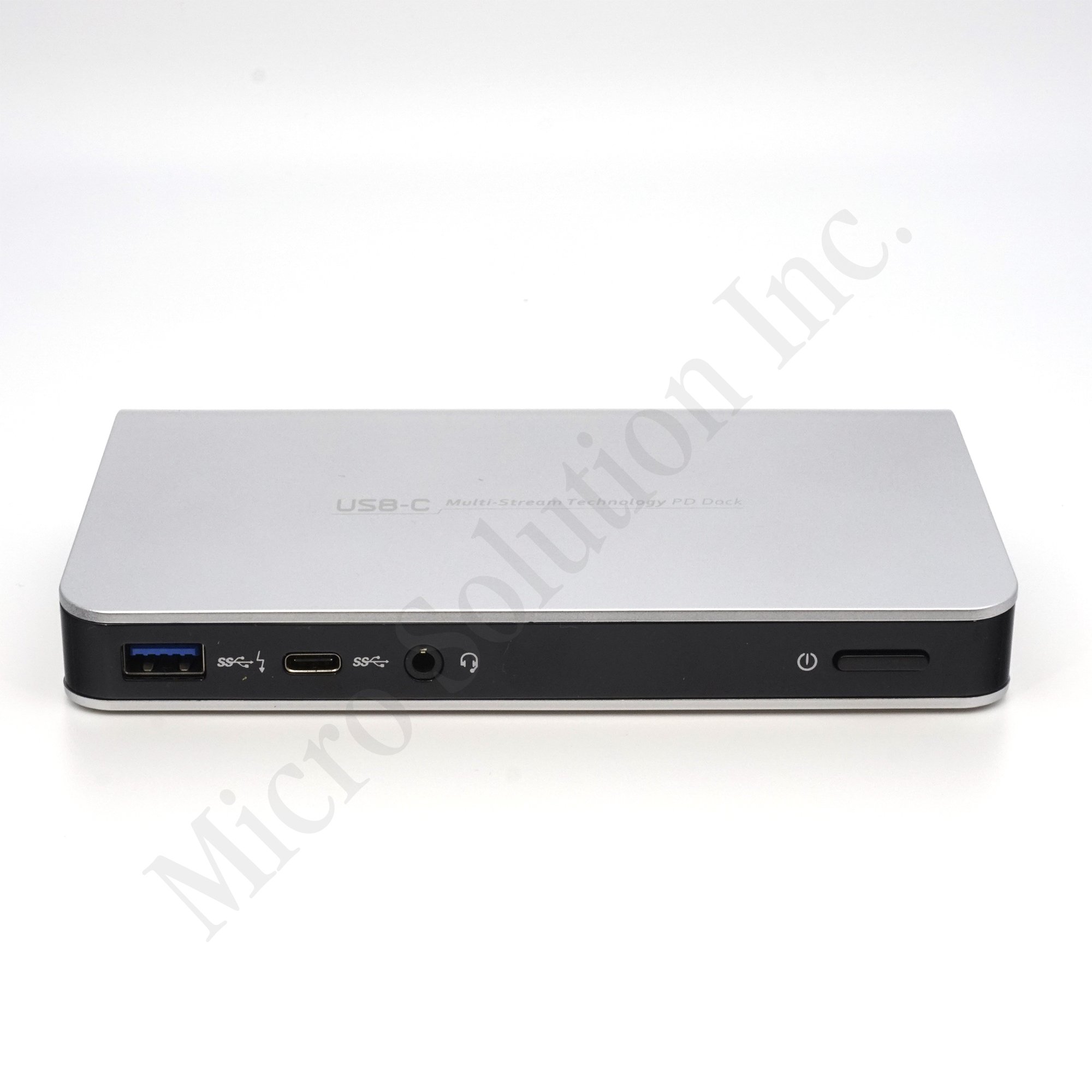

■ Downstream Output · · USB 3.0 Type - A female x 3 · · (One port supports BC 1.2 & CDP) · USB 3.0 Type - C female x 1

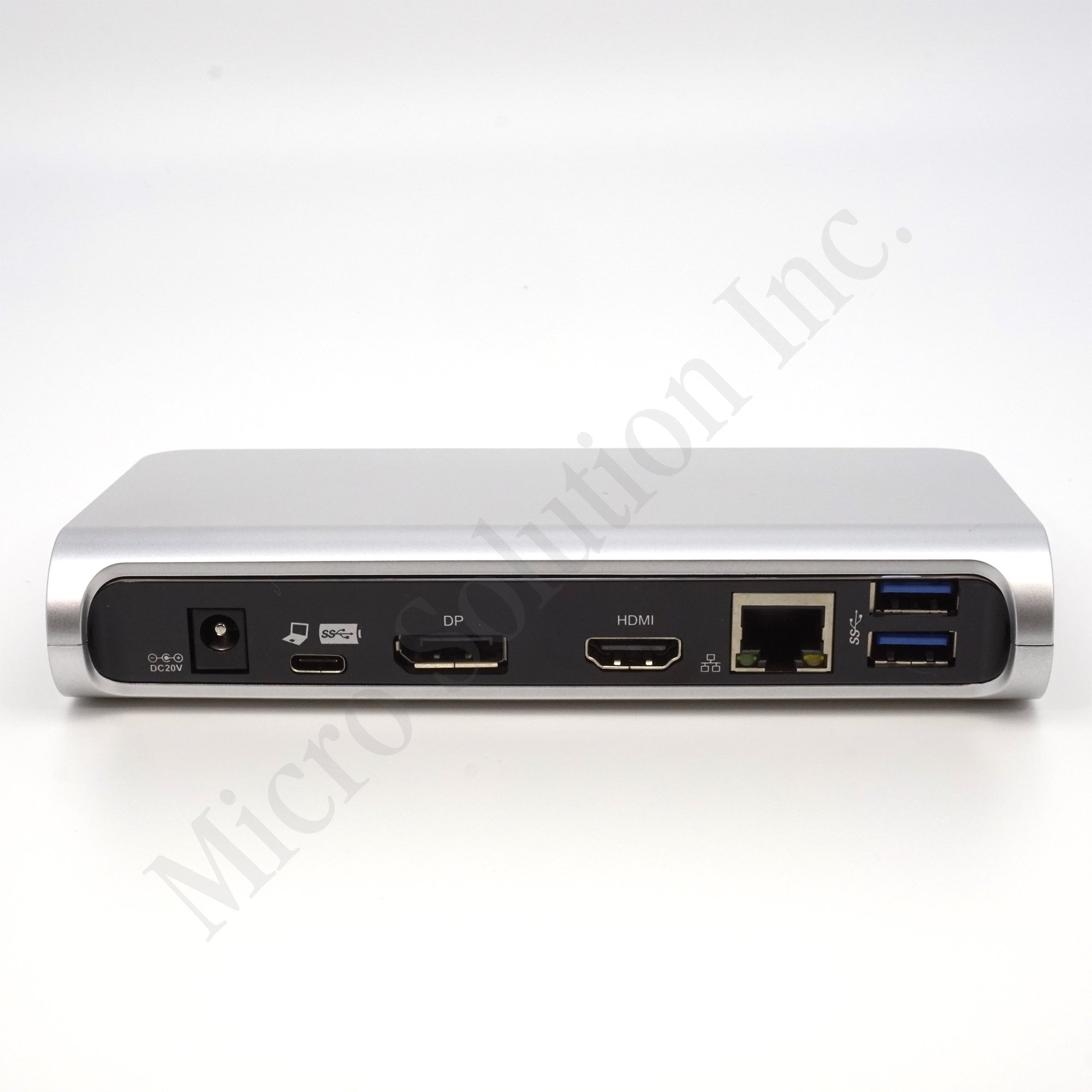

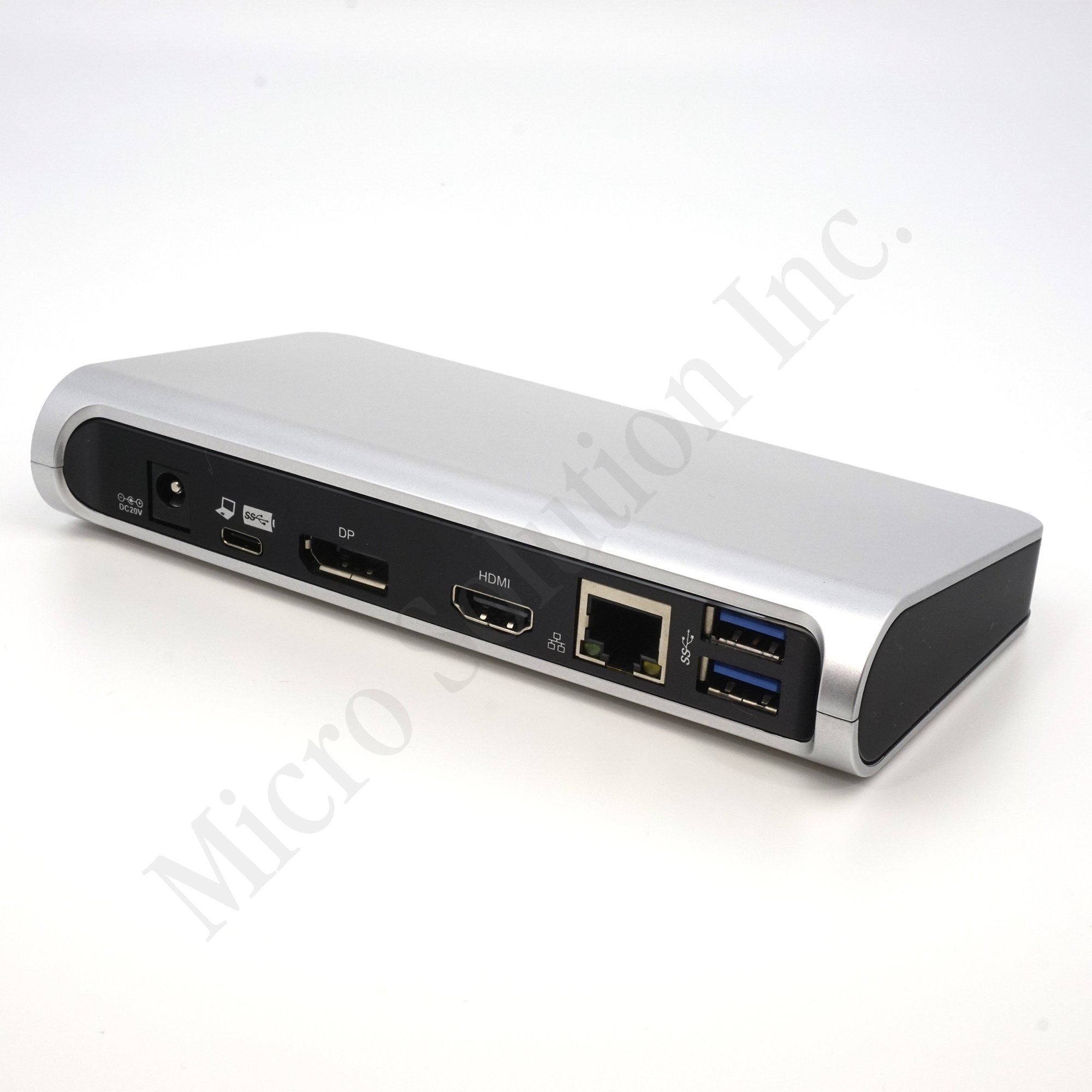

■ Video output · · · Single display, either one video output · · DP output: Supports resolution up to 3840 x 2160 @ 30Hz · · HDMI output: Supports resolution up to 3840 x 2160 @ 30Hz · · Dual display · Supports resolution up to to

1920 x 1200 @ 60 Hz

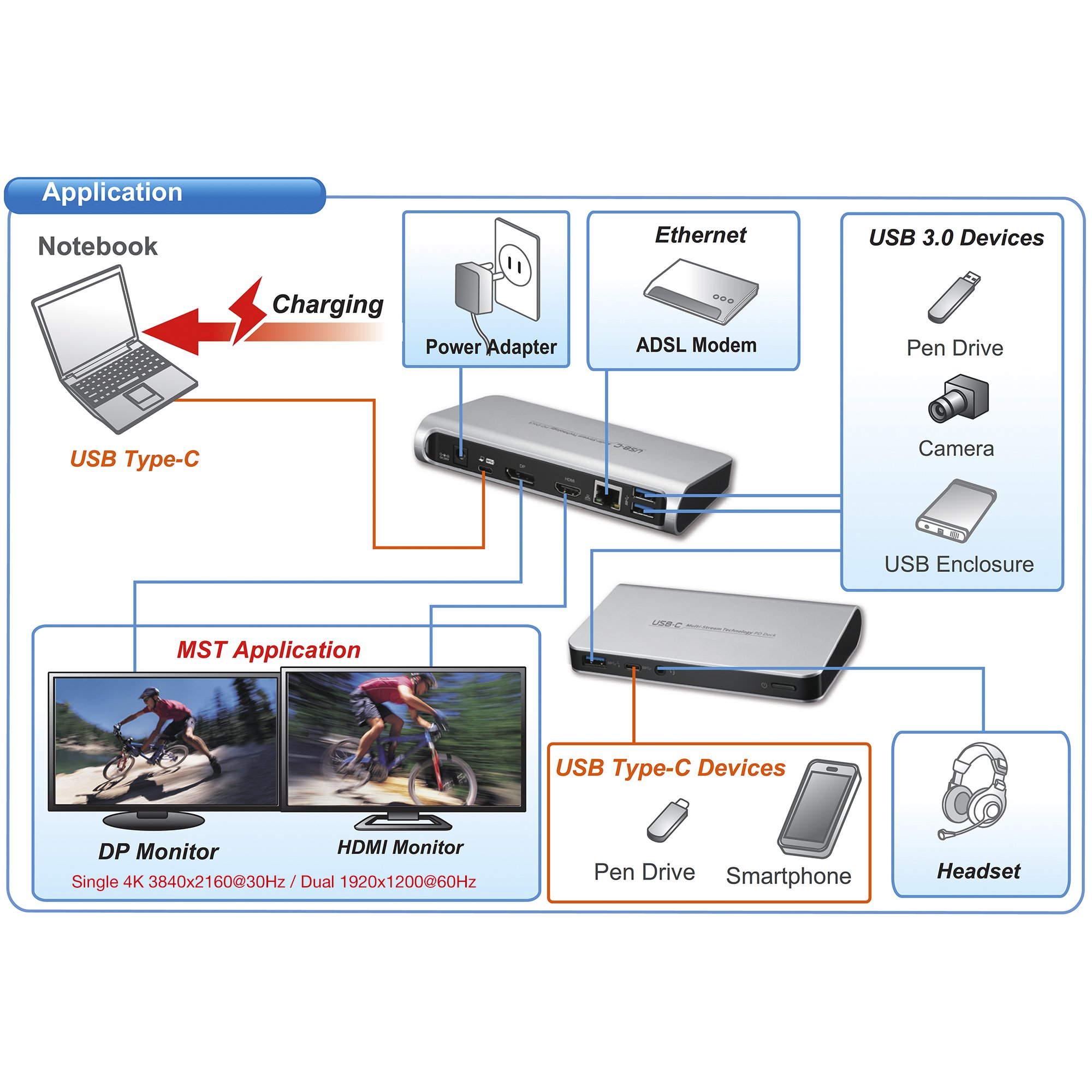

■ Supports audio 2.1 channel ■ Supports Gigabit Ethernet USB-C PD DOCK connects more PC peripheral equipment, Ethernet, Speaker, Mic, with one USB-C cable.

It adopts PD charging technology and charges connected PC by upstream charging function via USB - C interface.

You can also use DP or HDMI for display connection, mirroring the primary screen and expanding the contents.

Enhanced extensions and this video dock are accessories that are versatile for use in homes and office space.

USB Type-C DOCK is highly compatible and can be used in various scenes.

■ Usage Notes · Disassembled and remodeled objects will be out of the scope of any warranty even within the warranty period.

· In case of submersion or getting wet, please discontinue use, the internal circuit is short-circuited and dangerous.

On the phenomenon which is regarded as defective

I am suffering from instability of the USB-C standard.

It is almost always the case that cancellation is done by turning on / off the power supply while the product is in operation

The higher the function is, the more the dependence will occur on the PC itself.

Do you say that compatibility is that you can use it without problems as it is for other models

There are many things that can hardly be expressed.

Since the dock situation is designed to be compliant with the standard and it dances, it happens with problems on the PC itself in most cases.

Regarding the USB-C product, there is no unification of the standards, and even if we examine returned goods in some cases, I do not think there will be any change even if I exchange a new one because there is no defective product.

As for USB-C, there is no reproducibility because it has problems for each PC model.

Although it is very regretful, if you can not keep compatibility with your PC in case you can not support it because it is not a problem with this model, please return it to Amazonn.

I'm sorry for troubling you.

Features:

• Please enter model number Confirm this is compatible:

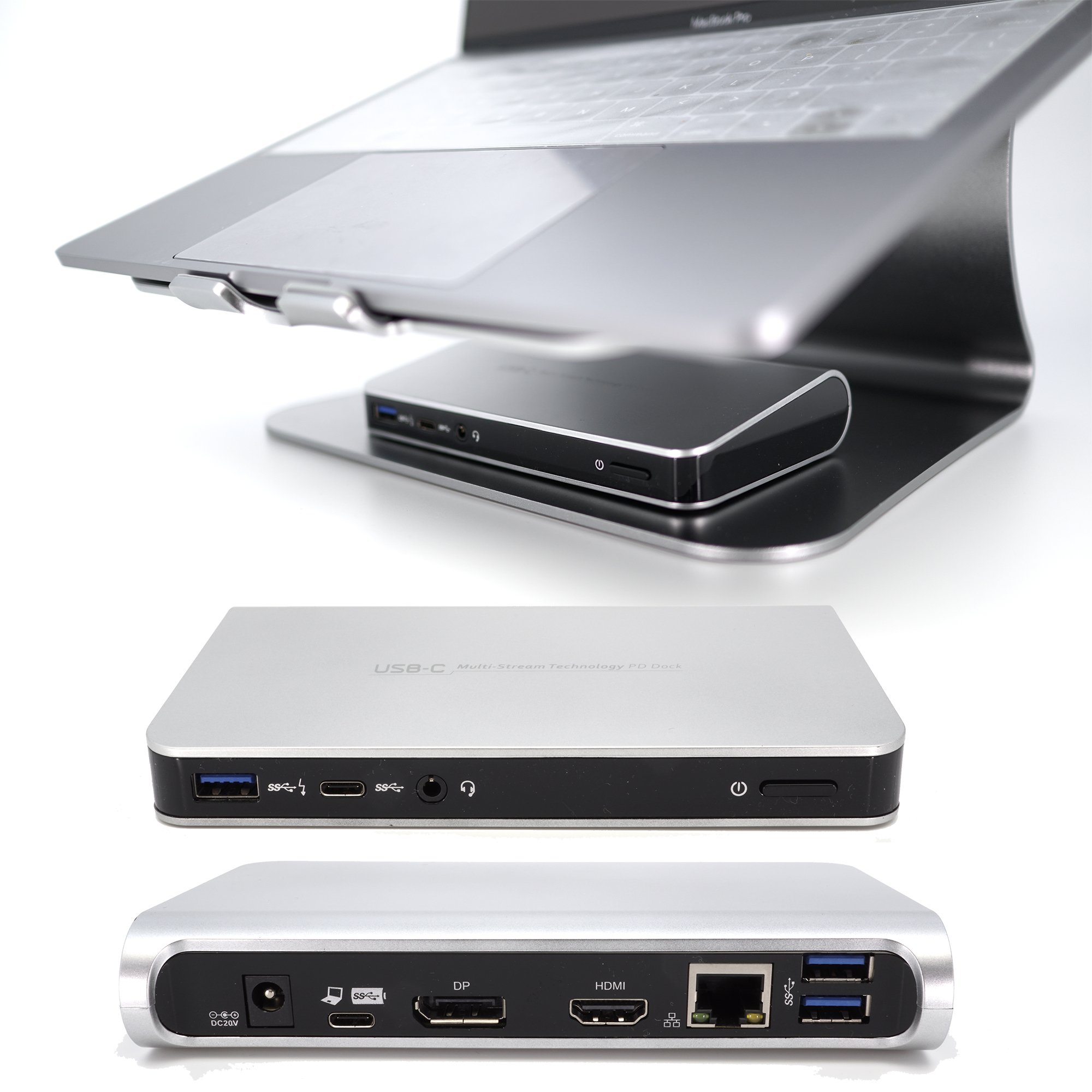

• USB - C PD DOCK connects more PC peripheral devices, Ethernet, Speaker, Mic, with one USB - C Cable.
• The connector of Thunderbolt 3 of MacBook Pro 13/15-inch 2016 is also Type-C compatible with lower order and can be used as it is.
• (10 Gbps)
• It adopts PD charging technology and charges connected PC by upstream charging function via USB - C interface.
• You can also use DP or HDMI for display connection, mirroring the primary screen and expanding the contents.
• With enhanced enhancements, this video dock is an accessory that is versatile for home use and office space use.
• Package Contents: USB - C MST PD Dock / USB - C Cable / Power Adapter, Please contact us within 15 days after confirming with your hand about initial failure.
• Please be assured we will correspond until the end.
• Please understand beforehand that the power supply cable will be a three-legged type with grounding in relation to PSE.
• We will update it on our website (micro-solution.com) as much as possible.

Product information:

Shipping Weight: 1047 g

Package Dimensions: 10.90 x 13.31 x 22.00 cm
