Item Descriptions:

color:

white

You can confirm that you see the situation of the same room in your own device, in different places with family sharing feature.

Security cameras are compatible with devices such as iOS / iPhone / Android.

[Add account]

You can add an account by pressing the "Share" button on the online screen.

If you have the same application "ShowMo" on family / friend's smartphone and the account of "ShowMo" has family / friend's account, family and friends will also see the real-time video of the surveillance camera

I can.

【Permission to install camera】

Accounts added in a form like a centralized user management system look like child system users.

When a child system user sees the image of the camera, it can respond to only voice conversation.

It is possible to delete or add child system users in the central system.

Recording sharing function In addition, you can operate only the central system for setting functions of other cameras.

Information on handling method - YouTube

A handling method movie about each product function.

https://youtu.be/QE-fU3Q72h8

FREDI official mail order site

https://www.fredicctv.com/

How to handle each product product The video can be seen on the official website.

Also, if you have any questions about the product, please contact the official website or contact the seller.

I can handle Japanese properly.

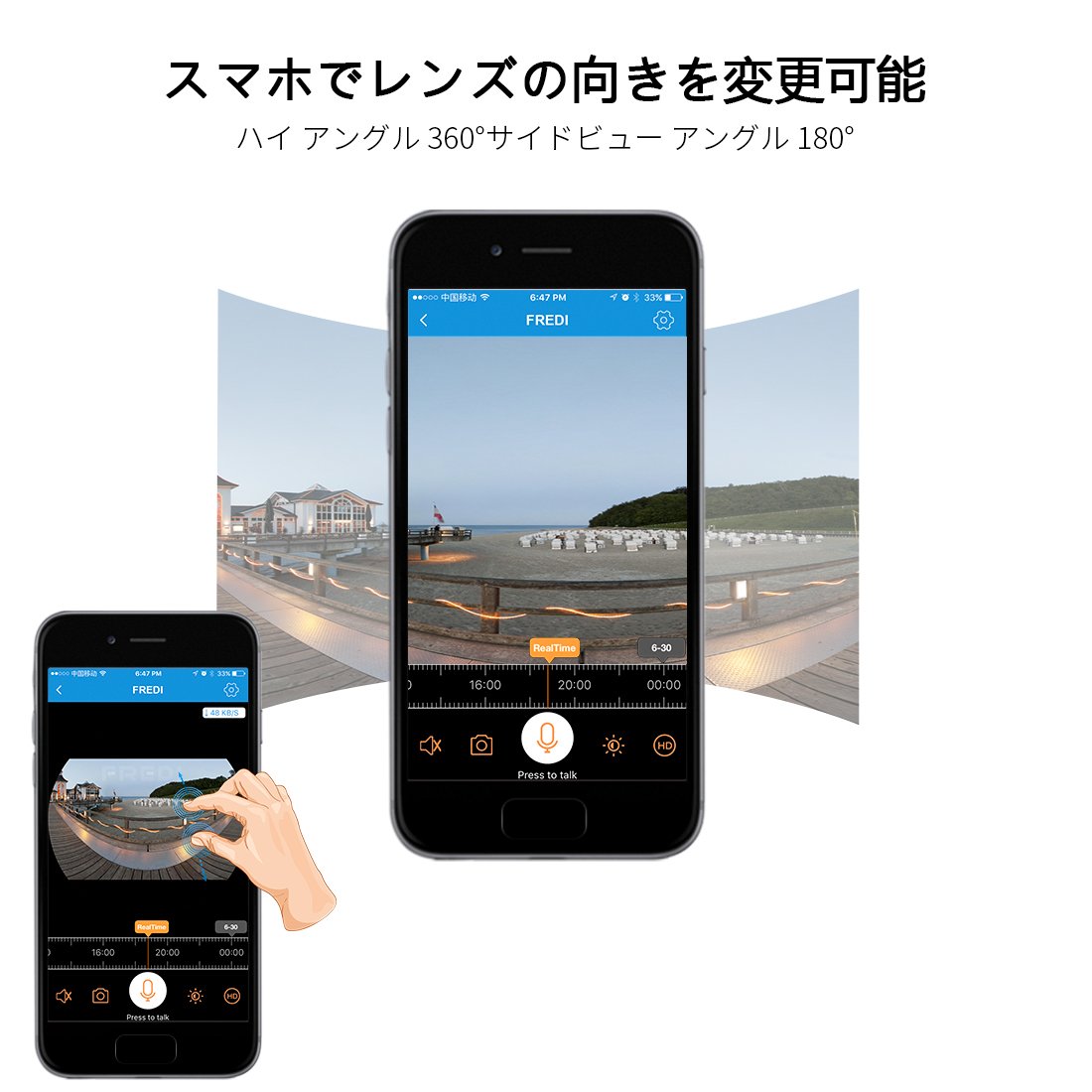

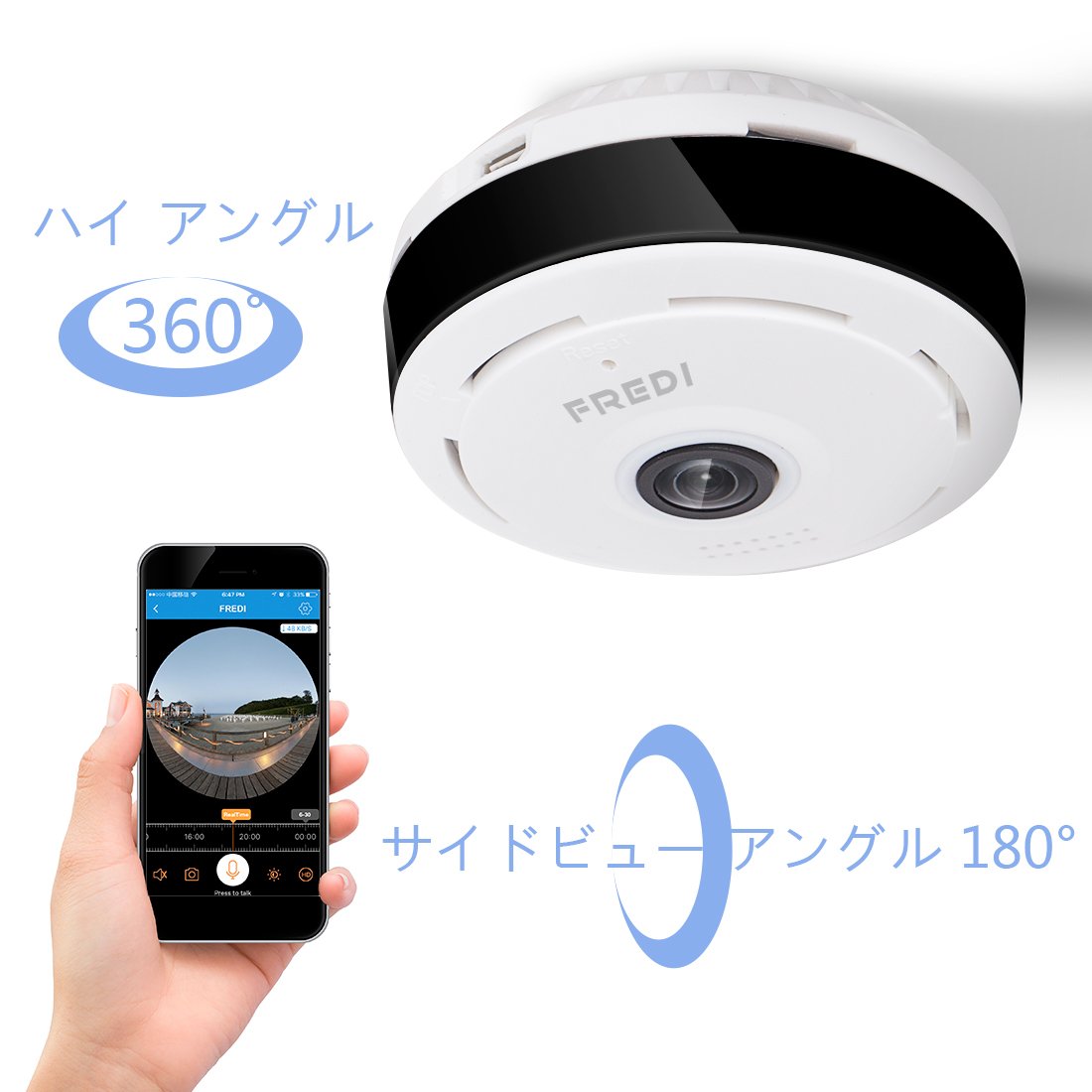

[Shooting angle adjustable]

Lens angle corresponds to high angle 360 ​​degrees, side view angle 180 degrees.

You can move the lens you want to see by moving the lens direction up, down, left, or right.

please note

★ The product only supports wireless LAN 2.4 GHz.

Please check the room's WiFi before using.

★ Be sure to delete the camera in the application before resetting the product.

Reset the camera with power on.

★ If you have any problem about the product, please do not hesitate to contact us.

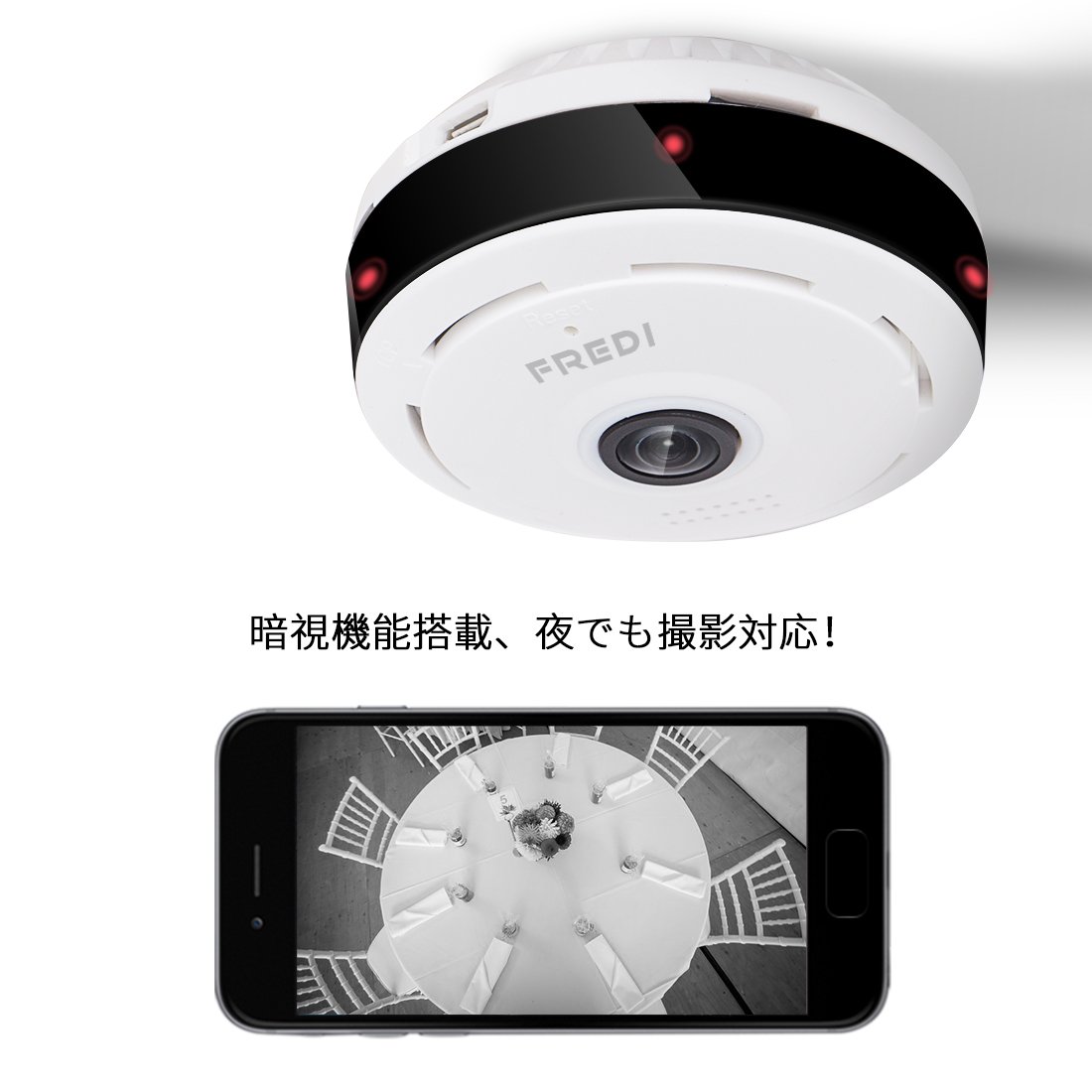

[Night vision function]

When it gets dark, it automatically starts the night vision function.

You can secure visibility at night and in dark places and shoot clear images.

[Motion detection function]

It is a setting to record only when there is motion within the specified range of the screen.

Recording records will be reduced, which will also save SD cards.

Also, with the message function installed, we will inform the smartphone side when motion is detected.

[Continuous recording (overwrite recording) / Loop recording]

When the capacity of the SD card becomes full, overwrite recording will be done from the old one.

By watching repeatedly rewritten cameras, you do not have to worry about insufficient space on the memory card.

[Two-way voice call function]

Built-in microphone and speaker, remote monitoring / operation is possible from the outside, two-way voice call correspondence.

Children, watching pets, nursing care of old parents, courier and going out while going out can be checked, so it is very convenient.

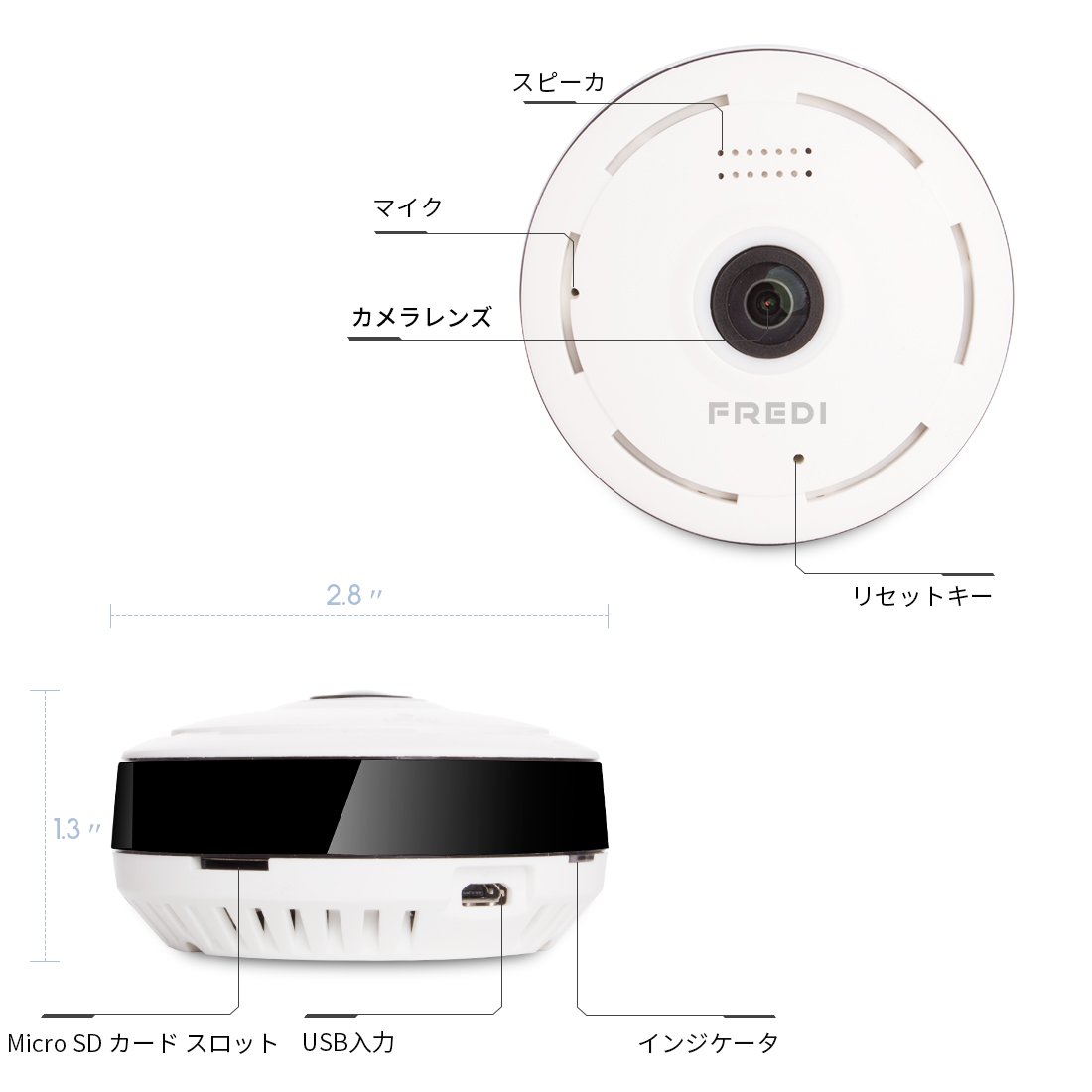

【Product Details 】

Model: EC6

CPU: GM 8135S + SC 1135

Sensor: 1/4 "progressive scan CMOS

Lens angle: 360 degrees

Resolution: 1280 * 960 (1.3 MP)

Video compression standard: H.264

Speech coding standard: G.711

Video frame rate: Max 25 fps

Video playback mode: Smartphone application

Voice input: microphone

Audio output: Speaker

Infrared irradiation device: IR LEDs

Infrared irradiation range: 10 m (IR-CUT can be switched automatically)

Focus adjustment: Manual

Supported memory: TF / Micro SD Card, supports up to 128 GB

Multiprotocol: TCP / UDP, IP, SMTP, FTP, DHCP, UPNP, NTP

WiFi: IEEE 802.11b / g / n

Remote monitoring: support

Motion detection: support

Power supply: DC-5V / 1A

Power consumption: <5 W

Operating environment Temperature: 0 - 60 ° C

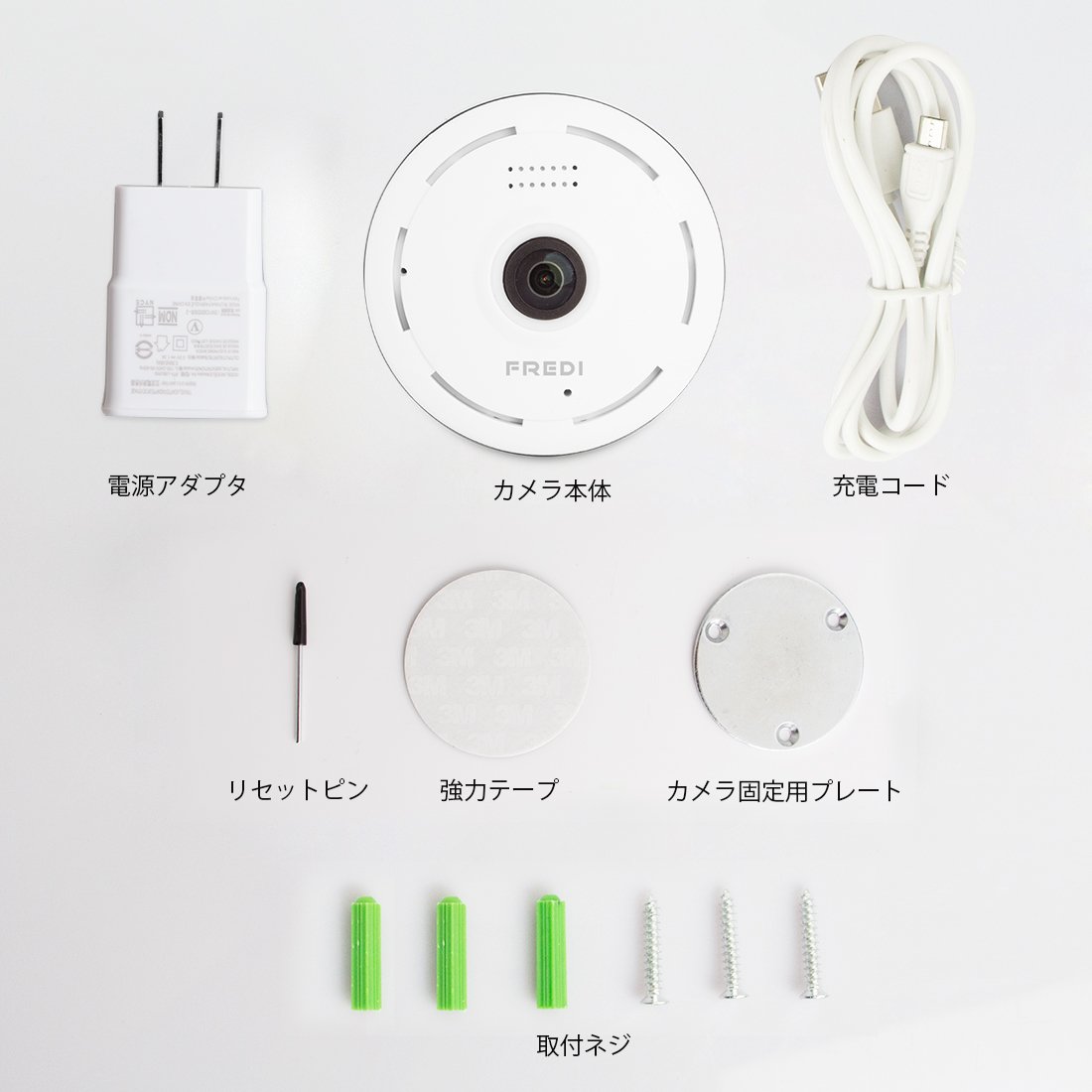

Accessories: Camera Body / Power Adapter / USB Cable / Instruction Manual

Features:

• Please enter model number Confirm this is compatible:
• Lens angle is high angle 360 ​​degrees, side view angle 180 degrees correspondence, wireless LAN can be easily connected from smartphone, smartphone can change the direction of security camera lens freely.
• (* WiFi 2.4 GHz is supported only)
• 960P (1.3MP) High image quality, can be monitored with clear video, and high quality recording is possible.
• Remote monitoring and operation on iPhone / Android smartphone can be confirmed clearly even with night black night shooting with night vision function.
• Built-in microphone, correspond to recording and two-way communication, can talk with family by going out, business trip, travel etc, watching children, watching pets, nursing care of old parents, courier and going out on the go, so very convenient
• is.
• Moving body function installation, alarm function installation is possible.
• When motion detection is detected, it will inform the smartphone side.
• You can easily check the indoor situation from the smartphone while you are out.
• Shot images and photos can be shared with family members.
• Pictures and videos can be easily shared with accounts registered with the same application.
• TF card supports up to 128 GB.

Product information:

Shipping Weight: 281 g

Package Dimensions: 6.81 x 9.19 x 14.20 cm
